Frigidaire FEF354CG Manuel utilisateur

PRODUCT NO. FACTORY NO. COLOR MARKET

FEF354CGSA 38354335C8011 WHITE U.S.A.

Publication No.

5995319679

990319

-EN/SERVICE/MG

377

ELECTRIC - RANGE

Model No.

FEF354CG

FACTORY PARTS CATALOG

ELECTRIC RANGE

WIRING DIAGRAM # -318045242

OWNERS GUIDE #-318153101

INSTALLATION INSTRUCTION #-318154300

FRIGIDAIRE HOME PRODUCTS

7075 ORDAN DRIVE

MISSISSAUGA, ONTARIO

CANADA L5T1K6

TEL :(905) 565-9200

03/99 2

Publication No. FEF354CG

5995319679 BACKGUARD

18A

LA9923CG10

# = Functional Part 303/99

* = Non-Illustrated Part

FEF354CG Publication No.

5995319679

POS. NO PART NO. DESCRIPTION

14 318044604 ALight-indicator, red

16 318117423 APlate, instrument mtg

18 318118300 AEnd Cap,white ,RH

18A 318118301 AEnd Cap,white ,LH

19 318117149 APanel-control white

20 # 318013010 AElectronic timer

21 318118000 ATrim-canopy white

24# 316005607 ASwitch-oven light, rocker type

36 318034801 AKnob-control

50 318146600 ANameplate,white

51 318075703 AInsert name plate

54 # 318120500 ASwitch-surface unit

64 318112200 ASpacer rocker switch

69 5303323134 AScrew,switch mtg. ,8-32 x 3/16

86 318111201 APlate-connecting

93# 3202388 ASwtich-thermal/ Interrupteur

98 318092405 A Wiring harness

* 5303211311 AScrew,#8 x ½

*08016432 AScrew truss head, 8-18 x 3/8

*5303310510 AScrew 10-24 x 5/8

*5303320848 A Screw, 6-20 X 1/4

* 5303300265 AScrew,8-18 X ½

*3201885 ANut

*5303308449 AFastener

BACKGUARD

A= FEF354CG (FEF354CGSA)

03/99 4

Publication No. FEF354CG

5995319679 BODY

170

170A

54 15

166

165

183

182

86 86

58A

58B

127

LA9923CV10

141

171

184

162

163 12

99 16

129

128

# = Functional Part 503/99

* = Non-Illustrated Part

FEF354CG Publication No.

5995319679

POS. NO PART NO DESCRIPTION

1 318108100 ABack-main

3 318025601 APanel-bodyside,white

4318073801 ABurner box

5 318175500 AScrew-levelling

6 5303310522 ARack-oven

9 5303317977 APan-broiler

10 5303317976 AInsert-broiler pan

11 318086100 ABracket-light switch

12 # 318089800 ASwitch-door

14 5308011085 ASocket-light/lamp

15 3201908 ALamp-oven light

16 3201911 AGlass-oven light lens

17 5304400195 ARetainer lens

25 318108700 AShield-heat lower

30 318110800 ABracket-hinge, main top

37 # 316111203 AProbe-oven temp

54 5303310514 AHousing-oven light

57 318036500 ACover-access

58A 5303324419 AInsulation,oven wrapper

58B 5303324420 AInsulation,oven back

59 318072517 ATube oven vent

62 # 5303310518 ATerminal Block

63 5303310517 APlate-ground strap

66 # 5303310513 AElement-broil

67 # 5303310512 AElement-bake

68 5304403015 ASupport-element

70 318116401 APanel baffle bodyside

71 318086600 AShield wire

74 318141900 ABumpe bodyside

76 318108502 AFrame-front, wheels incl

80 5303324473 ABracket-oven

83 318109405 ALiner-oven assy

86 5303310524 AChannel-hinge

88 318118902 ARod-latch

89 # 318095900 AMotor-latch assy

89* 318120702 ASwitch latch

89* 318120704 ASwitch latch

99 318116500 APanel deflector bodyside

127 5303310542 AAdapter assy

128 5303311163 ABushing

129 5303311164 ASpring

141# 5303302280 AThermostat-safety

162 318096401 AConnection box

163 318135802 ACover connection box

165 318003100 AShield-plate

166 318111000 ASupport base

170 3203575 AAnti-tip bracket

170A 3203576 AAnti-tip bracket

171 318111202 APlate-connecting

176 3201885 ANut

182 316042300 APlate-warning

183 5303323140 AScrew ground

184 5303323144 ANut (10-32)

*5303211311 AScrew, #8 x ½

*5303307980 AScrew, 8-32 x 7/16

*5303300265 AScrew, 8-18 x ½

* 5303131801 AScrew,10 x 3/8

*5303308449 A Fastener

*5303317175 AScrew, 8-18 x ½ white

*5303320848 AScrew, 6-20 X ¼

BODY

A= FEF354CG (FEF354CGSA)

03/99 6

Publication No. FEF354CG

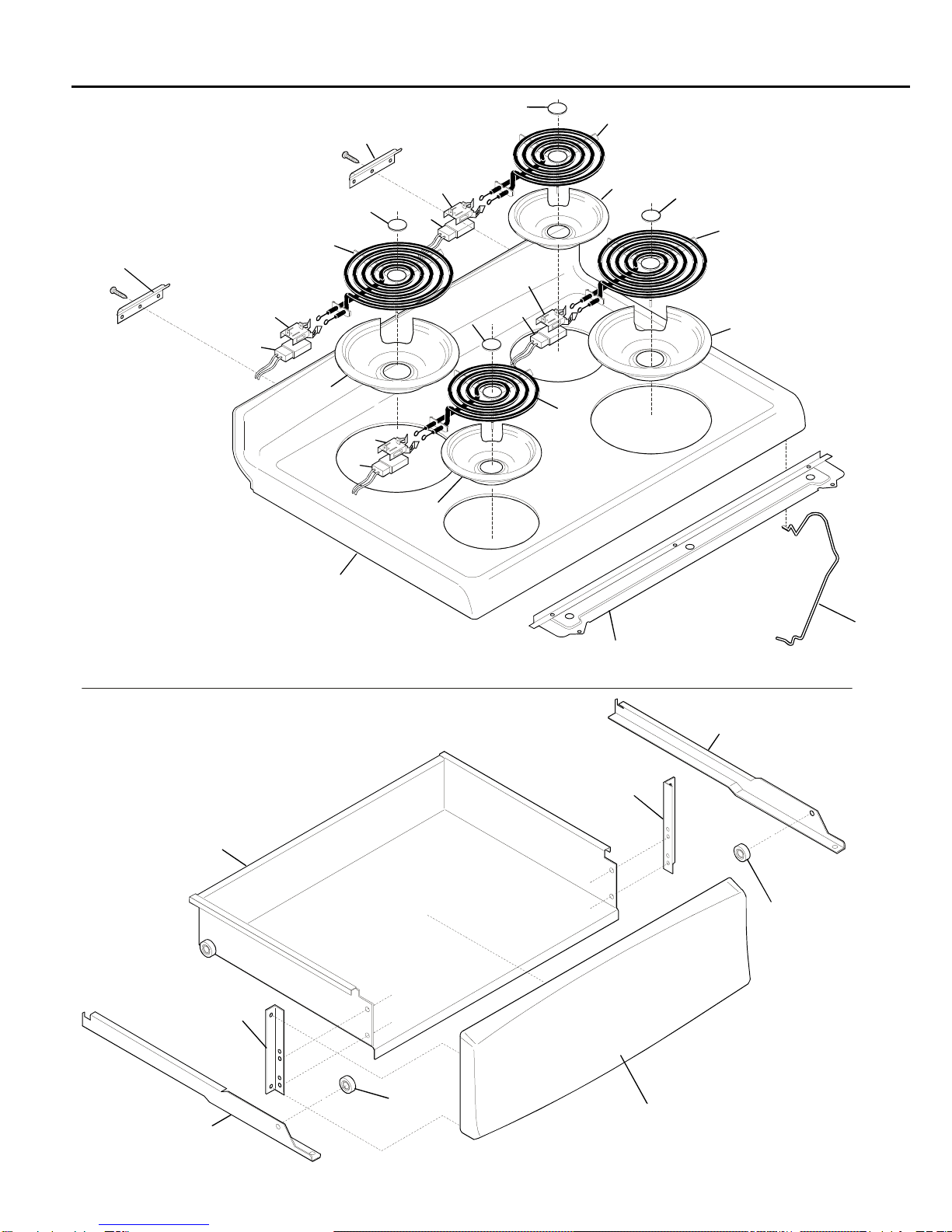

5995319679 TOP/DRAWER

19A

15B

28 27

93 28

15A

19A

LA9923CT02

13A

# = Functional Part 703/99

* = Non-Illustrated Part

FEF354CG Publication No.

5995319679

POS. NO PART NO DESCRIPTION

1 318107103 ADrawer-utility

3 318144301 ASupport,main top

4 318044301 APanel-drawer,white

7318014800 ASpacer

11 318107500 ABracket-support,drawer

13 318018100 AChannel-drawer,RH

13A 318018101 AChannel-drawer,LH

15 # 5303309001 AElement-surface,2600W

15A# 5303324485 AElement-surface,1100W

15B# 5303309000 AElement-surface, 1500W

16 318065702 AMaintop, white

17 318119100 ARod-maintop support

18 318074400 AHinge-main top,

19 318067201 APan-burner large

19A 318067200 APan-burner small

27# 5303323704 ATerminal block

28 5303309002 AMedaillon surface element

93 318122501 ABracket-terminal block

*3201885 ANut

*5303211311 AScrew, #8 X 1/2

*5303320848 AScrew, 6-20 X ¼

TOP/DRAWER

A= FEF354CG (FEF354CGSA)

03/99 8

Publication No. FEF354CG

5995319679 DOOR

29 54

LA23CD001

# = Functional Part 903/99

* = Non-Illustrated Part

FEF354CG Publication No.

5995319679

POS. NO PART NO DESCRIPTION

1 318043100 ABracket-trim, handle

3 318049202 ATrim-oven, white

3A 318028900 ATrim-oven door,upper

3B 318049020 ATrim-oven door,white ,upper

4318041107 AGlass-oven door,white outer

6 5303311192 AShield-wool

7 5303310532 AInsulation-door

7A 5303311150 AInsulation oven door

9 318112906 ALiner-oven door

10 5303324305 AScrew,10-24 x 5/8

12 318053103 ASeal-oven door

16 5303310533 AGlass-oven door, heat barrier

17 318139000 ASpacer-glass

18 5303310531 ASeal-rope

20 318014301 ASpacer-handle, white

22 5303310511 ARetainer-glass

23 318024700 AHinge

29 5303310535 ABumper door

31 5303310536 ALatch-door

39 316091119 AHandle-door, white

42 5303311194 ATrim-oven door, white, lower

54 5303317175 AScrew,8-18 X 1/2 ,white

*5303300265 AScrew, 8-18 x ½

* 5303211311 AScrew,#8 x 1/2

* 5303307980 AScrew,8-32 x 7/16

*08016432 AScrew truss head 8-18 x 3/8

*3201899 AWasher hinge assy

DOOR

A= FEF354CG (FEF354CGSA)

03/99 10

Publication No. FEF354CG

5995319679 WIRING DIAGRAM
