Frigidaire FGEF3077K W/B Manuel utilisateur

frigidaire.com

Signature Features

Product Dimensions

Height (Max.) 47-1/2"

Width 29-7/8"

Depth (Including Handle) 28-1/2"

More Easy-To-Use Features

Express-Select® Controls

Easily go from warm to boil with

just a touch.

One-Touch Options

Our ovens feature easy-to-use one-touch

buttons so you can cook pizza or chicken

nuggets — or even add a minute to the

timer — with the touch of a button.

SpaceWise® Half Rack

Flexible rack system that adjusts to cook

multiple dishes at once. Remove the

half rack and you’ll have extra height for

tall dishes.

Fits-More™ Cooktop

The Fits-More™ cooktop features five

elements so you can cook more at once.

Keep Warm Drawer

A place to keep food warm until

everything — and everyone — is ready.

Eortless™ Oven Rack

Bottom rack extends when you open

the door for easy access.

Eortless™ Convection

Takes the guesswork out of convection

cooking — our oven does the converting

for you.

Sabbath Mode (Star-K® Certiﬁed)

Available in:

White

(W)

Black

(B)

1Based on single rack cooking performance,

not set temperature, using Quick Preheat.

Does not include preheat time.

Quick Boil

Boils water faster.

Fits-More™ Oven

A unique rack configuration creates

more cooking space.

Quick Preheat

Preheat in less than six minutes.

True Convection

With True Convection, you can easily

and evenly bake 200 chicken nuggets

in 10 minutes.

Elements

Right Front

Right Rear

Left Front

Left Rear

Center

Size

6" / 9"/ 12"

Expandable

6" / 9"

Expandable

Keep Warm

Zone

Watts

1,000 / 2,000 /

2,700

1,200

1,200 /3,000

1,200

100

30" Electric

Freestanding Ranges

FGEF3077K W/ B

Specifications

subject to change.

Accessories information available

on the web at frigidaire.com

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

Freestanding Ranges

FGEF3077K W/ B 30" Electric

30" Electric Freestanding Ranges

Frigidaire Baseline

36"

(Adjustable)

NOTE: For planning purposes only. Always consult local and national electric codes.

Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.

Cutout Dimensions

Height (Standard)

Width (Min.)

Depth (Min.)

36"

30"

24"

Product Dimensions

A - Height (Max.)

B - Width

C - Depth (Including Handle)

Depth with Door Open 90˚

47-1/2"

29-7/8"

28-1/2"

48-3/8"

Features

Oven Control / Timing System

Surface Type

Window

Exterior Door Finish

Handle Design

Exterior Finish (Side Panels)

Convection System

Oven Cleaning System

Drawer Functionality

Oven Controls

Bake / Broil

Eortless™ Convection Conversion

Convection Bake / Broil / Roast

Quick Bake Convection

Quick Preheat

My Favorite

Chicken Nugget Button

Pizza Button

Keep Warm

Add-a-Minute

Delay Bake

Self Clean

Quick Clean Option

Delay Clean

Kitchen Timer / Timed Cook Option

Auto Oven Shuto

Lower Drawe r Control

Cooktop Features

Right Front Element (Watts)

Right Rear Element (Watts)

Left Front Element (Watts)

Left Rear Element (Watts)

Bridge Element (Watts)

Center Element (Watts)

Oven Features

Capacity (Cu. Ft.)

Oven Light

Hidden Bake Element

Rack Conﬁguration

Baking System

Broiling System

Bake Element / Broil Element (Watts)

Drawer Racks

Certiﬁcations

Sabbath Mode (Star-K® Cert.)

Speciﬁcations

Oven Interior ( H x W x D )

Power Supply Connection Location

Voltage Rating

Connected Load (kW Rating)

@ 240 / 208 Volts

Minimum Circuit Required (Amps)

Shipping Weight (Approx.)

Express-Select® Controls

Color-C. Ceramic Glass

Wide-View

Color-Coordinated

Stainless Steel

Color-Coordinated

True Convection

Self Clean

Warmer

Yes / Variable

(400 - 500 °F)

Yes

Yes / No / Yes

Yes

2, 3, 4 Hours

Yes / Yes

6 Hours

Warmer,

Low-Med-High

SpaceWise® Expandable

6"/ 9"/ 12" –

1,000 / 2,000 / 2,700

6" – 1,200

SpaceWise® Expandable

6" / 9" – 1,200 / 3,000

6" – 1,200

Keep Warm Zone – 100

6.0

Yes

1 Heavy-Duty,

1 SpaceWise® Half Rack,

1 Eortless™, 1 Deep-Sump

Even Baking Technology

Power Broil

3,500 / 3,900

1 Rack

Yes

22-1/4" x 24-3/8" x 19-1/8"

Middle Bottom Rear

240V / 208V / 60 Hz

13.5 / 10.0

210 Lbs.

Specifications

subject to change.

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

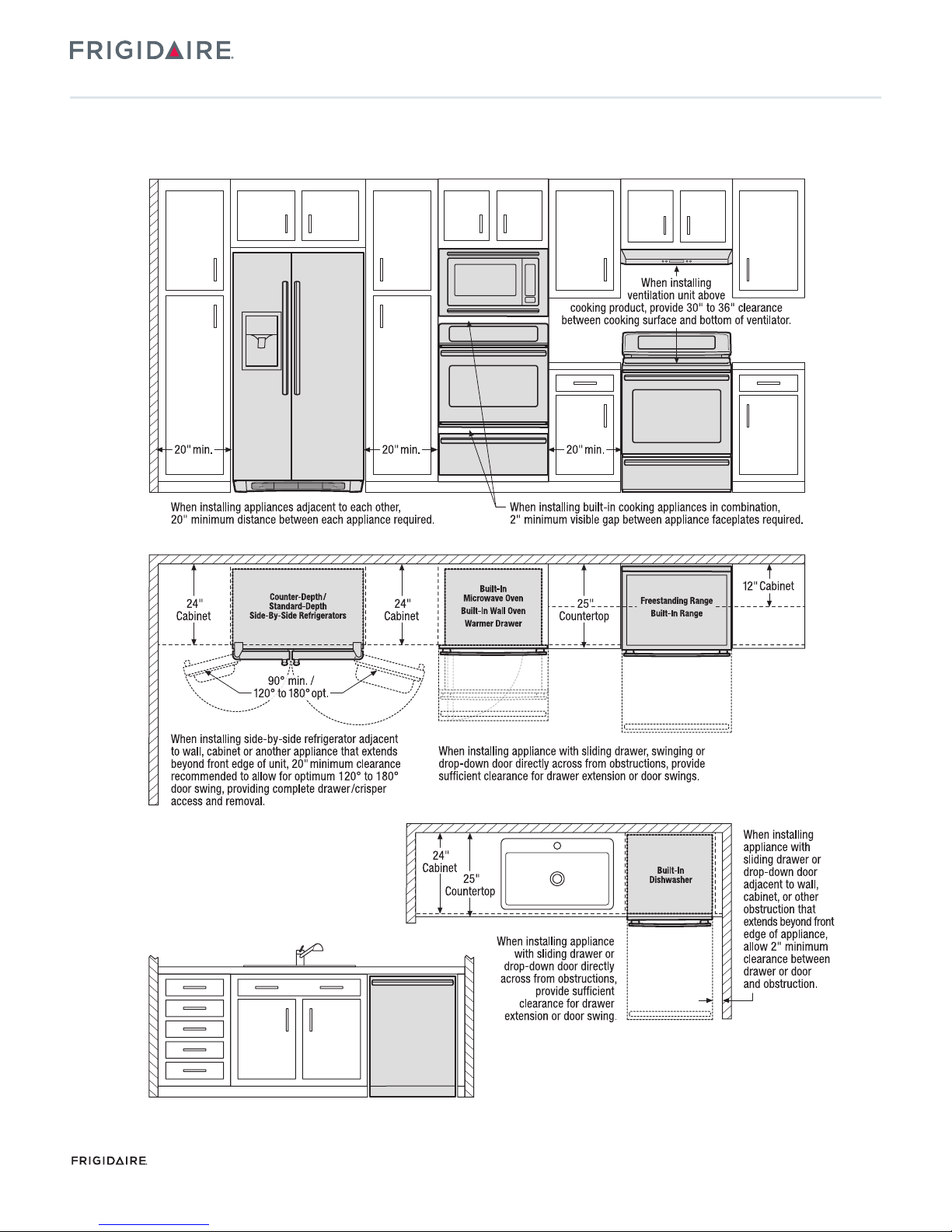

General Installation Guidelines

with Side-by-Side Refrigerator

Top

Use these dimensions and clearance instructions for planning purposes only. For detailed installation

instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.

Front

Top

Front

Specifications

subject to change.

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

Use these dimensions and clearance instructions for planning purposes only. For detailed installation

instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.

Front

Top

Front

Top

General Installation Guidelines

with Top Mount Refrigerator
