Frigidaire FEF336WHSA Manuel utilisateur

FACTORY PARTS CATALOG

ELECTRIC RANGE

P.O. Box 212378

Augusta, Georgia 30917

PRODUCT NO. BASE MODEL NO. COLOR MARKET

FEF336WHSA FEF336WH WHITE/WHITE USA

FEF336WHSB FEF336WH WHITE/WHITE USA

Publication No.

5995322756

990511

-EN/SERVICE /SBR

369

WIRING DIAGRAM # - 316002660

OWNER’S GUIDE # - 316000273,316000290

INSTALLATION GUIDE # - 316003025 ELECTRIC - RANGE

FEF336WHSA,

FEF336WHSB

07/98 2

Publication number

5995322756 FEF336WHSA, FEF336WHSB

CAUTION: Use the part number on all orders, not the position number.

BACKGUARD

# - Fast Moving Parts

* - Non Illustrated Parts 3 6/98

Publication number

FEF336WHSA, FEF336WHSB 5995322756

CAUTION: Use the part number on all orders, not the position number.

BACKGUARD

A = FEF336WH (FEF336WHSA)

B = FEF336WH (FEF336WHSB)

POS. NO PART NO DESCRIPTION

* 316000273 A - Owner’s Guide

* 316000290 - B Owner’s Guide

* 316002660 A B Wiring Diagram

* 316003025 A B Installation Instructions

* 316021108 A B Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

* 316021110 A B Screw-8-18x1/2 Tr Sqd black

* 316112500 A B Template, Anti-tip bracket

* 5303292005 A B Screw-switch/handle,8-32 x 5/32

1 316081601 A B Shield-backguard,rear wall

2 316015905 A B Shield-backguard,inner

11 316083721 A B Trim-wrapper,, textured , white

12 # 316032405 A B Thermostat, oven non sc

13 # 316032500 A B Switch-selector

14 316022504 A B Light-indicator,250v

15 316023108 A B Support-backguard,RH

15A 316023109 A B Support-backguard,LH

19 316100546 A B Panel-backguard control,white

20* 316098001 A - Overlay-clock

20* 316098008 - B Overlay-clock, white

20# 316113300 A - Clock-timer

20# 316120500 - B Clock-timer

23 316033204 A B Bracket-timer

24# 316118101 A B Switch-rocker,oven light ,white

31 316109603 A B Knob-selector,white

32 316109601 A B Knob-thermostat white

36 316025106 A B Knob-control,infinite sw ,white

40 316025808 A B Panel-manifold,white

46 316040201 A B Lens-light/lamp,indicator ,red

54 # 316021500 A B Switch-infinite, 6" element

54A# 316021501 A B Switch-infinite, 8" element

69 5303292005 A B Screw-switch mounting

07/98 4

Publication number

5995322756 FEF336WHSA, FEF336WHSB

CAUTION: Use the part number on all orders, not the position number.

BODY

# - Fast Moving Parts

* - Non Illustrated Parts 5 07/98

Publication number

FEF336WHSA, FEF336WHSB 5995322756

CAUTION: Use the part number on all orders, not the position number.

BODY

A = FEF336WH (FEF336WHSA)

B = FEF336WH (FEF336WHSB)

POS. NO PART NO DESCRIPTION

* 3203550 A B Plug-button

* 316021108 A B Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

* 316045000 A B Clip-wire,harness ,main top

* 5303051099 A B Nut,hex ,#10-32

1 316080804 A B Back-main, short,dipped ,black

3 316081034 A B Panel-bodyside, white ,RH

3 316081035 A B Panel-bodyside, white , LH

5 316107300 A B Screw-leveling

6 316067902 A B Rack-oven

7 316007003 A B Hinge-oven door,assembly

8 3203540 A B Panel-oven bottom

9 316081900 A B Pan-broiler

10 316082000 A B Insert-broiler pan

14 316116400 A B Socket-light

15 5303013071 A B Light Bulb/Lamp

21 3014099 A B Spacer-bodyside, (8)

27 5303284616 A B Clip-thermo bulb

29 3051162 A B Glide-drawer,front

30 5303283574 A B Bracket-hinge,main top RH

30A 5303283575 A B Bracket-hinge,main top LH

41 3131570 A B Cover-hinge cutout

45 316066100 A B Shield-wire, s/t vent

57 316081101 A B Cover-access

58 3200847 A B Insulation,oven bottom

58A 316047707 A B Insulation, 1" ,oven wrapper

58B 316054202 A B Insulation, 1" ,oven back

59 316073603 A B Tube-oven vent

59A 316023601 A B Tube-oven vent,upper

59B 316040100 A B Bracket-mounting,vent tube

62 # 5303935061 A B Terminal Block

63 5301145190 A B Plate-ground strap

66 # 5303051140 A B Element-broil

67 # 316075103 A B Element-bake,lower oven

68 316075300 A B Support-element, broil

71 316015805 A B Shield-rear wall

82 5303289913 A B Shield-insulation

87 316081200 A B Bracket-cable mtg

170 316107200 A B Anti-tip bracket

170* 316116000 A B Screw-Anti tip, 1.75" concrete

07/98 6

Publication number

5995322756 FEF336WHSA, FEF336WHSB

CAUTION: Use the part number on all orders, not the position number.

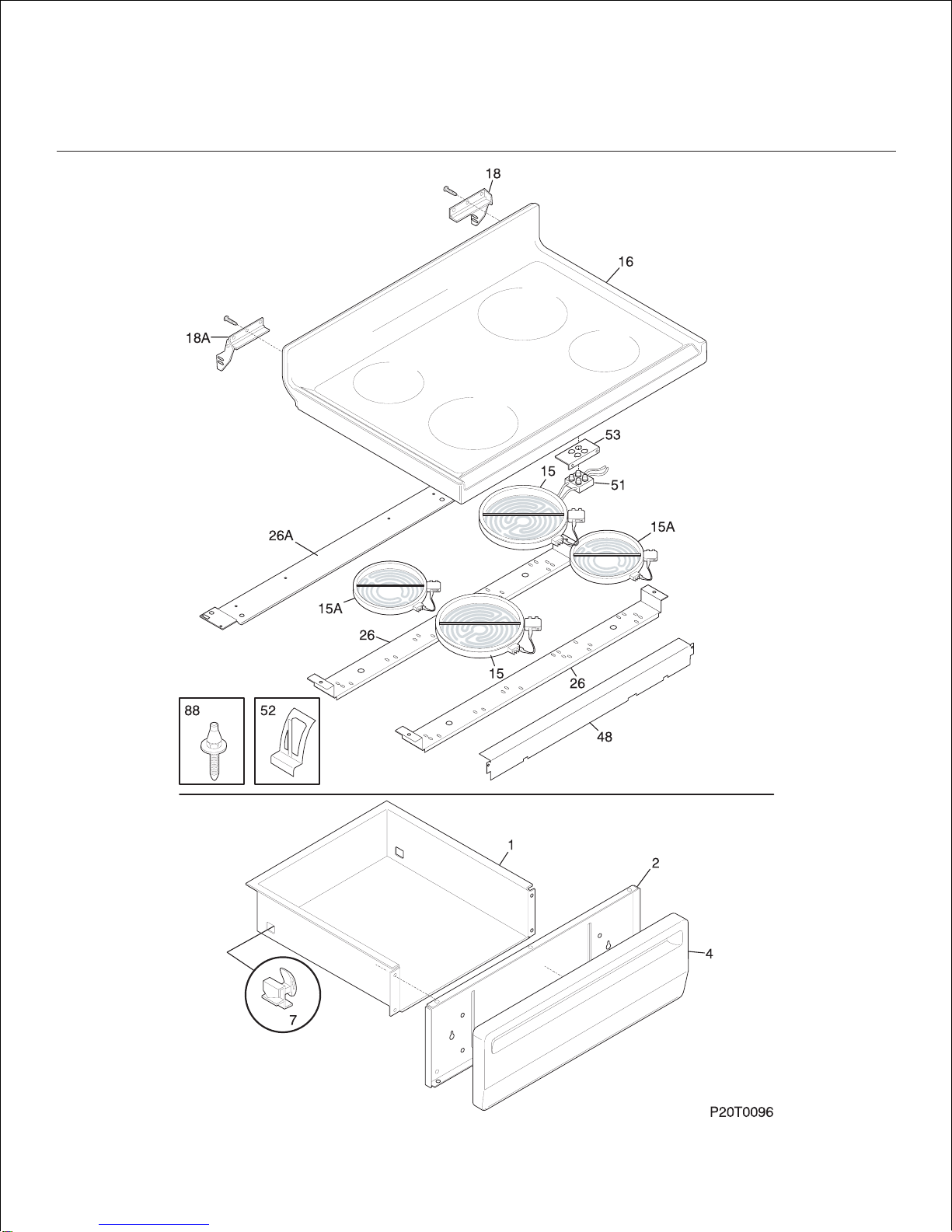

TOP/DRAWER

# - Fast Moving Parts

* - Non Illustrated Parts 7 07/98

Type your model numbers here

CAUTION: Use the Kenmore part number on all orders, not the position number.

TOP/DRAWER

A = FEF336WH (FEF336WHSA)

B = FEF336WH (FEF336WHSB)

POS. NO PART NO DESCRIPTION

* 316021108 A B Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

* 316021110 A B Screw-8-18x1/2 Tr Sqd black

* 316021112 A B Screw-8-18x1/2 Tr Sqd White

* 316045000 A B Clip-wire,harness ,main top

* 316089600 A B Spacer-drawer,(2)

* 316112101 A B Cleaner-cooktop

* 5303280311 A B Screw, waf hd sdr , 10-32 x 5/16 , (2)

1 316011501 A B Drawer-utility

2 3131975 A B Shield-panel

4 316084405 A B Panel-drawer,white

7 3051163 A B Glide-drawer,rear

15 # 316010204 A B Element-surface,radiant , large/8 inch ,

2100W,limit sw incl

15A# 316010203 A B Element-surface,radiant , small/6 inch ,

1200W,limit sw incl

16 316098105 A B Main Top,white

18 5303273062 A B Hinge-main top,RH

18A 5303273063 A B Hinge-main top,LH

26 316099101 A B Channel-support, element , (2)

26A 316099201 A B Bracket-support, chassis

48 316100200 A B Shield-wire,main top

51 316105100 A B Indicator light

52 316099400 A B Clip-spring, element mtg,(8)

53 316099300 A B Bracket-indicator light,hot surface ,

4 hole

88 316099500 A B Pin-guide, (2)

07/98 8

Publication number

5995322756 FEF336WHSA, FEF336WHSB

CAUTION: Use the part number on all orders, not the position number.

DOOR

# - Fast Moving Parts

* - Non Illustrated Parts 9 07/98

Publication number

FEF336WHSA, FEF336WHSB 5995322756

CAUTION: Use the part number on all orders, not the position number.

DOOR

A = FEF336WH (FEF336WHSA)

B = FEF336WH (FEF336WHSB)

POS. NO PART NO DESCRIPTION

* 316021110 A B Screw-8-18x1/2 Tr Sqd black

* 5303271648 A B Screw, wafer hd sq dr , 8-18AB x 1/2

* 5303280311 A B Screw, waf hd sdr , 10-32 x 5/16 , (2)

* 5303292005 A B Screw-switch/handle,8-32 x 5/32

* 316071608 A B Label, anti-tip

5 316050300 A B Glass-oven door, white , outer

6 316088403 A B Shield-wool

7 316076401 A B Insulation,oven door

8 316088600 A B Glass-oven door,inner

9 316066610 A B Liner-oven door

10 5303280308 A B Screw-handle mtg,wafer head ,10-24T x 2

12 5303202011 A B Seal-oven door,non self-clean

13 3017081 A B Panel-oven door,white

20 318014301 A B Spacer-handle,white ,(2)

22 5303272476 A B Retainer-glass,(2) ,angle

39 316091115 A B Handle-door,white ,oven

39* 316008401 A B Washer,3/4 x 1/4 ,steel

07/98 10

Publication number

5995322756 FEF336WHSA, FEF336WHSB

CAUTION: Use the part number on all orders, not the position number.

WIRING DIAGRAM
