Frigidaire GLEB27M9F Manuel utilisateur

GLEB27M9F.tif CGLEB27M9ESA.eps MGLEB27M9ESA.eps BGLEB30M9ESB.eps

DGLEB27M9FSA.eps 318046238.eps

Product No. GLEB27M9FBA GLEB27M9FQA GLEB27M9FSA

39256761G6061 39256761G6041 39256761G6011

Series 27" elec 27" elec 27" elec

Color black bisque white

Market North America North America North America

Wiring Diagram 318046238 318046238 318046238

Owner's Guide 318200941 318200941 318200941

Installation Instructions 318201521 318201521 318201521

Service Data Sheet 318047418 318047418 318047418

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995475125

06/09/27

(EN/SERVICE/ECL)

377

MICROWAVE/ WALL

OVEN COMBO

Model No.

GLEB27M9F

Publication No: 5995475125 GLEB27M9F

09/06 2

CONTROL PANEL

GLEB27M9F Publication No: 5995475125

# Functional Parts 3 09/06

* Non-Illustrated Parts

CONTROL PANEL

Model Index: AGLEB27M9F (GLEB27M9FSA)

BGLEB27M9F (GLEB27M9FBA)

CGLEB27M9F (GLEB27M9FQA)

POS. NO PART NO. DESCRIPTION

1 318331301 A - - Control Panel Assembly, glass, white, w/touch pad

1 318331300 - B - Control Panel Assembly, glass, black, w/touch pad

1 318331302 - - C Control Panel Assembly, glass, bisque, w/touch pad

2 # 316418721 A B C Clock/Timer, electronic, ES510W1

3 318295703 A B C Deflector, timer

16 # 5304440820 A B C Control Board, printed circuit

17 5304442127 A - - Frame, control panel, white

17 5304440821 - B - Frame, control panel, black

17 5304440823 - - C Frame, control panel, bisque

18 # 5304452254 A - - Switch Assy, touch control, white, w/touch pad

18 # 5304440824 - B - Switch Assy, touch control, black

18 # 5304440826 - - C Switch Assy, touch control, bisque

19 5304442133 A - - Push Button, door opener, white

19 5304440827 - B - Push Button, door opener, black

19 5304440829 - - C Push Button, door opener, bisque

20 5304442134 A B C Spring, button

21 5304440282 A B C Screw, control board, 3mm x 10mm

22 5304440832 A B C Connector, rubber, control board

23 5304440833 A B C Panel, touch pad mount

24 # 5304440834 A B C LED Sheet, backlight

25 # 5304440835 A B C LCD, display

26 5304440836 A B C Bracket, PCB support

* 5303211311 A B C Screw, 8 x 0.500

Publication No: 5995475125 GLEB27M9F

09/06 4

MICROWAVE

GLEB27M9F Publication No: 5995475125

# Functional Parts 5 09/06

* Non-Illustrated Parts

MICROWAVE

Model Index: AGLEB27M9F (GLEB27M9FSA)

BGLEB27M9F (GLEB27M9FBA)

CGLEB27M9F (GLEB27M9FQA)

POS. NO PART NO. DESCRIPTION

1 5304440777 A B C Capacitor, high voltage

2 # 5304440778 A B C Rectifier, high voltage

3 # 5304440779 A B C Lamp Assy, with socket

4 # 5304448490 A B C Motor, cooling fan

5 # 5303319559 A B C Switch, monitor, w/ceramic fuse

6 # 5304440026 A B C Switch, interlock, door sensor

7 # 5304440780 A B C Fuse, cavity temp, 20 Amp, 250 V

8 # 5304440781 A B C Magnetron

9 # 5304448832 A B C Motor, turntable

10 # 5304440783 A B C Transformer, power

11 # 5304440784 A B C Power Cord, electric

12 # 5304440785 A B C Sensor, humidity, cook control

13 5304440814 A B C Base, unit chassis

14 5304442125 A B C Insert, threaded, (4)

15 5304440817 A - - Cabinet, outer casing, white

15 5304440816 - B - Cabinet, outer casing, black

15 5304440818 - - C Cabinet, outer casing, bisque

28 5304440838 A B C Retainer, capacitor strap

29 5304440839 A B C Bracket, chassis support

30 5304440840 A B C Latch Hook

31 5304440841 A B C Lever, door release

32 5304442135 A B C Duct, magnetron

33 # 5304440843 A B C Fan Blade, cooling fan

34 5304440844 A B C Duct, cooling fan

36 5304440845 A B C Cover, waveguide

37 5304440288 A B C Bushing, motor shaft, turntable

38 5304441909 A B C Cushion, base plate pad

39 5304440847 A B C Duct, AH sensor

40 5304441910 A B C Cushion, magnetron pad

52 5304452260 A B C Wiring Harness, main

53 5304440284 A B C Support Assy, turntable

54 5304440868 A B C Tray, turntable, glass

55 5304440334 A B C Label, Caution-monitor

56 5304440333 A B C Label, Caution-DHHS

58 # 5304440870 A B C Wire, high voltage-A

59 5303319636 A B C Screw

60 5303319641 A B C Screw

61 5304440871 A B C Screw, 4mm x 12mm, ground

62 5304440340 A B C Screw, 4mm x 12mm

62 5304452261 A B C Screw, outer casing

63 5303319633 A B C Screw, 3mm x 8mm

64 5304440872 A B C Screw, 4mm x 8mm

65 5304440873 A B C Screw, torx head, tamper proof

66 5304440874 A B C Screw

67 # 5304451818 A B C Filter, noise, electronic

68 5303322975 A B C Bracket, noise filter, angle

Publication No: 5995475125 GLEB27M9F

09/06 6

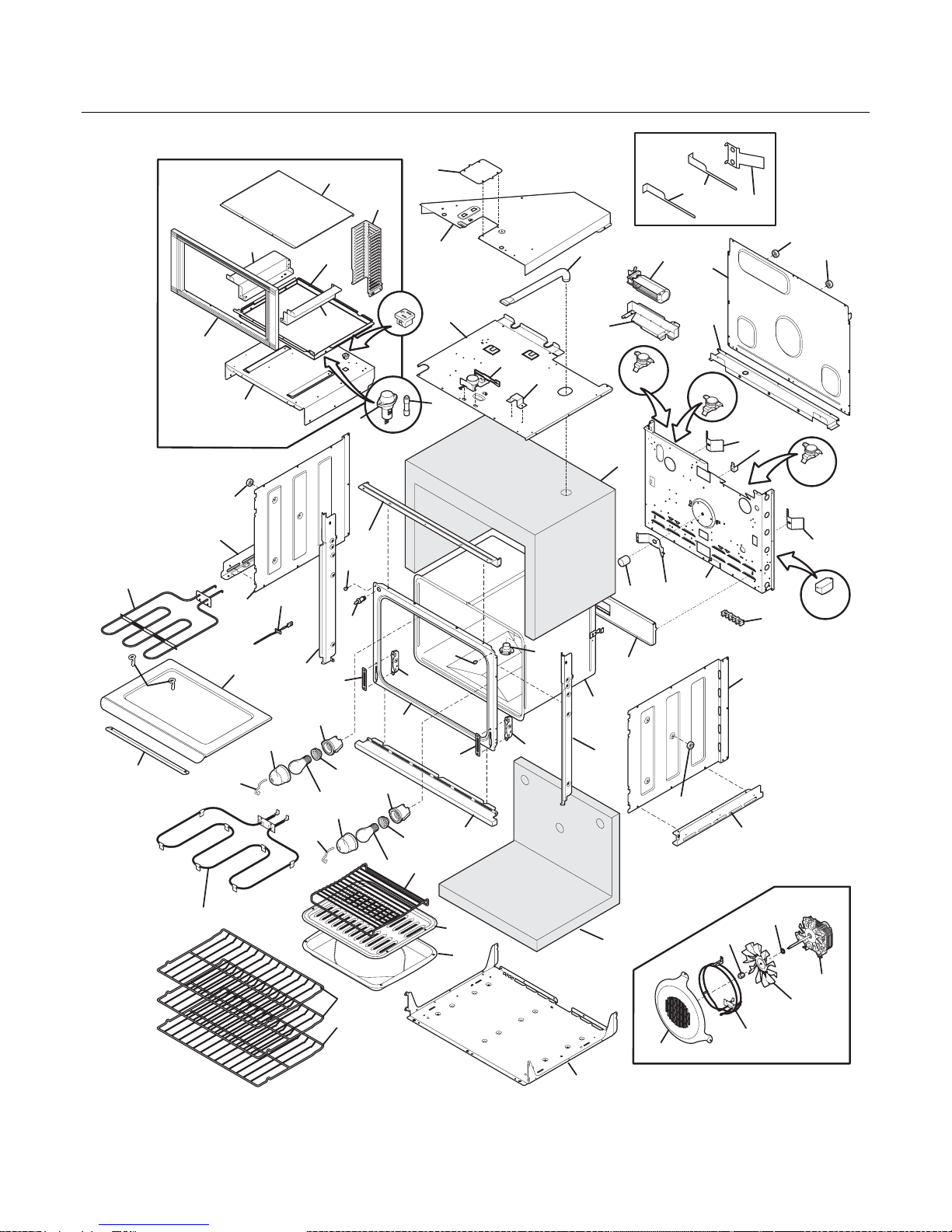

LOWER OVEN

185

310

311

143

219

119

312

108

112

108A

163

142

58B

264

29 127

58A

82 BGLEB30M9ESB

185

412

411

59A

56A

131

400

402

410

401

403

409

Microwave

Parts

406

132

219A

107

161

111

109

263

125

272

GLEB27M9F Publication No: 5995475125

# Functional Parts 7 09/06

* Non-Illustrated Parts

LOWER OVEN

Model Index: AGLEB27M9F (GLEB27M9FSA)

BGLEB27M9F (GLEB27M9FBA)

CGLEB27M9F (GLEB27M9FQA)

POS. NO PART NO. DESCRIPTION

1 318259212 A B C Back, main

2 318258910 A B C Shield, insulation, upper

6 318345210 A B C Rack, oven, (3)

6A 318219500 A B C Rack, broiler pan

8 318262011 A B C Cover, element

8A 318318600 A B C Bracket, element, hidden bake

9 5303317977 A B C Pan, broiler

10 5303317976 A B C Insert, broiler pan

12 # 318089917 A B C Switch, light

14 318224000 A B C Receptacle, oven light

14* 318268099 A B C Insulation, oven light

15 5303013071 A B C Bulb/Lamp, light

16 08011086 A B C Lens, oven light, glass

17 5304400195 A B C Retainer, light cover

29 318147411 A B C Bumper, (2)

37 # 316217002 A B C Probe, oven temp

41 5303310526 A B C Cover, hinge cutout

* 5303325980 A B C Screw, 10-32 x 0.437

54 318222400 A B C Housing, oven light

56 318276302 A - - Trim, side filler, white, RH

56 318276304 - B - Trim, side filler, black, RH

56 318276306 - - C Trim, side filler, bisque, RH

56A 318276303 A - - Trim, side filler, white, LH

56A 318276305 - B - Trim, side filler, black, LH

56A 318276307 - - C Trim, side filler, bisque, LH

58A 318285060 A B C Insulation, rear & bottom, oven wrapper

58B 318285059 A B C Insulation, top & sides, oven wrapper

59 318072560 A B C Duct, oven vent

59A 318261600 A B C Bracket, vent tube

62 316056000 A B C Terminal Block

62* 5303323139 A B C Screw, 10-24 x 0.906

62* 5303323144 A B C Nut, 10-32

66 # 318255601 A B C Element, broil, 3400W

67 318254902 A B C Element, bake, 2700W, 6 pass

68 5304403015 A B C Support, hanger, (2), broil element

70 318259100 A B C Shield, insulation, sides, (2)

71 318260001 A B C Panel, rear box

76 318056222 A B C Front, oven

80 5303320846 A B C Plate, oven mtg

81 318192400 A B C Spring, oven

82 318258710 A B C Shield, insulation, lower

83 318261500 A B C Liner, oven assy

84 # 318146833 A B C Outlet-electrical, miniature, black-glossy

86 5303310524 A B C Receptacle, hinge

87 318260601 A B C Bracket, cable mtg.

89 # 318261209 A B C Motor, latch assy

90 318259710 A - - Trim, oven front, white, bottom

90 318259711 - B - Trim, oven front, black, bottom

Publication No: 5995475125 GLEB27M9F

09/06 8

LOWER OVEN

185

310

311

143

219

119

312

108

112

108A

163

142

58B

264

29 127

58A

82 BGLEB30M9ESB

185

412

411

59A

56A

131

400

402

410

401

403

409

Microwave

Parts

406

132

219A

107

161

111

109

263

125

272

GLEB27M9F Publication No: 5995475125

# Functional Parts 9 09/06

* Non-Illustrated Parts

LOWER OVEN

Model Index: AGLEB27M9F (GLEB27M9FSA)

BGLEB27M9F (GLEB27M9FBA)

CGLEB27M9F (GLEB27M9FQA)

POS. NO PART NO. DESCRIPTION

90 318259712 - - C Trim, oven front, bisque, bottom

99 318256200 A B C Bracket, side, bottom, (2)

107 318219401 A B C Cover, fan

108# 318073018 A B C Motor, blower

* 08016432 A B C Screw, truss head, 8-18 x 0.375

108A 318251300 A B C Bracket, fan support

109 316136400 A B C Blade, fan

111 316136600 A B C Nut, fan retainer

112# 318112701 A B C Relay

119# 318004900 A B C Switch, thermal

125# 316415800 A B C Motor, fan

125* 5303316994 A B C Insulation, 3.81 x 3.13

127 318317100 A B C Adapter Assembly, vent tube, w/converter

131 318272900 A B C Box, vent

132 318003000 A B C Plate, shield

142 318123910 A B C Deflector

143 318172904 A B C Support, wire

161# 318255503 A B C Element, convection, 350 W

163 318014111 A B C Spacer

185 318014700 A B C Spacer, oven shield, (4)

219# 318003614 A B C Thermostat, safety

* 3201861 A B C Screw, 6 x 0.375, (4)

219A 318003613 A B C Thermostat, safety, 1.375" mtg, 105/120

263 316136500 A B C Washer, flat

264 318257711 A B C Trim, oven, black, front

272 318249401 A B C Tube, protector

310 5304440067 A B C Cabinet Mounting Kit

311 318246010 A B C Bracket, cabinet mtg, (2)

311* 5304438005 A B C Screw, 6 x 1, black

312 318246702 A B C Tool, cabinet bracket, RH

312 318246703 A B C Tool, cabinet bracket, LH

400 318275601 A - - Trim Assembly, microwave, 27", white

400 318275600 - B - Trim Assembly, microwave, 27", black

400 318275602 - - C Trim Assembly, microwave, 27", bisque

401 318297202 A B C Plate, support, microwave, 27"

402 318276202 A B C Bracket, base pad, RH

403 318276203 A B C Bracket, base pad, LH

406 318277200 A B C Shield, microwave rear

409 318295300 A B C Bracket, top trim

410 318297101 A B C Flue, black

411# 5304442354 A B C Holder, fuse

412# 5304442353 A B C Fuse, 20 Amp

* # 318078543 A B C Box & wires assy

* 318231737 A B C Harness, wiring, main

* 5303323136 A B C Screw ground

* 5303211311 A B C Screw, 8 x 0.500

* 5303323277 A B C Screw, 8-18 X 13/32

* 5303324184 A B C Screw, 8-18 x 5/16, black, (4)

* 5304436875 A B C Screw, 8-18 X 1/2, black

Publication No: 5995475125 GLEB27M9F

09/06 10

DOORS

Table des matières

Autres manuels Frigidaire Four

Frigidaire

Frigidaire FGEW2765K F Manuel utilisateur

Frigidaire

Frigidaire FEB30T6F Manuel utilisateur

Frigidaire

Frigidaire 316000281 Manuel utilisateur

Frigidaire

Frigidaire FEB755CESG Guide de démarrage rapide

Frigidaire

Frigidaire FGB500CESF Manuel utilisateur

Frigidaire

Frigidaire FEB27S5D Manuel utilisateur

Frigidaire

Frigidaire FEB24S5AB Manuel utilisateur

Frigidaire

Frigidaire FEB27T7FC - 27" Electric Double Wall Oven Guide de démarrage rapide

Frigidaire

Frigidaire GLEB30S9FSA Guide de démarrage rapide

Frigidaire

Frigidaire FEB798WCCE Mode d’emploi

Frigidaire

Frigidaire 318205312 Manuel du propriétaire

Frigidaire

Frigidaire FGB24S5AB - 24 Inch Single Gas Wall Oven Manuel utilisateur

Frigidaire

Frigidaire FEB702CE Manuel utilisateur

Frigidaire

Frigidaire CFEF210CS7 Control Manuel d'utilisation et d'entretien

Frigidaire

Frigidaire FGB24S5DC - 24 Inch Single Gas Wall Oven Manuel utilisateur

Frigidaire

Frigidaire FEB30T7F Mode d’emploi

Frigidaire

Frigidaire FFEW2425LSA Manuel utilisateur

Frigidaire

Frigidaire FRIGIDAIRE FEB24S2A Manuel utilisateur

Frigidaire

Frigidaire FNVV60GGEWT Manuel utilisateur

Frigidaire

Frigidaire FEB789WC Manuel utilisateur

Frigidaire

Frigidaire FEB30S5D Manuel utilisateur

Frigidaire

Frigidaire FGB24T3A Manuel utilisateur

Frigidaire

Frigidaire GLEB27Z7HBB Guide Manuel utilisateur

Frigidaire

Frigidaire FEB798WCCI Manuel utilisateur

Manuels Four populaires d'autres marques

Bosch

Bosch HVA531NS0 Manuel utilisateur

Electrolux

Electrolux EOF6P46X Manuel utilisateur

NEFF

NEFF B44S32 5GB Series Manuel utilisateur

Combi

Combi BLODGETT BC142GDS Manuel utilisateur

AEG

AEG COMPETENCE 311704300 Manuel utilisateur

Falcon

Falcon DOMINATOR PLUS G3106 Series Guide de l'utilisateur

Rational

Rational SCC WE 61G Manuel utilisateur

Smeg

Smeg DOSPA38X Manuel d'installation et d'exploitation

Electrolux

Electrolux air-o-convect 20 GN 2/1 Manuel utilisateur

Miele

Miele HR 1954-2 Manuel utilisateur

KHIND

KHIND OT50 Manuel utilisateur

Henny Penny

Henny Penny Smoker Box Manuel utilisateur

Lang

Lang ECOD-AP Manuel utilisateur

AEG

AEG BEK455310M Manuel utilisateur

Hotpoint

Hotpoint FE9 S831 JSH IX Manuel utilisateur

GE Advantium SCB2000 Manuel utilisateur

AEG

AEG DE401301DM Manuel utilisateur

DeLonghi

DeLonghi XA660 Manuel
