Frigidaire FEB386CE Manuel utilisateur
PRODUCT NO. FACTORY NO. COLOR MARKET
FEB386CESG 38254391F6017 WHITE U.S.A.
FEB386CEBG 38254391F6067 BLACK U.S.A.
ELECTRIC WALL OVEN
Model No.
FEB386CE
©1999 White Consolidated Industries,
Inc.
FACTORY PARTS CATALOG
ELECTRIC WALL OVEN
WIRING DIAGRAM # - 318046208
OWNER’S GUIDE # - 318200914
TIMER INSTRUCTION GUIDE # - 318130806
INSTALLATION INSTR. # - 318064310
FRIGIDAIRE HOME PRODUCTS
7075 ORDAN DRIVE
MISSISSAUGA, ONTARIO
CANADA, L5T 1K6
TEL: (905) 565-9200 Publication No.
5995318218
990215
-EN/SERVICE
377
Publication No. FEB386CE
5995318218
02/99 2
CONTROL PANEL
80
LA9923G03
19
42
20
23
FEB386CE Publication No.
5995318218
# = Functional Part 302/99
* = Non-Illustrated Part
CONTROL PANEL
A=FEB386CE (FEB386CESG)
B=FEB386CE (FEB386CEBG)
POS. NO PART NO DESCRIPTION
19 318030115 APanel-control white
19 318030114 B Panel-control black
20 # 318010700 AB Clock/Timer
23 318111602 AB Bracket-timer
42 318027401 ATrim-vent white
42 318027409 B Trim-vent black
80 318111500 AB Relay
*3201861 AB Screw, 6 X 3/8
FEB386CE Publication No.
5995318218
02/99 4

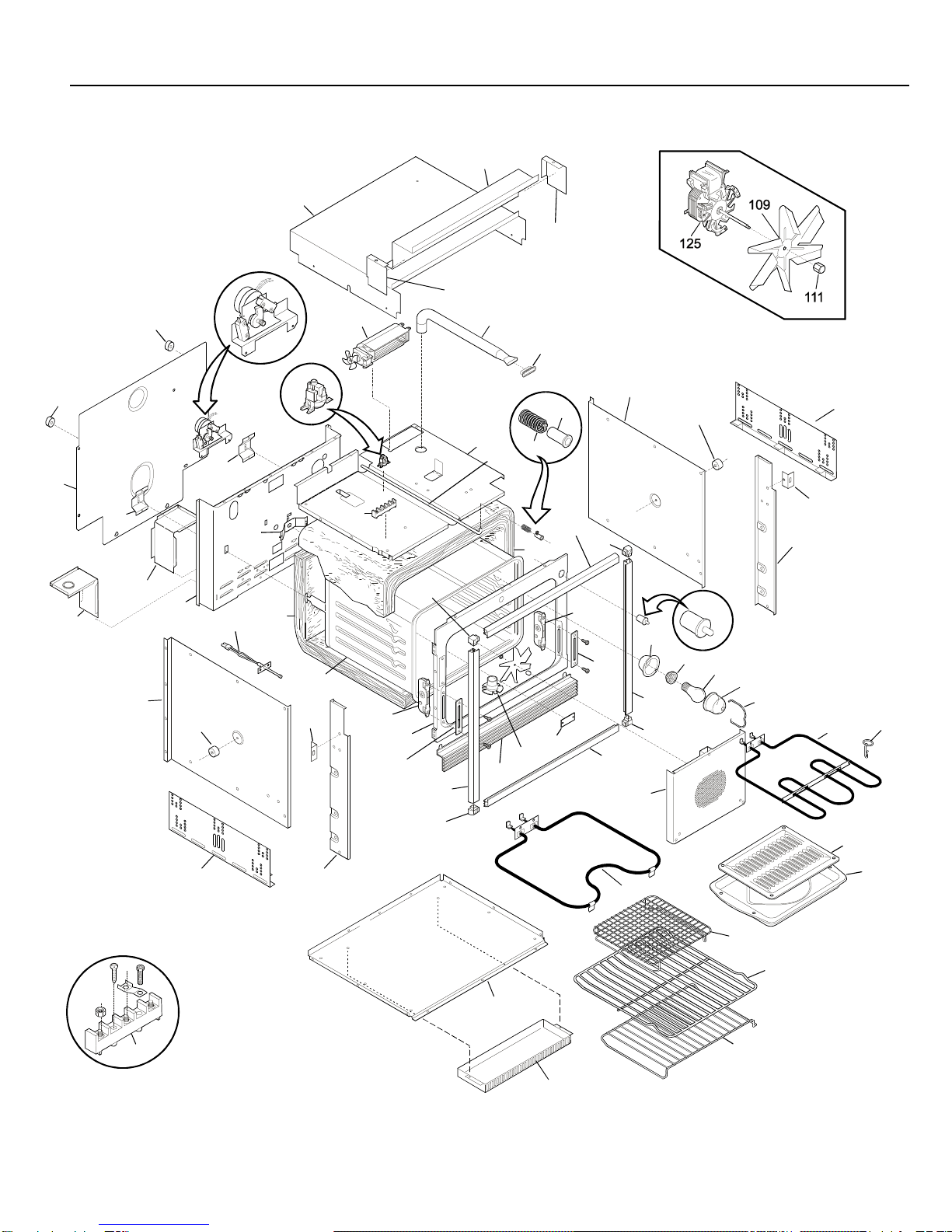

CAVITY / ELEMENTS
81
82
124
59
103
62
71
1
LA9923V12
6
6B
67
66 68
83
58B
58A
2A
88
62
89
108
119
10
9
127
37 12
129
128
70
185
99 98A
70
185
98
99
14
54
56
130
130
130
130
15 1617
80
80
150A
150
41
56
107
222
56
56
86
86
76
41
2
131
132
132A
102
102
177
188
188
6A
FEB386CE Publication No.
5995318218
# = Functional Part 502/99
* = Non-Illustrated Part
CAVITY / ELEMENTS
A=FEB386CE (FEB386CESG)
B=FEB386CE (FEB386CEBG)
POS. NO PART NO DESCRIPTION
1 5303310527 AB Back-main
2 318102100 AB Shield-oven top
2A 318071700 AB Shield-oven top
6 5303310522 AB Rack-oven
6A 5303311206 A B Rack broiler pan
6B 318025400 AB Shelf-oven
9 5303317977 AB Pan-broiler
10 5303317976 AB Insert-broiler pan
12# 318089910 AB Switch-light
14 5308011085 AB Socket-light/lamp
15 3201908 AB Lamp-oven light
16 3201911 AB Glass-oven light lens
17 5304400195 AB Retainer-lens
37 # 316111203 AB Probe-oven temp
41 5303310526 AB Cover-hinge cutout
54 5303310514 AB Housing-oven light
56 318083501 ATrim-bodyside white
56 318083500 B Trim-bodyside black
58A 5303310539 AB Insulation
58B 5303310538 AB Insulation oven back
59 318072504 AB Tube-oven vent
62 # 5303310518 AB Terminal Block
66 # 5303310513 AB Element-broil
67 # 5303310512 AB Element-bake
68 5304403015 AB Support element
70 5303300142 AB Shield-insulation
71 318071200 AB Shield-wire
76 318056202 AB Front-oven
80 5303301261 AB Spring-oven
81 5303320846 A B Plate-oven mtg
82 318072300 AB Shield
83 318089609 AB Liner-oven assy
86 5303310524 AB Channel-hinge
88 5303311222 AB Rod-latch
89 # 5304404899 AB Motor-latch
89* 318120702 AB Switch-latch
98 318029201 AB Trim-side RH
98A 318029203 AB Trim-side LH
99 318055420 AB Support-adjustable
102 318090900 AB Support fixation
103 318028501 ATrim-base white
103 318028500 B Trim-base black
107 318119600 A B Cover-fan
108# 318073001 AB Motor-fan
109 5303311203 A B Fan blade
111 5303311205 A B Nut-fan retainr
119# 318004900 AB Switch-thermal
124 318076903 AB Box-vent
125# 5303311202 A B Motor-convection
125* 5303320346 A B Washer
127 5303310542 AB Adapter assy
128 5303311163 AB Bushing
129 5303311164 AB Spring
130 318070801 AEnd Cap-trim white
130 318070800 BEnd Cap-trim black
131 318102301 AB Cover-control housing
132 318101800 AB End-cover RH
132A 318101801 AB End-cover LH
150 318072205 AB Bracket-support RH
150A 318072204 AB Bracket-support LH
177 318053800 AB Gasket-vent
185 318014700 AB Spacer-oven shield
188 08007817 A B Spacer
222 318080000 A B Plate hole convection element
* 5303211311 AB Screw #8 X ½
*3015722 AB Clip-wire
Publication No. FEB386CE
5995318218 CAVITY/ELEMENTS
02/99 6
POS.NO PART NO DESCRIPTION
* 5303300265 AB Screw 8-18 X ½
*5303308449 AB Fastener
*5303323136 AB Screw ground
*5303323139 AB Screw, 10-24 X 29/32
*5303323277 AB Screw, 8-18 X 13/32
*5303324184 AB Screw, 8 X 5/16
*5303323137 AB Screw, 10-32 X 17/32
*# 318078511 AB Box & wires assy
*5303302745 AB Screw, 10-16 X 1 1/8
*5304407813 A B Washer
*3131048 A B Screw, 8 X 5/8
A = FEB386CE (FEB386CESG)
B = FEB386CE (FEB386CEBG)
FEB386CE Publication No.
5995318218
0299 7
DOOR
54
15
23
17
23
9
6
4
7
29
29
18
12
3
20
20
39
10
LA9923CD02
16
16
22
31
FEB386CE Publication No.
5995318218
# = Functional Part 802/99
* = Non-Illustrated Part
DOOR
A=FEB386CE (FEB386CESG)
B=FEB386CE (FEB386CEBG)
POS. NO PART NO DESCRIPTION
3 318026125 ATrim-oven door white
3 318026710 BTrim-oven door black
4 318041304 AGlass-oven door white
4 318041303 B Glass-oven door black
6 318056811 AB Baffle-door
7 318106001 AB Insulation
9 318048606 AB Liner-oven door
10 5303311217 AB Screw-handle10-24X2 3/16
12 318053103 AB Seal-oven door
15 318091102 AB Bracket glass
16 318041603 AB Glass-oven door
17 318042102 AB Spacer-glass
18 318053001 AB Seal-window
20 318014301 ASpacer-handle white
20 318014300 BSpacer-handle black
23 5303310506 AB Hinge-oven door
29 5303210003 AB Spacer-handle mtg
31 318065100 AB Latch-door
39 316091111 AHandle-door white
39 316091113 BHandle-door black
54 5303308456 AB Screw 8-18 X 0.531 black
*5303323277 AB Screw, 8-18 X 13/32
*5303316982 A B Tape seal
*5303211311 A B Screw, 8 X ½
*5303300265 A B Screw, 8-18 X ½
Publication No. FEB386CE
5995318218
02/99 9
WIRING DIAGRAM
