Frigidaire FEB30S5D Manuel utilisateur

FEB30S5DC.tif CFEB30S5DSA.eps BFEB30S5DSA.eps DFEB30S5DCA.eps

318046237.eps

Product No. FEB30S5DCC

38254331E40S3

Series 30" single

Color stainless

Market North America

Wiring Diagram 318046237

Owner's Guide 318200924

Installation Instructions 316201514

Service Data Sheet 316047413

Timer Guide 318200189

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995456893

05/12/21

(EN/SERVICE/ECL)

377

SINGLE ELECTRIC

WALL OVEN

Model No.

FEB30S5D

Publication No: 5995456893 FEB30S5DCC

12/05 2

CONTROL PANEL

FEB30S5DCC Publication No: 5995456893

# Functional Parts 3 12/05

* Non-Illustrated Parts

CONTROL PANEL

POS. NO PART NO. DESCRIPTION

2A 318257300 Shield, oven top

2B 318260100 Cover, box

19 318274601 Control Panel Assembly, glass, black, w/touch pad

20 # 316418522 Clock/Timer, electronic, ES350W1

* 316021107 Screw, hex head, 8-32, silver

* 5303211311 Screw, 8 x 0.500

Publication No: 5995456893 FEB30S5DCC

12/05 4

BODY

FEB30S5DCC Publication No: 5995456893

# Functional Parts 5 12/05

* Non-Illustrated Parts

BODY

POS. NO PART NO. DESCRIPTION

1 318259202 Back, main

2 318258902 Shield, insulation, upper

6 318262502 Rack, oven

9 5303317977 Pan, broiler

10 5303317976 Insert, broiler pan

12 # 318089917 Switch, light

14 318224000 Receptacle, oven light

14* 318268099 Insulation,oven light

15 5303013071 Bulb/Lamp, light

16 3201911 Cover, oven light, glass

17 5304400195 Retainer, light cover

29 318147411 Bumper, (2)

37 # 316217002 Probe, oven temp

41 5303310526 Cover, hinge cutout

54 318222400 Housing, oven light

56 318259904 Trim, side filler, black, RH

56A 318259905 Trim, side filler, black, LH

58A 318285055 Insulation,oven wrapper

58B 318285056 Insulation,oven back

58D 318285058 Insulation, 1/2" thick, 43 x 9.5

59 318072560 Duct, oven vent

59A 318261600 Bracket, vent tube

62 316056000 Terminal Block

62* 5303323144 Nut, 10-32

66 # 318255600 Element, broil, 2750W

67 # 318255401 Element, bake, 3400W

68 5304403015 Support, hanger, (2), broil element

70 318259100 Shield, insulation, sides, (2)

71 318260007 Panel, rear box

76 318056217 Front, oven

80 5303320846 Plate, oven mtg

81 318192400 Spring, oven

82 318258707 Shield, insulation, lower

83 318261403 Liner, oven assy

86 5303310524 Receptacle, hinge

87 318260600 Bracket, cable mtg.

89 # 318261202 Motor, latch assy

90 318259701 Trim, oven front, black, bottom

99 318256200 Bracket, side, bottom, (2)

108# 318073018 Motor, blower

* 08016432 Screw, truss head,8-18 x 0.375

108A 318251300 Bracket, fan support

112# 318112701 Relay

119# 318004900 Switch, thermal

127 318317100 Adapter Assembly, vent tube, w/converter

131 318272900 Box, vent

132 318003000 Plate, shield

142 318123910 Deflector

* 5303324184 Screw, 8-18 x 5/16, black, (4)

143 318172904 Support, wire

163 318014111 Spacer

185 318014700 Spacer, oven shield, (4)

219# 318003614 Thermostat, safety

219A 318003613 Thermostat, safety

264 318257701 Trim, oven, black, front

310 5304440067 Cabinet Mounting Kit

311 318246010 Bracket, cabinet mtg, (2)

311* 5304438005 Screw, 6 x 1, black

312 318246702 Tool, cabinet bracket, RH

312 318246703 Tool, cabinet bracket, LH

* # 318078542 Box & wires assy

* 318231735 Harness, wiring, main

* 5303323136 Screw ground

* 5303211311 Screw, 8 x 0.500

* 5303323139 Screw, 10-24 x 0.906

* 5303323277 Screw, 8-18 X 13/32

* 5304436875 Screw, 8-18 X 1/2, black

Publication No: 5995456893 FEB30S5DCC

12/05 6

DOOR

FEB30S5DCC Publication No: 5995456893

# Functional Parts 7 12/05

* Non-Illustrated Parts

DOOR

POS. NO PART NO. DESCRIPTION

3A 318260401 Trim, oven door, side, (2)

3B 318262101 Cover, rear door, black, (2)

6 318260500 Baffle, door

7 318285057 Insulation, oven door

7A 318285062 Insulation, oven door

8 316117500 Glass, oven door, heat barrier

9 318259605 Liner, door

10 5304452028 Screw, handle mtg, 10-14 x 1/2, (2)

12 318053120 Seal, door, upper oven

13 318272155 Door Assy, glass, stainless steel, outer

17 316402403 Spacer, door glass, (2)

23 318024714 Hinge, door, (2)

24 318260301 Trim, door, black, lower

39 316270200 Handle, door, black

40 318242700 Bracket, glass holder, (2)

56 5304436875 Screw, 8-18 X 1/2, black

64 318165800 Spacer, (2)

* 318163602 Cleaner, stainless steel

* 08016432 Screw, truss head, 8-18 x 0.375

* 5303211311 Screw, 8 x 0.500

* 5303300265 Screw, 8-18 X 1/2, (2)

* 5303323277 Screw, 8-18 X 13/32

Publication No: 5995456893 FEB30S5DCC

12/05 8

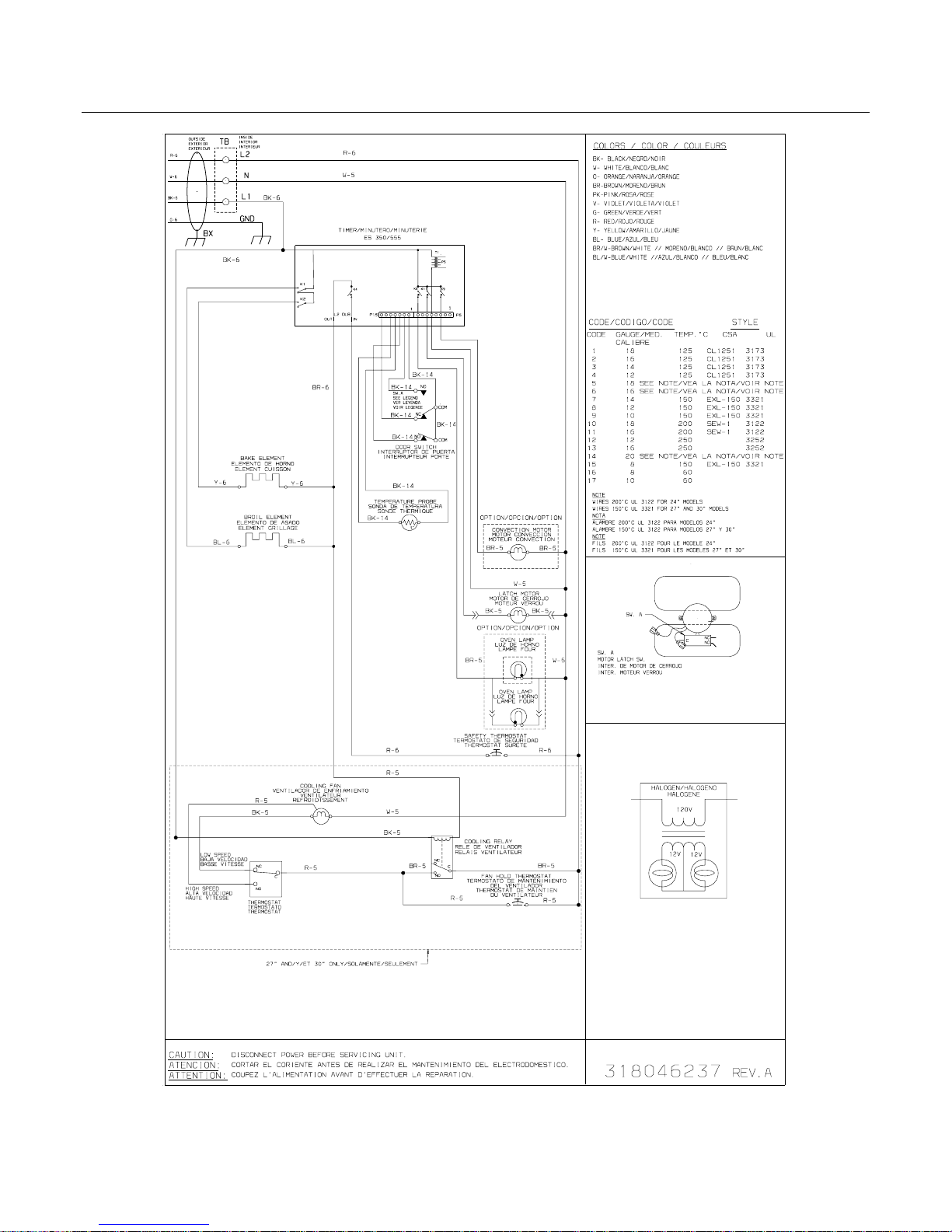

WIRING DIAGRAM
