Frigidaire FEB27T6DCA Mode d’emploi

FEB27T6DC.eps CFEB30T7DCA.eps BUFEB27T6DSA.eps BLFEB27T6DSA.eps

DFEB30S5DCA.eps 318046116.eps

UPPEROVEN LOWER OVEN

Low er OvenUpper Oven

Clock

Keep

warm

Controls

Clear

/Off

Bake

tim e

Start

tim e

Oven

ligh t

Timer

On/Off

STAR T

Broil

Bake Speed

clean

Speed

bake

Clean

Speed Bake O vens

Keep

warm

Controls

Clear

/Off

Bake

tim e

Start

tim e

Oven

ligh t

STAR T

Broil

Bake Speed

clean

Speed

bake

Clean

Product No. FEB27T6DCA

37054781E40S1

Series 27" double

Color stainless

Market North America

Wiring Diagram 318046116

Owner's Guide 318200924

Installation Instructions 316201514

Service Data Sheet 316047305

Timer Guide 318200132

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995422721

04/11/23

(EN/SERVICE/ECL)

377

DOUBLE ELECTRIC

WALL OVEN

Model No.

FEB27T6D

Publication No: 5995422721 FEB27T6DCA

11/04 2

CONTROL PANEL

FEB27T6DCA Publication No: 5995422721

# Functional Parts 3 11/04

* Non-Illustrated Parts

CONTROL PANEL

POS. NO PART NO. DESCRIPTION

2A 318257301 Shield, oven top

2B 318260102 Cover, box

19 318271503 Control Panel Assembly, steel/glass, stainless/black, w/touch pad

20 # 316429704 Control, electronic, 5800W2, dual oven

* 316021107 Screw, hex head, 8-32, silver

23 318262900 Bracket, control mtg., (2)

97 316429800 Board, relay, dual oven

* 318231704 Harness, wiring, control-relay

* 5303211311 Screw, 8 x 0.500

Publication No: 5995422721 FEB27T6DCA

11/04 4

UPPER OVEN

119

108

108A

185

163

58B

264

29 127

58A

BUFEB27T6DSA

185

59A

131

132

58D

143

219

112

142

310

311

312

107

111

109

263

125

126

FEB27T6DCA Publication No: 5995422721

# Functional Parts 5 11/04

* Non-Illustrated Parts

UPPER OVEN

POS. NO PART NO. DESCRIPTION

1 318259210 Back, main

2 318258910 Shield, insulation, upper

6 318262602 Rack, oven, (2)

9 5303317977 Pan, broiler

10 5303317976 Insert, broiler pan

12 # 318089917 Switch, light

* 3015722 Clip, wire retainer

14 318224000 Receptacle, oven light

14* 318268099 Insulation, oven light

15 5303013071 Bulb/Lamp, oven light

16 3201911 Cover, oven light, glass

17 5304400195 Retainer, light cover

29 318147411 Bumper, door, (2)

37 # 316217002 Probe, oven temp

41 5303310526 Cover, hinge cutout

54 318222400 Housing, oven light

58A 318133795 Insulation, oven wrapper, back/bottom

58B 318133794 Insulation, oven wrapper, top/sides

58D 318133793 Insulation, 1/2" thick, 43 x 9.5

59 318072560 Duct, oven vent

59A 318261600 Bracket, vent tube

66 # 318255601 Element, broil, 3400W

67 # 318255103 Element, bake, 2300W

68 5304403015 Support, element hanger

70 318259100 Shield, insulation, sides, (2)

71 318260001 Panel, rear box

76 318056222 Front, oven

80 5303320846 Plate, oven mtg

81 318192400 Spring, oven

82 318258710 Shield, insulation, lower

83 318261503 Liner, oven assy

86 5303310524 Receptacle, hinge

89# 318261200 Motor, latch assy

* 318231705 Harness, latch

99 318252800 Support, side

* 5303300265 Screw, 8-18 x 0.500, chrome, (3)

107 318219401 Cover, fan

108# 318073018 Motor, blower

* 08016432 Screw, truss head, 8-18 x 0.375

108A 318251300 Bracket, fan support

109 316136400 Blade, fan

111 316136600 Nut, fan retainer

112# 318112701 Relay

119# 318004900 Switch, thermal

125# 316415800 Motor, fan

126 318142100 Washer, motor, RH, convection

127 5303310542 Adapter, vent tube, with converter

131 318272900 Box, vent

132 318003000 Plate, shield

142 318123910 Deflector

143 318172904 Support, wire/glass

163 318014111 Spacer

185 318014700 Spacer, oven shield, (4)

219# 318003606 Thermostat, safety

263 316136500 Washer, fan motor

264 318257711 Trim, oven, black, front

310 5304440067 Cabinet Mounting Kit

311 318246010 Bracket, cabinet mtg, (2)

311* 5304438005 Screw, 6 x 1, black

312 318246702 Tool, cabinet bracket, RH

312 318246703 Tool, cabinet bracket, LH

* 3201861 Screw, 6 x 0.375, (4)

* 5303211311 Screw, 8 x 0.500

* 5303323277 Screw, 8-18 X 13/32

* 5304436875 Screw, 8-18 X 1/2, black

Publication No: 5995422721 FEB27T6DCA

11/04 6

LOWER OVEN

143

219

119

108

112

108A

185

163

142

58B

264

56A

29 127

86 56

58A

82 BLFEB27T6DSA

185

59A

58D

107

111

109

263

125

126

FEB27T6DCA Publication No: 5995422721

# Functional Parts 7 11/04

* Non-Illustrated Parts

LOWER OVEN

POS. NO PART NO. DESCRIPTION

1 318259210 Back, main

2 318258910 Shield, insulation, upper

6 318262602 Rack, oven, (2)

12 # 318089917 Switch, light

* 3015722 Clip, wire retainer

14 318224000 Receptacle, oven light

14* 318268099 Insulation, oven light

15 5303013071 Bulb/Lamp, oven light

16 3201911 Cover, oven light, glass

17 5304400195 Retainer, light cover

29 318147411 Bumper, door, (2)

37 # 316217002 Probe, oven temp

41 5303310526 Cover, hinge cutout

54 318222400 Housing, oven light

56 318259914 Trim, side filler, black, RH

56A 318259915 Trim, side filler, black, LH

58A 318133795 Insulation, oven wrapper, back/bottom

58B 318133794 Insulation, oven wrapper, top/sides

58D 318133793 Insulation, 1/2" thick, 43 x 9.5

59 318072560 Duct, oven vent

59A 318261600 Bracket, vent tube

62 316056000 Terminal Block

62* 5303323139 Screw, 10-24 x 0.906

62* 5303323144 Nut, 10-32

66 # 318255601 Element, broil, 3400W

67 # 318255103 Element, bake, 2300W

68 5304403015 Support, element hanger

70 318259100 Shield, insulation, sides, (2)

71 318260001 Panel, rear box

76 318056222 Front, oven

80 5303320846 Plate, oven mtg

81 318192400 Spring, oven

82 318258710 Shield, insulation, lower

83 318261503 Liner, oven assy

86 5303310524 Receptacle, hinge

87 318260601 Bracket, cable mtg.

89# 318261201 Motor, latch assy

* 318231705 Harness, latch

90 318259711 Trim, oven front, black, bottom

99 318256200 Bracket, side, bottom, (2)

107 318219401 Cover, fan

108# 318073018 Motor, blower

* 08016432 Screw, truss head, 8-18 x 0.375

108A 318251300 Bracket, fan support

109 316136400 Blade, fan

111 316136600 Nut, fan retainer

112# 318112701 Relay

119# 318004900 Switch, thermal

125# 316415800 Motor, fan

126 318142100 Washer, motor, RH, convection

127 5303310542 Adapter, vent tube, with converter

142 318123910 Deflector

143 318172904 Support, wire/glass

163 318014111 Spacer

185 318014700 Spacer, oven shield, (4)

219# 318003606 Thermostat, safety

263 316136500 Washer, fan motor

264 318257811 Trim, oven, black, front

* # 318078543 Box & wires assy

* 318231716 Harness, wiring, main

* 3201861 Screw, 6 x 0.375, (4)

* 5303211311 Screw, 8 x 0.500

* 5303323277 Screw, 8-18 X 13/32

* 5304436875 Screw, 8-18 X 1/2, black

Publication No: 5995422721 FEB27T6DCA

11/04 8

DOOR

FEB27T6DCA Publication No: 5995422721

# Functional Parts 9 11/04

* Non-Illustrated Parts

DOOR

POS. NO PART NO. DESCRIPTION

3A 318260401 Trim, oven door, side, (2)

3B 318262101 Cover, rear door, black, (2)

6 318260510 Baffle, door

7 318133792 Insulation, oven door

7A 318133796 Insulation, oven door, cavity

8 318212200 Glass, oven door, heat barrier

9 318259615 Liner, upper door

10 5303311174 Screw, 10-24 x 3/8

12 318053125 Seal, upper door

13 318272101 Door Assy, w/glass, stainless steel, outer, w/tape& foil

17 318264700 Spacer, glass, (2)

23 318024720 Hinge, oven door

24 318260311 Trim, door, black, lower

39 318264500 Handle, oven door, black

40 318242700 Bracket, glass holder, (2)

56 5304436875 Screw, 8-18 X 1/2, black

64 318165800 Spacer, (4)

* 318163602 Cleaner, stainless steel

* 08016432 Screw, truss head, 8-18 x 0.375

* 5303211311 Screw, 8 x 0.500

* 5303323277 Screw, 8-18 X 13/32

Publication No: 5995422721 FEB27T6DCA

11/04 10

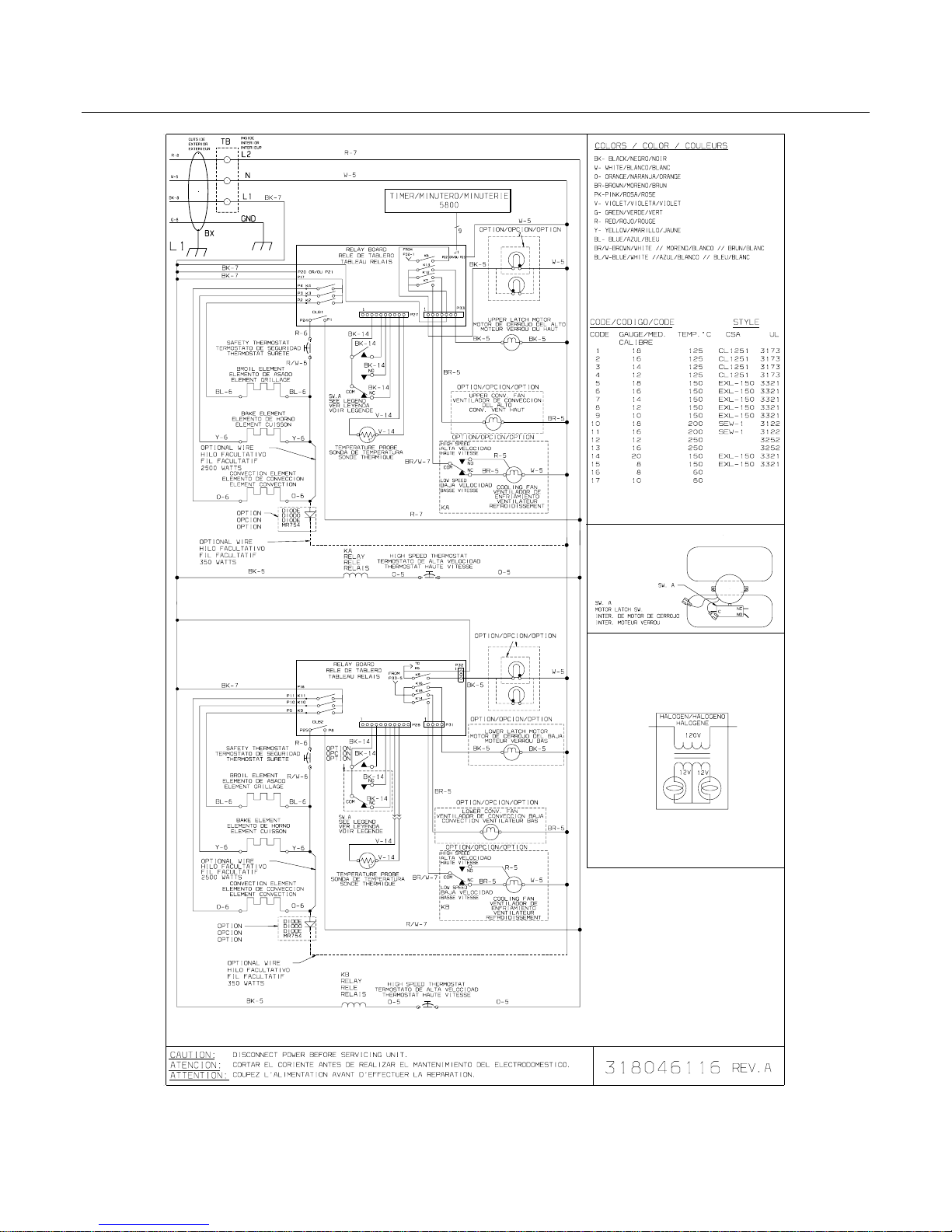

WIRING DIAGRAM
