Frigidaire FEB27T6C Manuel utilisateur

Product No. FEB27T6CBA FEB27T6CSA

37054741F3061 37054741F3011

Series 27" double 27" double

Color black white

Market North America North America

Wiring Diagram 318046110 318046110

Owner's Guide 318200919 318200919

Installation Instructions 318201510 318201510

Service Data Sheet 318047301 318047301

Timer Guide 318200130 318200130

GLEB27T8A.eps LA00CP70791-1A.eps LA00B70791-1E.eps LA00B70791-2E.eps

LA00D70791-1A.eps 318046110.eps

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995401303

04/01/13

(EN/SERVICE/ECL)

377

DOUBLE ELECTRIC

WALL OVEN

Model No.

FEB27T6C

Publication No: 5995401303 FEB27T6C

01/04 2

CONTROL PANEL

FEB27T6C Publication No: 5995401303

# Functional Parts 3 01/04

* Non-Ilustrated Parts

CONTROL PANEL

Model Index: AFEB27T6C (FEB27T6CSA)

BFEB27T6C (FEB27T6CBA)

POS. NO PART NO. DESCRIPTION

15 5303302286 A B Support, backguard, RH

15A 5303302287 A B Support, backguard, LH

18 5303311208 A - End Cap, white, RH

18 5303311231 - B End Cap, black, RH

18A 5303311209 A - End Cap, white, LH

18A 5303311232 - B End Cap, black, LH

19 318030042 A - Panel, control, white, w/membrane

19 318030043 - B Panel, control, black, w/membrane

20 # 318010501 A B Clock/Timer, EOC

21 5303302283 A - Trim, canopy, white, top

21 5303300968 - B Trim, canopy, black, top

23 318015110 A B Bracket, clock mtg

42 5303318709 A - Trim, vent, white

42 5303316983 - B Trim, vent, black

78 318036904 A - Cover, oven vent, white

78 318036903 - B Cover, oven vent, black

80 # 318022001 A B Relay Board

81 # 318022002 A B Relay Board, w/transformer

82A 5303317199 A B Support, snap-in, (3)

99 5303316956 A - Screw, 6-32 x 3/8, white, (2)

99 5303307406 - B Screw, 6-32 x 3/8, black, (2)

* 3201861 A B Screw, 6 x 0.375, (4)

* 5303302745 A B Screw, 10-16x1-1/8, square drive

* 5303320422 A B Screw, 6-20 x 5/16, black, (6)

Publication No: 5995401303 FEB27T6C

01/04 4

UPPER OVEN

157

LA00B70791-1E

66 68

58B

58A

156

187

108

119

127

129

128

UPPER BODY PARTS ONLY

185

FEB27T6C Publication No: 5995401303

# Functional Parts 5 01/04

* Non-Ilustrated Parts

UPPER OVEN

Model Index: AFEB27T6C (FEB27T6CSA)

BFEB27T6C (FEB27T6CBA)

POS. NO PART NO. DESCRIPTION

2 318070202 A B Cover, top

2A 318071502 A B Shield, oven top

3 318070610 A B Panel, bodyside, upper, RH

3A 318070611 A B Panel, bodyside, upper, LH

6 5303299719 A B Rack, oven

9 5303317977 A B Pan, broiler

10 5303317976 A B Insert, broiler pan

12 # 318089913 A B Switch, light

14 318224000 A B Receptacle, oven light

15 5303013071 A B Bulb/Lamp, oven light

16 3201911 A B Cover, oven light, glass

17 5304400195 A B Retainer, light cover

37 # 316217002 A B Probe, oven temp

41 5303310526 A B Cover, hinge cutout

54 318222400 A B Housing, oven light

58A 318133758 A B Insulation, oven wrapper

58B 318133749 A B Insulation, oven back

59 5303300951 A B Tube, oven vent

62 5303935061 A B Terminal Block Kit

62* 5303323144 A B Nut, 10-32

62* 5303323136 A B Screw ground

66 # 5303322963 A B Element, broil

67 # 5303299718 A B Element, bake

68 5304403015 A B Support, element hanger

70 5303300142 A B Shield, insulation

76 318056104 A B Front, oven

81 318192400 A B Spring, oven

83 318089517 A B Liner, oven

86 5303310524 A B Receptacle, hinge

88 5303311222 A B Rod, latch

89 # 318095936 A B Motor, latch assy, w/brkt & switch

89* 318120711 A B Switch

97 318066703 A B Wrapper, back and sides

108# 318073012 A B Motor, blower

119# 318004900 A B Switch, thermal

127 5303310542 A B Adapter, vent tube, with converter

128 5303311163 A B Bushing

128* 5303311528 A B Screw, oval hd sq dr, 6-20AB x 0.625, black

129 5303311164 A B Spring

156 318024100 A B Bracket, vent tube

157 318071602 A B Divider, upper oven

185 318014700 A B Spacer, oven shield

187 318013501 A B Tube, latch rod

* 318143811 - B Shield, wire

* 5303284616 A B Clip, thermo bulb mtg

* 08002868 A B Screw, 10-24 x 0.500, probe, thrm brkt, shield, drwr, box

* 5303211311 A B Screw, 8 x 0.500

* 5303302745 A B Screw, 10-16x1-1/8, square drive

* 5303320422 A B Screw, 6-20 x 5/16, black, (6)

* 5303323139 A B Screw, 10-24 x 0.906

* 5303323277 A B Screw (8-18X13/32)

* 5304415832 A B Screw, 8-18 x 0.406

Publication No: 5995401303 FEB27T6C

01/04 6

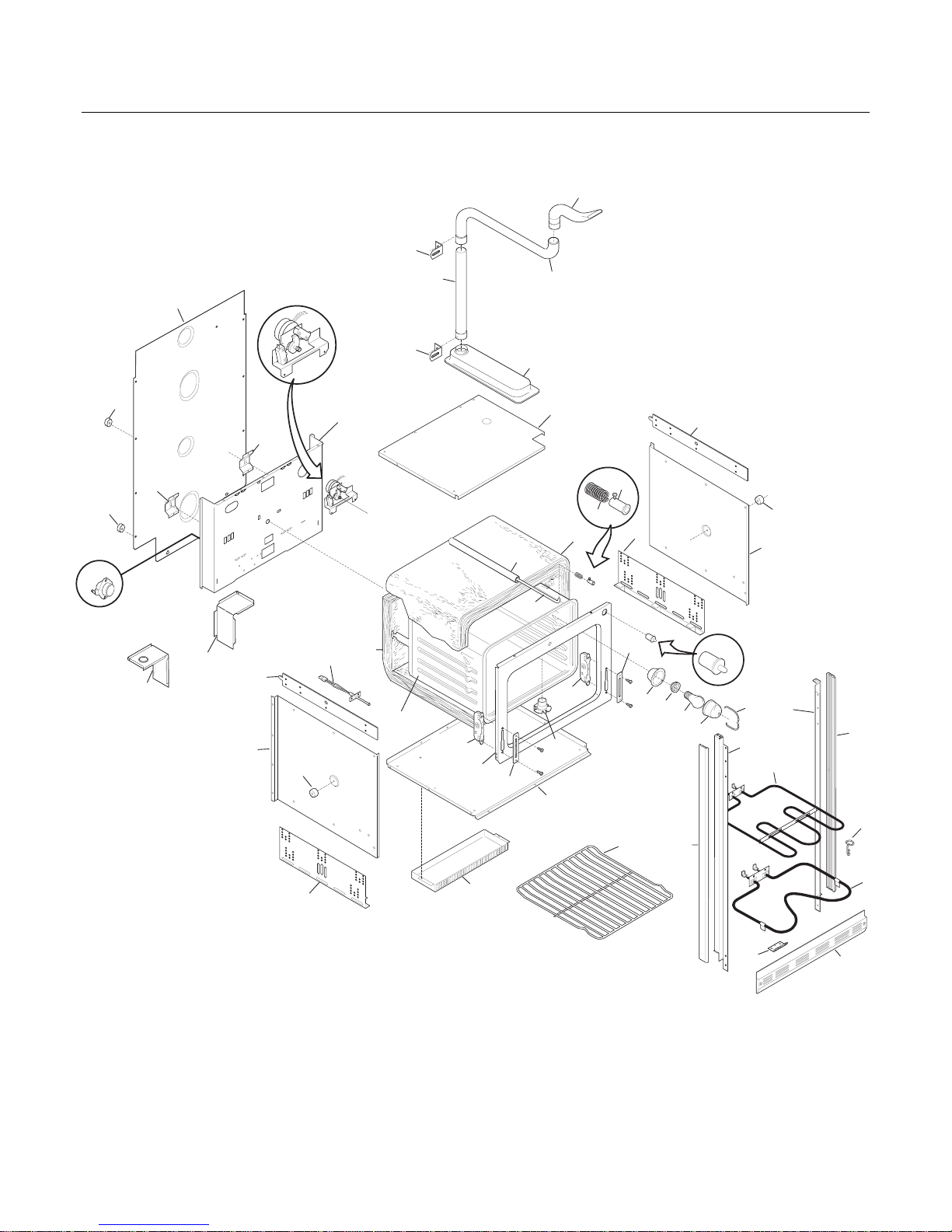

LOWER OVEN

119

156

96A 96B

188

98A

101

103

187

150A

150

124

LA00B70791-2E

58B

58A

127

129

128

LOWER BODY PARTS ONLY

209

185

209

185

FEB27T6C Publication No: 5995401303

# Functional Parts 7 01/04

* Non-Ilustrated Parts

LOWER OVEN

Model Index: AFEB27T6C (FEB27T6CSA)

BFEB27T6C (FEB27T6CBA)

POS. NO PART NO. DESCRIPTION

2A 318071502 A B Shield, oven top

6 5303299719 A B Rack, oven

12 # 318089913 A B Switch, light

14 318224000 A B Receptacle, oven light

15 5303013071 A B Bulb/Lamp, oven light

16 3201911 A B Cover, oven light, glass

17 5304400195 A B Retainer, light cover

37 # 316217002 A B Probe, oven temp

41 5303310526 A B Cover, hinge cutout

54 318222400 A B Housing, oven light

56 5303302282 A - Trim, bodyside, white, (2)

56 5303300956 - B Trim, bodyside, black, (2)

58A 318133758 A B Insulation, oven wrapper

58B 318133749 A B Insulation, oven back

59 318072510 A B Tube, oven vent

66 # 5303322963 A B Element, broil

67 # 5303299718 A B Element, bake

68 5304403015 A B Support, element hanger

70 5303300142 A B Shield, insulation

71 318071212 A B Shield, wire

76 318056104 A B Front, oven

81 318192400 A B Spring, oven

82 318071802 A B Shield, oven bottom

83 318089517 A B Liner, oven

86 5303310524 A B Receptacle, hinge

88 5303311222 A B Rod, latch

89 # 318095936 A B Motor, latch assy, w/brkt & switch

89* 318120711 A B Switch

96 5303317197 A B Duct, ovenvent, assy

96A 3016325 A B Duct, oven vent, center

96B 3016327 A B Duct, vent pipe

97 318066703 A B Wrapper, back and sides

98 318029352 A B Trim, side, inner, RH

98A 318029353 A B Trim, side, inner, LH

99 318055420 A B Support, adjustable

101 318039512 A - Bracket, trim, white

101 318039511 - B Bracket, trim, black

103 318028701 A - Trim, base, white

103 318028700 - B Trim, base, black

119# 318004900 A B Switch, thermal

124 318076904 A B Box, vent

127 318072801 A B Adaptor assy

128 5303311163 A B Bushing

128* 5303311528 A B Screw, oval hd sq dr, 6-20AB x 0.625, black

129 5303311164 A B Spring

150 318072205 A B Bracket, support, LH

150A 318072204 A B Bracket, support, RH

156 5303317198 A B Bracket, oven vent

185 318014700 A B Spacer, oven shield

Publication No: 5995401303 FEB27T6C

01/04 8

LOWER OVEN

119

156

96A 96B

188

98A

101

103

187

150A

150

124

LA00B70791-2E

58B

58A

127

129

128

LOWER BODY PARTS ONLY

209

185

209

185

FEB27T6C Publication No: 5995401303

# Functional Parts 9 01/04

* Non-Ilustrated Parts

LOWER OVEN

Model Index: AFEB27T6C (FEB27T6CSA)

BFEB27T6C (FEB27T6CBA)

POS. NO PART NO. DESCRIPTION

187 318013501 A B Tube, latch rod

188 318014110 A B Spacer

209 318086210 A B Plate, retainer

* # 318078530 A B Box & wires assy

* 5303284616 A B Clip, thermo bulb mtg

* 3201861 A B Screw, 6 x 0.375, (4)

* 08002868 A B Screw, 10-24 x 0.500, probe, thrm brkt, shield, drwr, box

* 5303211311 A B Screw, 8 x 0.500

* 5303302745 A B Screw, 10-16x1-1/8, square drive

* 5303320422 A B Screw, 6-20 x 5/16, black, (6)

* 5303323139 A B Screw, 10-24 x 0.906

* 5303323277 A B Screw (8-18X13/32)

* 5304415832 A B Screw, 8-18 x 0.406

* 5303308456 A B Screw, 8-18 x 0.531, black, door frame

Publication No: 5995401303 FEB27T6C

01/04 10

DOOR
