ICE MAKER

EFIC239

2INTRODUCTION

When you unpack your ice maker, you

may ﬁnd a small amount of water inside.

Your unit is brand new.

Please follow the initial preparation and

cleaning instructions as detailed in the

User Guide prior to using your new

icemaker.

Any water you may ﬁnd is from the

standard quality control testing that all

of our ice makers undergo as part of the

manufacturing process.

When using, please avoid direct sunlight.

3IMPORTANT SAFETY INFORMATION

WARNING

WARNING indicates apotentially

hazardous situation which, if not avoided,

could result indeath or serious injury.

IMPORTANT

IMPORTANT indicates installation, oper-

ation or maintenance information which

is important but not hazard-related.

DANGER

DANGER indicates an imminently

hazardous situation which, if not avoided,

will result in death or serious injury.

CAUTION

CAUTION indicates a potentially

hazardous situation which, if not

avoided, may result in minor or

moderate injury.

Safety Deﬁnitions

This is the safety alert symbol. It is

used to alert of potential personal injury

hazards. Obey all safety messages that

follow this symbol to avoid possible injury

or death.

Safety Instructions

•DO NOT store or use gasoline, or

other ﬂammable liquids in the vicinity

of this or any other appliance. Read

product labels for warnings regarding

ﬂammability and other hazards.

•Avoid contact with any moving parts

of automatic ice maker.

•Remove all staples from the carton.

Staples can cause severe cuts, and also

destroy ﬁnishes if they come in contact

withother appliances or furniture.

WARNING

Please read all instructions before using

this appliance.

Child Safety

Destroy or recycle the carton, plastic

bags, and any exterior wrapping material

immediately after the Ice Maker is unpacked.

Children should NEVER use these items to

play. Cartons covered with rugs, bedspreads,

plastic sheets or stretch wrap may become

airtight chambers, and can quickly cause

suocation.

4SAFETY INSTRUCTIONS

This appliance must be plugged into at least a 15 AMP 110-115 VOLT 60 Hz

GROUNDED OUTLET. This appliance must be grounded. It is equipped with a

3-wire cord having a grounding plug. The plug must be plugged into an outlet that

is properly installed and grounded.

Avoid the use of an extension cord because it may overheat and cause a risk of

ﬁre. However, if it is necessary to use an extension cord:

A. Use only 3-wire extension cords with 3-blade grounding plug.

B. The marked rating of an extension cord must be be equal to or greater than the

rating of this appliance.

C. It should be positioned such that it does not drape over the counter or tabletop

where it can be pulled on by children intentionally.

Attempting any maintenance or cleaning:

To minimize the possibility of electric shock, unplug this appliance from the power

suply or disconnect at the household distribution panel by removing the fuse or

switching o the circuit breaker before attempting any maintenance or cleaning.

NOTE: Pressing the Power ON/OFF button to an o position does not disconnect

the appliance from the power supply.

WARNING!

Improper use of grounded wire can result in the risk of electric shock.

Consult a physician if necessary. Do not attempt to defeat this safety

feature by modifying the plug.

5GETTING TO KNOW YOUR UNIT

1. lce basket

2. Top cover, removable from the top

3. Secondary water reservoir: It connects directly with the evaporator

4. Float switch

5. Metal shell

6. Water drain cap: at the front bottom side of the unit

7. Filter

8. Control panel

9. Water reservoir

10. Hot Air outlet

11. MAXIMUM WATER LEVEL:

6 7 8

6OPERATING PROCEDURES & MAINTENANCE

DANGER

1. Remove the exterior and interior packaging, and then check all the accessories

are included. If any parts are missing, please contact our customer service.

2. Remove all the tapes on the unit; take out the accessory parts inside.

3. Clean the interior with lukewarm water and a soft cloth.

4. Locating your ice maker on a level counter table far from direct sunlight and other

sources of heat (i.e.: stove, furnace, and radiator). Make sure that there is at least 6

inches between the back and sides of your ice maker with the wall.

5. Allow one hour for the refrigerant ﬂuid to settle down before plugging your ice

maker in.

6. The power plug must be accessible directly.

WARNING: Fill with drinking water (potable water) only.

*Improper use of the grounded plug can result in the risk of electrical shock. If

the power cord is damaged please call our customer service.

1. This unit should be properly grounded for your safety. The power cord of this

appliance is equipped with a grounding plug which mates with standard grounding

wall outlets to minimize the possibility of electric shock.

2. Plug your appliance into an exclusive, properly installed, grounding wall outlet. Do

not be under any circumstances; damage the grounding means of the plug. Any

questions concerning power and or grounding should be directed toward a

certiﬁed electrician.

3. This appliance requires a standard 110-120Volt, 60Hz electrical outlet with good

grounding means.

Before using your ice maker, it is strongly recommended to clean it thoroughly.

Unplug the unit before cleaning or making any maintenance.

1. Take out the ice basket.

2. Clean the interior with diluted detergent, warm water and a soft cloth.

3. Then rinse the inside parts with water, and drain out the water by unplugging the

drain cap on the front bottom side.

4. The outside of the ice maker should be cleaned regularly with a mild detergent

solution and warm water.

5. Dry the interior and exterior with a clean soft cloth.

6. When the machine is not in use for a long time, drain water completely out and

dry the interior.

UNPACKING YOUR ICE MAKER

CONNECTING YOUR ICE MAKER

CLEANING AND MAINTAINING YOUR ICE MAKER

7USING YOUR ICE MAKER

How to start the unit

Operation and display areas

Pour water

1. Take out the ice basket and pour potable water into the water reservoir, 0.58

gallon (2.2 liters) waterat most at one time.

2. Put back the ice basket.

3. Plug in the power cord.

Plug in the power cord and the screen is on: You can operate this appliance by

touching the buttonon the panel as shown above.The main function includes: ice,

clean and timer.

USING YOUR ICE MAKER

4. Before the cleaning procedure, please make sure the water drain cap has been

inserted into the appliance; otherwise it will not work properly.

5. Press“ICE/CLEAN” button“ ” for 5 seconds and the screen displays 15M and

the “CLEAN" symbol“ ”(as shown in the picture below). lt will run the cleaning

procedure for 15 minutes and automatically exit. Press this button again during

the cleaning procedure and it will exit immediately.

6. After the cleaning procedure, remove the top cover and the ice basket, rinse the

main water tely. Reservoir and the secondary water reservoir, and then move the

appliance to the edge of the desktop. Make sure that the appliance is placed

steadily. Place a water container under the appliance and remove the drain cap

from the bottom. The dirty water will drain into the water container and

then reinsert the drain cap.

Change water in the water reservoir every 24 hours to ensure a reasonable hygiene

level. If the unitisn't to be used, drain all water and dry the water reservoir.

Secondary

water reservoir

Water drain cap

Main water

reservoir

Clean

For the ﬁrst time, or the clean procedure has not been running for a long time, it

is highly recommended to run this procedure at ﬁrst.

USING YOUR ICE MAKER 9

How to obtain the ice cube

7. Before we start making ice,please make sure the water drain cap has been

inserted into the appliance; otherwise it will not work properly.

8. Press “ICEICLEAN” button “ ”, the screen displays “ICE”symbol “ ”(as shown

in the ﬁgure below) and it begins to work. Press this button again and it will stop

making ice.

9. For the ﬁrst time, or if the appliance has not been used for a long time, it is

recommended to clean this appliance before starting to make ice.

10. While the ice maker is on, check the water level periodically. If the water pump

can't pump out water, the ice maker will stop automatically and the “Add Water”

symbol “ ”will appear (as shown in theﬁgure below). You need to pour water

into the water reservoir.

11. The ice maker automatically stops working when the ice basket is full of ice cubes

and the “Ice Full” symbol “ ” appears(as shown in the ﬁgure below).

10USING YOUR ICE MAKER

How to set the timer

Timer's Delay Range: 0-24 hours Press once to change: 1H

When the unit is running, you can set the unit with OFF-TIMER to let the unit stop

running after your setting delay time.

And when the unit is at the standby mode, you can set the unit with ON-TIMER to

let the unit start to run automatically after your setting delay time. Then when you go

back home or have a dinner, you can enjoy a happy life accompanied by this ice maker.

12. Press the“TIMER" button “▲” or “▼” to start setting time. Press the “▲” button to

increase the time, and press the “▼” button to decrease the time. Press the

“TIMER” button at the standby mode and it will start after the countdown (as

shown in the ﬁgure a); Press the“TIMER” button at the ice-making mode and it

will shut down after the countdown (as shown in the ﬁgure b).

13. When the unit has been set with the timer, press the TIMER button, then the delay

time digit and “H” letter display will disappear, which means the timer set has been

canceled.

Tips: The background light on the screen automatically goes out after 30 seconds

without operation. lf you want to keep the light on, press the“TIMER” button “▲”

for 5 seconds; and if you want to cancel the constant light, press the“TIMER”button

“▲” for 5 seconds again.

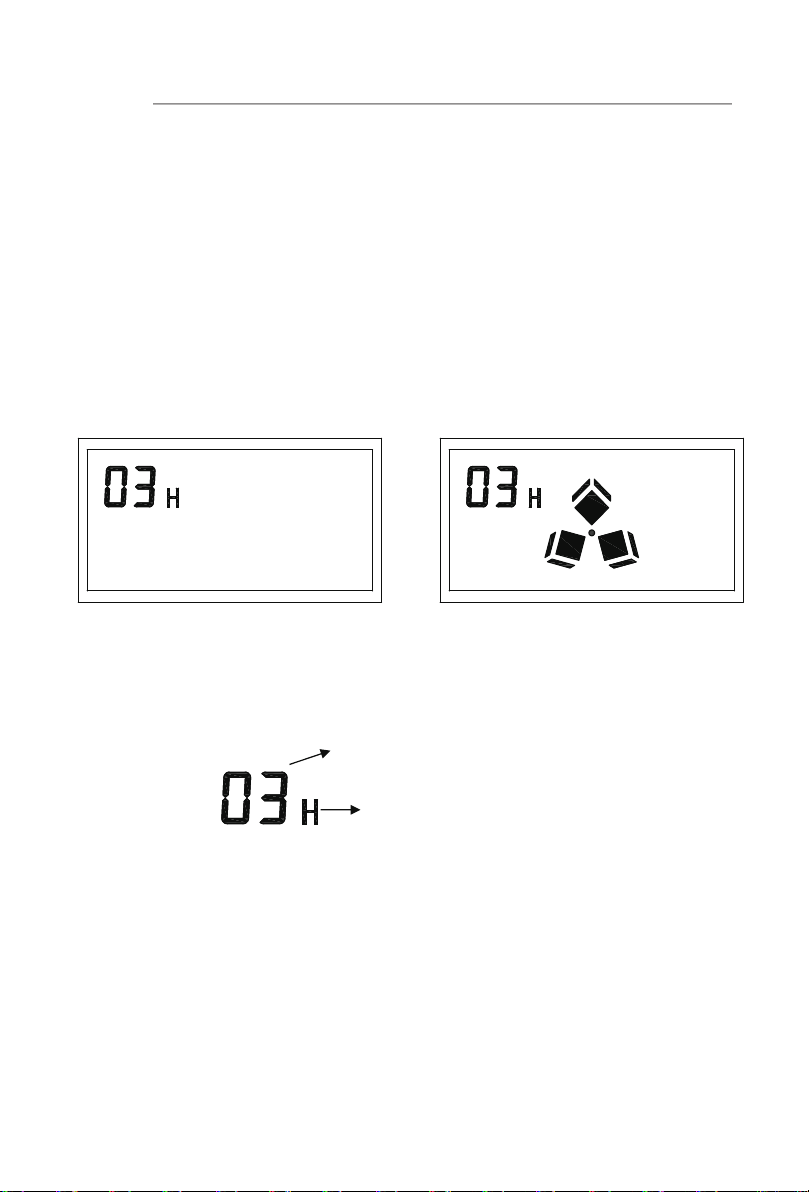

Timer delay time

a. (Start ice making in three hours) b. (Exit ice making after three hours)

Means Hour, and timer setting duration

Table des matières

Langues :

Autres manuels Frigidaire Machine à glaçons

Frigidaire

Frigidaire EFIC450 Manuel utilisateur

Frigidaire

Frigidaire EFIC117-SS Manuel utilisateur

Frigidaire

Frigidaire EFIC117-SSCOPPER-B-COM Manuel utilisateur

Frigidaire

Frigidaire EFIC108 Manuel utilisateur

Frigidaire

Frigidaire EFIC121-B-SS Manuel du propriétaire

Frigidaire

Frigidaire EFIC102-RED Manuel utilisateur

Frigidaire

Frigidaire EFIC111-B-SILVER Manuel du propriétaire

Frigidaire

Frigidaire EFIC245-SS Manuel du propriétaire

Frigidaire

Frigidaire EFIC123-SS Manuel utilisateur

Frigidaire

Frigidaire EFIC235 Manuel utilisateur

Frigidaire

Frigidaire EFIC117-SSBLACK-B-CU Manuel utilisateur

Frigidaire

Frigidaire EFIC206-B-TG-SILVER Manuel du propriétaire

Frigidaire

Frigidaire EFIC120-SS-SC Manuel utilisateur

Frigidaire

Frigidaire FFU20B6BW1 Manuel utilisateur

Frigidaire

Frigidaire FGHS2655PF6B Manuel utilisateur

Frigidaire

Frigidaire EFIC101 Manuel utilisateur

Frigidaire

Frigidaire EFIC255-GREY Manuel du propriétaire

Frigidaire

Frigidaire 242102400 Manuel utilisateur

Frigidaire

Frigidaire EFIC113 Manuel utilisateur

Frigidaire

Frigidaire EFIC237 Manuel du propriétaire

Frigidaire

Frigidaire EFIC452-SS Manuel utilisateur

Frigidaire

Frigidaire EFIC103-AMZ-SC Manuel du propriétaire

Frigidaire

Frigidaire EFIC157-BLACK Manuel du propriétaire

Frigidaire

Frigidaire EFIC128-BLACK-6COM Manuel du propriétaire

Manuels Machine à glaçons populaires d'autres marques

Hoshizaki

Hoshizaki KMD-460MWJ Manuel utilisateur

Sub-Zero

Sub-Zero 315I Instructions d'utilisation

Unold

Unold 48945 Manuel utilisateur

Kenmore

Kenmore 2217402A Manuel utilisateur

Cornelius

Cornelius WM600 Mode d'emploi

GE XPIO43SCSS Manuel utilisateur

Hoshizaki

Hoshizaki KMD-901MAH Manuel utilisateur

Whynter

Whynter FIM-450HA Manuel utilisateur

U-Line

U-Line UMCR014-SC01A Manuel d'installation

Andrew James

Andrew James AJ000522 Manuel utilisateur

Scotsman

Scotsman CME1356 Manuel utilisateur

Scotsman

Scotsman ACM 25 Manuel utilisateur

Kärcher

Kärcher IP 120 Manuel utilisateur

U-Line

U-Line SS1095 Manuel utilisateur

Maytag

Maytag MIM1554WRS - Ice Maker Manuel utilisateur

Hoshizaki

Hoshizaki KM-630MAH Manuel utilisateur

Princess

Princess Yonanas Manuel utilisateur

Unold

Unold 48946 Manuel utilisateur
