AUTOMATIC ICE MAKER

INSTALLATION INSTRUCTIONS

P/N: A13109106

WARNING

• To avoid electric shock, which can cause death or severe personal injury, disconnect the refrigerator

from electrical power before connecting a water supply line to the refrigerator.

• Connect the ice maker to a potable water supply only.

An authorized service technician is recommended to install the ice maker kit.

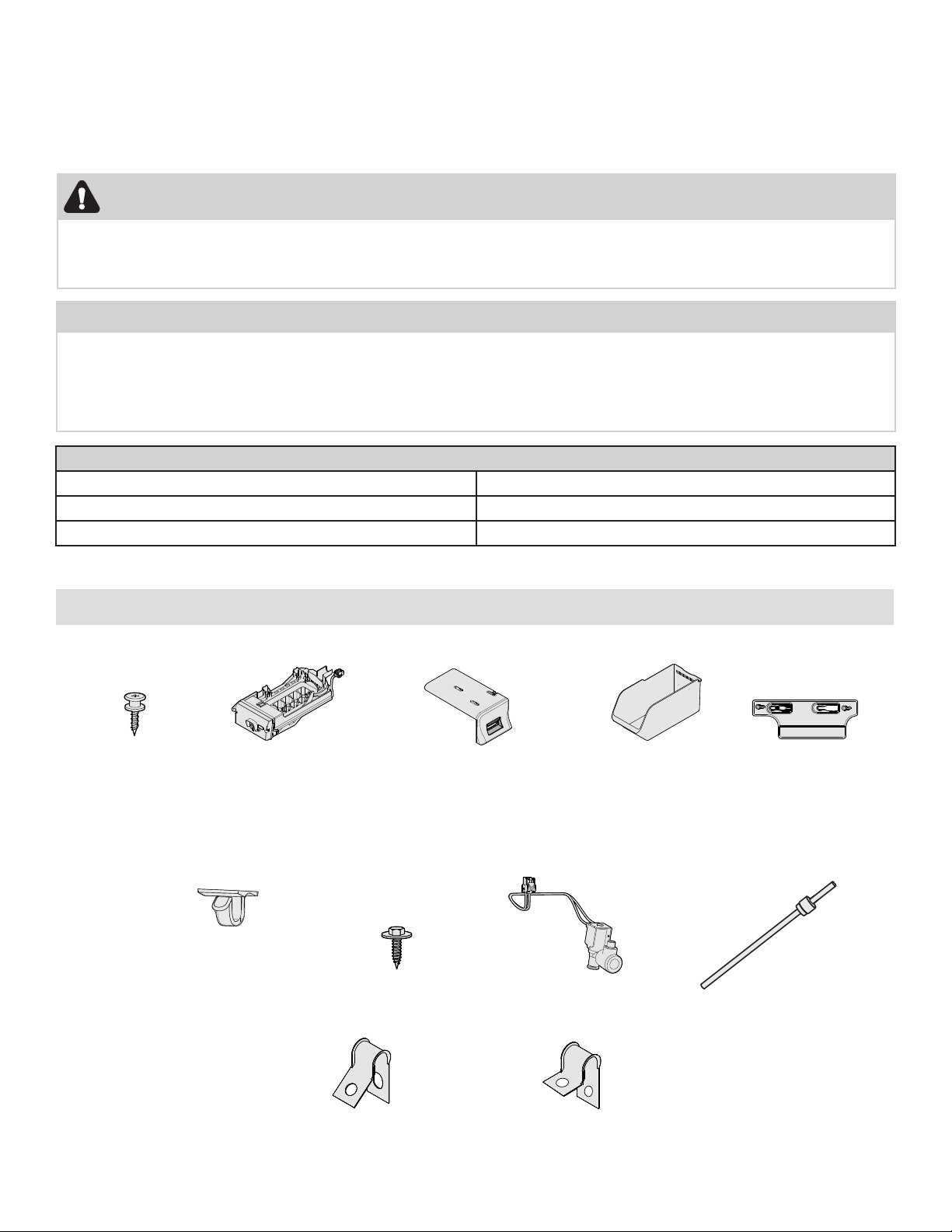

Ice Maker (IM117000) Kit Components

5304520536

Ice Maker

QTY: 1

5304525288

Shoulder Screw

QTY: 5

5304520538/5304520539

Cover with Door

QTY: 1

5304520535

Ice Bin

QTY: 1

5304520537

Bracket (30" only)

QTY: 1

Parts needed for install inside the unit

Tools Needed:

• Flat head screw driver • Phillips or Quadrex driver

• ¼" Hex driver • Gloves

• Drill • Needle nose pliers

Parts needed for install on back side of the unit

NOTE

Check with your local building authority for recommendations on water lines and associated materials prior to

installing your new refrigerator. For household water line hookup from the home water supply system to the unit,

Frigidaire recommends for homes with existing valves its Smart Choice®water line kit 5304437642 (with a 6�

Stainless Steel Water Line) and for homes without an existing valve, Frigidaire recommends its Smart Choice®

water line kit 5304493869 (with a 6� Polyline Waterline). Please refer to Frigidaire.com for more information.

5304520540

Water Valve

QTY: 1

218976923

Tube

QTY: 1

241500304

#8 screw

QTY: 2

218515401

Hose and

Harness Clip

(30" only)

QTY: 3

5304455846

Clamp ¼"

QTY: 1

5303001193

Clamp ½"

QTY: 1

Ice Maker Installation Instructions

1. Unplug refrigerator from electrical outlet.

2. Lift the freezer shelf up and out. Set aside.

See Figure 1.

3. Remove water inlet and electrical cover, located

on the inside of the unit, by inserting a ﬂathead

screwdriver on left side of opening in the small

cover. Push to the right to disengage the snap.

See Figure 2.

4. Locate dimples in the freezer liner for screw

placement (a ﬂashlight may help). Align the

shoulder screws with the dimples. Push the

screws to penetrate the freezer liner and drive the

screws in until they are tight against the liner. Use

2 screws on the left side wall, and 3 on the top of

the liner. See Figure 3.

5. For a 30"wide refrigerator install the bracket

onto the ice maker. The Ice maker will slide onto

the mounting features on the bracket and snap

into place. The locking feature is located on the

rear of the ice maker.

6. Plug the ice maker in the electrical connector on

the back wall. Once connected, do not allow the

ice maker to hang unsupported. See Figure 4.

7. Slide the ice maker onto the 2 side wall shoulder

screws. See Figure 5A.

Make sure the ice maker water channel is under

the water ﬁll tube, continue to slide until the ice

maker snaps into place. See Figure 5B.

28"wide refrigerator

Use the ice maker only

Locking

Feature

30"wide refrigerator

Use the bracket with the ice maker

Figure 1

Figure 2

To Ceiling

To Wall

Install 5

Shoulder

Screws

Figure 3

Plug

Electrical

Connector

Figure 4

Figure 5

Ice Maker Installation Instructions

9. To install the ice bin, the freezer shelf needs to be

in the lowest position. Slide the ice bin between

the side wall and the right side of the ice maker

housing positioned on the shelf. See Figure 7.

10. Locate the Ice maker installation label on the

rear outside right top corner of the refrigerator.

Cut the label on the dashed lines, and push ﬂaps

inward until they stick to the unit. See Figure 8.

8. Install the plastic shutter into the window in the

front of the cover. The shutter snaps into the clips

on inside face of the cover, no tools are required.

Slide the ice maker cover onto the shoulder

screws on top of the unit until it locks into place

with a snap. See Figure 6.

11. Install the water line by screwing the nut on the

end of the tube onto the water inlet. Tighten the

nut until snug, and then tighten an additional ¼

turn with needle nose pliers. (See Figure 9A.)

12. Install the 2 water line clips on the unit evenly

spaced inside the depressed area located under

the water inlet. Insert the water line tube into the

clips. (See Figure 9B.)

*If you have a unit with an access cover,

continue to page 4 for additional instal-

lation instructions. For a unit without an

access cover, continue to page 5.

Units with access cover

Units without access cover

Figure 6

Figure 7

Cut on dashed lines

and push in on flaps

Figure 8

Water

Line

Clip

Water

Inlet

Figure 9

Ice Maker Installation Instructions (with access cover)

NOTE

Ensure power cord is aligned with the notch at the

bottom of the access cover and the water line is

located inside the notch at the top right of the cover.

16. Plug the connector on the water valve wire har-

ness into the connector above the condenser coil.

You will hear a click when it is fully seated in place.

Install the water valve clip at the bottom right side

of the unit, and route and attach the water valve

harness into the clip. See Figure 13.

CAUTION

Wear gloves and use extreme CAUTION when

handling the access cover.

13. Remove 8 screws from access cover located at

the bottom rear outside of the unit. Set aside.

See Figure 10.

14. Place the green water tube to the icemaker into the

bottom outlet of the water valve. You must push the

tube into the valve until it is fully seated in place.

Check to make sure you installed the tube correctly

by gently pulling to make sure it does not come out.

15. The water valve location has pre-made holes on the

right rear of the unit. The water line should be ori-

ented downward when the valve is installed. Install

the water valve using a ¼" hex head driver, install

the 2 hex head screws. Tighten screws until they are

snug and then tighten an additional ¼ turn.

See Figure 12.

17. Reinstall the access cover by hooking cover onto

the bottom ﬂange of the cabinet, and then tilt the

cover upward to align with the screw locations on

the cabinet. Install the screws starting with the 2

on the left side, then the right side , ﬁnish with the

center screws. See Figure 14.

18. Connect the household water line to the water

valve. Follow instructions in Connecting Ice

Maker to Water Supply.

Remove 8 Screws

Figure 10

Plug water tube

into water valve

Figure 11

Figure 12

Figure 13

Figure 14

Water

line

Power cord

Ice Maker Installation Instructions (without access cover)

19. Remove the connector box from the unit with a

Philips screwdriver. Discard screw. See Figure 15.

20.Open the connector box using a ﬂat head

screwdriver. Insert at the notched point and turn.

Insert the water valve in the hole in the box.

See Figure 16.

21. Connect the valve wire harness with the white

connector from the unit. Insert the wiring in the

box as shown. Close the box cover completely,

ensuring all wiring is inside. See Figure 17.

22. Plug the green water tube from the icemaker into

the bottom outlet of the water valve. The tube

should be pushed into the valve up to the black

line marked on the tube. See Figure 18.

23. Attach the water valve bracket to the unit at the

2 pre-made holes using the 2 screws included in

the kit. See Figure 19.

24. Connect the household water line to the water

valve ﬁtting (pointed up). Follow instructions in

Connecting Ice Maker to Water Supply.

Figure 15

Figure 16

Figure 17

Figure 18

Figure 19

Connecting Ice Maker to Water Supply

Before Installing The Water Supply Line, You Will Need:

• Basic Tools: adjustable wrench, ﬂat blade

screwdriver, and Phillips screwdriver

• Access to a household cold water line with water

pressure between 30 and 100 psi.

• A water supply line preferably made of Braided

Stainless Steel or Braided Poly with integral ﬁttings

for connection to the refrigerator and the valve at

the wall. If the home has a ¼" copper line, and the

owner prefers to keep the copper line, a compres-

sion ﬁtting ferrule (sleeve) and nut should be

replaced each time the ﬁtting is reused.

NOTE

Check with your local building authority for

recommendations on water lines and associated

materials prior to installing your new refrigerator.

Depending on your local/state building codes,

Frigidaire recommends for homes with existing

valves its Smart Choice®water line kit 5304437642

(with a 6' Stainless Steel Water Line) and for homes

without an existing valve, Frigidaire recommends its

Smart Choice®water line kit 5304493869 (with a 6'

Polyline Waterline). Please refer to Frigidaire.com.

WARNING

To avoid electric shock, which can cause death or

severe personal injury, disconnect the refrigerator

from electrical power before connecting a water

supply line to the refrigerator.

CAUTION

To Avoid Property Damage:

• Stainless Steel braided tubing is recommended

for the water supply line. Water supply tubing

made of ¼" plastic is not recommended to be

used. Plastic tubing greatly increases the poten-

tial for water leaks, and the manufacturer will not

be responsible for any damage.

• DO NOT install water supply tubing in areas

where temperatures fall below freezing.

• Chemicals from a malfunctioning softener can

damage the ice maker. If the ice maker is con-

nected to soft water, ensure that the softener is

maintained and working properly.

IMPORTANT

Ensure that your water supply line connections

comply with all local plumbing codes.

NOTE

Water lines should be long enough to all ow the

refrigerator to roll forward for cleaning or service.

Typically, 6'. length works well for braided Stainless

or Poly kits. A ¼" copper line should be longer to

coil extra length behind the refrigerator so movement

will not kink the copper line.

Connecting Ice Maker to Water Supply

To Connect Water Supply Line To Ice Maker Inlet Valve

1. Disconnect refrigerator from an electrical

power source.

2. Place the end of water supply line into the sink or

a bucket. Turn ON the water supply and ﬂush the

supply line until the water is clear. Turn OFF the

water supply at the shuto valve.

3. Remove the plastic cap from water valve inlet and

discard the cap.

4. If you use copper tubing, slide the brass com-

pression nut and then ferrule (sleeve) onto the

water supply line. Push the water supply line into

the water valve inlet as far as it will go (¼" / 6.4

mm). Slide the ferrule (sleeve) into the valve inlet

and ﬁnger tighten the compression nut onto the

valve. Tighten another ½ turn with a wrench; DO

NOT overtighten. See below.

If you use braided ﬂexible stainless steel tubing,

the nut is already assembled on the tubing. Slide

the nut onto the valve inlet and ﬁnger tighten the

nut onto the valve. Tighten another ½turn with a

wrench; DO NOT overtighten. See below.

6. With the steel clamp and the screw, secure the

water supply line to the rear panel of the refrig-

erator as shown.

7. To turn the ice maker on, press the ice maker’s On/

O power switch so the LED is steadily illuminated.

service

mode

Plastic Water

Tubing to Ice

Maker Fill Tube

Brass

Compression

Nut

Ferrule

Sleeve

Water

Valve Inlet

Water

Valve

Copper water line

from household water supply

¼" Clamp

(Include enough tubing in loop to allow

moving refrigerator out for cleaning.)

Units with access cover

Brass

Compression

Nut

Water

Valve

Copper water line

from household water supply

Plastic Water

Tubing to Ice

Maker Fill Tube

(Include enough tubing in loop to allow

moving refrigerator out for cleaning.)

Ferrule

(Sleeve)

¼" Clamp

Water

Valve Inlet

Units without access cover

Water Valve

Bracket

Valve Inlet

Water Valve

6 ft minimum (1.8 m)

braided flexible stainless steel

water line from household water supply

Plastic Water

Tubing to Ice

Maker Fill Tube

(Include enough tubing in to allow

moving refrigerator out for cleaning.)

½" Clamp

Units with access cover

Water Valve

Bracket

Valve Inlet

Water Valve

6 ft minimum (1.8 m)

braided flexible stainless steel

water line from household water supply

Plastic Water Tubing

to Ice Maker

Fill Tube

(Include enough tubing to allow

moving refrigerator out for cleaning.)

½"Clamp

Units without access cover

8. Turn ON the water supply at the shuto valve and

tighten any connections that leak.

9. Reconnect the refrigerator to an electrical

power source.

5. Secure the copper line to the clamp (as shown),

using the existing screw.

Ice Service

If your refrigerator has an automatic ice maker, mini-

mal ice will be produced during the ﬁrst 24 hours of

operation. Air in new plumbing lines may cause the

ice maker to cycle 2 or 3 times before making a full

tray of ice. With no usage, it will take approximately 1

to 2 days to ﬁll the ice bin.

New plumbing connections may cause the ﬁrst pro-

duction of ice cubes to be discolored or have an odd

ﬂavor. Discard ice made during the ﬁrst 24 hours.

Turning Your Ice Maker On

After the plumbing connections have been

completed, the water supply valve must be opened.

Place the ice bin under the ice maker, pushing it as

far back as possible. Press the ice maker’s On/O

button. The button will illuminate in green when the

ice maker is On.

Turning Your Ice Maker O

To stop the ice maker, press the ice maker’s On/O

button. The ice maker also stops producing

ice automatically when the bin is full, and then it

resumes when the level in the bin drops.

IMPORTANT

To ensure proper function for your ice maker, hook

up water supply immediately or turn ice maker OFF.

If the ice maker is on and the water supply is not

connected, the water valve can make a loud chat-

tering noise.

Ice Production: What To Expect

The ice maker will produce about 2 pounds of ice

every 24 hours depending on usage conditions.

Note: You can make more ice by setting the freezer

to a colder setting. Ice is produced at a rate of 10

cubes every 100 to 160 minutes.

Ice Maker Tips

CAUTION

Do Not place the ice container in your dishwasher.

• Wash ice container in warm water with mild

detergent. Rinse well and dry.

• Stop the ice maker when cleaning the freezer or

for short vacations.

• If the ice maker will be turned o for a long

period of time, turn the water supply valve to

the closed position.

Remember that water quality determines your ice

quality. If the water source uses a water softener,

ensure that the softener is maintained and working

properly. Chemicals from a malfunctioning softener

can damage the ice maker.

CAUTION

Do Not place the ice container in your dishwasher.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Frigidaire Machine à glaçons

Frigidaire

Frigidaire EFIC255-GREY Manuel du propriétaire

Frigidaire

Frigidaire EFIC237 Manuel du propriétaire

Frigidaire

Frigidaire EFIC235-AMZ Manuel utilisateur

Frigidaire

Frigidaire 242102400 Manuel utilisateur

Frigidaire

Frigidaire EFIC121-B-SS Manuel du propriétaire

Frigidaire

Frigidaire EFIC130-SS Manuel du propriétaire

Frigidaire

Frigidaire EFIC235 Manuel utilisateur

Frigidaire

Frigidaire EFIC102-RED Manuel utilisateur

Frigidaire

Frigidaire EFIC452-SS Manuel utilisateur

Frigidaire

Frigidaire EFIC128-BLACK-6COM Manuel du propriétaire

Frigidaire

Frigidaire FGHS2655PF6B Manuel utilisateur

Frigidaire

Frigidaire EFIC236-WHITE Manuel du propriétaire

Frigidaire

Frigidaire EFIC157-BLACK Manuel du propriétaire

Frigidaire

Frigidaire EFIC120-SS-SC Manuel utilisateur

Frigidaire

Frigidaire FFU20B6BW1 Manuel utilisateur

Frigidaire

Frigidaire EFIC123-SS Manuel utilisateur

Frigidaire

Frigidaire EFIC229-VCM Mode d'emploi

Frigidaire

Frigidaire IM115 - Ice Maker Kit Manuel utilisateur

Frigidaire

Frigidaire EFIC117-SS Manuel utilisateur

Frigidaire

Frigidaire EFIC123-B-SSRED Manuel utilisateur

Frigidaire

Frigidaire EFIC108-C Manuel utilisateur

Frigidaire

Frigidaire EFIC117-SSBLACK-B-CU Manuel utilisateur

Frigidaire

Frigidaire EFIC450 Manuel utilisateur

Frigidaire

Frigidaire EFIC111-B-SILVER Manuel du propriétaire

Manuels Machine à glaçons populaires d'autres marques

Hoshizaki

Hoshizaki KMD-460MWJ Manuel utilisateur

Sub-Zero

Sub-Zero 315I Instructions d'utilisation

Unold

Unold 48945 Manuel utilisateur

Kenmore

Kenmore 2217402A Manuel utilisateur

Cornelius

Cornelius WM600 Mode d'emploi

GE XPIO43SCSS Manuel utilisateur

Hoshizaki

Hoshizaki KMD-901MAH Manuel utilisateur

Whynter

Whynter FIM-450HA Manuel utilisateur

U-Line

U-Line UMCR014-SC01A Manuel d'installation

Andrew James

Andrew James AJ000522 Manuel utilisateur

Scotsman

Scotsman CME1356 Manuel utilisateur

Scotsman

Scotsman ACM 25 Manuel utilisateur

Kärcher

Kärcher IP 120 Manuel utilisateur

U-Line

U-Line SS1095 Manuel utilisateur

Maytag

Maytag MIM1554WRS - Ice Maker Manuel utilisateur

Hoshizaki

Hoshizaki KM-630MAH Manuel utilisateur

Princess

Princess Yonanas Manuel utilisateur

Unold

Unold 48946 Manuel utilisateur
