Frigidaire EFIC128-BLACK-6COM Manuel du propriétaire

Important Safety Information.............................................

Getting to Know Your Unit..................................................

Introduction...............................................................................

Operating Procedures & Maintenance............................

Using Your Ice Maker..............................................................

Troubleshooting Guide..........................................................

Product Speciﬁcations..........................................................

Limited Warranty....................................................................

Safety Instructions...................................................................4

USA CANADA 1-800-

ICE MAKER

EFIC128-BLACK-6COM,

EFIC128-SILVER-6COM

2INTRODUCTION

When you unpack your ice maker, you

may ﬁnd a small amount of water inside.

Your unit is brand new.

Please follow the initial preparation and

cleaning instructions as detailed in the

User Guide prior to using your new

icemaker.

Any water you may ﬁnd is from the

standard quality control testing that all

of our ice makers undergo as part of the

manufacturing process.

3IMPORTANT SAFETY INFORMATION

WARNING

WARNING indicates apotentially

hazardous situation which, if not avoided,

could result indeath or serious injury.

IMPORTANT

IMPORTANT indicates installation, oper-

ation or maintenance information which

is important but not hazard-related.

DANGER

DANGER indicates an imminently

hazardous situation which, if not avoided,

will result in death or serious injury.

CAUTION

CAUTION indicates a potentially

hazardous situation which, if not

avoided, may result in minor or

moderate injury.

Safety Deﬁnitions

This is the safety alert symbol. It is

used to alert of potential personal injury

hazards. Obey all safety messages that

follow this symbol to avoid possible injury

or death.

Safety Instructions

•DO NOT store or use gasoline, or

other ﬂammable liquids in the vicinity

of this or any other appliance. Read

product labels for warnings regarding

ﬂammability and other hazards.

•Avoid contact with any moving parts

of automatic ice maker.

•Remove all staples from the carton.

Staples can cause severe cuts, and also

destroy ﬁnishes if they come in contact

withother appliances or furniture.

WARNING

Please read all instructions before using

this appliance.

Child Safety

Destroy or recycle the carton, plastic

bags, and any exterior wrapping material

immediately after the Ice Maker is unpacked.

Children should NEVER use these items to

play. Cartons covered with rugs, bedspreads,

plastic sheets or stretch wrap may become

airtight chambers, and can quickly cause

suocation.

This appliance must be plugged into at least a 15 AMP 110-115 VOLT 60 Hz

GROUNDED OUTLET. This appliance must be grounded. It is equipped with a

3-wire cord having a grounding plug. The plug must be plugged into an outlet that

is properly installed and grounded.

Avoid the use of an extension cord because it may overheat and cause a risk of

ﬁre. However, if it is necessary to use an extension cord:

A. Use only 3-wire extension cords with 3-blade grounding plug.

B. The marked rating of an extension cord must be be equal to or greater than the

rating of this appliance.

C. It should be positioned such that it does not drape over the counter or tabletop

where it can be pulled on by children intentionally.

Attempting any maintenance or cleaning:

To minimize the possibility of electric shock, unplug this appliance from the power

suply or disconnect at the household distribution panel by removing the fuse or

switching o the circuit breaker before attempting any maintenance or cleaning.

NOTE: Pressing the Power ON/OFF button to an o position does not disconnect

the appliance from the power supply.

WARNING!

Improper use of grounded wire can result in the risk of electric shock.

Consult a physician if necessary. Do not attempt to defeat this safety

feature by modifying the plug.

4SAFETY INSTRUCTIONS

5GETTING TO KNOW YOUR UNIT

1. Ice scoop

2. Ice full sensor

3. Ice basket

4. Top cover with transparent window

5. Air exhausting

6. Water drain cap: at front btm side of the unit

7. MAXIMUM WATER LEVEL:

Remove the ice basket, you can see the water level mark.

General instrucion

Control Panel: Easy to use, visible functions touch display setting.

A. Selected ice size displaying: Small and Large

B. Power indicator

C. Ice-Full indicato

D .Water shortage indicator

E. Button to turn on/o the unit

F. Button to select ice cube size

6GETTING TO KNOW YOUR UNIT

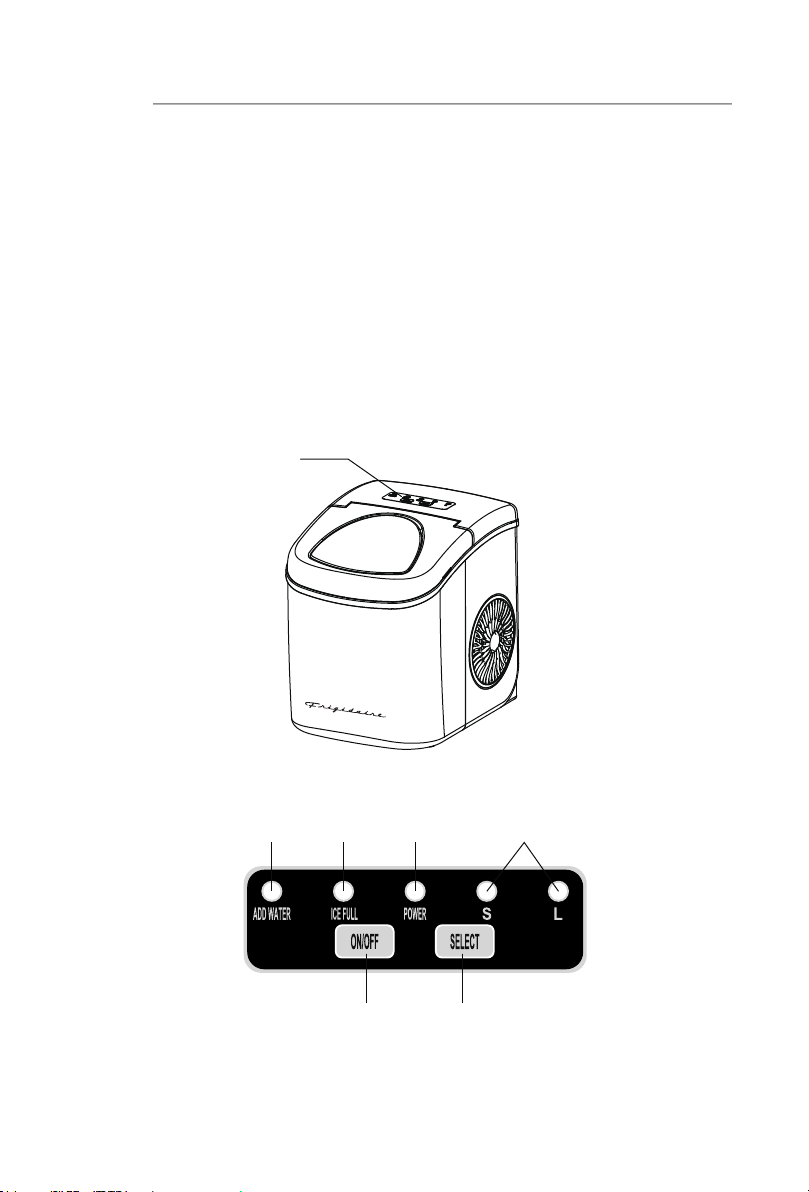

Postion of control panel & function

CONTROL PANEL

d c

e f

b a

7OPERATING PROCEDURES & MAINTENANCE

DANGER

1. Remove the exterior and interior packaging. Check if ice basket and ice scoop

inside. If any parts are missing, please contact our customer service.

2. Remove the tapes for ﬁxing ice shovel, ice basket & ice scoop. Clean the tank &

ice basket.

3. Put the ice maker on a level & ﬂat counter top without direct sunlight and other

sources of heat (i.e.: stove, furnace, radiator). Maker sure that there is at least 4

inches gap between the back & LH/RH sides with the wall.

4. Allow one hour for the refrigerant ﬂuid to settle before plugging the ice maker in.

5. The appliance must be positioned so that the plug is accessible.

WARNING: Fill with potable water only. Only use drinking water.

*Improper use of the grounded plug can result in the risk of electrical shock. If

the power cord is damaged please call our customer service.

1. This unit should be properly grounded for your safety. The power cord of this

appliance is equipped with a grounding plug which mates with standard grounding

wall outlets to minimize the possibility of electric shock.

2. Plug your appliance into an exclusive, properly installed, grounding wall outlet. Do

not be under any circumstances; damage the grounding means of the plug. Any

questions concerning power and or grounding should be directed toward a

certiﬁed electrician.

3. This appliance requires a standard 110-120Volt, 60Hz electrical outlet with good

grounding means.

Before using your ice maker, it is strongly recommended to clean it thoroughly.

Unplug the unit before cleaning or making any maintenance.

1. Take out the ice basket.

2. Clean the interior with diluted detergent, warm water and a soft cloth.

3. Then rinse the inside parts with water, and drain out the water by unplugging the

drain cap on the front bottom side.

4. The outside of the ice maker should be cleaned regularly with a mild detergent

solution and warm water.

5. Dry the interior and exterior with a clean soft cloth.

6. When the machine is not in use for a long time, drain water completely out and

dry the interior.

UNPACKING YOUR ICE MAKER

CONNECTING YOUR ICE MAKER

CLEANING AND MAINTAINING YOUR ICE MAKER

1. Open the cover, remove the ice basket and pour water into tank. Keep water

level below the water level mark.

2. Press “ON/OFF” button on the control panel to begin the ice making cycle.

3. Select the ice cube size by pressing the “SELECT” button. If the room

temperature is lower than 60

°F

, it is recommended to select small ice cube in

order to avoid ice sticking together.

4. The ice making cycle lasts approx. 6 to 13 minutes, depending on seletion of ice

cube size and the room temperature. The recommended room temperature is

°F

to 105

°F.

5. If water pump can’t inject water, the ice maker will stop automatically, and the

“ADD WATER” indicator will be on.Press “ON/OFF” button, ﬁll water up to the

max. water level mark and press “ON/OFF” button again to turn on the unit

again.Allow the refrigerant liquid inside the compressor at least 3 minutes to

settle before restarting.

6. The ice maker stops when the ice basket is full and the “ICE FULL” indicator will

be on.

Warning: Direct sunlight or sunlight reﬂection may cause infared sensor malfunction.

If the unit doesn’t stop even ice cubes obstruct sensor, move the unit where no

sunlight.

7. Change water in the water reservoir every 24 hours to ensure a reasonable

hygiene level. If unit isn’t to be used, drain all the water and dry the tank.

8USING YOUR ICE MAKER

Ice cubes stick together.

Ice making cycle is normal

but no ice formed. Refrigerant in cooling

system leaks.

Verify by a qualiﬁed

technician.

Pipe in the cooling

system is blocked.

Verify by a qualiﬁed

technician.

The ice making cycle is

too long.

Stop the ice maker, and

restart it when the ice

blocks melt. Select the

small size ice cube

selection.

Water temperature in

inner tank is too low.

Replace the water.

Temperature of water

recommended at 40

°F

°F.

Room temperature or

water temperature in

inner tank is too high.

The room temperature

should be 50

°F

-105

°F

water temperature should

be 40

°F

-90

°F.

PROBLEM POSSIBLE CAUSES SOLUTION

“ADD WATER”

indicator light turns on.

Lack of Water. Stop the ice maker, ﬁll

water, and press “ON/

OFF” button again to

restart the unit.

Remove ice from ice

basket. Continuous press

“Select” button 5 seconds,

the unit could make ice 10

cycles even “Ice” indicator

is on.

Ice is full in basket.“ICE FULL” indicator

is on.

9TROUBLESHOOTING GUIDE

10 PRODUCT SPECIFICATIONS

Input Voltage: 115V 60Hz

Power Consumption: 90-120 W

Daily Ice Output: 12 KGS/24H

Ice-Making Amount Per Time: 9 PCS

Refrigerant: R600a

Dimensions

Product Depth (IN.) 11.6

Product Height (IN.) 11.4

Product Width (IN.) 8.7
