Frigidaire FAS185M2A1 Manuel utilisateur

PRODUCT NO. BASE MODEL NO. SERIES VOLTS

FAS185M2A1 FAS185M2A heavy duty 230

MARKET

Frigidaire

Publication No.

5995388211

030401

-EN/SERVICE /KC

345

ROOM AIR CONDITIONER

Model No.

FAS185M2A

FACTORY PARTS CATALOG

ROOM AIR CONDITIONER

WIRING DIAGRAM - # 309364201

OWNER’S GUIDE - # 309000848

ENERGY GUIDE - # 309369926

INSTALLATION INSTRUCTIONS - # 309000906

ELECTROLUX HOME PRODUCTS, INC

P.O.BOX 212378, AUGUSTA, GA 30917

04/03 2

Publication No. FAS185M2A1

5995388211

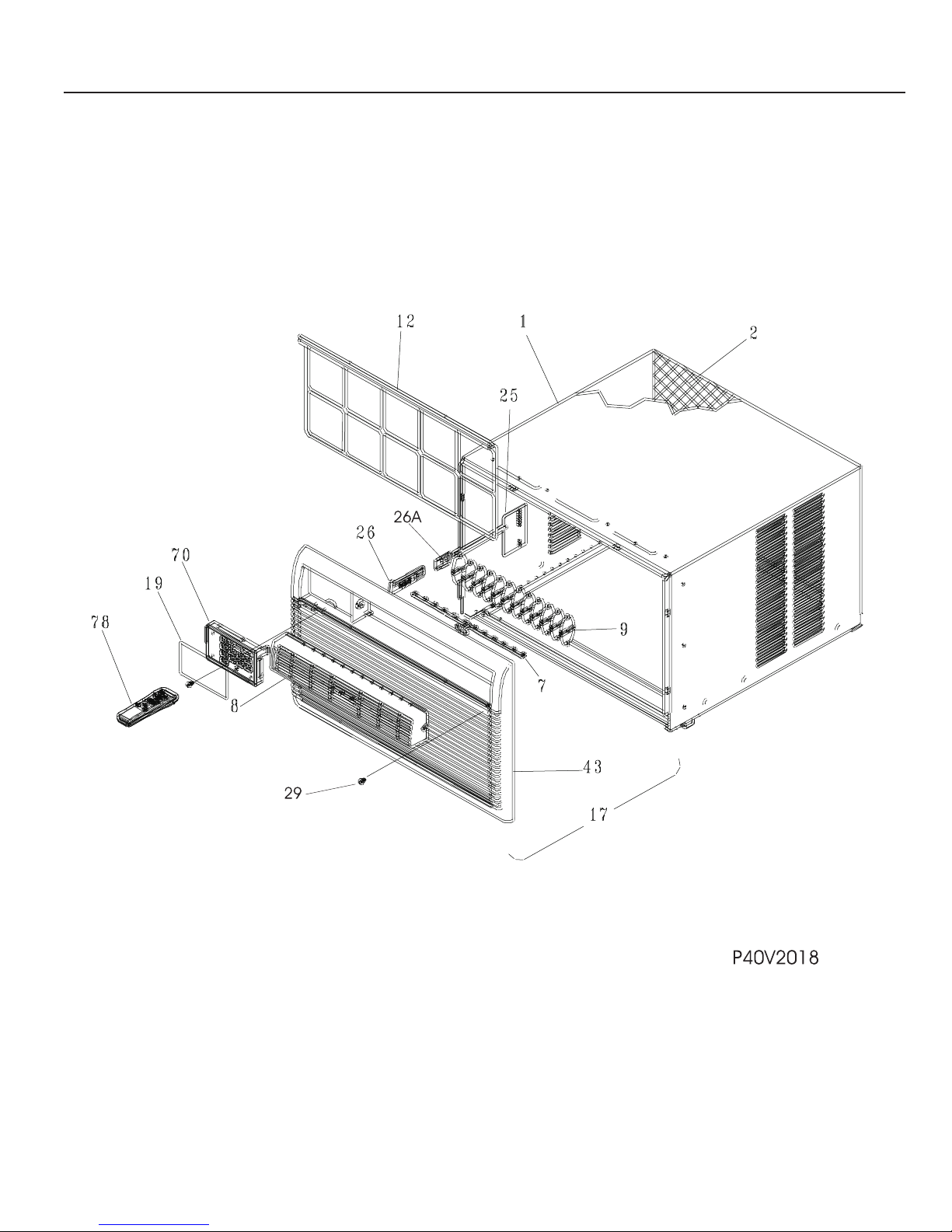

CABINET FRONT AND WRAPPER

# = Fast-moving Parts 3 04/03

* = Non-Illustrated Parts

FAS185M2A1 Publication No.

5995388211

CABINET FRONT AND WRAPPER

POS. NO PART NO DESCRIPTION

1 309632704 Cabinet,sleeve ,top louvers

* 5303212504 Seal,sleeve/shroud ,23.72" x 1.25" ,bottom

2 309632804 Grille,rear ,with rail

7 309631104 Link,vertical louver ,with handle

8 309633305 Louver Assy,Incl-7,8,9

8 309630804 • Louver,horizontal

9 309631004 • Louver,vertical

12 309631404 Filter,air ,molded plastic

17 309633205 Front Assembly,w/7,8,9,12,43

19 309360104 Overlay,control

25 309321401 Door,vent ,with actuator

26 309330404 Handle,vent ,gray

26A 309330202 Detent,vent

29 3015312 Screw,8-18AB x 0.500

43 309630904 Panel,cabinet front

70 309369701 Enclosure,control mount

78 # 309342607 Remote Control,transmitter ,with batteries

* 309369926 Energy Guide,FAS185M2A2

04/03 4

Publication No. FAS185M2A1

5995388211

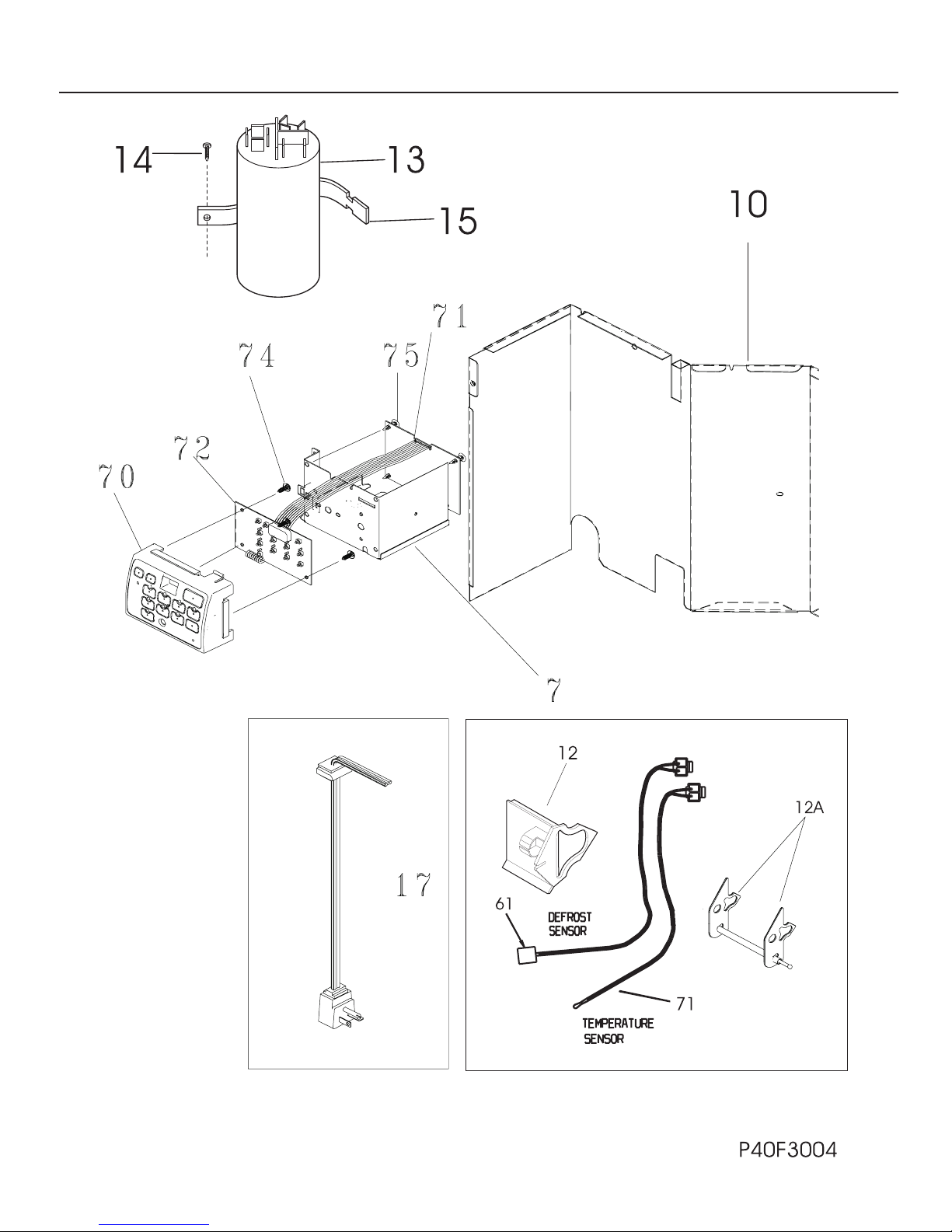

CONTROLS

# = Fast-moving Parts 5 04/03

* = Non-Illustrated Parts

FAS185M2A1 Publication No.

5995388211

CONTROLS

POS. NO PART NO DESCRIPTION

7 309630403 Control Box

7* 5303015427 Screw,truss head ,8-18AB x 0.47 ,with nibs

10 309623602 Bulkhead,control system

10* 309111201 Grommet,wire protector

12 5304413782 Holder,thermistor ,w/seal

12A 309331801 Clip,sensor retainer ,(2)

13 # 5303306706 Capacitor,370 V ,6+30 mfd

14 5303285199 Screw,Ph truss hd ,8-18 x 0.38 ,grounding

15 5303303077 Strap,capacitor mtg.

17 # 309343112 Cord-electric power,type C ,16 AWG

61 # 5304414095 Thermistor,defrost sensor

70 309369701 Enclosure,control mount

71 # 309350405 PC Board,power ,w/trans,sensor

72 # 309350407 PC Board,input

72* 5304417643 Ribbon Protector

74 5303301590 Screw,6-20AB x 0.38

75 5304413781 Hardware,PCB support

04/03 6

Publication No. FAS185M2A1

5995388211

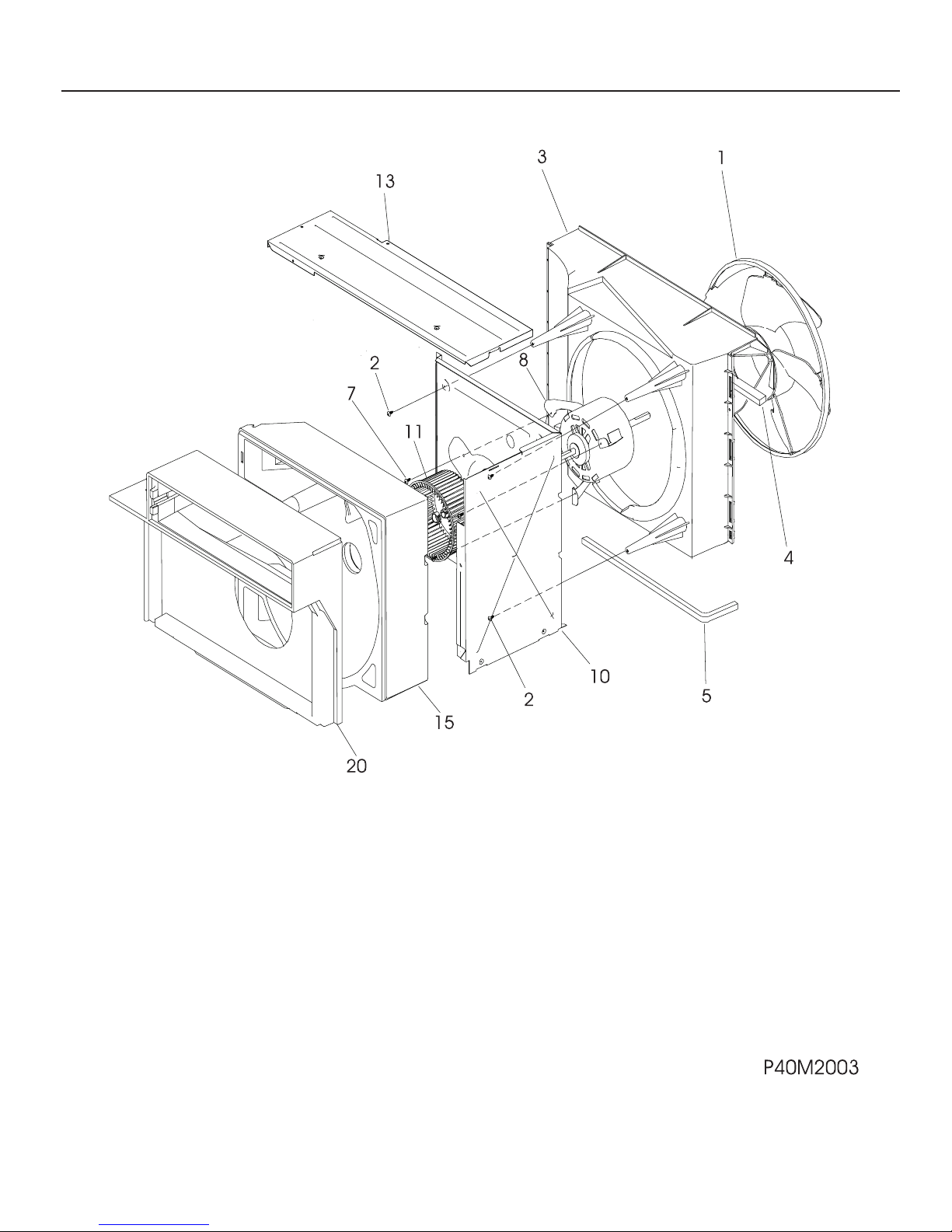

AIR HANDLING PARTS

# = Fast-moving Parts 7 04/03

* = Non-Illustrated Parts

FAS185M2A1 Publication No.

5995388211

AIR HANDLING PARTS

POS. NO PART NO DESCRIPTION

1 # 5303311048 Fan Blade,with clamp

2 3202975 Screw,10-16AB x 0.72 ,square drive

3 309623201 Shroud,cond fan motor

4 5303212504 Seal,sleeve/shroud ,23.72" x 1.25" ,bottom

5 5303015311 Seal,fan housing ,19.56" x 0.50" ,lower

7 5303015427 Screw,truss head ,8-18AB x 0.47 ,with nibs

8 # 309630607 Motor,fan

10 309623401 Bulkhead,air system

11 # 309633001 Blower Wheel,plastic ,with clamp

13 309630302 Cover,blower wheel ,top

15 309630101 Housing,blower scroll

20 309630201 Plate,scroll cover

04/03 8

Publication No. FAS185M2A1

5995388211

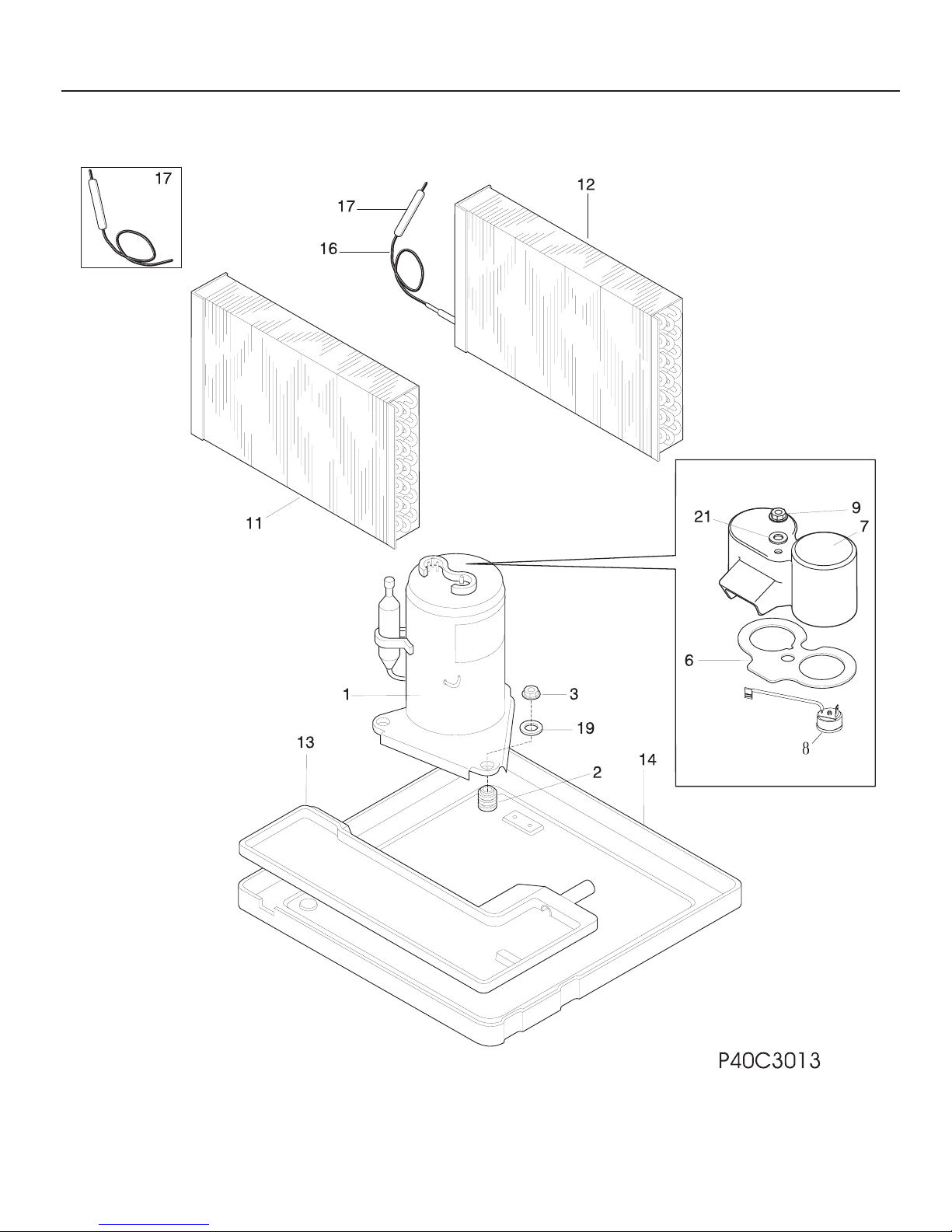

COMPRESSOR PARTS

# = Fast-moving Parts 9 04/03

* = Non-Illustrated Parts

FAS185M2A1 Publication No.

5995388211

COMPRESSOR PARTS

POS. NO PART NO DESCRIPTION

1 # 309603112 Compressor

2 5303283877 Grommet,compressor mtg ,(3)

3 5308006948 Nut,compressor mtg ,(3)

6 5304431275 Gasket,terminal cover

7 5304416126 Cover,elec terminal ,compressor

8 # 5304414111 Overload Protector

9 5303294292 Nut,terminal cover

11 # 309634201 Evaporator

* # 5304414095 Thermistor,defrost sensor

12 # 5303306719 Condenser

13 309623501 Tray,evap drip

14 309632910 Base,compressor mtg. ,with studs

16 # 5308017121 Capillary Tube,45 inch long

17 # 5300265301 Drier-filter,service kit

19 309112501 Washer,metallic

21 5303293809 Washer,terminal cover

04/03 10

Publication No. FAS185M2A1

5995388211

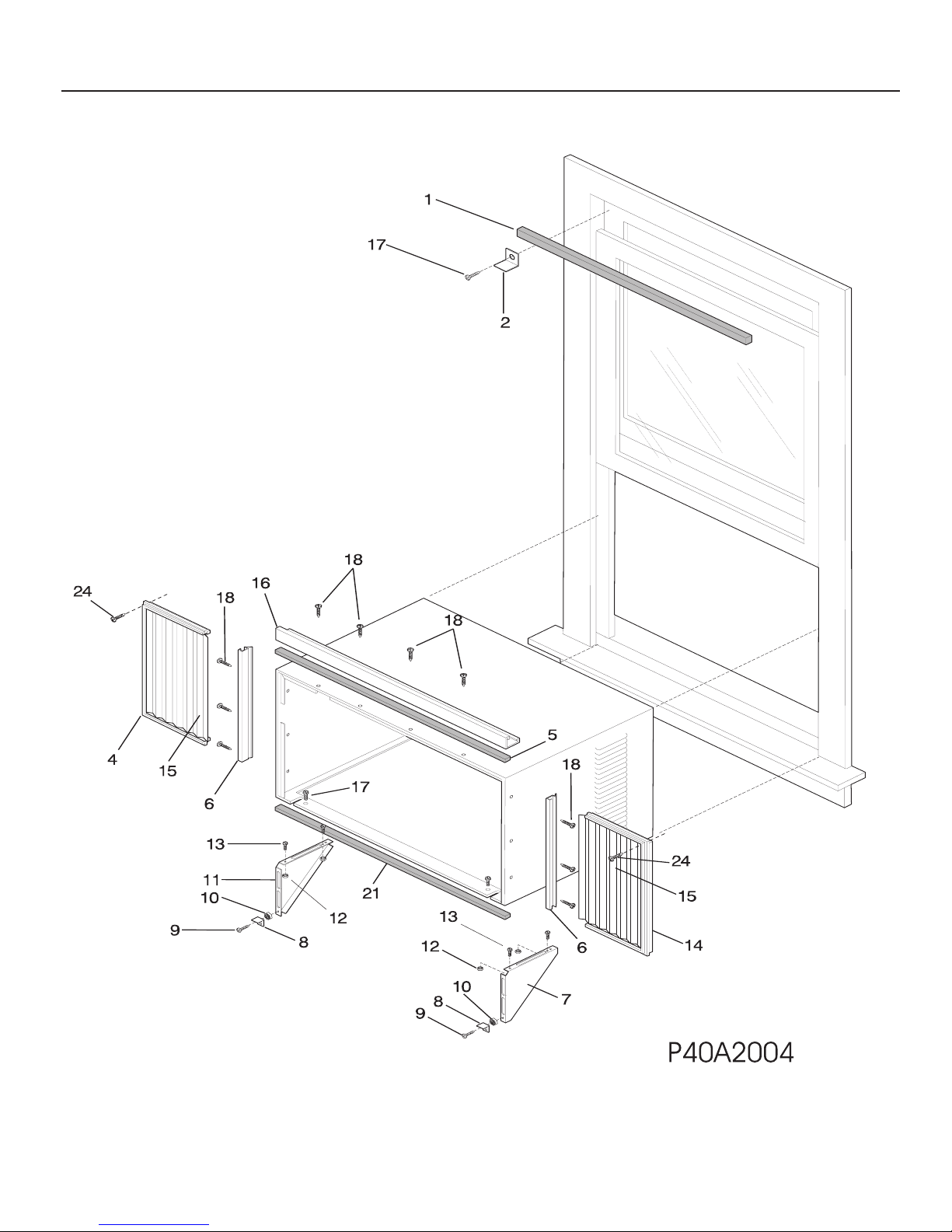

WINDOW MOUNTING PARTS
