INSTALLATIONINSTRUCTIONS

Gather the required tools and parts before starting installation.

Read and follow the instructions provided with any tools listed

here.

Took Needed

[] Flat=blade and Phillips [] Tape measure

screwdrivers [] Drilland %2" orsmallerbit

[] Level

Through=the=Wall Installation:

In addition to the tools listed above, the following tools are

needed for through-the-wall installation,

[] Saw [] l"(2.5cm) orthicker

(umber

[] Wood preservative

[] Caulk [] #10 x l" wood screws (7)

Parts Supplied (on some models)

Check that all parts are included in parts package.

(E F

A. Foam window sash seal

B. Window lock bracket

C. Side curtains (2)

D. Foam seal

E. #10x 1//pan-head Phillipsscrews (3)

F. #10x _" round-head screws (6)

G. Top channel

H. #10x ¼" pan-head Phillips screws (3)

IMPORTANT: Observe all governing codes and ordinances.

Check the location where air conditioner will be installed. Proper

installation is your responsibility, Make sure you have everything

necessary for correct installation.

The location should provide:

[] Grounded electrical outlet within 4 ft (I 22 cm) of where the

power cord exits the air conditioner.

NOTE: Do not use an extension cord.

[] Free movement of air in room to be cooled.

[] A large enough opening for the air conditioner,

[] Adequate wallsupportforweighto(airconditioner. Air

conditioner weighs between 70 and 851bs (32 to 40 kg),

NOTE: Cabinet louvers must not be obstructed. Air must be able

to pass freely through the cabinet louvers.

A. Cabinet louvers

NOTE: Installation parts are supplied for double-hung windows

up to 36" (91.4 cm) wide. A special Wide Window Kitis available

from your dealer or serv(ce center. See "Accessories."

NOTE: DO NOT USE ANY SCREWS OTHER THAN

THOSE SPECIFIED HERE

P/N 2020213A0155 1

Window Installation

Window opening measurements:

[] 27" to 36" (68.6 cm to 91.4 cm) opening width.

[] 17"(43.1cm) minimum opening height.

mA__t_

{

[:7_ =_

1 I

A. 27"(68.6cm) minimum

B. 17" (43.1cm) minimum

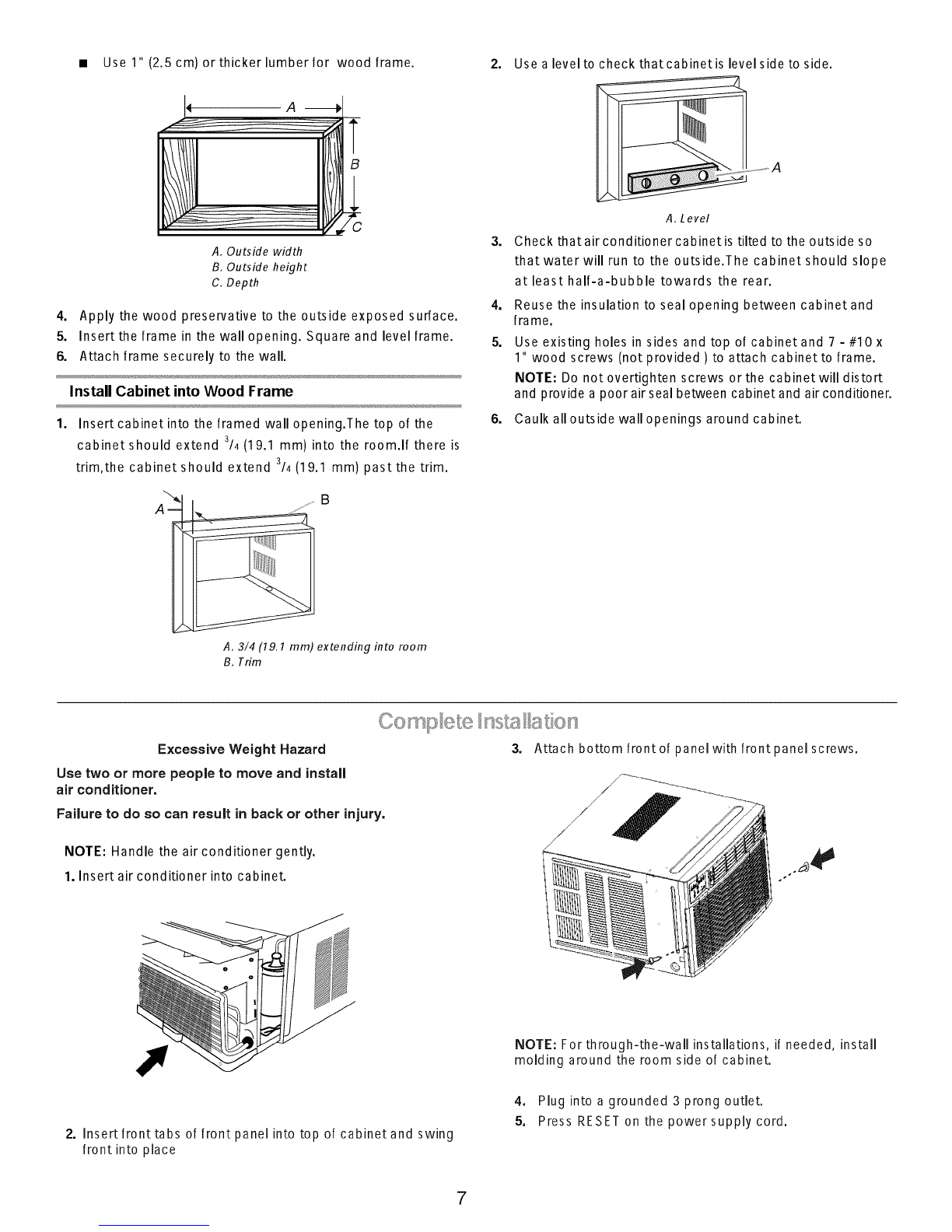

Through=the=Wall Installation

The wall opening measurements should be:

[] Width: 22s/8"(57.5 cm) plus twice thickness of wood used to

build frame.

[] Height: 16" (40.6 cm) plus twice thickness of wood used to

bui{d frame.

[] Depth: 2_/2" (6.4 cm) minimum to 6V2" (16.5cm) maximum.

? ....................... _ii_ii........ C

A. 16"(40.6 cm)

B. 225/_" (57,5 cm) C. Wood thickness

D. 21/2"(6.4) minimum to

61/2"(16.5cm) maximum.

iNSTALLATiON iNSTRUCTiONS

Excessive Weight Hazard

Use two or more people to move and install

air conditioner,

Failure to do so can result in back or other injury.

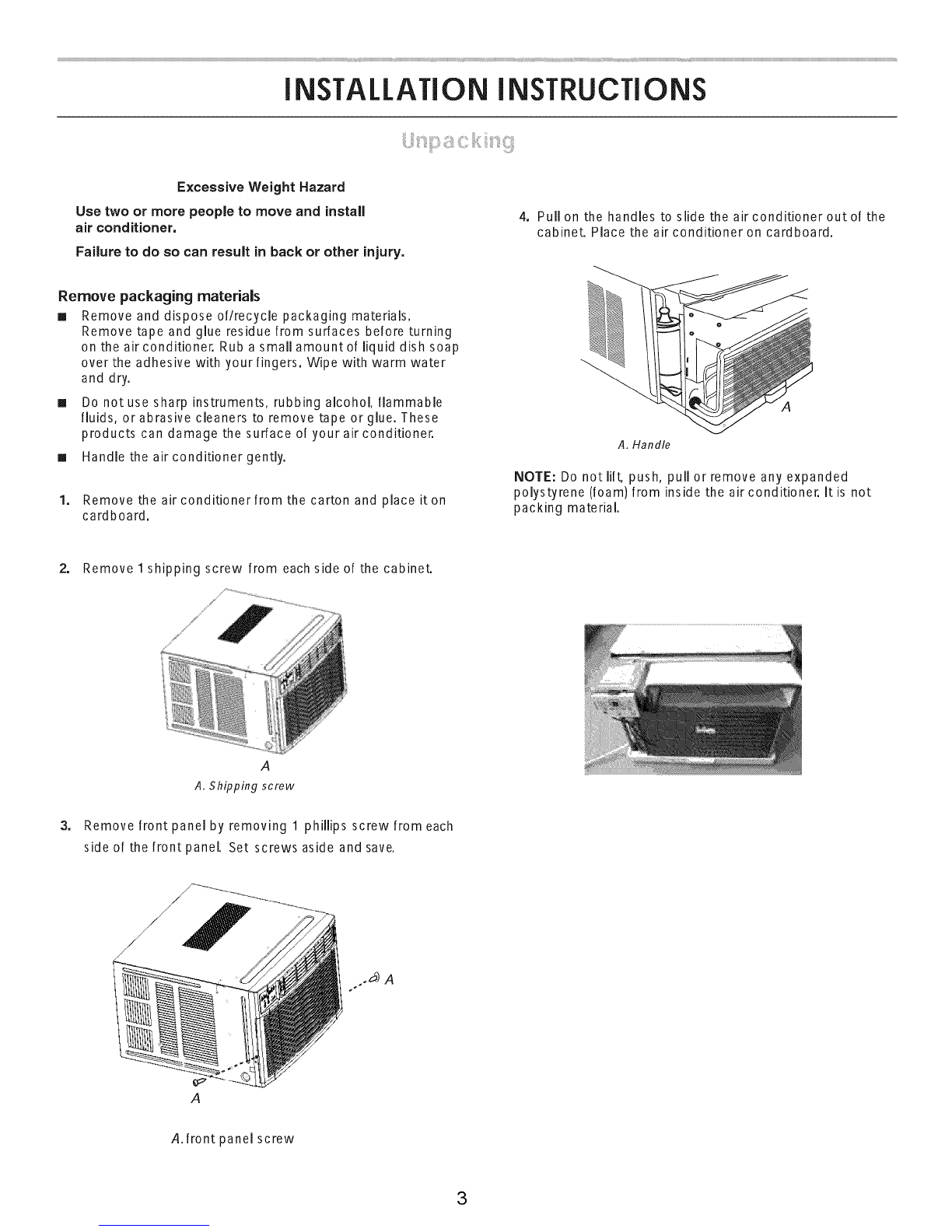

4. Pull on the handles to slide the air conditioner out of the

cabinet. Place the air conditioner on cardboard.

Remove packaging materials

[] Remove and dispose of/recycle packaging materials,

Remove tape and glue residue from surfaces before turning

on the air conditioner, Rub a small amount of liquid dish soap

over the adhesive with your fingers, Wipe with warm water

and dry.

[] Do not use sharp instruments, rubbing alcohol, flammable

fluids, or abrasive cleaners to remove tape or glue. These

products can damage the surface of your air conditioner.

[] Handle the air conditioner gently.

1. Remove the air conditionerfrom the carton and place iton

cardboard,

A, Handle

NOTE: Do not lilt, push, pull or remove any expanded

polystyrene (foam)from inside the air conditioner. It is not

packing material.

2. Remove 1 shipping screw from each side of the cabinet.

A.Shipping screw

3. Remove front panel by removing 1 phillips screw from each

side of the front panel, Set screws aside and save.

°°°°6 A

A.front panel screw
