Frico PAECS Manuel utilisateur

PAECS

Original instructions

... 9

SE .... 12

GB .... 14

NO .... 17

DE .... 21

ES .... 25

.... 29

IT .... 33

NL .... 37

FI .... 40

PL .... 44

Introduktionssidorna består huvudsakligen av bilder. För översättning av de

engelska texter som används, se respektive språksidor.

The introduction pages consist mainly of pictures. For translation of the

English texts used, see the respective language pages.

Introduksjonssidene består hovedsakelig av bilder. For oversettelse av de

engelske tekstene, se de respektive språksidene

Les pages de présentation contiennent principalement des images. Pour la

traduction des textes en anglais, consultez la page correspondante à la langue

souhaitée.

Die Einleitungsseiten bestehen hauptsächlich aus Bildern. Für die Übersetzung

der verwendetenTexte in englischer Sprache, siehe die entsprechenden

Sprachseiten.

Las páginas introductorias contienen básicamente imágenes. Consulte la

traducción de los textos en inglés que las acompañan en las páginas del

idioma correspondiente.

De inleidende pagina's bevatten hoofdzakelijk afbeeldingen.Voor een vertaling

van de gebruikte Engelse teksten, zie de pagina's van de resp. taal.

Le pagine introduttive contengono prevalentemente immagini. Per le

traduzioni dei testi scritti in inglese, vedere le pagine nelle diverse lingue.

Początkowe strony zawierają głównie rysunki. Tłumaczenie wykorzystanych

tekstów angielskich znajduje się na odpowiednich stronach językowych.

RU Страницы в начале Инструкции состоят в основном из рисунков, схем и

таблиц. Перевод встречающегося там текста приведен в разделе RU.

PAECS

Fig. 1

min 500

min 500 min 500

11 7

209

10 245

90,5

157

1571,8 m

1,5 m

11 7

157

1012/1522/2012

1050/1560/2050

1; 1,5

2 m

1,5 m

1,8 m

PAECS

Fig. 2: Stepless airﬂow control. Internal potentiometer for low and high speed (accessible through the

outlet grille).

010

Fig.3: Open the unit.

TX20

Potentiometer,

high speed, 6V

Potentiometer,

low speed, 2.5V

PAECS

min 500 mm

Fig. 4: Mounting with wall brackets

Mounting with wall brackets

PAECS10 2 pcs

PAECS15 2 pcs

PAECS20 3 pcs

203575

210

ø8 (3x)

ø5

ø10

162

PAECS

SIReDC

Accessories

PA34TR PA2P PA2PF

PA34TR15 PAECS10, PAECS15, 1 m

PA34TR20 PAECS20, 1 m

PA2P15 PAECS10, PAECS15, 1 m

PA2P20 PAECS20, 1 m

PA2PF15 PAECS10, PAECS15

PA2PF20 PAECS20

AGB304

SIReDC

AGB304

PAECS

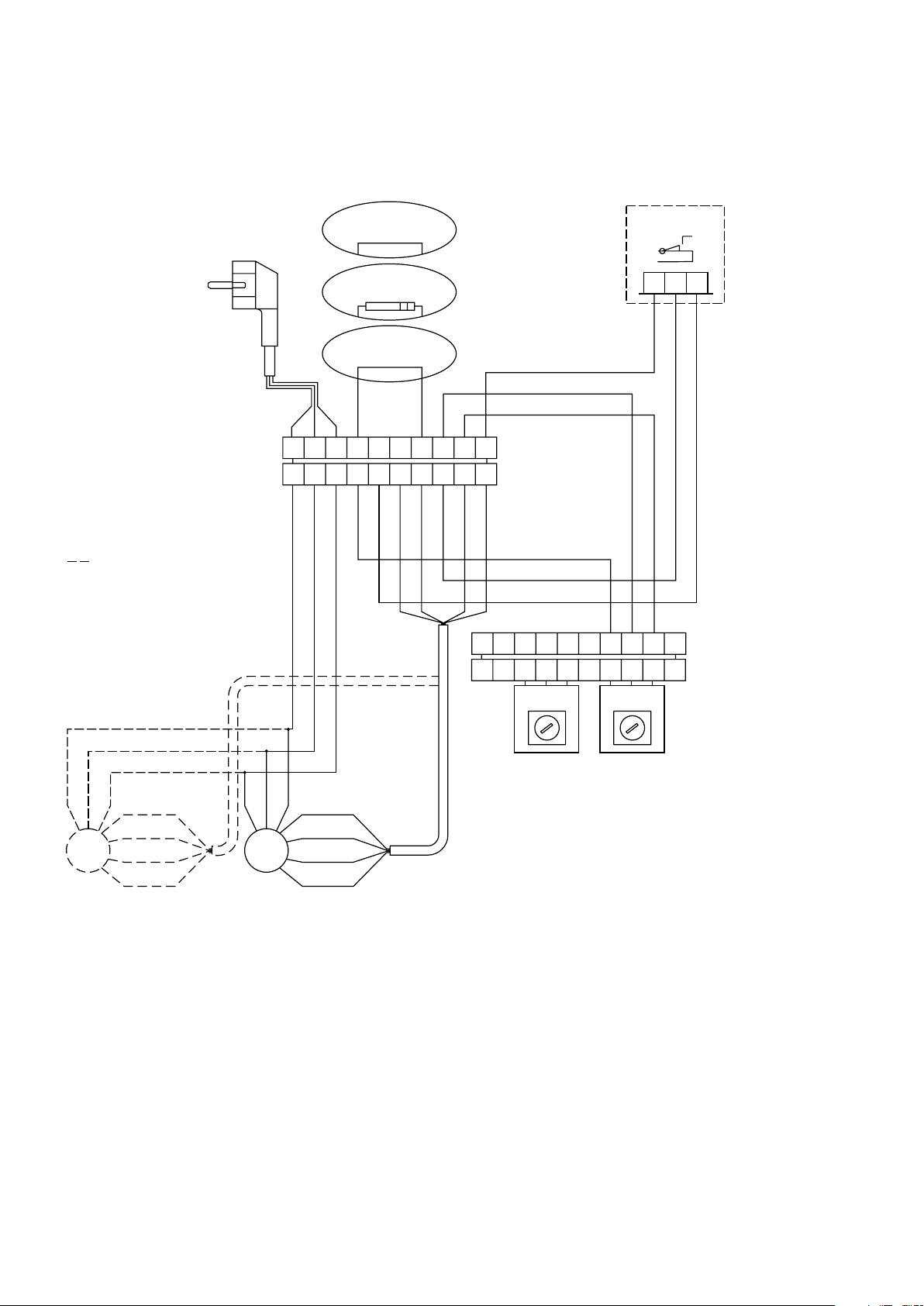

Stepless airﬂow control with door contact / position limit switch

PAECS

PENL

Yellow

Blue

Red

White

Red

Yellow

Blue

White

Red

Yellow

Blue

Only2mversion

Yellow/0-10VPWM

Red/+10V

White/ Tach

Blue / GND

Right motor

Left motor

No Nc

SIReDC

10 0

White

Com

Green

Brown

White

PAECS10/15/20

10 0

DiodePAECS10

Wire PAECS15

WirePAECS20

PAECS

Type Output

[kW]

Airﬂow

[m3/h]

Sound

power*1

[dB(A)]

Sound

pressure*2

[dB(A)]

Voltage

motor

[V]

Amperage

motor*3

[A]

Length

[mm]

Weight

[kg]

PAECS10 0 1450*477 44/62 230V~ 0,14/0,79 1050 15

PAECS15 0 2200*478 45/62 230V~ 0,20/1,17 1560 20

PAECS20 03100*483 51/67 230V~ 0,50/2,12 2050 30

1Ambient, no heat - PAECS

*1) Sound power (LWA) measurements according to ISO 27327-2: 2014, Installation type E.

*2) Sound pressure (LpA). Conditions: Distance to the unit 5 metres. Directional factor: 2. Equivalent

absorption area: 200 m². At 50% and 100% airﬂow.

*3) Applicable at 50% and 100% airﬂow.

*4) Max. airﬂow, 10V.

Protection class: IP44.

CE compliant.

PAECS

General Instructions

Read these instructions carefully before

installation and use. Keep this manual for

future reference.

The product may only be used as set out in

the assembly and operating instructions. The

guarantee is only valid if the product is used

in the manner intended and in accordance

with the instructions.

Application

PAECS is an air curtain for cold storage

and freezer rooms as well as entrances.

Installation height is up to 4 metres (cold

storage) and up to 2,5 metres (entrances).

The air curtain is prepared for stepless

control.

Protection class: IP44.

Operation

Air is drawn in at the top of the unit and

blown out downwards so that it shields the

door opening and minimizes heat loss. To

achieve the optimum curtain effect the

unit must extend the full width of the door

opening.

The grille for directing exhaust air is

adjustable and is normally angled outwards to

achieve the best protection against incoming

air.

The efﬁciency of the air curtain depends

on the air temperature, pressure differences

across the doorway and any wind pressure.

NOTE! Negative pressure in the building

considerably reduces the efﬁciency of the air

curtain. The ventilation should therefore be

balanced.

Installation and operating instructions

Mounting

The air curtain unit is installed horizontally

with the supply air grille facing downwards as

close to the door as possible. When the unit is

used to protect cold storage or freezer rooms,

it must be mounted on the outside of the

conditioned space.

Brackets and torx bit are enclosed in the

gable end packaging upon delivery.

Mounting with wall brackets (ﬁg. 4)

1.Mount the brackets on the wall, see ﬁg.4A

and dimension drawing ﬁg.1. If the wall is

uneven the brackets must be compensated

for this.

2.Hook on the unit at the lower edge of the

brackets. (Fig.4B)

3.Bend the top of the console over the the

unit and slide the units screws along the

rail into the slots on the consoles. (Fig.4C)

When the bracket is bent once, it must be

replaced if bent back more than 45 °.

4.Lock the nuts against the brackets. (Fig.4D)

Horizontal mounting on the ceiling

Threaded rods, hanging brackets and ceiling

mounting brackets for ceiling mounting are

available as accessories, see accessories pages

and separate manuals.

Control options

Stepless airﬂow control with door contact/posi-

tion limit switch

When the door is closed the fan runs at low

speed, set on the internal potentiometer

0-10V, which is located inside the outlet

grille. When the door opens, the fan runs

at high speed, set on the second internal

potentiometer. This control option gives low

response time and the best protection.

BMS control

The air curtain can also be controlled via BMS

(0-10V).

See Figure 2 and Accessories pages.

Connection

The unit is connected with a 1.5m cord and

plug. Prepared with extracted control wiring

so that external control can be connected

easily. NB! A door contact must be connected

before connecting the unit to the power

supply.

Adjustment of the air curtain and air ﬂow

The direction and speed of the air ﬂow should

be adjusted considering the load on the

opening. Pressure forces affect the air stream

and make it bend inwards into the premises

(when the premises are heated and the

outdoor air is cold).

The air stream should therefore be directed

PAECS

Overheating

The motors have built-in protection against

overheating and will automatically regulate

their speed at high temperatures.

Replacing motor or impeller

1.Remove the front.

2.Remove gable end.

3.Remove the screw between motor and fan.

4.Disconnect the cables to the motor.

5.Remove the screws securing the motor and

lift it out together with the impeller.

Basic setting fan speed

The fan speed for open respectively closed

door is pre-set on the internal potentiometers

(6V open/high speed, 2,5V closed/low speed).

Note that the air ﬂow direction and fan speed

may need ﬁne adjustment depending on the

loading of the door.

Service, repairs and maintenance

For all service, repair and maintenance ﬁrst

carry out the following:

1.Disconnect the power supply.

2.The front hatch is removed by removing

the screws on the top of the unit and then

detach the bent edge at the bottom. (Fig.3)

3.After the service, repair and maintenance

reattach the front hatch. Place the hatch

at the lower edge with the bent edge and

fasten on top with screws.

Note that when carrying out work where the

end is removed, the outlet grille also detaches.

Maintenance

Since fan motors and other components are

maintenance free, no maintenance other than

cleaning is necessary. The level of cleaning

can vary depending on local conditions.

Undertake cleaning at least twice a year. Inlet

and exhaust grilles, impeller and elements

can be vacuum cleaned or wiped using a

damp cloth. Use a brush when vacuuming

to prevent damaging sensitive parts. Avoid

the use of strong alkaline or acidic cleaning

agents.

6.Install the new motor and/or the new

impeller as above in reverse order.

Trouble shooting

If the fans are not working or do not blow pro-

perly, check the following:

• The functions and settings of the built-in

control system.

• That the intake grille/ﬁlter is not dirty.

If the fault cannot be rectiﬁed, please contact

a qualiﬁed service technician.

Safety

• Keep the areas around the air intake

and exhaust grilles free from possible

obstructions!

• Lifting equipment must be used to lift the

unit.

• This appliance can be used by children

aged from 8 years and above and persons

with reduced physical, sensory or

mental capabilities or lack of experience

and knowledge if they have been given

supervision or instruction concerning

use of the appliance in a safe way and

understand the hazards involved. Children

shall not play with the appliance. Cleaning

and user maintenance shall not be made

by children without supervision.

• Children of less than 3 years should be

kept away unless continuously supervised.

• Children aged from 3 years and less than 8

years shall only switch on/off the appliance

provided that it has been placed or

installed in its intended normal operating

position and they have been given

supervision or instruction concerning

use of the appliance in a safe way and

understand the hazards involved.

• Children aged from 3 years and less

than 8 years shall not plug in, regulate

and clean the appliance or perform user

maintenance.

CAUTION — Some parts of this product can

become very hot and cause burns. Particular

attention has to be given where children and

vulnerable people are present.

outwards to withstand the load. Generally

speaking, the higher the load, the greater the

angle that is needed.

Ce manuel convient aux modèles suivants

Autres manuels Frico Chauffage

Frico

Frico IH Manuel utilisateur

Frico

Frico PA3500 Series Manuel utilisateur

Frico

Frico Elektra F Series Manuel utilisateur

Frico

Frico PA4200 Series Manuel utilisateur

Frico

Frico Thermozone AC 200 Series Manuel de la liste des pièces

Frico

Frico Thermozone ADA Cool Manuel utilisateur

Frico

Frico Arden 4200 Manuel utilisateur

Frico

Frico Thermozone AD 200 A Series Manuel utilisateur

Frico

Frico Thermozone AR3500 Manuel utilisateur

Frico

Frico Aquaztrip H Manuel utilisateur

Frico

Frico Corinte W AD Series Manuel de service

Frico

Frico ICSR Series Manuel utilisateur

Frico

Frico Thermozone SF E Manuel utilisateur

Frico

Frico PFSE4 Manuel utilisateur

Frico

Frico Thermozone ADR300W Series Manuel utilisateur

Frico

Frico HDI22 Manuel utilisateur

Frico

Frico Infrapalm IHPA Manuel utilisateur

Frico

Frico Panther S 20 Manuel utilisateur

Frico

Frico Thermozone AC 400 Manuel utilisateur

Frico

Frico SWT Series Manuel utilisateur

Frico

Frico Thermoplus Manuel utilisateur

Frico

Frico Infraflex Series Manuel utilisateur

Frico

Frico Thermozone AR300 Series Manuel utilisateur

Frico

Frico Comfortline AZR Series Manuel utilisateur

Manuels Chauffage populaires d'autres marques

oventrop

oventrop Regucor Series Manuel utilisateur

Blaze King

Blaze King CLARITY CL2118.IPI.1 Manuel utilisateur

ELMEKO

ELMEKO ML 150 Manuel utilisateur

BN Thermic

BN Thermic 830T Manuel utilisateur

KING

KING K Series Mode d’emploi

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Guide de démarrage rapide

Well Straler

Well Straler RC-16B Manuel utilisateur

EUROM

EUROM 333299 Manuel utilisateur

Heylo

Heylo K 170 Manuel utilisateur

Eterna

Eterna TR70W Manuel utilisateur

Clarke

Clarke GRH15 Mode d’emploi

IRSAP

IRSAP The Radiator Company Ovali Manuel utilisateur

Empire Heating Systems

Empire Heating Systems WCC65 Manuel utilisateur

Wetekom

Wetekom 92 86 43 Manuel utilisateur

Desa

Desa SPC170-F Manuel utilisateur

Watlow

Watlow Watrod Electric Tubular Heaters Manuel utilisateur

Haverland

Haverland ECO-DRY GPS Series Manuel de la liste des pièces

Stelpro

Stelpro ASILVC2060 Series Manuel utilisateur
