1 Introduction

The new TWR-LS1021A-PB development board is the most

feature rich and high performance Tower system module

offered by Freescale. This board enables compatibility and

interoperability with other tower expansion modules. It

provides an easily accessible and interchangeable suite of

capabilities and features to support rapid prototyping and

software development. The TWR-LS1021A-PB board is

engineered to enable a wide range of applications, from IoT

Gateways to industrial controllers, Secure Access Points, and

asset management systems. The module offers a high level of

integration, excellent balance of performance-to-power, and

robust capability delivered by the QorIQ LS1021A

communications processor (which offers dual ARM Cortex-

A7 cores running at up to 1 GHz delivering over 5,000

Coremarks of performance at a typical power level of under 3

watts). This platform also provides a comprehensive level of

security, which includes secure boot, Trust Architecture, and

tamper detection, in both standby and active-power modes.

This document describes how you can run the out-of-box-

experience (OOBE) demo program, which shows the wireless

networking, graphics, and audio playing functionalities of the

TWR-LS1021A-PB board.

The access point features demo on LS1021A TWR platform is

illustrated in the figure below.

Freescale Semiconductor Document Number: TWR-LS1021A_Demo_QS

Quick Start Rev. 0, 12/2015

QorIQ TWR-LS1021A OOBE Demo

Quick Start

Contents

1 Introduction................................................................1

2 TWR-LS1021A OOBE demo features. .................... 2

3 Hardware requirements................. ............................3

3.1 Kit contents.......................... .......................... 3

4 Preparing the system for the demo......... ...................4

4.1 Preparing SD card for demo......... ..................4

4.2 Configuring the board.....................................4

5 Setting up TWR-LS1021A-PB board..... .................. 4

6 Running the demos.................................................... 8

6.1 Wireless hotspot................... .......................... 8

6.2 Slideshow mode.................... .........................9

A Preparing SD card for demo................. .................. 10

B Configuring the TWR-LS1021A board. ................. 11

Internet

GE-WAN

LS1021A TWR

GE-LAN

GE-LAN Wi-Fi LAN

Pad

PC1 PC2

Figure 1. Access point features demo

This document covers the following sections:

• Features of the TWR-LS1021A OOBE demo

• Hardware requirements for the demo

• Preparing the board for the demo

• Setting up the TWR board

• Running the demos

2 TWR-LS1021A OOBE demo features

This section describes the features of wireless access point and the slideshow presentations using the TWR-LS1021A-PB

board.

Wireless access point:

• Three Ethernet ports and a Wi-Fi card - one Ethernet port as WAN and other Ethernet ports, Wi-Fi as LAN

• DHCP client/server

• Route and NAT (IP tables, IP route2)

• Wireless bridging

TWR-LS1021A OOBE demo features

QorIQ TWR-LS1021A OOBE Demo Quick Start, Rev. 0, 12/2015

2 Freescale Semiconductor, Inc.

Slideshow presentation:

• Audio decoding/playing of MP3 at 128 kbit/s / 44.1 kHz (LAME/ALSA)

• LS1021A product family overview

• TWR-LS1021A overview

• TWR-LS1021A use cases

3 Hardware requirements

For all the features to be demonstrated, the following are required:

• TWR-LS1021A-PB board - QorIQ LS1021A Tower system module

• SD card (included with the TWR-LS1021A-PB board)

• HDMI display and an HDMI cable or TWR-LCD-RGB Graphical LCD Tower system module with RGB interface and

the TWR-ELEV Tower system Elevator module

• USB mouse and keyboard

• Wired speakers with 3.5mm jack

Wireless access point-specific requirements:

• Mini PCIe wireless access card (for example: Atheros AR9287)

• Antennas (for example: Pulse Electronics Corporation W1038)

• Internet connection

• Wireless devices (for example: smart phones, laptops, and tablets)

• Wired (Ethernet RJ45) devices

NOTE

For the Wi-Fi function, only Atheros AR9287 (mini PCIe card) is supported. And for the

wired connectivity (Ethernet), RJ45 (up to 1000BaseT) is supported. Further, a maximum

resolution of 1024x768 is supported on Dell displays.

3.1 Kit contents

The table below lists the standard kit contents of the TWR-LS1021A-PB board shipment:

Item number Description Quantity

700-28673 PWA, TWR-LS1021A-PB 1

600-76796 Cable, USB Type A male/Type Mini B male 3 feet 1

400-76004 Power supply (100/240V INPUT, 5V 6A output) 1

600-76809 Cable, US AC outlet, 5 feet, BLACK ROHS 1

600-77111 Cable, SATA power cable, 4P type connector to SATA power

connector

901-76758 HW accessory, universal adaptor 1

979-28673 Packout, Standard final PDC PKG, accessories include SD

Card, USB-Disk and Bracket

926-28673 Quick Start Guide, TWR-LS1021A-PB 1

Hardware requirements

QorIQ TWR-LS1021A OOBE Demo Quick Start, Rev. 0, 12/2015

Freescale Semiconductor, Inc. 3

4 Preparing the system for the demo

For preparing the system for the demo, you should -

• Prepare the SD card

• Configure the TWR-LS1021A-PB board

4.1 Preparing SD card for demo

The image files for the demo are available on the SD card shipped with the board. You should insert the SD card into the

board to run the demo. However, if the SD card is not available or the image files have become corrupt, you need to prepare

an SD card for the demo. For detailed instructions on formatting and preparing the SD card for the demo, see Preparing SD

card for demo.

4.2 Configuring the board

To run the demos described in this guide, the SDK on the TWR-LS1021A-PB board must be re-flashed. If this has not been

done earlier, see Configuring the TWR-LS1021A board for detailed instructions on flashing the board.

However, if you have already flashed the board, proceed to the next section.

5 Setting up TWR-LS1021A-PB board

This section describes setting up the TWR-LS1021A-PB board, adding other hardware for the demos, and configuring the

board for the first time. This is a one-time activity that need not be done again for running any of the demos.

To set up the TWR-LS1021A-PB board:

1. Set the switch settings as described here (see the figure below for illustration).

• For NOR flash boot:

• Switch the SW3[5] to 0(bank0)

•SW2[1:8] 0x10001111, SW3[1:8] 0x01100001

• For SD card boot:

• Switch the SW3[1] to 0

• Set the SW2[1:8] to 0x00101111

•SW2[1:8] 0x00101111, SW3[1:8] 0x01100001

Preparing the system for the demo

QorIQ TWR-LS1021A OOBE Demo Quick Start, Rev. 0, 12/2015

4 Freescale Semiconductor, Inc.

UART/USB Console

+5V Power

SW3 [1:8] OFF ON ON OFF off OFF OFF ON SW2 [1:8] ON OFF OFF OFF ON ON ON ON

Figure 2. Switch/jumper settings and console port

2. Using a USB UART cable, connect the console port to a PC as shown in the figure.

3. Configure the console port using a terminal emulation program like TeraTerm, with the following parameters:

Baud rate 115200

Data 8 bits

Parity No

Stop bit 1 bit

Flow Control None

4. Plug in the Wi-Fi Card and insert the SD card as shown in the figure below.

Setting up TWR-LS1021A-PB board

QorIQ TWR-LS1021A OOBE Demo Quick Start, Rev. 0, 12/2015

Freescale Semiconductor, Inc. 5

Mini PCIe mounting posts

SD Card slot

Mini PCIe

Figure 3. Inserting mPCIe Wi-Fi card and SD card

5. Add the remaining hardware as explained below:

NOTE

For this, you need the following additional hardware:

• HDMI cable to connect the monitor or the TWR-RGB-LCD display, as

required. Note that you can use either the HDMI display or the LCD display

at any given point of time.

• USB keyboard and mouse

• Ethernet cable to connect the TWR card to the Internet and the computer on

LAN

• If you want to use a HDMI monitor/TV, connect it using a HDMI cable. For an illustration of the same, see

Figure 4 below.

Setting up TWR-LS1021A-PB board

QorIQ TWR-LS1021A OOBE Demo Quick Start, Rev. 0, 12/2015

6 Freescale Semiconductor, Inc.

• If you want to use the TWR-RGB-LCD, plug it into the secondary TWR-EVEL. For an illustration of the same,

see Figure 5 below.

• Plug in the USB keyboard and mouse.

• Plug in the WAN/Internet network cable.

The figure below shows setting up the hardware using the HDMI display.

USB keyboard and mouse

Internet

GE LAN

HDMI

TV or Monitor

Wired speaker with

3.5mm plug

GE WAN

Figure 4. Hardware configuration using HDMI

The figure below shows setting up the hardware using the LCD display.

USB keyboard and mouse

Internet

GE LAN

Wired speaker with

3.5mm plug

GE WAN

TWR-LCD-RGB

Figure 5. Hardware configuration using TWR-LCD-RGB

Setting up TWR-LS1021A-PB board

QorIQ TWR-LS1021A OOBE Demo Quick Start, Rev. 0, 12/2015

Freescale Semiconductor, Inc. 7

6 Running the demos

To boot the system and display the main menu, run the command =>run sdboot.

You can see the main menu on the LCD/HDMI display as shown below.

Figure 6. Main menu

The following table describes the options in the main menu:

Option Description

Wireless Hot Spot Select this option to configure the TWR-LS1021A-PB board into a Wi-Fi Access-Point/router

and view the wireless networking status or log information.

Linux Prompt Select this option to view the steps to boot with alternative uImage, rootfs, dtb images.

Uboot Prompt You can view instructions to flash new RCW and/or U-Boot images to the board.

Slideshow mode You can play the corresponding slides with audio.

6.1 Wireless hotspot

This section describes the networking functionality of the demo. To do so:

1. Check and ensure that the WAN network and the wireless card are plugged in.

2. To start the network demo, click the Start button at the bottom left corner of the screen. See the figure below for

reference.

Running the demos

QorIQ TWR-LS1021A OOBE Demo Quick Start, Rev. 0, 12/2015

8 Freescale Semiconductor, Inc.

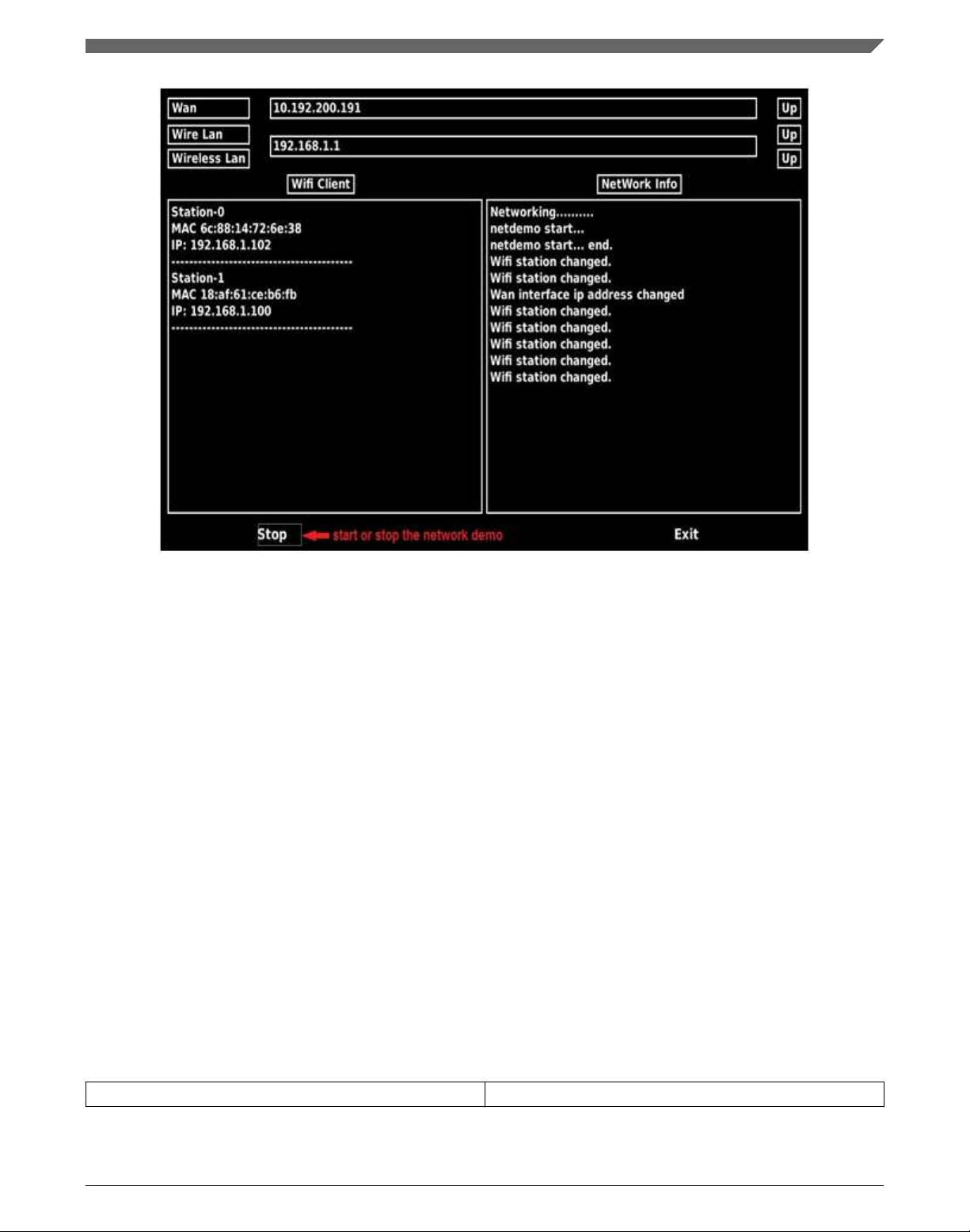

Figure 7. Wireless hotspot menu

You can see the network demo starting in the NetWork Info window on the right.

3. Wait for a few seconds. You will see netdemo start... end; This indicates that the networking functionality of the

demo has started successfully.

4. To connect wireless devices such as smart phones and tablets, to the board, use the following credentials:

SSID: Freescale_LS1021A

Password: 12345678

You can see the information about the wireless devices connected to the board under Wifi Client window on the left.

5. To go back to the main menu, click the Exit button at the bottom-right corner of the screen.

6. To stop the networking activity and disconnect all the devices, click the Stop button at the bottom-left corner of the

screen.

6.2 Slideshow mode

The Slideshow Mode contains the following slide shows that provide more information on the TWR-LS1021A board.

• LS1021A features

• TWR-LS1021A Overview

• LS1021A Use Cases

In the slideshow mode, use the following keys to navigate between the slides:

Key/Mouse click Action

Table continues on the next page...

Running the demos

QorIQ TWR-LS1021A OOBE Demo Quick Start, Rev. 0, 12/2015

Freescale Semiconductor, Inc. 9

Page Down, Right Arrow, Down Arrow, Enter key, or left click

on the mouse

To go to the next page

Page Up, Up Arrow, Left Arrow, or right click on the mouse To go to the previous page

Space To pause or resume the slide show

Home key To go to the first page

End key To go to the last page

Esc key To exit playing and go back to the main menu

Appendix A Preparing SD card for demo

If you are using an SD card that was not shipped with the TWR-LS1021A-PB board, it should be formatted and prepared

before it can be used for the demo. To support booting the system from the SD card, instead of NOR flash, you should

preserve a given space at the beginning of SD card (for example 2 MB or 4 MB). On a Windows PC, you may use any third

party tool to partition the SD-card.

To prepare the SD card on a Linux PC:

1. Use the fdisk command to partition the SD card to a single W95 FAT32 partition, starting from sector 8192.

2. Run the mkfs.vfat command to format the above partition

3. Using the dd command and copy u-boot-with-spl-pbl.bin to the boot sector of the SD card.

NOTE

You can find the u-boot-with-spl-pbl.bin on the USB stick shipped with the

board

See an illustration of preparing the SD card on a Linux PC below:

$sudo fdisk/dev/sdb

Command (m for help): n

Partition type:

p primary (0 primary, 0 extended, 4 free)

e extended

Select (default p):

Using default response p

Partition number 1-4, default 1):

Using default value 1

First sector (2048-15523839, default 2048): 8192

Last sector, +sectors or +size{K,M,G} (8192-15523839, default 15523839): +400M

Command (m for help): t

Selected partition 1

Hex code (type L to list codes): b

Changed system type of partition 1 to b (W95 FAT32)

Command (m for help): w

The partition table has been altered!

$sudo mkfs.vfat/dev/sdb1

$sudo dd if=u-boot-with-spl-pbl.bin of=/dev/sdb bs=512 seek=8

Insert the SD card in a Windows PC and copy all files under \OOBE-demo\SDcard\ folder of the USB stick to the root

directory of the SD card. The total size of this folder is less than 100 MB.

The figure below shows the files to be copied to the SD card.

Running the demos

QorIQ TWR-LS1021A OOBE Demo Quick Start, Rev. 0, 12/2015

10 Freescale Semiconductor, Inc.

Autres manuels pour TWR-LS1021A

Table des matières

Autres manuels Freescale Semiconductor Matériel informatique

Freescale Semiconductor

Freescale Semiconductor MSC8156EVM Manuel utilisateur

Freescale Semiconductor

Freescale Semiconductor MPC8260 PowerQUICC II Family Manuel utilisateur

Freescale Semiconductor

Freescale Semiconductor MSC8144E Manuel utilisateur

Freescale Semiconductor

Freescale Semiconductor PowerQUICC III MPC8555E Mode d’emploi

Freescale Semiconductor

Freescale Semiconductor TWR-S12GN32 Manuel utilisateur

Freescale Semiconductor

Freescale Semiconductor SC140 DSP Core Manuel utilisateur

Freescale Semiconductor

Freescale Semiconductor TWR-MCF51QM Manuel utilisateur

Freescale Semiconductor

Freescale Semiconductor Windows Embedded CE 6.0/Windows CE 5.0 i.MX31 PDK... Manuel utilisateur

Freescale Semiconductor

Freescale Semiconductor ColdFire MCF52210ColdFire MCF52211ColdFire MCF52212ColdFire... Manuel utilisateur

Freescale Semiconductor

Freescale Semiconductor MPC5200B Manuel utilisateur

Freescale Semiconductor

Freescale Semiconductor i.MX 6Solo Manuel utilisateur

Freescale Semiconductor

Freescale Semiconductor MPC8349EA MDS Manuel utilisateur

Freescale Semiconductor

Freescale Semiconductor metrowerks CodeWarrior Manuel utilisateur

Freescale Semiconductor

Freescale Semiconductor i.MX27 PDK 1.0 Manuel utilisateur

Freescale Semiconductor

Freescale Semiconductor MCF5329 Manuel utilisateur

Freescale Semiconductor

Freescale Semiconductor MC9S08PT60 Manuel utilisateur

Freescale Semiconductor

Freescale Semiconductor MPC8272ADS Manuel utilisateur

Freescale Semiconductor

Freescale Semiconductor 56F827 Manuel utilisateur

Freescale Semiconductor

Freescale Semiconductor PowerQUICC III Instructions d'installation et d'utilisation

Freescale Semiconductor

Freescale Semiconductor FRDM-KE06 Manuel utilisateur

Freescale Semiconductor

Freescale Semiconductor PowerPC MPC823 Manuel utilisateur

Freescale Semiconductor

Freescale Semiconductor i.MX35 Manuel utilisateur

Freescale Semiconductor

Freescale Semiconductor TWR-K20D50M Manuel utilisateur

Freescale Semiconductor

Freescale Semiconductor i.MX53 SABRE Manuel utilisateur

Manuels Matériel informatique populaires d'autres marques

EMC2

EMC2 VNX Series Manuel du propriétaire

Panasonic

Panasonic DV0PM20105 Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manuel utilisateur

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manuel utilisateur

Raidon

Raidon iT2300 Manuel utilisateur

National Instruments

National Instruments PXI-8186 Manuel utilisateur

Hauppauge

Hauppauge WinTV-HVR-2250 Manuel utilisateur

Kontron

Kontron CP6002 Manuel utilisateur

Manhattan

Manhattan 702843 Manuel utilisateur

Aphex

Aphex 230 Manuel utilisateur

AMD

AMD Phenom II Manuel d'exploitation

Intel

Intel NUC 12 Pro Manuel utilisateur

dbx

dbx Zone Pro 1260 Manuel utilisateur

Galaxy

Galaxy GHDX2-2430S-24F4D Manuel utilisateur

Intel

Intel AXXRMFBU4 Manuel utilisateur

Kontron

Kontron DIMM-PC/MD Manuel utilisateur

ST X-NUCLEO-SAFEA1B Mode d'emploi

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manuel utilisateur
