Fluke FiberInspector Pro FI-3000 Manuel utilisateur
PN 5003251
January 2019 Rev. 2, 2/20
© 2019-2020 Fluke Corporation. All rights reserved.
Specifications are subject to change without notice.
All product names are trademarks of their respective companies.
FI-3000/FI-3000-NW
FiberInspector™ Pro
Getting Started Guide
The FI-3000 and FI-3000-NW FiberInspector Pro (the Product or Probe) are hand-
held video probes used with a Versiv™ Series tester (the Tester) or with the
FI-IN™ app (the App) on a mobile device to inspect fiber optic endfaces. The
Probe and Tester or App let you see dirt, scratches, and other defects that can
cause unsatisfactory performance or failures in fiber optic networks.
Use the Probe with a direct USB connection to a Tester to view and analyze
endfaces and save and share test results. To do this wirelessly, use the FI-3000
probe with the App. The FI-3000-NW probe cannot be used with WiFi or the
App.
Safety Information
A Warning identifies hazardous conditions and procedures that are dangerous
to the user. A Caution identifies conditions and procedures that can cause
damage to the Product or the equipment under test.
XWWarning
To prevent possible electrical shock, fire, or personal injury and for safe
operation of the Product:
• Read all safety information before you use the Product.
• Carefully read all instructions.
• Do not alter the Product and use only as specified, or the protection
supplied by the Product can be compromised.
• Do not use the Product if it operates incorrectly.
• Do not use the Product if it is altered or damaged.
• Disable the Product if it is damaged.
English
2
• Use only Fluke Networks approved power adapters to supply power to
the Product and charge the battery.
• Charge the battery indoors.
• If the Product gets hot, disconnect the battery charger and move the
Product to a cool, non-flammable location.
• Replace the rechargeable battery after 5 years of moderate use or
2 years of heavy use. Moderate use is defined as recharged twice a
week. Heavy use is defined as discharged to cutoff and recharged
daily. To replace the battery, send the Product to an authorized Fluke
Networks Service Center.
• Have an approved technician repair the Product.
• Do not open the case. You cannot repair or replace parts in the case.
Symbols
The table below lists the symbols that can be used on the Product or in this
document.
Symbol Description
»Consult user documentation.
WWARNING. RISK OF DANGER.
XWARNING. HAZARDOUS VOLTAGE. Risk of electric shock.
PConforms to European Union directives.
¡Conforms to relevant Australian Safety and EMC standards.
)Certified by CSA Group to North American safety standards.
É
Conforms to the Appliance Efficiency Regulation (California
Code of Regulations, Title 20, Sections 1601 through 1608), for
small battery charging systems.
´
This Product contains a lithium-ion battery. Do not mix with the
solid waste stream. Spent batteries should be disposed of by a
qualified recycler or hazardous materials handler per local
regulations. Contact your authorized Fluke Service Center for
recycling information.
3
Charge the Battery
Before you use the Probe for the first time, charge the battery for ≥2hours.
‡
40 year Environment Friendly Use Period (EFUP) under China
Regulation - Administrative Measure on the Control of Pollution
Caused by Electronic Information Products. This is the period of
time before any of the identified hazardous substances are
likely to leak out, causing possible harm to health and the
environment.
~
This product complies with the WEEE Directive marking
requirements. The affixed label indicates that you must not
discard this electrical/electronic product in domestic household
waste. Product Category: With reference to the equipment
types in the WEEE Directive Annex I, this product is classed as
category 9 "Monitoring and Control Instrumentation" product.
Do not dispose of this product as unsorted municipal waste.
AAuto Focus
/ +Push to do a test.
LPortBrightLED on/off
/ POn/Off
Push to return to the home screen on the Tester.
Symbol Description
2
= 4
>
3
>
2
= 1
= 4
»
Red
Green
Red/Green
4
Attach the Correct Tip
MPO Tips and Adapters
Single Fiber Adapters and Tips
Key Left Key Right
12
3 4
5
Use the Probe with a Tester
Set up the Probe and Tester
Select Test Settings and Set Key Position on the Tester
1. On the home screen, tap the test setup panel (The panel below where it
says PROJECT).
2. Tap NEW TEST > Module > FiberInspector Pro.
The TEST SETUP screen shows on the display.
3. Select settings as necessary.
4. For MPO tests, set the key position:
a. Tap Key Position.
b. Select Key Left or Key Right to agree with the key position of the tip
on the probe. This lets you rotate the probe when a cabinet door or
other surface prevents movement of the probe.
5. Tap SAVE.
2
4
3
1
6
Inspect Endfaces
1. Insert the probe into a bulkhead or patch cord adapter.
2. Tap TEST on the Tester, or push +on the Probe to view a live image of
the endface on the display.
3. On the Tester, tap ANALYZE.
For MPO tests:
The fiber numbers on the image of the endface on the display agree with
the fiber locations on the connector. This is called fiber number agreement
If you rotate the adapter or tip on the probe, change the Key Position on
the TEST SETUP screen to maintain fiber number agreement.
View and Save Results
1. If necessary, tap the endface graphic to see a high-resolution image.
2. Use finger gestures to move and zoom the image.
3. If necessary, tap the endface in the high-resolution image to see
highlighted defects on an endface.
4. To see or hide the Pass/Fail Highlights, Rings, or Scale, tap OVERLAYS.
5. To save the result in the current project, tap SAVE on any results screen.
7

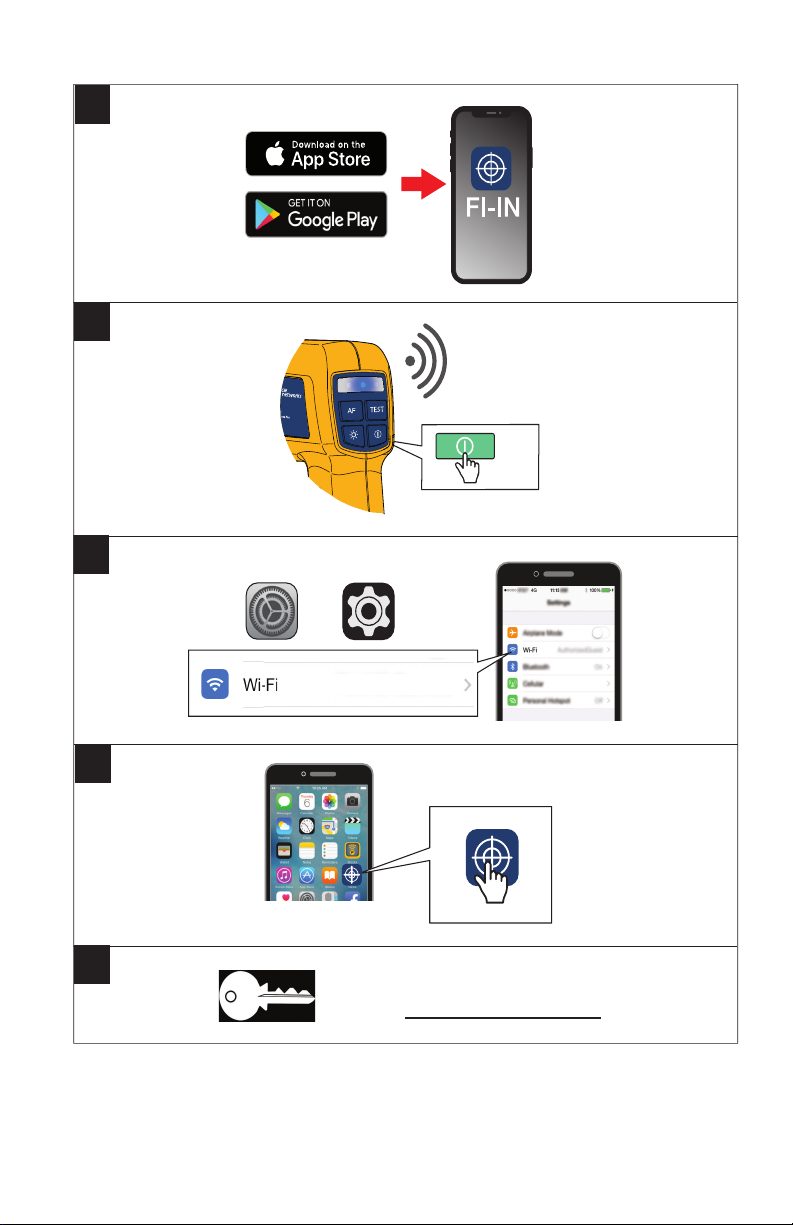

Use the Probe with a Mobile Device
>2 s
2
iOS Android
/
FI-3000...
3
4
1
5
1234567890
=
8
Select Test Settings and Set Key Position in the App
1. Tap M> y(Current Project). To create a new project, tap &(Manage
Projects) > C(Add).
2. Select settings as necessary, and tap Save.
3. For MPO tests:
a. Tap i(Key).
b. Select Key Left or Key Right to agree with the key position of the tip
on the probe. This lets you rotate the probe when a cabinet door or
other surface prevents movement of the probe.
c. Tap Select.
Inspect Endfaces
1. Insert the probe into a bulkhead or patch cord adapter.
2. Tap Q(Test) in the App, or push +on the Probe to capture an image of
the endface in the App.
3. For MPO tests:
The fiber numbers on the image of the endface on the display agree with
the fiber locations on the connector. This is called fiber number agreement.
If you rotate the adapter or tip on the probe, change the key position to
Key Left or Key Right, as appropriate to maintain fiber number agreement.
9
View, Share, or Save Results
1. On the TEST RESULT SUMMARY screen, if necessary, tap the endface
graphic to see a high-resolution image.
2. Use finger gestures to move and zoom the image.
3. If necessary, tap the endface in the high-resolution image to see
highlighted defects on an endface.
4. To see or hide the overlay that shows the yellow zone rings and the green
(PASS) or red (FAIL) highlighted defects, tap the image.
5. To send the image or test report to an email recipient or social media
account, tap S(Share).
6. To save the result in the current project, tap 7(Save).
Learn More
To view, print, or download the latest manual or manual supplement, visit
www.flukenetworks.com/support/manuals.
To read articles in the Knowledge Base, visit www.flukenetworks.com/
knowledge-base.
To request a printed manual, visit www.fluke.com/productinfo.
Registration
Registering your product with Fluke Networks gives you access to valuable
information on product updates, troubleshooting tips, and other support
services.
To register the Probe:
1. Go to www.flukenetworks.com and download the LinkWare PC software.
2. Do a test with the Probe and Tester and save the result.
3. Import the result into LinkWare PC software.
4. Follow the prompts in the software to register your product.
10
Contact Fluke Networks
Fluke Networks operates in more than 50 countries worldwide. For more
contact information, go to our website.
General Specifications
»www.flukenetworks.com/support
1-800-283-5853, +1-425-446-5500
Fluke Networks
6920 Seaway Boulevard, MS 143F
Everett WA 98203 USA
Battery Lithium-ion, 3.6 V, 6400 mAh
AC power adapter
Input 100 VAC to 240 VAC ±10 %, 50/60 Hz
Output 15 VDC, 2 A maximum, Class II
Temperature
Operating -10 °C to 45 °C
(14 °F to 113 °F)
Storage -10 °C to 60 °C
(14 °F to 140 °F)
Charging 0°C to 40 °C
(32 °F to 104 °F)
Wireless radio
Frequency 2400 MHz to 2483.5 MHz
Output power <100 mW
For more information, go to www.flukenetworks.com/support/manuals, select the
product name, then find
Radio Frequency Data for Class A
in the list of manuals.
Altitude
Operating 4000 m (3200 m with AC adapter)
Storage 12 000 m
