Fluke 1736 Guide de configuration

Manual Supplement

Manual Title: 1736/1738 Users Supplement Issue: 4

Print Date: September 2015 Issue Date: 7/19

Revision/Date: 1, 7/17 Page Count: 10

This supplement contains information necessary to

ensure the accuracy of the above manual.

Manual Supplement 1736/1738 Users

1 7/19

Change #1, 381

On the Cover, add the ÉSymbol.

On page 4, add the following to the Symbols table:

Conforms to the Appliance Efficiency

Regulation (California Code of

Regulations, Title 20, Sections 1601

through 1608), for small battery

charging systems.

1736/1738 Users Manual Supplement

7/19 2

Change #2, 491

On page 6, replace Figure 1 with:

hcf069.eps

Figure 1. Adapter Installation

Manual Supplement 1736/1738 Users

3 7/19

Change #3, 594

On page 16, replace the Measurement Line Power Source

section with:

Measurement Line Power Source:

XWWarning

To prevent injury, do not touch the metal parts of one test lead

when the other is still connected to hazardous voltage.

WCaution

To prevent damage to the Product, make sure the measured voltage

does not exceed the input rating of the power supply.

1. Attach the power supply to the Logger.

2. Move the slide-cover on the power supply to access the safety

sockets.

3. Connect the short test leads (see Figure 7B & 7C) with the

power supply inputs. Make sure to use the non-stackable plugs.

The test leads are rated for measurement/overvoltage CAT III

1000 V and CAT IV 600 V.

4. Connect the test leads with the voltage measurement inputs:

•Connect A/L1 with one input of the power supply.

•Connect N with the second input of the power supply.

•Connect A/L1 with one input of the power supply.

•Connect B/L2 with the second input of the power supply.

5. Use the short fan out of the Voltage Test Lead, 3-phase + N.

Plug the connector A/L1 into the socket A/L1 of the voltage

measurement inputs of the Logger. Repeat this with B/L2, C/L3

and N.

Manual Supplement 1736/1738 Users

4 7/19

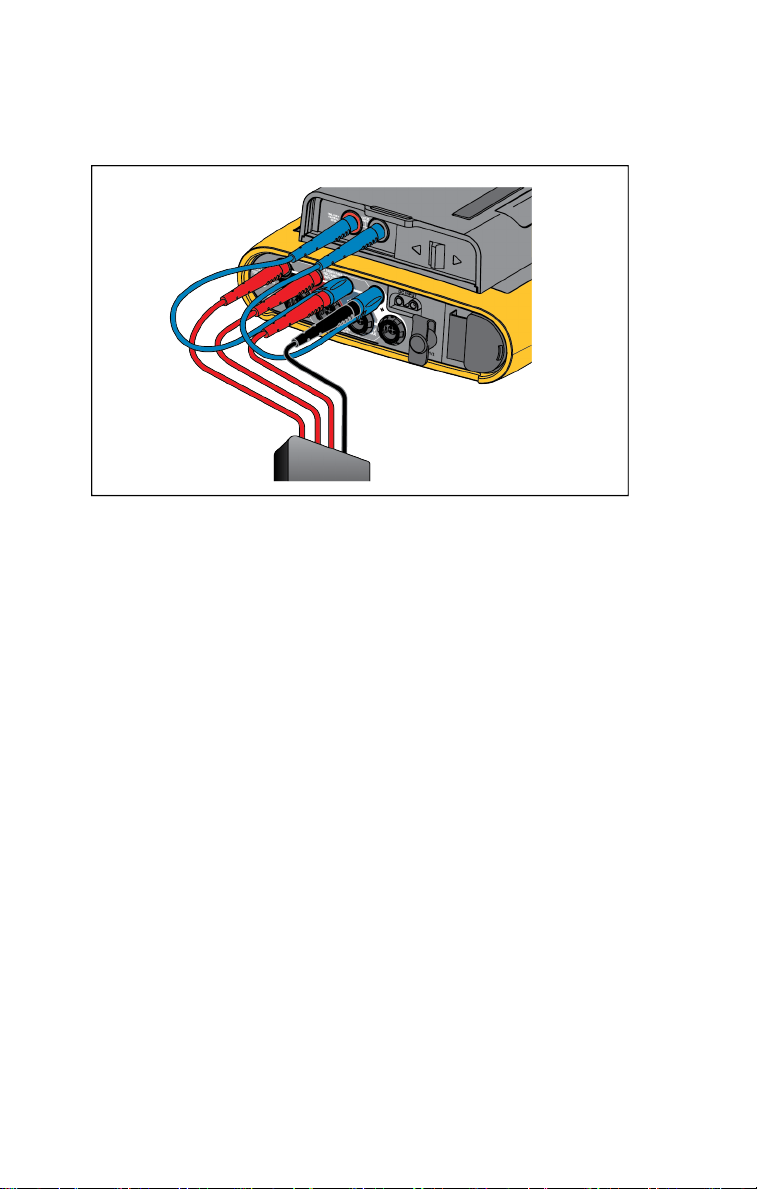

•For measurement connection to the Logger (see Figure 7A):

Figure 7A: Measurement connection to the Logger

1736/1738 Users Manual Supplement

7/19 5

•To supply power to the Logger from installations with neutral

voltage (see Figure 7B):

Figure 7B: Measurement with neutral voltage and supplying

instrument power.

Note

You must locate and connect an alternate power source to the

instrument if the voltage to measure is <100 V or >500 V. Use

the set of 2 m test leads (item 8 in Figure 11) or the supplied

power cord.

6. Connect the voltage inputs to the test points.

The Logger automatically turns on and is ready to use in <30

seconds.

Manual Supplement 1736/1738 Users

6 7/19

•To supply power to the Logger from installations without neutral

voltage (see Figure 7C):

Figure 7C: Measurement without neutral voltage and supplying

instrument power.

Note

You must locate and connect an alternate power source to the

instrument if the voltage to measure is <100 V or >500 V. Use

the set of 2 m test leads (item 8 in Figure 11) or the supplied

power cord.

7. Connect the voltage inputs to the test points.

The Logger automatically turns on and is ready to use in <30

seconds.

1736/1738 Users Manual Supplement

7/19 7

Change #4, 491, 703

On page 5, replace Before You Start, with:

Your purchase includes these items. Carefully unpack and inspect

each of the items:

•Energy Logger

•Power Supply

•Voltage Test Lead, 3-phase + N

•2x Alligator Clips, Blue

•4x Alligator Clips, Black

•3x i173x-flex1500 Thin-Flexi Current Probe, 30.5 cm (12 in)

•Set of color-coded Wire Clips

•Mains Power Cable (see Table 2)

•Set of 2 test leads, stack and non-stackable, blue, 18 cm (7 in)

•Set of 2 test leads, non-stackable, blue, 2 m (79 in)

•DC Power Cable

•USB Cable A, Mini-USB

•Soft Storage Bag/Case

•Input Connector Decal (see Table 6)

•Documentation Info Pack (Quick Reference Card, Safety

Information)

•USB Flash Drive (includes Users Manual, Fluke Energy Analyze

Plus software, and Software Licenses)

Note

The power cord and input connector decal are

country specific and vary according to the order

destination.

The Energy Logger also includes these items in the

standard purchase list:

•WiFi to USB Adapter

•Magnet Hanger Kit

•Set of 4 Magnet Probes for 4 mm Banana Plugs

These items are available for the Energy Logger as optional

accessories.

Manual Supplement 1736/1738 Users

8 7/19

On page 9, replace the first paragraph and Figure 4, with:

Figure 4. Test Leads with Cable Markers

On page 10, replace Table 3 with:

Table 3. Accessories

Part ID Description

i17xx-flexi 1500 Thin-Flexi Current Probe (single) 1500 A, 30.5 cm (12 in.)

i17xx-flexi 1500/3PK Set of 3 Thin-Flexi Current Probes

i17xx-flexi 1500/4PK Set of 4 Thin-Flexi Current Probes

i17xx-flexi 3000 Thin-Flexi Current Probe (single) 3000 A, 61 cm (24 in.)

i17xx-flexi 3000/3PK Set of 3 Thin-Flexi Current Probes

i17xx-flexi 3000/4PK Set of 4 Thin-Flexi Current Probes

i17xx-flexi 6000 Thin-Flexi Current Probe (single) 6000 A, 90.5 cm (36 in.)

i17xx-flexi 6000/3PK Set of 3 Thin-Flexi Current Probes

i17xx-flexi 6000/4PK Set of 4 Thin-Flexi Current Probes

i17xx flexi extension

cable Thin-Flexi extension cable (single), 5m (197 in.)

i17xx flexi extension

cable/3PK Set of 3 Thin-Flexi extension cable

1736/1738 Users Manual Supplement

7/19 9

i17xx flexi extension

cable/4PK Set of 4 Thin-Flexi extension cable

C17xx Soft Case

Test Leads 0.18m 0.18 m (7 in.) Test Lead Set, blue

Test Leads 2m with

alligator clips 2.0 m (79 in.) Test Lead Set plus 2x alligator clips, blue

Voltage Test Lead 3-

phase+N, 2m (79 in.) 3PHVL-17xx Voltage Test Lead 3-phase + N, 2 m (79 in.)

Voltage Test Lead 3-

phase+N, 5m (197 in.) 3PHVL-17xx Voltage Test Lead 3-phase + N, 5 m (197 in.)

i40s-EL Current

Clamp 40 A (single) Current Clamp

i40s-EL/3PK Set of 3 Current Clamps, 40 A

i400S-EL 400 A (single) Current Clamp

i400S-EL/3PK Set of 3 Current Clamps, 400 A

Power Quality

Window PQ-400 Power Quality Window (PQ-400B / PQ-400)

17xx AUX Input

Adapter

Auxiliary Input Adapter for up to 2DC voltages (0 V to 10

V and 0 V to 1000 V)

Fused Test Probe Set Set of 4 Test Probes, three phase, AC285, 1x black, 3x

red

MP1-3R Magnet

Probe Set

Set of 4 Magnet Probes for 4 mm banana plugs, 1x black,

3x red

BP1730-Battery Pack BP1730-Battery Pack

Fluke-PQ-Marker Cable marker set 3 phase + N + PE

Fluke-1730-Hanger

Kit Hanger Kit

Fluke-

1732/UPGRADE for

EUR/US

Upgrade Kit for 1732 to 1734 (includes: Hanger, Magnet

Probes, Bluetooth Adapter, WiFi Adapter, and License

Key)

IEEE 519/Report Software License for IEEE 519 Reporting

FLK-WIFI/BLE

WiFi/BLE to USB Adapter (check with your sales

representative for availability)
