Fisher & Paykel OB60DDEX2 Instructions de montage

Built-in oven

Installation instructions

and User guide

OB60DDEX2 models

Contents

Safety and warnings

Installation instructions

Oven controls and setting the clock

First use

Using your oven

Oven functions

Baking charts

Using the timer

Automatic cooking

Care and cleaning

Warranty and service

Important!

SAVE THESE INSTRUCTIONS

The models shown in this user guide may not be available in all markets and are

subject to change at any time. For current details about model and specification

availability in your country, please visit our local website listed on the back cover

or contact your local Fisher & Paykel dealer.

2Safety and warnings

WARNING!

Cut Hazard

Take care - panel edges are sharp.

Failure to use caution could result in injury or cuts.

WARNING!

Fire Hazard

Do not use adapters, reducers, or branching devices to connect this

appliance to the mains power supply.

Failure to follow this advice may result in overheating, burning, or fire.

WARNING!

Electrical Shock Hazard

Always disconnect the appliance from the mains power supply before

carrying out any maintenance or repairs.

Connection to a good earth wiring system is essential and mandatory.

Alterations to the domestic wiring system must only be made by a

qualified electrician.

Failure to follow this advice may result in death or electrical shock.

Important safety instructions

To avoid hazard, follow these instructions carefully before installing or using this appliance.

Please make this information available to the person installing the appliance - doing so could

reduce your installation costs.

This appliance must be installed and connected to the mains power supply only by a suitably

qualified person according to these installation instructions and in compliance with any

applicable local building and electricity regulations. Failure to install the appliance correctly

could invalidate any warranty or liability claims.

Installation

Safety and warnings

Operation and maintenance

Your built-in oven has been carefully designed to operate safely during normal cooking

procedures. Please keep the following guidelines in mind when you are using your oven:

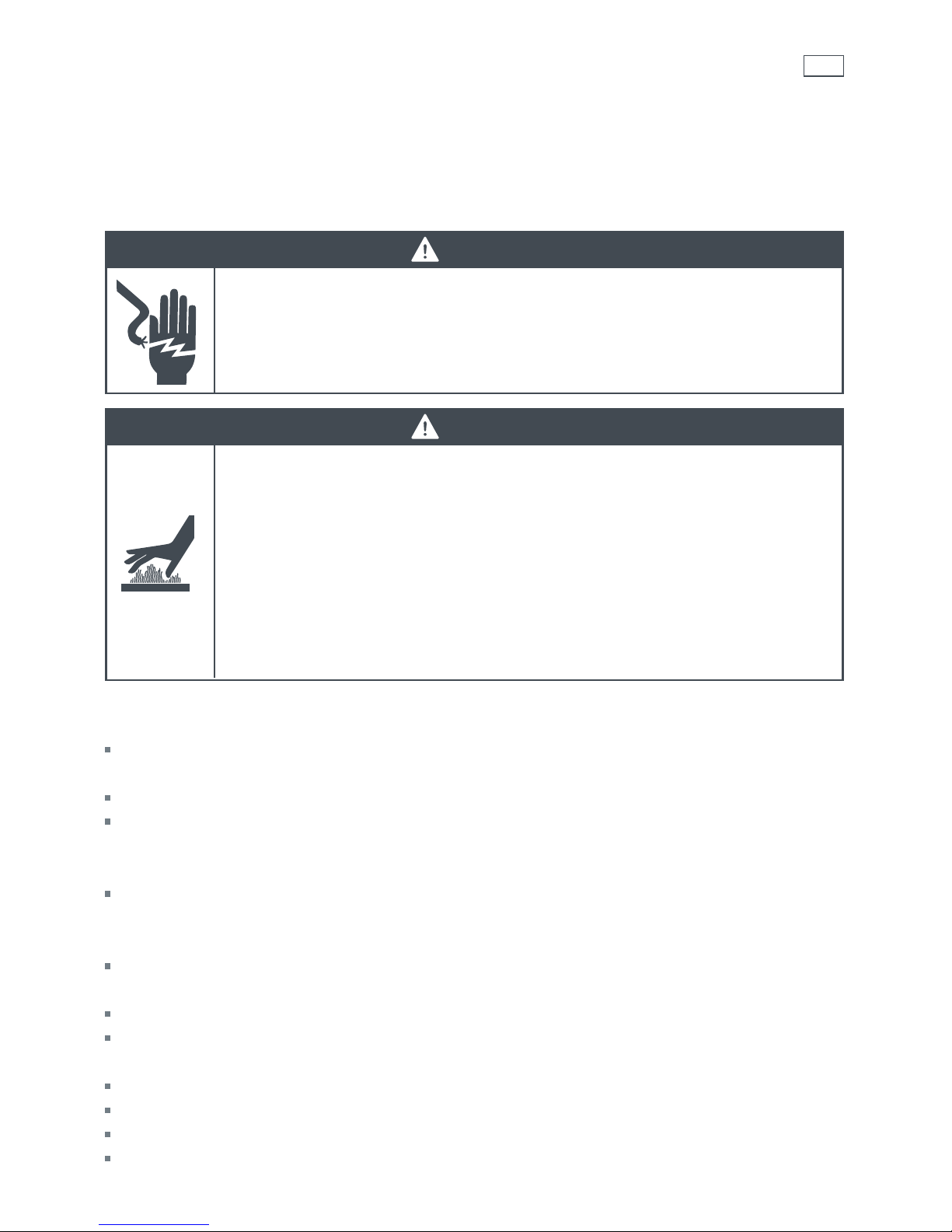

WARNING!

Hot Surface Hazard

Accessible parts may become hot when this oven is in use.

To avoid burns and scalds, keep children away.

Do not touch hot surfaces inside the oven.

Use oven mitts or other protection when handling hot surfaces such as oven

shelves or dishes.

Take care when opening the oven door.

Let hot air or steam escape before removing or replacing food.

Failure to follow this advice could result in burns and scalds.

WARNING!

Electrical Shock Hazard

Disconnect the oven from the power supply before any cleaning or

maintenance.

Failure to do so may result in death or electrical shock.

Important safety instructions

Isolating switch: make sure this oven is connected to a circuit which incorporates an isolating

switch providing full disconnection from the power supply.

Household appliances are not intended to be played with by children.

Children, or persons with a disability which limits their ability to use the appliance, should have a

responsible person to instruct them in its use. The instructor should be satisfied that they can use

the appliance without danger to themselves or their surroundings.

Safe food handling: leave food in the oven for as short a time as possible before and after

cooking. This is to avoid contamination by organisms which may cause food poisoning. Take

particular care during warmer weather.

Do not place aluminium foil, dishes, trays, water or ice on the oven floor during cooking as this

will irreversibly damage the enamel.

Do not stand on the door, or place heavy objects on it.

Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since

they scratch the surface, which may result in shattering of the glass.

Do not use a steam cleaner to clean any part of the oven.

Caution. Hot air can blow from under the control panel as part of the oven’s cooling system.

Do not keep flammable substances in the oven.

If the power supply cable is damaged, it must be replaced by the manufacturer, its service agent

or similarly qualified persons in order to avoid a hazard.

4Installation instructions

2.5 mm

16-20 mm

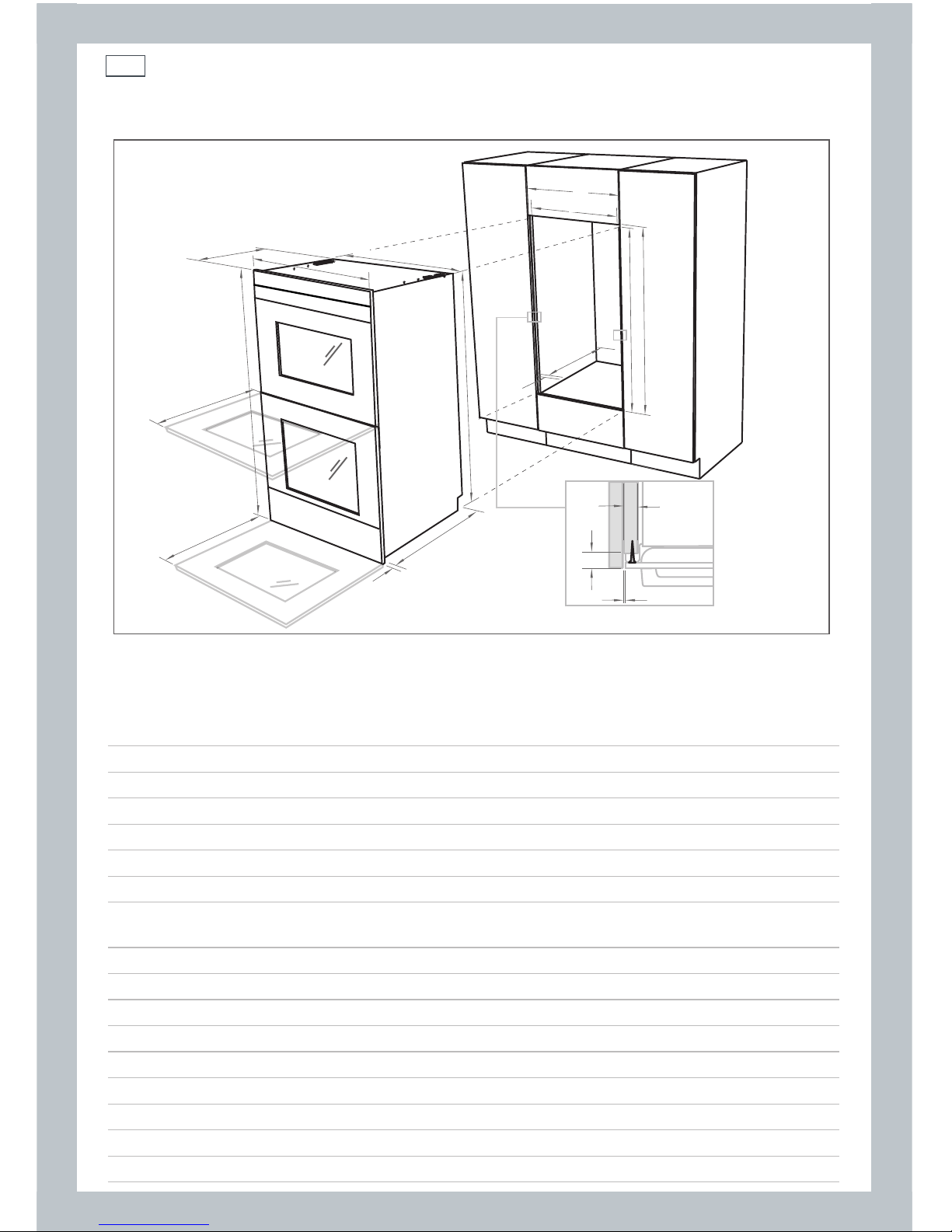

Product and cabinetry dimensions (mm)

OB60DDEX2

Aoverall height* of product 1077

Boverall width of product 595

Coverall depth of product (excluding handle and knobs) 567

Dheight of chassis 1057

Ewidth of chassis 556

Fdepth of chassis 545

Gdepth of oven frame and control panel

(=distance between front of chassis and front of oven door, excl. knobs) 22

Hdepth of upper oven door when fully open (measured from front of control panel) 435

HIdepth of lower oven door when fully open (measured from front of control panel) 450

Iminimum inside width of cavity 560

IIoverall width of cavity 600

Jinside height of cavity 1065

JIoverall height of cavity 1082

Kminimum inside depth of cavity 550

Lflush fitting cabinetry clearance 22

*All height measurements include mounted feet.

OB60DDEX2

Fig. 1 OB60DDEX2 product and cabinetry dimensions

Installation instructions

Before you install the oven, make sure that

the cabinets and oven cavity are square and level, and are the required dimensions

the installation will comply with all clearance requirements and applicable standards and

regulations

a suitable isolating switch providing full disconnection from the mains power supply is

incorporated in the permanent wiring, mounted and positioned to comply with the local wiring

rules and regulations. The isolating switch must be of an approved type and provide a 3 mm air

gap contact separation in all poles (or in all active [phase] conductors if the local wiring rules

allow for this variation of the requirements)

the isolating switch will be easily accessible to the customer with the oven installed

there is at least 1.5 m (and not more than 2 m) free length of power supply cable within the

cavity for ease of installation and servicing

the oven connection socket (if fitted) is outside the cavity if the oven is flush to the rear wall

the oven will rest on a surface that can support its weight

the height from the floor suits the customer

you consult local building authorities and by-laws if in doubt regarding installation.

When you have installed the oven, make sure that

the oven doors can open fully without obstruction

the power supply cable does not touch any hot metal parts

the isolating switch is easily accessible by the customer

you complete the ‘Final checklist’ at the end of these installation instructions.

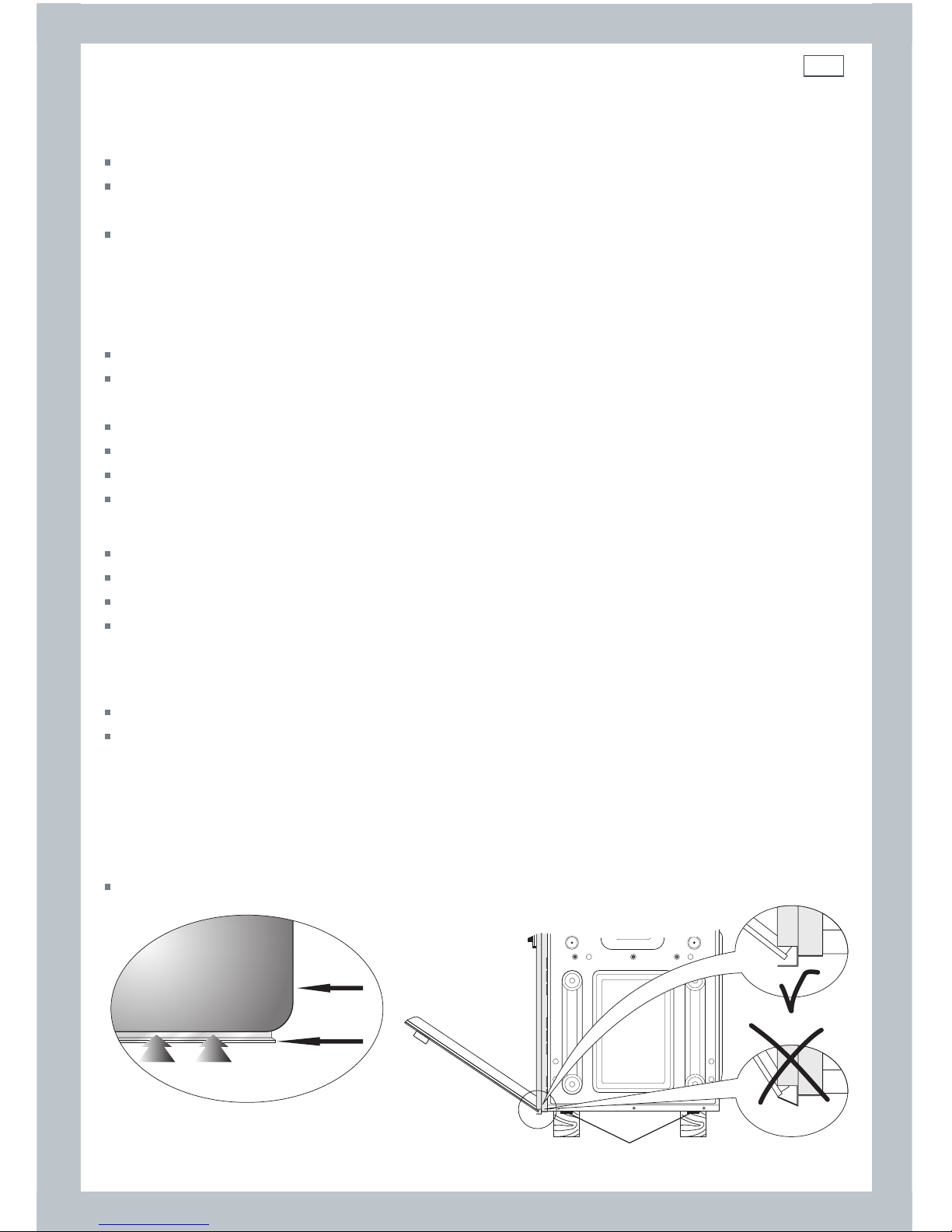

Unpacking the oven

Remove all packaging and dispose of it responsibly. Recycle items that you can.

When you remove the oven from the carton, place it onto wooden blocks or similar supports to

prevent damaging the lower trim.

Important!

Please take extra care not to damage the lower trim of the oven. It is important for correct air circulation

and allows the door to open and close without obstruction. The manufacturer does not accept any

responsibility for damage resulting from incorrect installation.

You may remove the feet but ensure that the oven does not sit on the lower trim.

Fig. 2 Correct and incorrect placement of lower trim

OVEN DOOR

LOWER TRIM

AIR FLOW

OVEN DOOR

LOWER TRIM

AIR FLOW

Feet

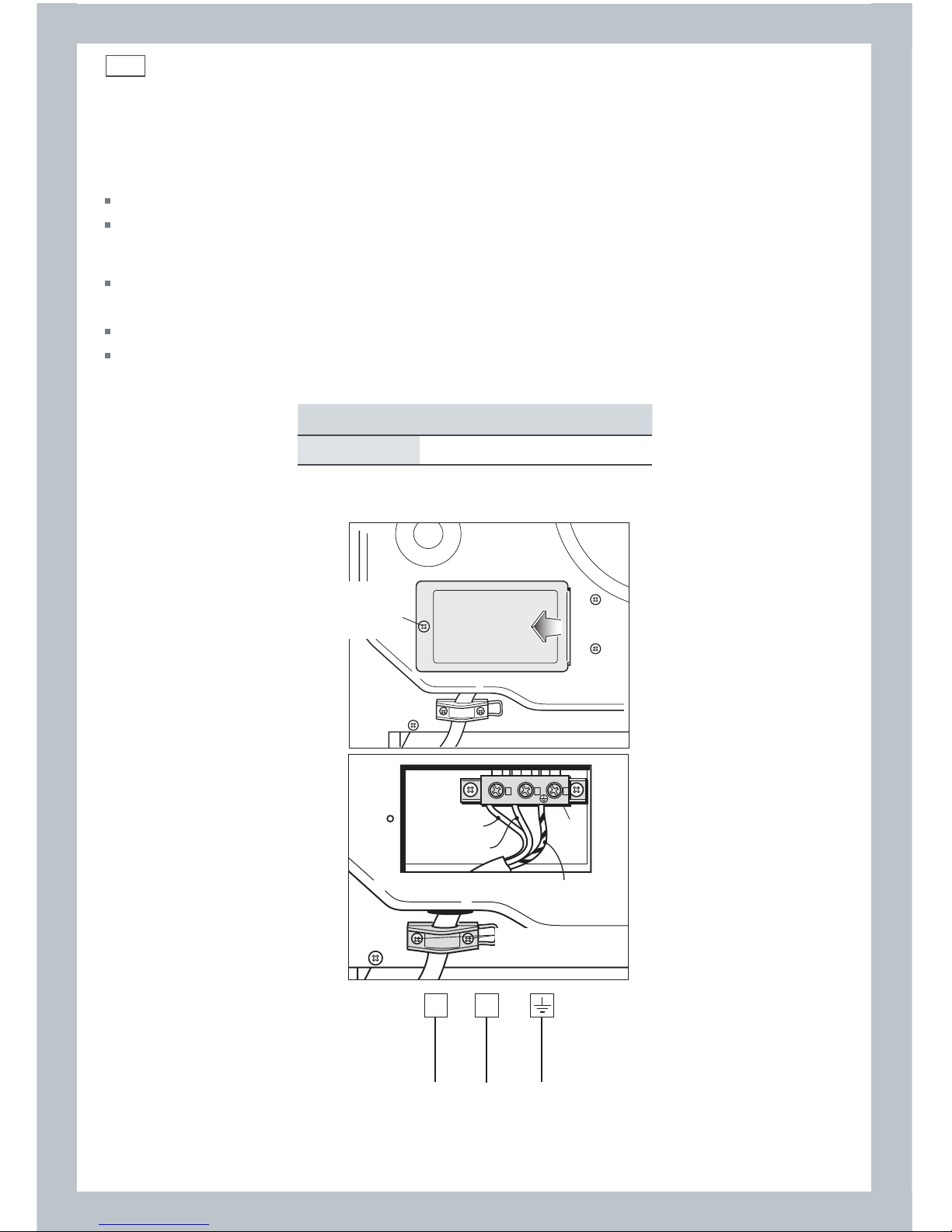

Connecting the oven to the mains power supply

Important!

This oven must be connected to the mains power supply only by a suitably qualified person.

This oven must be earthed.

Before connecting the oven to the mains power supply, check that

the domestic wiring system is suitable for the power drawn by the oven

(as specified on the rating plate)

the voltage corresponds to the value given on the rating plate.

the power supply cable used is type H05RR-F or H05RN-F and has a cross-sectional area of

3 x 4 mm

230-240 V~ 3095-3370W

230-240 V~ 2350-2550W

L1(L )2

Installation instructions

Green & Yellow

(Earth)

Brown (Live)

Blue (Neutral)

Unscrew to

remove cover

plate

Unscrew to remove

cable clamp

Model code Power Voltage

OB60DDEX2 5600 W 220 V~

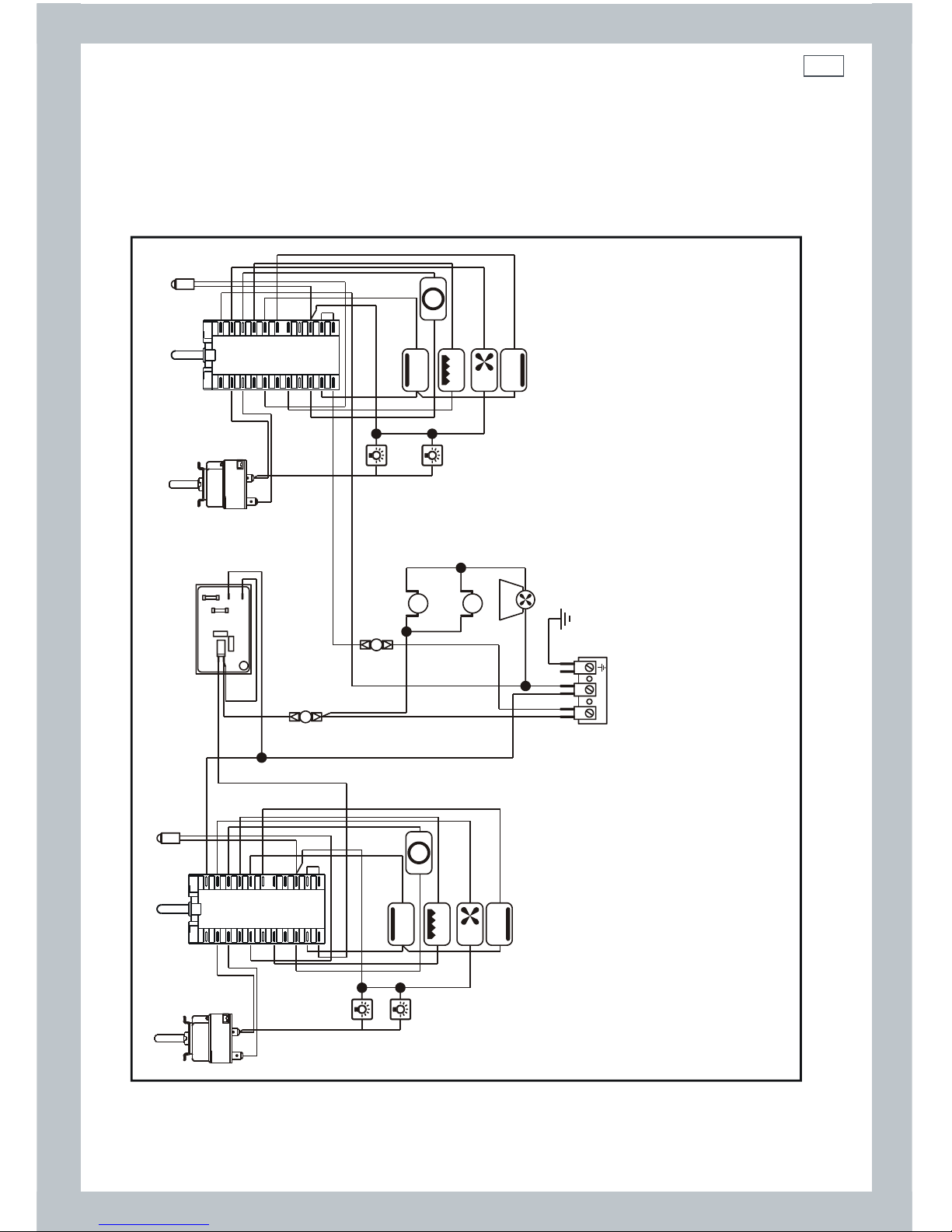

Wiring diagram

Installation instructions

Cod.0422341/CN

100

124

Componenti conformi a Direttiva Europea 2002/95/EC (RoHS) e successivi emendamenti.

Components in compliance with European Directive 2002/95/EC (RoHS) and further amendments.

0422341/CN

CODICE

N° DISEGNO

DATA

SCALA

DISEGNATO

CONTROLLATO

IN DATA

SOSTITUISCE IL

DESCRIZIONE :

RAGGI NON QUOTATI (mm)

SPESSORI NON QUOTATI (mm)

TOLLERANZE GENERALI

XXX

= QUOTE DA CONTROLLARE DURANTE LA PRODUZIONE

E PRIVE DI OGNI DIFETTO

SUPERFICI IN VISTA

N°

MODIFICHE

DATA

FIRMA

TELEFAX 0423/912360

TEL. 0423/9121

31030 - BORSO del GRAPPA (Italy)

Fisher & Paykel appliances si riserva,

a termini di legge, la proprietá del

presente disegno con divieto di, senza

autorizzazione, riprodurlo o comunicarlo.

Montagner M.

08/07/09 1/1

MATERIALE: vedi note / see notes

ADESIVO: vedi note / see notes

STAMPA COLORE: vedi note / see notes

ETICHETTA SCHEMA ELETTRICO (FORNO OB60DD - CINA)

WIRING DIAGRAM LABEL (OVEN OB60DD - CHINA)

N/7

L/8

CIR1

TM1

LF1

CIR2

TM2

LF3

LF2

LF4

10a

11a

10a

11a

MTerminal block TM1 Oven thermostat CIR1 Circular element S2 Thermostat pilot lamp

TEarth connection PR Electronic programmer V1 Fan motor C2 Top element

CF Cooling fan motor LF1/2 Oven lamps G2 Grill element

TL Thermal overload S1 Thermostat pilot lamp S2 Bottom element

BOTTOM OVEN

C1 Top element Circular element

Oven switch CIR2

G1 Grill element

MAIN OVEN TM2 Oven thermostat V2 Fan motor

Bottom element

Oven switch S1

F1 LF3/4 Oven lamps

ELECTRIC DIAGRAM KEY

NOTE / NOTES

4MATERIALE / MATERIAL: POLIESTERE ARGENTO MATTATO / MATTE SILVER POLYESTER

4ADESIVO / ADHESIVE: PERMANENTE ACRILICO / PERMANENT ACRYLIC

4COLORE STAMPA / PRINTING COLOUR: NERO / BLACK

4SPECIFICHE DI STAMPA / PRINTING SPECIFICATIONS: LE MARCATURE DEVONO ESSERE

CHIARAMENTE LEGGIBILI E DURATURE (SECONDO I REQUISITI DELLA NORMA IEC 60335-1

§7.14) / THE MARKINGS SHALL BE CLEARLY LEGIBLE AND DURABLE (AS PER STANDARD IEC 60

335-1 §7.14)

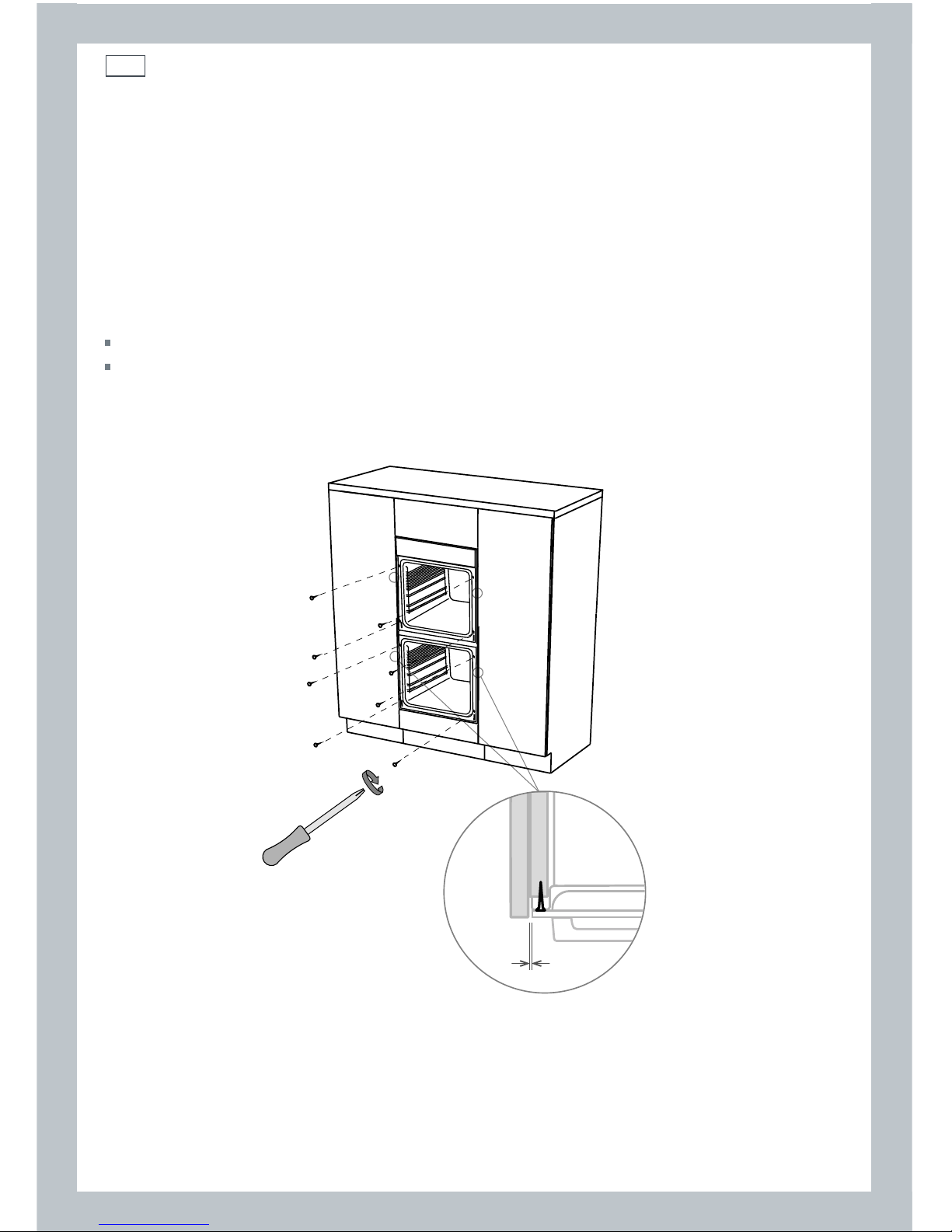

Securing the oven to the cabinetry

Position the oven in the prepared cavity.

Important!

Do not lift the oven by the door handle.

Open the oven doors fully.

Use the supplied screws to secure the oven to the cabinetry.

Important!

Do not over-tighten the screws.

Do not seal the oven into the cabinetry with silicone or glue. This makes future servicing difficult.

Fisher & Paykel will not cover the costs of removing the oven, or of damage caused by this

removal.

2.5 mm

Fig. 3 Securing the oven to the cabinetry

Installation instructions

Table des matières

Autres manuels Fisher & Paykel Four

Fisher & Paykel

Fisher & Paykel OB60SD9X1 Manuel utilisateur

Fisher & Paykel

Fisher & Paykel Aerotech OB30 Series Manuel utilisateur

Fisher & Paykel

Fisher & Paykel Wall Oven Manuel utilisateur

Fisher & Paykel

Fisher & Paykel OB60SD11PX1 Manuel utilisateur

Fisher & Paykel

Fisher & Paykel Aerotech OB30 Series Manuel utilisateur

Fisher & Paykel

Fisher & Paykel OB24SDPX4 Manuel utilisateur

Fisher & Paykel

Fisher & Paykel PROFESSIONAL OS76NPX1 Manuel utilisateur

Fisher & Paykel

Fisher & Paykel OB24SDPT Manuel utilisateur

Fisher & Paykel

Fisher & Paykel BI453 Manuel utilisateur

Fisher & Paykel

Fisher & Paykel WODV230 Manuel utilisateur

Fisher & Paykel

Fisher & Paykel Aerotech OB30 Series Manuel utilisateur

Fisher & Paykel

Fisher & Paykel OB60C Series Manuel utilisateur

Fisher & Paykel

Fisher & Paykel OB24SCD Manuel utilisateur

Fisher & Paykel

Fisher & Paykel OD301MV1-87818 Manuel de service

Fisher & Paykel

Fisher & Paykel OB24SDPX2 Manuel de la liste des pièces

Fisher & Paykel

Fisher & Paykel OB76SD Manuel utilisateur

Fisher & Paykel

Fisher & Paykel OS24SMTDB1 Manuel utilisateur

Fisher & Paykel

Fisher & Paykel OS60SDTDB1 Manuel utilisateur

Fisher & Paykel

Fisher & Paykel OB60SL11DCPX1 Manuel utilisateur

Fisher & Paykel

Fisher & Paykel Astro NULL Manuel utilisateur

Fisher & Paykel

Fisher & Paykel OB60SC5LC Manuel utilisateur

Fisher & Paykel

Fisher & Paykel OB30SDEPX3 N Manuel utilisateur

Fisher & Paykel

Fisher & Paykel BI601 Series Manuel utilisateur

Fisher & Paykel

Fisher & Paykel OB60SL Series Manuel utilisateur

Manuels Four populaires d'autres marques

Bosch

Bosch HVA531NS0 Manuel utilisateur

Electrolux

Electrolux EOF6P46X Manuel utilisateur

NEFF

NEFF B44S32 5GB Series Manuel utilisateur

Combi

Combi BLODGETT BC142GDS Manuel utilisateur

AEG

AEG COMPETENCE 311704300 Manuel utilisateur

Falcon

Falcon DOMINATOR PLUS G3106 Series Guide de l'utilisateur

Rational

Rational SCC WE 61G Manuel utilisateur

Smeg

Smeg DOSPA38X Manuel d'installation et d'exploitation

Electrolux

Electrolux air-o-convect 20 GN 2/1 Manuel utilisateur

Miele

Miele HR 1954-2 Manuel utilisateur

KHIND

KHIND OT50 Manuel utilisateur

Henny Penny

Henny Penny Smoker Box Manuel utilisateur

Lang

Lang ECOD-AP Manuel utilisateur

AEG

AEG BEK455310M Manuel utilisateur

Frigidaire

Frigidaire FNGE90JGR Manuel utilisateur

Hotpoint

Hotpoint FE9 S831 JSH IX Manuel utilisateur

GE Advantium SCB2000 Manuel utilisateur

AEG

AEG DE401301DM Manuel utilisateur
