Fisher & Paykel OB76SD Manuel utilisateur

NZ AU

590586C 07.14

OB76SD & OB76DD models

INSTALLATION INSTRUCTIONS

Built-in Oven

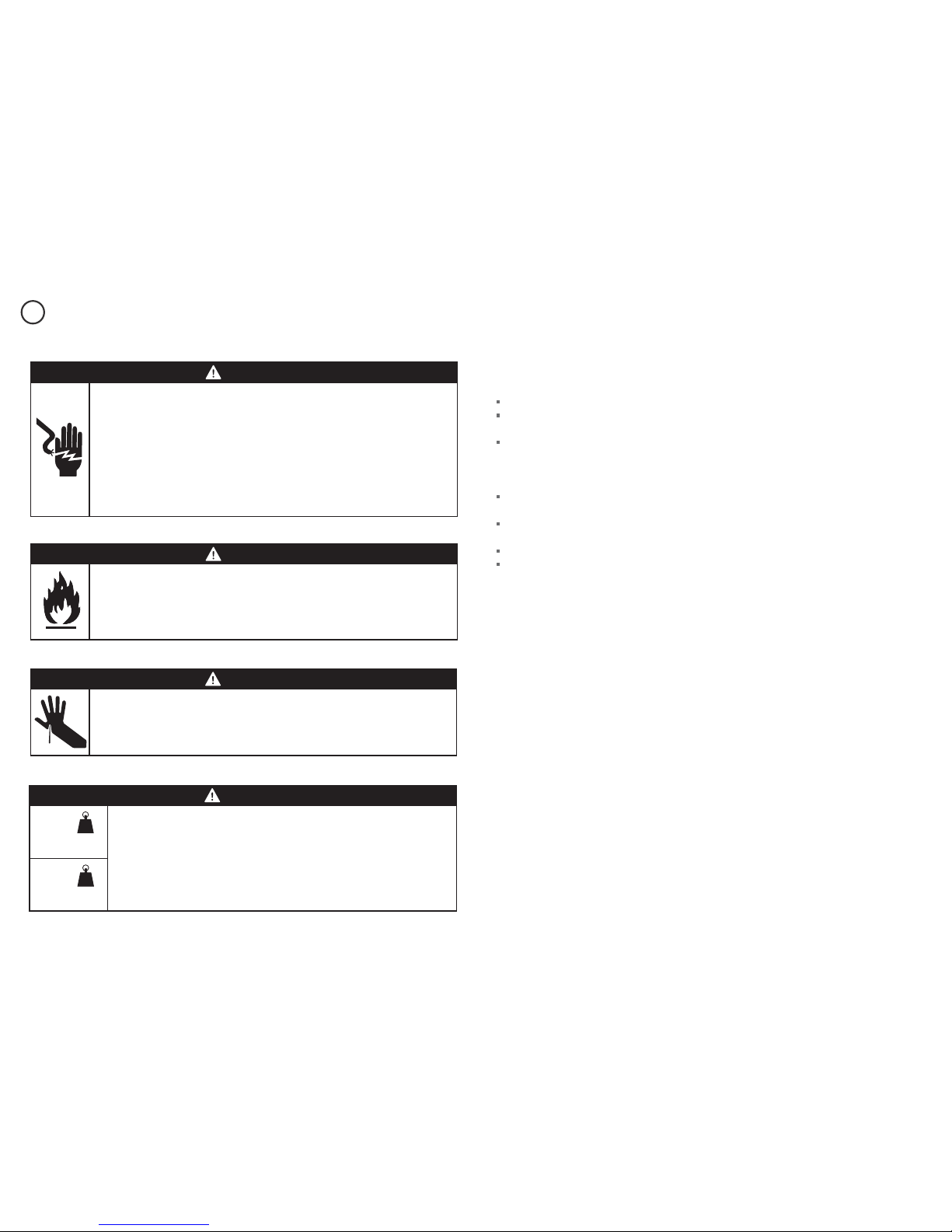

SAFETY AND WARNINGS

WARNING!

Electrical shock hazard

Before carrying out any work on the electrical section of the appliance, it must

be disconnected from the mains electricity supply.

Connection to a good earth wiring system is absolutely essential and

mandatory.

Alterations to the domestic wiring system must only be made by a qualified

electrician.

Failure to follow this advice may result in electrical shock or death.

WARNING!

Cut hazard

Take care - some panel edges are sharp.

Failure to use caution could result in injury or cuts.

IMPORTANT SAFETY INSTRUCTIONS!

To avoid hazard, follow these instructions carefully before installing or using this appliance.

Please make this information available to the person installing the appliance - doing so could

reduce your installation costs.

This appliance must be installed and connected to the mains power supply only by a suitably

qualified person according to these installation instructions and in compliance with any applicable

local building and electricity regulations. Failure to install the appliance correctly could invalidate

any warranty or liability claims.

If the power supply cable is damaged, it must be replaced by the manufacturer, its service agent or

similarly qualified person in order to avoid a hazard.

Isolating switch: make sure this oven is connected to a circuit which incorporates an isolating switch

providing full disconnection from the power supply in accordance with the wiring rules.

The oven must be earthed.

Do not use adaptors, reducers or branching devices to connect the oven to the mains electricity

supply, as they can cause overheating and burning.

WARNING!

Fire hazard

Do not use adapters, reducers, or branching devices to connect this appliance to

the mains power supply.

Failure to follow this advice may result in overheating, burning, or fire.

409 lb

186 kg

242 lb

110 kg

WARNING!

Very Heavy

Do not attempt to lift this product unassisted.

Lifting unassisted may cause serious injury.

SINGLE

oven

models

DOUBLE

oven

models

PRIOR TO INSTALLATION

AFTER INSTALLATION

the benchtop and oven cavity are square and level, and are the required dimensions.

the installation will comply with all clearance requirements and applicable standards and regulations.

a suitable isolating switch providing full disconnection from the mains power supply is incorporated in the permanent wiring, mounted and positioned to comply with the local wiring rules and regulations. The

isolating switch must be of an approved type and provide a 3 mm air gap contact separation in all poles (or in all active [phase] conductors if the local wiring rules allow for this variation of the requirements).

the isolating switch will be easily accessible to the customer with the oven installed.

the electrician provides sufficient free length of power supply cable to reach from the bottom rear of the cavity to at least 1.5 metres in front of the bottom edge of the opening.

The cable may enter the cavity from the side, top or bottom, but top entry must be at the rear of the cavity.

the oven connection socket (if fitted) is outside the cavity if the oven is flush to the rear wall.

the oven will rest on a surface that can support its weight.

the height from the floor suits the customer.

you consult local building authorities and by-laws if in doubt regarding installation.

Important!

Some environmental factors and cooking habits can cause condensation in and around the oven during use. To protect surrounding cabinetry from possible damage caused by frequent or excessive condensation, we recommend

moisture-proofing the oven cavity.

Important!

Please take extra care not to damage the lower trim of the oven during installation. The trim is important for correct air circulation and allows the door to open and close without obstruction. The manufacturer does not accept any

responsibility for damage resulting from incorrect installation.

the oven door(s) can open fully without obstruction.

the power supply cable does not touch any hot metal parts.

the isolating switch is easily accessible to the customer with the oven installed.

you complete the ‘Final checklist’ at the end of the installation.

If, after following the instructions given, correct performance cannot be achieved, please contact your nearest Fisher & Paykel Authorised Service Centre, Customer Care, or contact us through our local website listed at

the end of this document.

PARTS SUPPLIED

Screws

(2) for OB76SD

(4) for OB76DD

Spacers

(2) for OB76SD

(4) for OB76DD

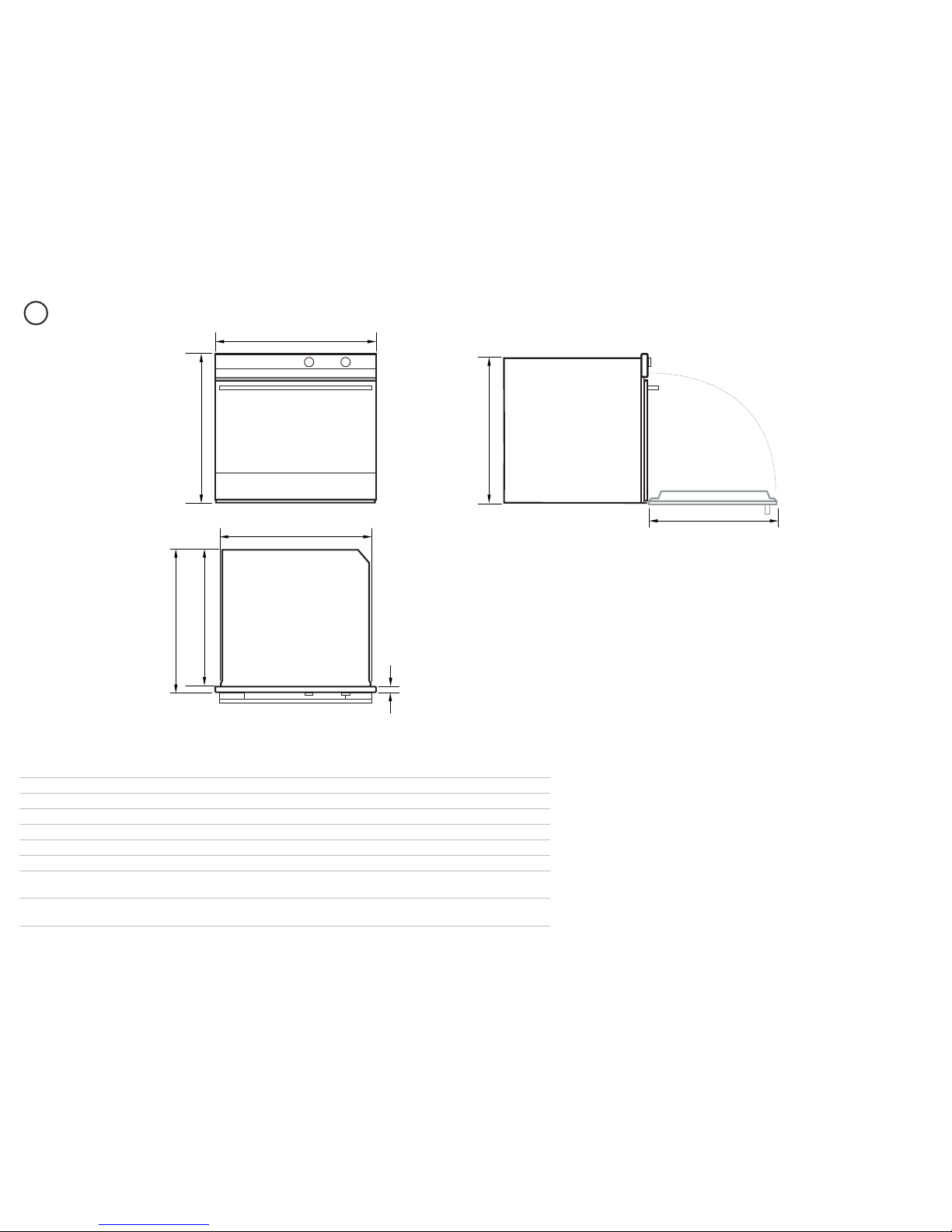

5PRODUCT DIMENSIONS - SINGLE OVENS

Product dimensions (mm)

OB676SD

Aoverall height of product 689

Boverall width of product 760

Coverall depth of product (excluding handle and dials) 608

Dheight of chassis 675

Ewidth of chassis 720

Fdepth of chassis 569

Gdepth of oven frame and control panel

(=distance between front of chassis and front of oven door, excl. knobs) 39

Hdepth of oven door when fully open

(measured from front of control panel) 530

TOP

FRONT SIDE

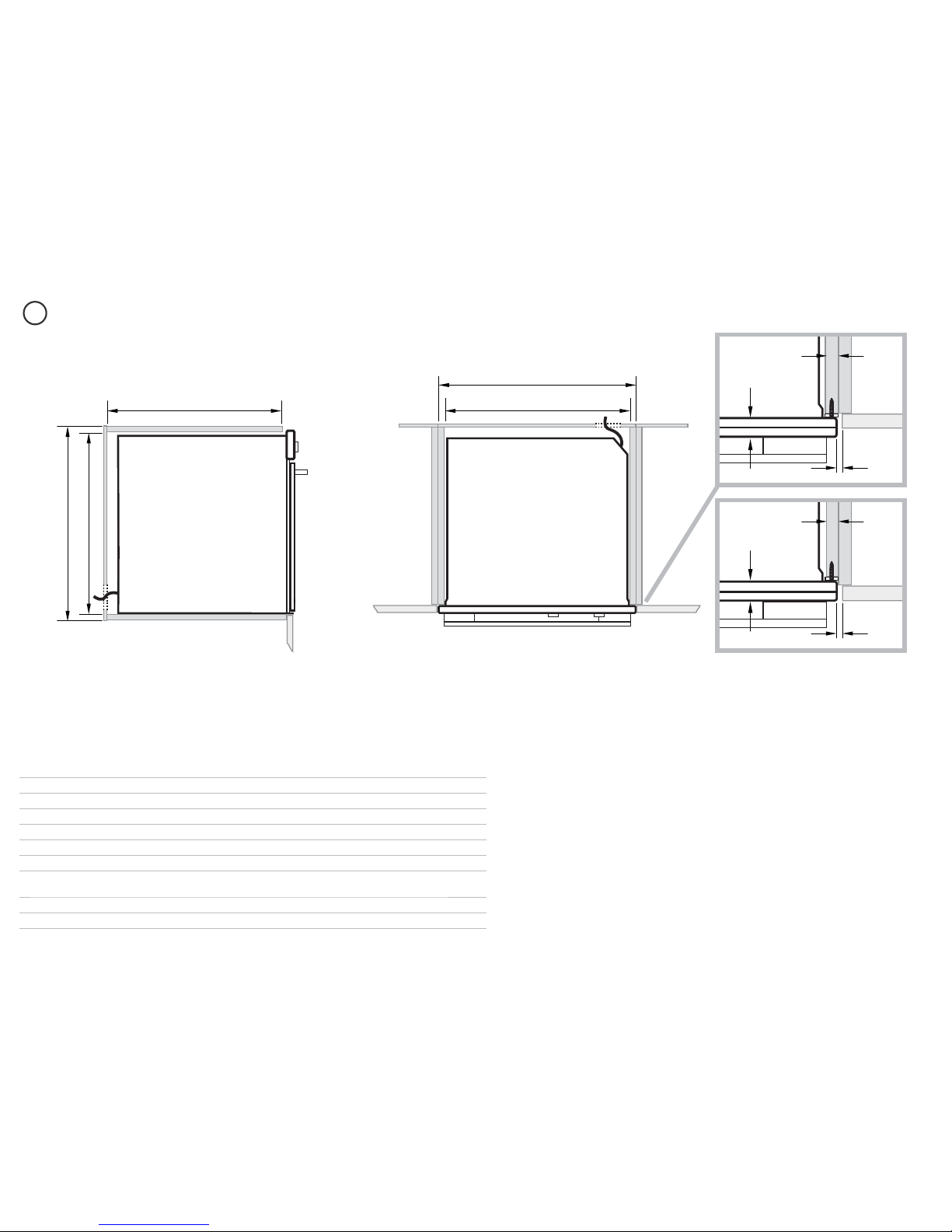

5CABINETRY DIMENSIONS - SINGLE OVENS

Cabinetry dimensions (mm)

OB676SD

Iminimum inside width of cavity 724

Joverall width of cabinetry 764

Kminimum inside height of cavity 681

Loverall height of cabinetry 693

Mminimum inside depth of cavity 575

Note: If installing a cooktop above the oven, ensure adequate clearance is provided for the cooktop as per the cooktop

manufacturer’s instructions.

16-20 mm

Electrical supply

min. 2 mm

16-20 mm

39 mm

min. 2 mm

TOP

PROUD INSTALL

FLUSH INSTALL

SIDE

Important!

FLUSH INSTALLATION

The depth of the control panel (G) is larger than

conventional ovens. Ensure you have created a

38 mm recess in cabinetry.

If flush installing, you need to replace the lower

trim with the supplied long trim at the base of the

oven. Refer to Step 11 for instructions.

Important!

Make sure the cavity is completely sealed

with no gaps.

This is to ensure the oven cooling system

functions correctly.

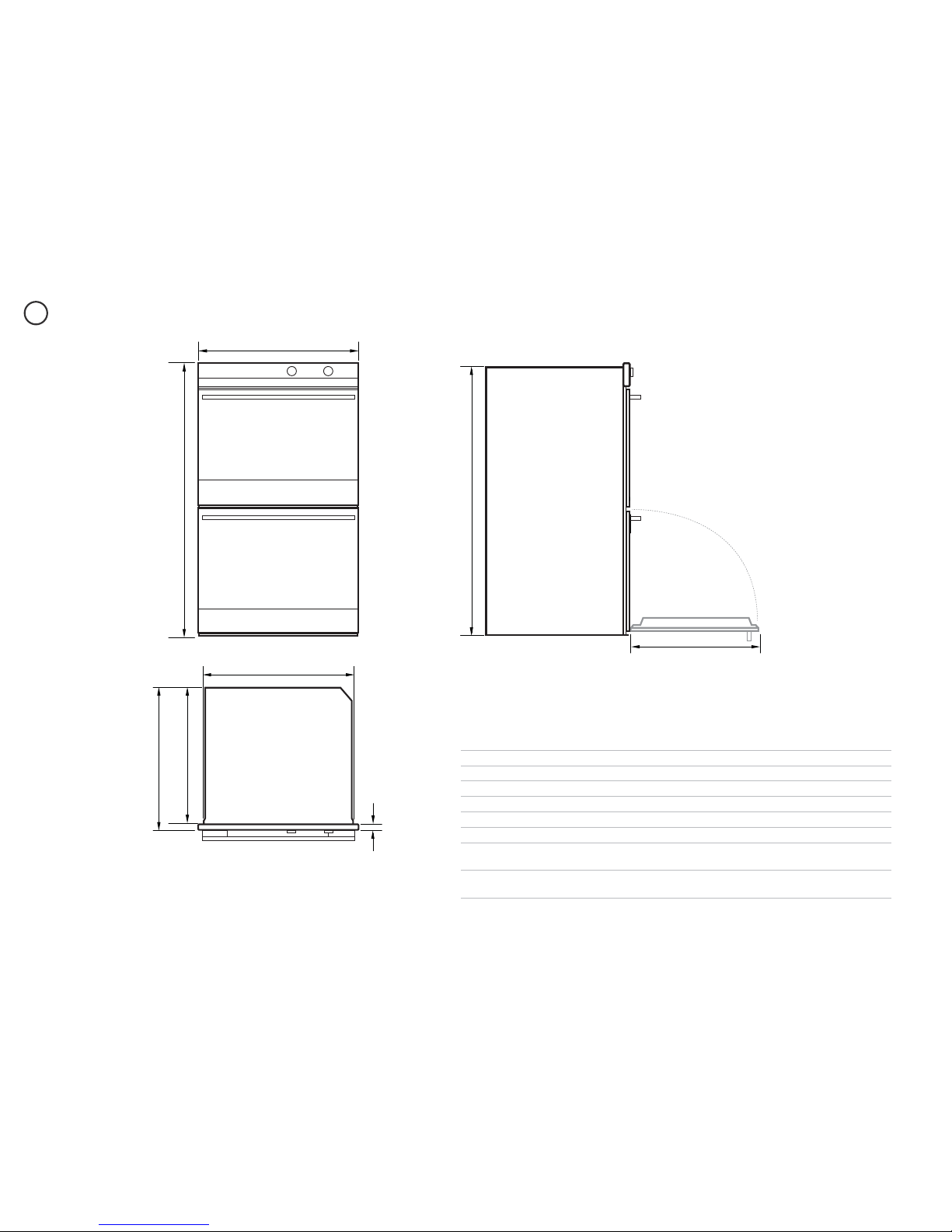

5PRODUCT DIMENSIONS - DOUBLE OVENS

16-20 mm

TOP

FRONT SIDE

Product dimensions (mm)

OB676DD

Aoverall height of product 1232

Boverall width of product 760

Coverall depth of product (excluding handle and dials) 608

Dheight of chassis 1218

Ewidth of chassis 720

Fdepth of chassis 569

Gdepth of oven frame and control panel

(=distance between front of chassis and front of oven door, excl. knobs) 39

Hdepth of oven door when fully open

(measured from front of control panel) 530

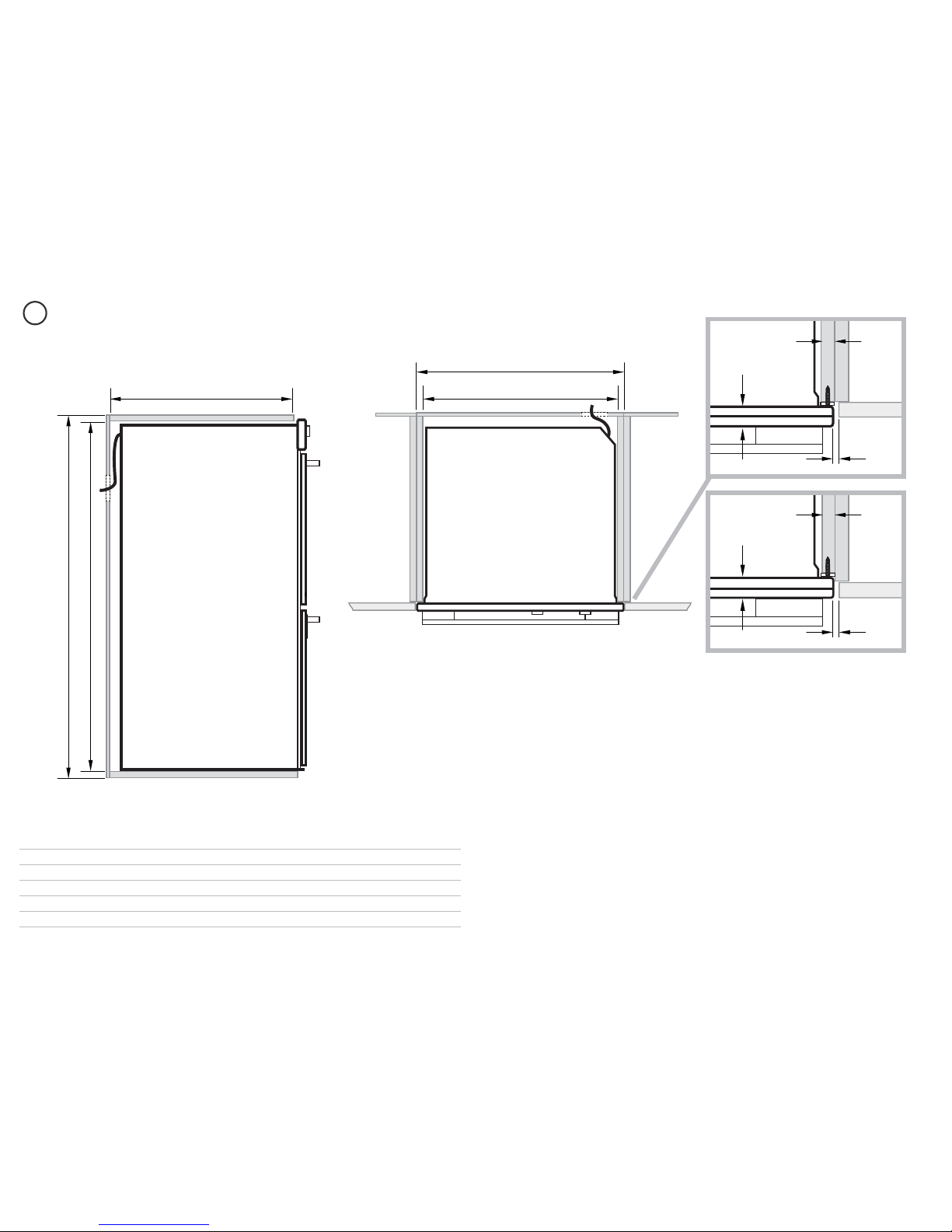

5CABINETRY DIMENSIONS - DOUBLE OVENS

Cabinetry dimensions (mm)

OB676DD

Iminimum inside width of cavity 724

Joverall width of cabinetry 764

Kminimum inside height of cavity 1224

Loverall height of cabinetry 1236

Mminimum inside depth of cavity 575

TOP

SIDE

16-20 mm

min. 2 mm

16-20 mm

39 mm

min. 2 mm

Electrical supply

Important!

FLUSH INSTALLATION

The depth of the control panel (G) is larger than

conventional ovens. Ensure you have created a

38 mm recess in cabinetry.

If flush installing, you need to replace the lower

trim with the supplied long trim at the base of the

oven. Refer to Step 11 for instructions.

FLUSH INSTALL

PROUD INSTALL

Important!

Make sure the cavity is completely sealed

with no gaps.

This is to ensure the oven cooling system

functions correctly.

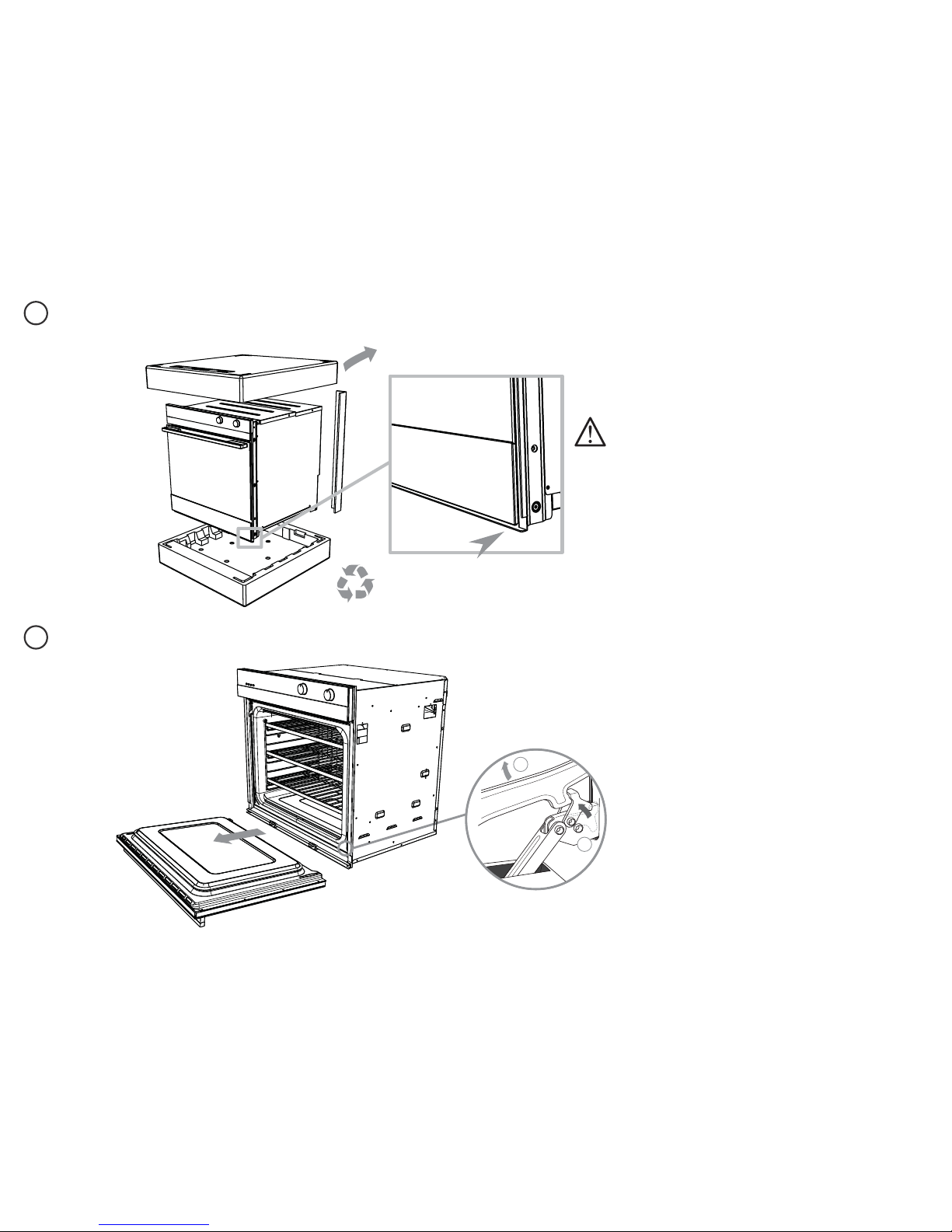

DISCARD PACKAGING RESPONSIBLY

REMOVE THE DOOR(S)

Recycle responsibly

lower trim

Important!

When you remove the oven from the carton be

careful not to damage the lower trim. The trim is

important for both ventilation and to ensure the

door opens fully without obstruction.

Make sure you remove the Long Trim from the

packaging.

Single model shown for illustration purposes only

Important!

Do not lift the oven by the door handle.

Hook the door swivel retainers onto the metal bar above them.

Lift the oven door slightly to disengage the hinge.

Pull the door forward off the appliance and lie it on a flat surface.

Double oven models only:

Remove both doors.

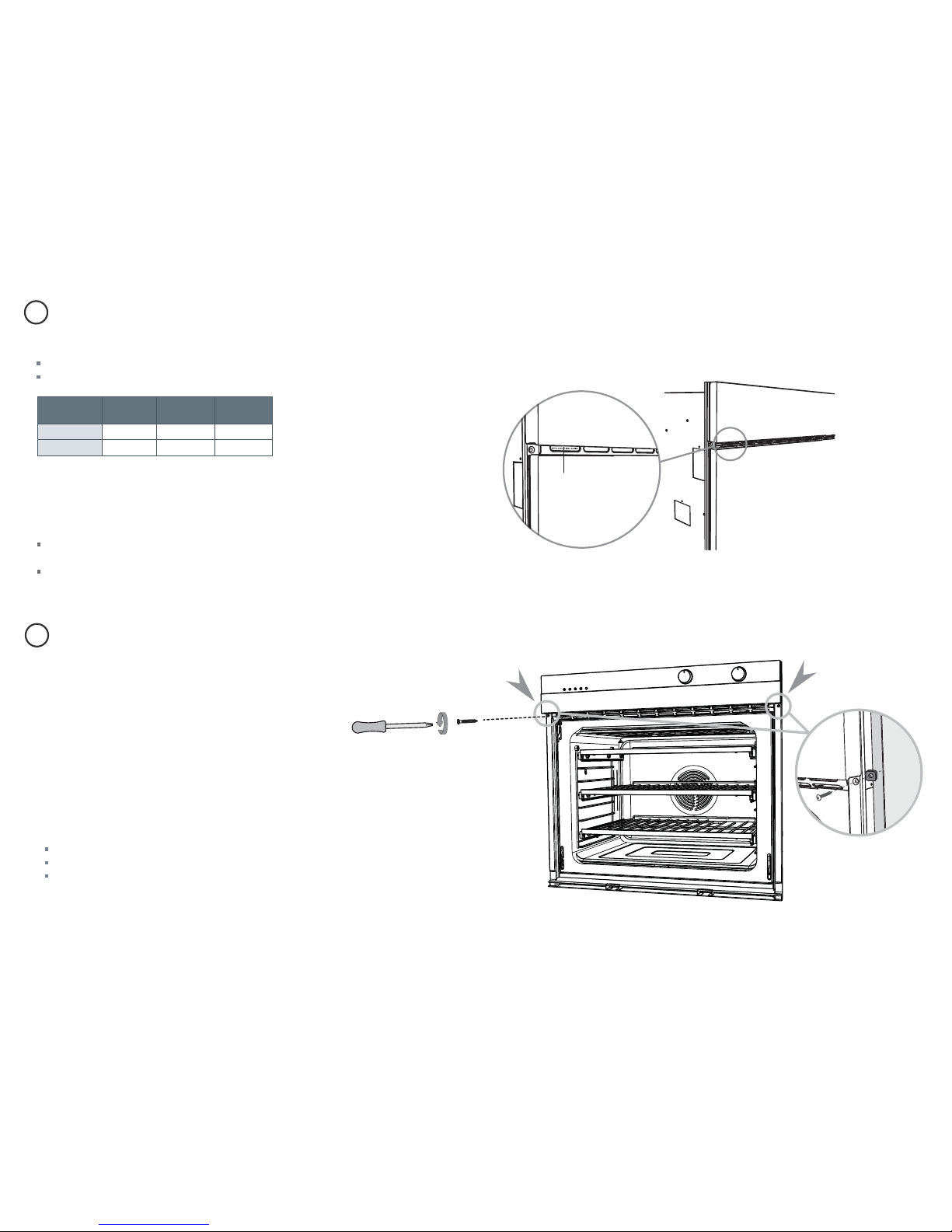

9SECURE THE OVEN TO THE CABINETRY

Position the oven in the prepared cavity.

Important!

Do not lift the oven by the door handle.

Use the supplied screws and spacers to secure the oven to the cabinetry.

Double oven models only:

There are 4 screws and spacers provided (two per side).

Important!

Do not over-tighten the screws.

Take care not to damage the lower trim of the oven.

Do not seal the oven into the cabinetry with silicone or glue. This makes future

servicing difficult. Fisher & Paykel will not cover the costs of removing the oven,

or of damage caused by this removal.

8CONNECT THE OVEN TO THE MAINS SUPPLY

Important!

This oven must be connected to the mains power supply only by a suitably qualified person.

This oven must be earthed.

Model code Max Power

(kW)

Hz Voltage (V)

OB76SD 4.25 50 Hz 220 - 240 V~

OB76DD 8.50 50 Hz 220 - 240 V~

We recommend that the power outlet is located in the right rear corner of the cabinet

cavity. This allows the power supply cable to sit inside the rear chamfered corner of

the oven and prevents it being jammed between the cabinet wall and rear of the oven.

Before connecting the oven to the mains power supply, check that:

the domestic wiring system is suitable for the power drawn by the oven

(as specied on the rating plate)

the voltage corresponds to the value given on the rating plate.

Note: For connection to the terminal block the maximum conductor size is 6 mm

Nameplate

Ensure supplied

spacer is fitted

between oven

and cabinetry

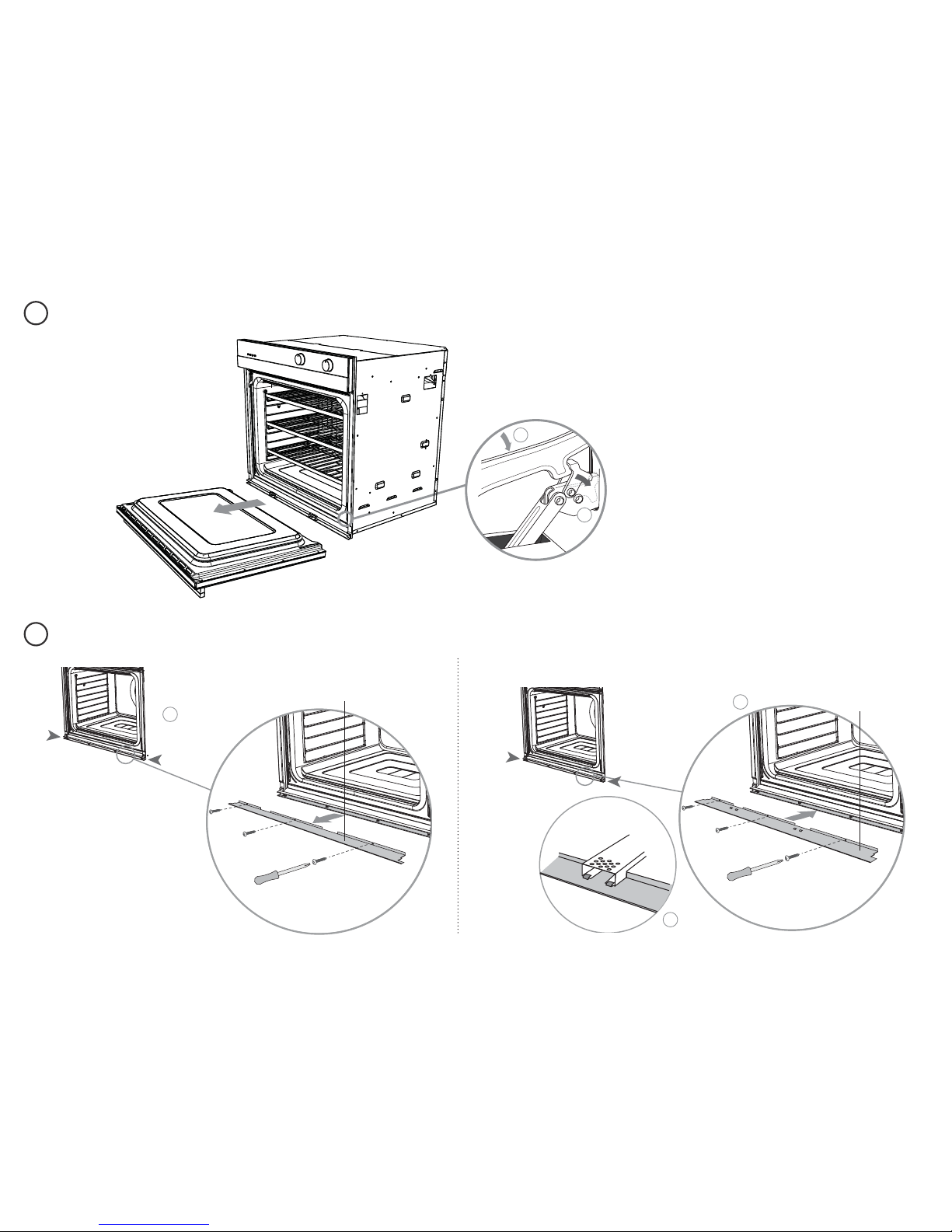

REFIT THE DOOR(S)

FLUSH INSTALLATION ONLY - REPLACE THE LOWER TRIM WITH THE SUPPLIED LONG TRIM

Important!

Do not lift the oven by the door handle.

Refit the door following the sequence in Step 7 in reverse order.

Double oven models only:

Ret both doors.

Unscrew and remove the

installed lower trim Replace with the

supplied long trim

Ensure the clips

on the long trim

locate into the

channels
