Fisher & Paykel 7 Series Manuel utilisateur

MINIMAL

OB60SMPTDG1, OB60SMPTNG1, OB60SMPTDB1,

OB60SMPTNB1, OB60SM16PLG1 & OB60SM16PLB1

CONTEMPORARY

OB60SDPTDX2, OB60SD16PLX1, OB60SD1PLX1,

OB60SD11PLX1 & OB60SD9PLX1

BUILT-IN OVEN

INSTALLATION GUIDE

NZ AU UK IE

!WARNING!

Electric Shock Hazard

Failure to follow this advice may result in

electric shock or death.

• Before carrying out any work on the

electrical section of the appliance, it must

be disconnected from the mains electricity

supply.

• Connection to a good earth wiring system is

absolutely essential and mandatory.

• Alterations to the domestic wiring system

must only be made by a qualified electrician.

!WARNING!

Fire Hazard

Failure to follow this advice may result in

overheating, burning, and injury.

• Do not use adapters, reducers, or branching

devices to connect this appliance to the

mains power supply.

!WARNING!

Cut Hazard

Failure to use caution could result in injury.

• Take care: some edges are sharp.

IMPORTANT!

SAVE THESE INSTRUCTIONS

The models shown in this installation guide may not be available in all markets and are subject to

change at any time. For current details about model and specification availability in your country,

please go to our website www.fisherpaykel.com or contact your local Fisher & Paykel dealer.

WARNING!

To avoid hazard, follow these instructions carefully before installing or using this appliance.

• Please make this information available to the person installing the appliance—doing so could

reduce your installation costs.

• This appliance must be installed and connected to the mains power supply only by a

suitably qualified person according to these installation instructions and in compliance

with any applicable local building and electricity regulations. Failure to install the appliance

correctly could invalidate any warranty or liability claims.

• If the power supply cable is damaged, it must be replaced by the manufacturer, its service

agent or similarly qualified person in order to avoid a hazard.

• Isolating switch: make sure this oven is connected to a circuit which incorporates an

isolating switch providing full disconnection from the power supply in accordance with the

wiring rules.

• The oven must be earthed.

• Do not use adaptors, reducers or branching devices to connect the oven to the mains

electricity supply, as they can cause overheating and burning.

• The appliance must not be installed behind a decorative door in order to avoid overheating.

• Please take extra care not to damage the lower trim of the oven during installation. The

trim is important for correct air circulation and allows the door to open and close without

obstruction. The manufacturer does not accept any responsibility for damage resulting from

incorrect installation.

SAFETY AND WARNINGS

PRIOR TO INSTALLATION INSTALLATION MILESTONES

AFTER INSTALLATION

Ensure that:

• The countertop and oven cavity are square and level, and are the required dimensions.

• The installation will comply with all clearance requirements and applicable standards and

regulations.

• The isolating switch will be easily accessible to the customer with the oven installed.

• The electrician provides sufficient free length of power supply cable to reach from the

bottom rear of the cavity to at least 1.5 metres in front of the bottom edge of the opening.

• The cable may enter the cavity from the side, top or bottom, but top entry must be at the

rear of the cavity.

• The oven connection socket (if fitted) is outside the cavity if the oven is flush to the rear

wall.

• The oven will rest on a surface that can support its weight.

• The height from the floor suits the customer.

• You consult local building authorities and by-laws if in doubt regarding installation.

IMPORTANT!

Some environmental factors and cooking habits can cause condensation in and around the

oven during use. To protect surrounding cabinetry from possible damage caused by frequent

or excessive condensation, we recommend moisture-proofing the oven cavity.

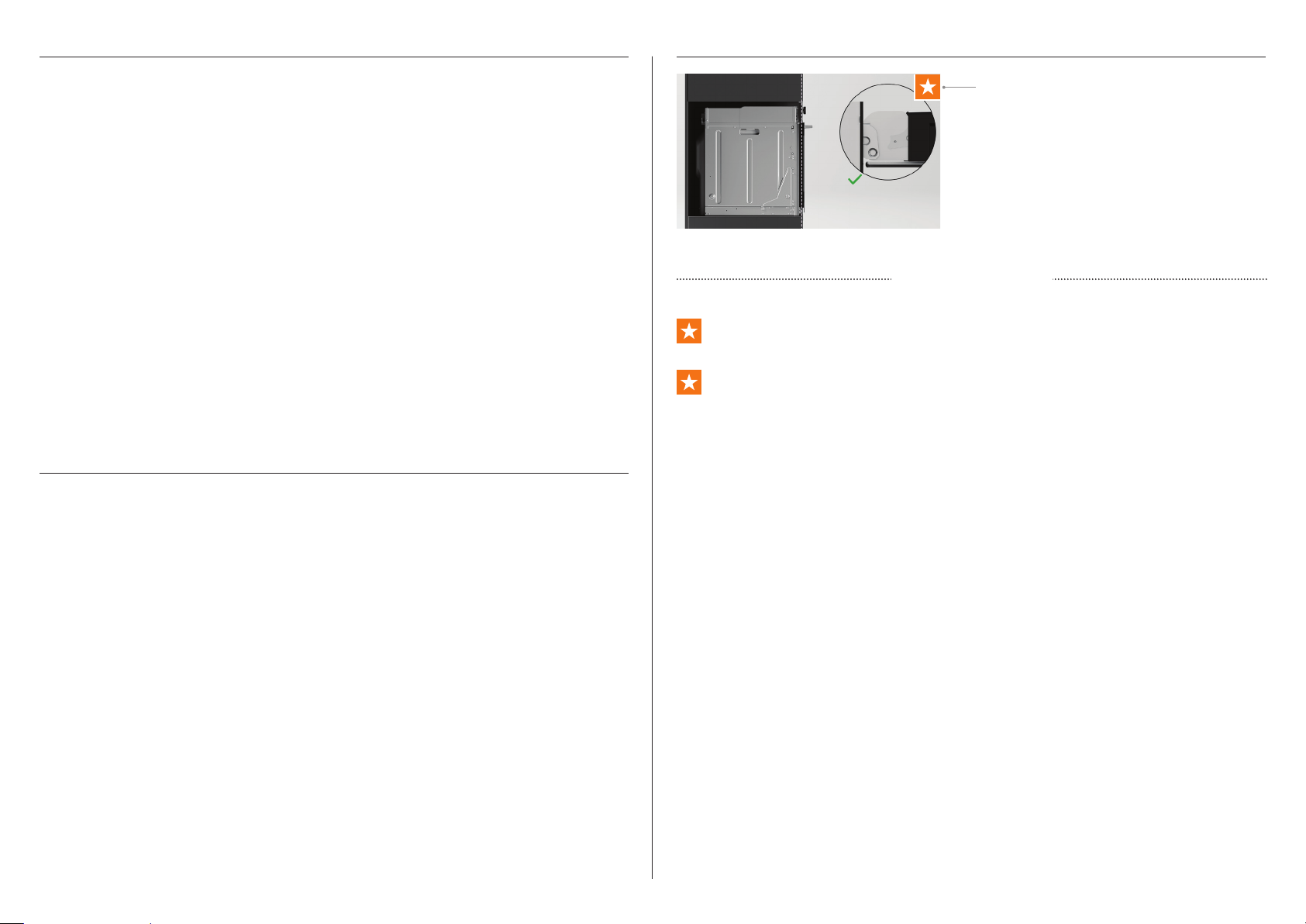

These milestones represent areas throughout

that are pivotal to an optimal installation

outcome. These steps require additional

installer attention and should be quality

checked once completed.

Ensure both hinges are fully locked before shutting the door.

Align oven with surrounding cabinetry and appliances.

Milestone indicator

MILESTONE LINKS

zThe oven door can open fully without obstruction.

zThe power supply cable does not touch any hot metal parts.

zThe isolating switch is easily accessible to the customer with the oven installed.

zYou complete the ‘Final checklist’ at the end of the installation.

zIf, after following the instructions given, correct performance cannot be achieved, please

contact your nearest Fisher & Paykel Authorised Service Centre, Customer Care, or contact us

through our local website listed at the end of this document.

COMPONENTS

PARTS

Supplied

Screws (2) Metal side shelves

fixing nut (2)

TOOLS

Not supplied

Powered driver Cross-head

screwdriver

PRODUCT DIMENSIONS

PLAN VIEW

FRONT VIEW PROFILE VIEW

DATUM : FRONT OF CHASSIS

DATUM : BOTTOM OF CHASSIS

POWER OUTLET LOCATION

545

596

598

Product Dimensions

a Overall height of oven

598

B Overall width of oven

596

c Depth of front frame (excludes dial, handle and front stainless

trim)

dDepth of oven chassis and front frame (excludes dial, handle

and front stainless trim)

565

E Depth of chassis

545

F Height of chassis

475

G Width of chassis

556

h Height from bottom datum to top of oven door

487

i Distance from bottom datum to bottom of door

j Height of control panel

100

k Height of stainless steel cap on control panel

l Height from bottom datum to centreline of handle

464

m Width of handle

565

n Depth of handle (measured from front of door)

o Thickness of handle

p Depth of door (open) (measured from front of door)

460

Minimum Clearances

Minimum inside height of cavity

580

Minimum inside width of cavity

560

Minimum inside depth of cavity

550

IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm

(1/16”)

INDICATES PRODUCT DATUM -------------------------------------------

INDICATES CABINETRY CLEARANCES --------------------------------

CABINETRY DIMENSIONS MM

A Minimum inside width of cavity 560

B Overall width of cabinetry 600

C Overall height of cabinetry 600

D Minimum inside height of cavity 580

E Minimum inside depth of cavity 550

If installing a cooktop above the oven, ensure adequate clearance is provided as per the cooktop manufacturer’s instructions.

CABINETRY DIMENSIONS

PROUD INSTALL

FLUSH INSTALL

16-20mm

2mm

PROFILE PLAN

d a

CHECK CAVITY

For dark cabinetry, ensure clashing has

been considered and installed.

Measure cavity dimensions. Ensure all

minimum specifications have been met.

Refer to page 6.

Ensure service access complies with

local requirements. Refer to page 8 for

details.

4Ensure any cooktop ventilation

requirements have been considered.

UNPACK PRODUCT

Lift the carton sleeve and remove any

transit packaging.

Cut all straps and remove the carton top

cap.

Set aside any accessories.

4Dispose responsibly.

zDo not lift or move the product using the handle.

zKeep all packing materials until the unit has been inspected.

zInspect the product to ensure there is no shipping damage. If any damage is

detected contact the dealer or retailer you brought the product from to report the

damage.

zFisher & Paykel is not responsible for shipping damage.

REMOVE DOOR

Grip the shelves at the front, making

sure to hold the wire shelf and frame

together. Lift upwards and pull out from

the oven.

Open the door and remove all cable ties

and packaging holding the oven shelves

in place.

Locate the hinge locks on either side

of the door. Push the locks upwards to

release.

4Holding the door on both sides, partially

close the door and carefully pull the

door away from the hinges.

CONNECT POWER

Connect to terminal block as shown.

Ensure oven is correctly Earthed and

cable clamp is tightened before closing

the cover.

Unclip and lift cover to access terminal

block.

zThis oven must be connected to the mains power supply only by a suitably qualified

person.

zThis oven must be earthed.

Before connecting the oven to the mains power supply, check that:

the domestic wiring system is suitable for the power drawn by the oven (as specified on the

rating plate)

the voltage corresponds to the value given on the rating plate.

MODEL CODE MAX POWER (W) HZ VOLTAGE (V) AMPS (A)

OB60S 2800 - 3300 50 - 60 Hz 220 - 240 V~ 12.8 - 13.8

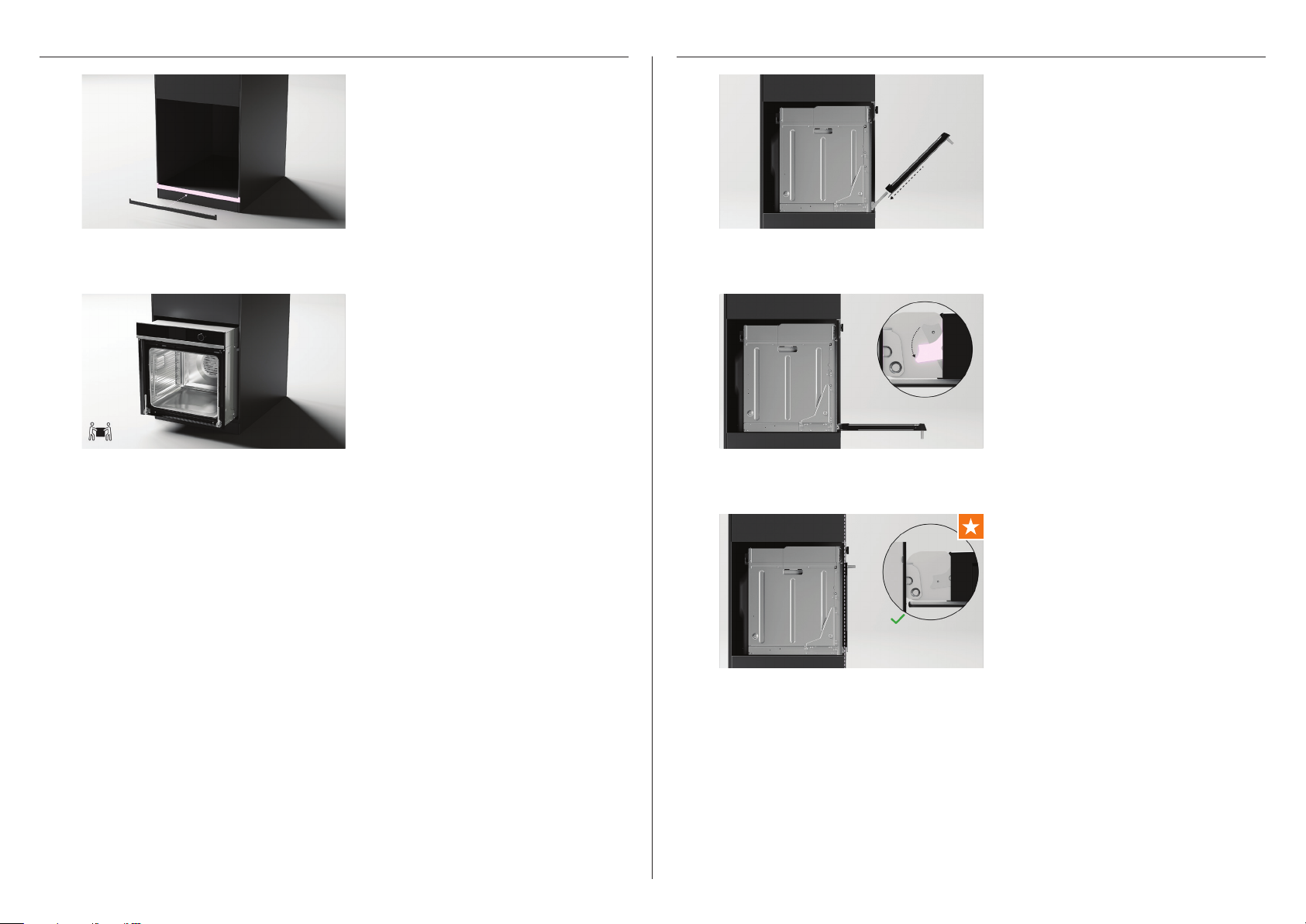

POSITION OVEN INTO CAVITY

Lift product into cavity.

Some models only*:

For dark cabinetry, the supplied trim can

be used to enhance clashing finish.

To install, remove the trim adhesive and

press to secure to cavity.

REFIT DOOR

Open the door fully and push each

locking lever down and lock into place.

Holding the door on both sides, carefully

lift door back onto the hinges.

Ensure both hinges are fully locked

before shutting the door.

*Model code 565881. To purchase cabinetry trim as an optional accessory, visit fisherpaykel.com

ALIGN AND SECURE

Using the product as a guide, pre-drill 2

x 3mm pilot holes.

Align oven with surrounding cabinetry

and appliances.

Secure oven to cavity using the 2 x

#7x13 pan head screws provided.

REFIT SHELVES

Wire shelves

Slide shelves into the cavity.

Sliding shelves

Place shelves back into the oven at the desired

level.

Ensure shelves are level and correctly

positioned with the guard rail at the back.

Clip on sliding shelf supports

Ensure the slides are positioned the correct

way around, with the triangular tab at the

front.

Fit the top clips over the side rack. The front

clip should be fitted as close to the front of

the side rack as possible. Make sure the rear

clip has engaged.

Click the bottom clips into place.

Autres manuels pour 7 Series

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Fisher & Paykel Four

Fisher & Paykel

Fisher & Paykel OS60SDTDB1 Manuel utilisateur

Fisher & Paykel

Fisher & Paykel OS24NDB1 Manuel utilisateur

Fisher & Paykel

Fisher & Paykel OB60BCEX Manuel utilisateur

Fisher & Paykel

Fisher & Paykel OB60SL7DEX1 Manuel utilisateur

Fisher & Paykel

Fisher & Paykel OR36SDPWGX Manuel utilisateur

Fisher & Paykel

Fisher & Paykel OR30SCG6B1 Manuel d'utilisation et d'entretien

Fisher & Paykel

Fisher & Paykel OD301V2-87980 Manuel utilisateur

Fisher & Paykel

Fisher & Paykel OB60 Series Manuel utilisateur

Fisher & Paykel

Fisher & Paykel OR90SCI6 Manuel utilisateur

Fisher & Paykel

Fisher & Paykel BI601 Series Manuel de service

Fisher & Paykel

Fisher & Paykel OB60SL11DCPX1 Manuel utilisateur

Fisher & Paykel

Fisher & Paykel WODV230 Manuel utilisateur

Fisher & Paykel

Fisher & Paykel OB76S Manuel utilisateur

Fisher & Paykel

Fisher & Paykel PROFESSIONAL OM76NPX1 Manuel utilisateur

Fisher & Paykel

Fisher & Paykel OS60 Manuel utilisateur

Fisher & Paykel

Fisher & Paykel AEROTECH OB30SCEPX3 Manuel utilisateur

Fisher & Paykel

Fisher & Paykel OB24SDPX1 Manuel utilisateur

Fisher & Paykel

Fisher & Paykel Essence NULL Manuel du propriétaire

Fisher & Paykel

Fisher & Paykel Soft Touch electronic Manuel utilisateur

Fisher & Paykel

Fisher & Paykel OB60Series Manuel utilisateur

Fisher & Paykel

Fisher & Paykel OB60SC Series Manuel utilisateur

Fisher & Paykel

Fisher & Paykel OB60SL9DEX1 Manuel utilisateur

Fisher & Paykel

Fisher & Paykel OB24SDPX2 Manuel de la liste des pièces

Fisher & Paykel

Fisher & Paykel Multifunction oven Manuel utilisateur

Manuels Four populaires d'autres marques

Bosch

Bosch HVA531NS0 Manuel utilisateur

Electrolux

Electrolux EOF6P46X Manuel utilisateur

NEFF

NEFF B44S32 5GB Series Manuel utilisateur

Combi

Combi BLODGETT BC142GDS Manuel utilisateur

AEG

AEG COMPETENCE 311704300 Manuel utilisateur

Falcon

Falcon DOMINATOR PLUS G3106 Series Guide de l'utilisateur

Rational

Rational SCC WE 61G Manuel utilisateur

Smeg

Smeg DOSPA38X Manuel d'installation et d'exploitation

Electrolux

Electrolux air-o-convect 20 GN 2/1 Manuel utilisateur

Miele

Miele HR 1954-2 Manuel utilisateur

KHIND

KHIND OT50 Manuel utilisateur

Henny Penny

Henny Penny Smoker Box Manuel utilisateur

Lang

Lang ECOD-AP Manuel utilisateur

AEG

AEG BEK455310M Manuel utilisateur

Frigidaire

Frigidaire FNGE90JGR Manuel utilisateur

Hotpoint

Hotpoint FE9 S831 JSH IX Manuel utilisateur

GE Advantium SCB2000 Manuel utilisateur

AEG

AEG DE401301DM Manuel utilisateur
