1
FIAT PANDA 100HP
This Supplement describes the main fea-
tures of Fiat Panda 100HP together
with a few instructions for use. For all oth-
er information not contained herein, re-
fer to the Owner Handbook this Supple-
ment is attached to.
CONTENTS
DASHBOARD ................................................................................................................... 2
INSTRUMENT PANEL ..................................................................................................... 3
INSTRUMENTS .................................................................................................................. 4
SPORT FUNCTION ......................................................................................................... 6
USING THE MANUAL GEARBOX ............................................................................... 6
DRIVING STYLE ............................................................................................................... 7
WARNING LIGHTS AND MESSAGES ....................................................................... 7
TYPES OF BULBS .............................................................................................................. 7
JACKING THE CAR.......................................................................................................... 8
SERVICE SCHEDULE ........................................................................................................ 9
CHECKING FLUID LEVELS............................................................................................. 11
ENGINE CODES - BODYWORK VERSIONS ........................................................... 14
ENGINE ............................................................................................................................... 14
TRANSMISSION ............................................................................................................... 15
BRAKES ................................................................................................................................ 15
WHEELS AND TYRES...................................................................................................... 16
DIMENSIONS......................................................................................................................17
WEIGHTS ............................................................................................................................ 18
CAPACITIES ....................................................................................................................... 19
PERFORMANCE ................................................................................................................ 19
FUEL CONSUMPTION .................................................................................................... 20
CO2EMISSIONS ............................................................................................................... 20
603.83.473 Panda 100 HP GB 5-07-2007 15:17 Pagina 1
2
FIAT PANDA 100HP

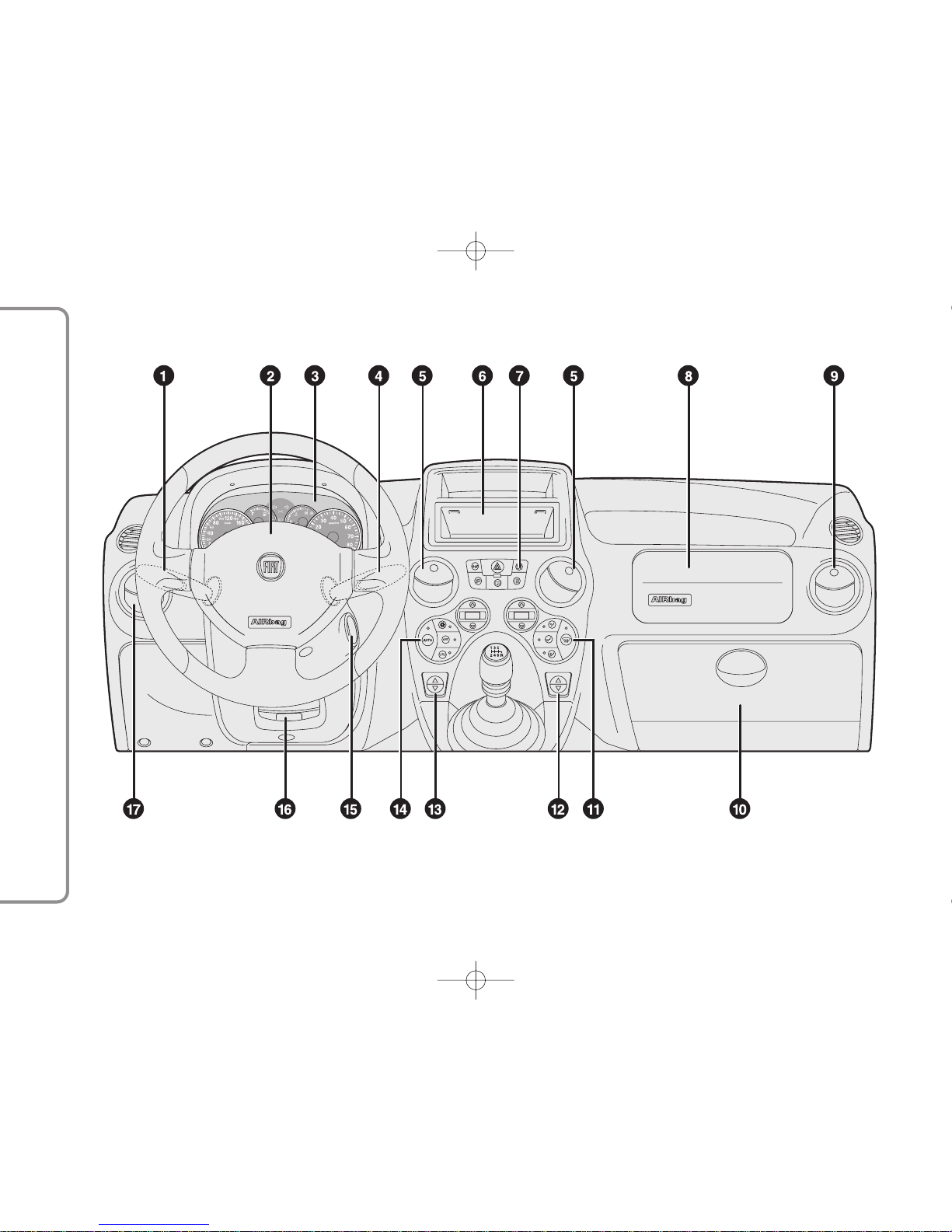

DASHBOARD
1. Light and direction indicator stalk - 2. Steering wheel with air bag - 3. Instrument panel - 4. Windscreen/rear window wiper
lever - 5. Central air vents - 6. Sound system compartment - 7. Various controls - 8. Passenger’s air bag - 9. Right-hand side air vent
- 10. Glove compartment - 11. Air distribution controls - 12. Right power window control - 13. Left power window control - 14.
Air conditioner controls - 15. Ignition switch - 16. Steering wheel adjusting lever - 17. Left-hand side air vent.
F0G0740m
603.83.473 Panda 100 HP GB 5-07-2007 15:17 Pagina 2
3
FIAT PANDA 100HP

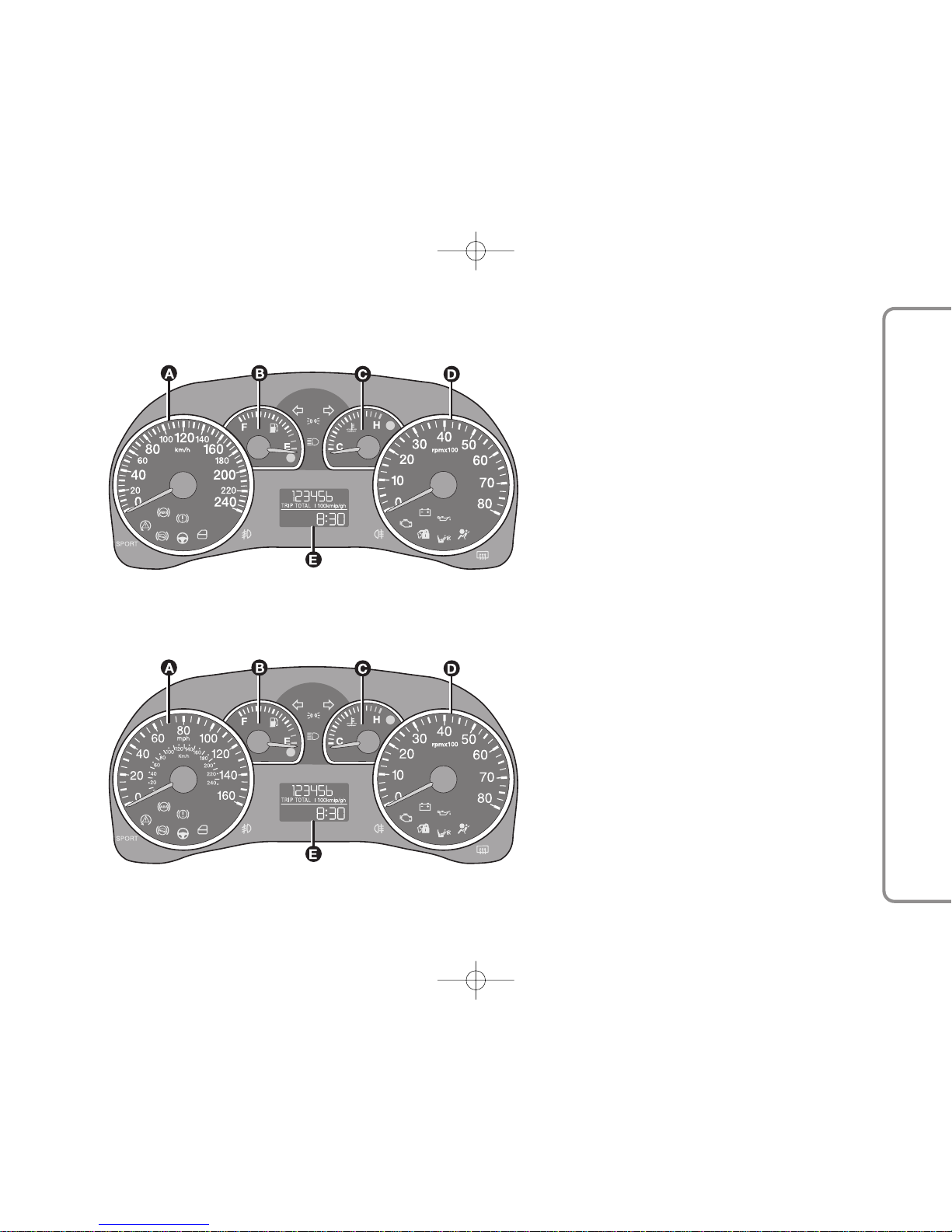

INSTRUMENT PANEL
F0G0640m
F0G0641m
Fiat Panda 100HP VERSION
ASpeedometer (speed indicator)
BFuel level gauge with reserve warning
light
CEngine coolant temperature gauge and
excessive temperature warning light
DRev counter
EReconfigurable multifunction display
fig. 2 - Left-hand drive versions
fig. 3 - Right-hand drive versions
603.83.473 Panda 100 HP GB 5-07-2007 15:17 Pagina 3
4
FIAT PANDA 100HP

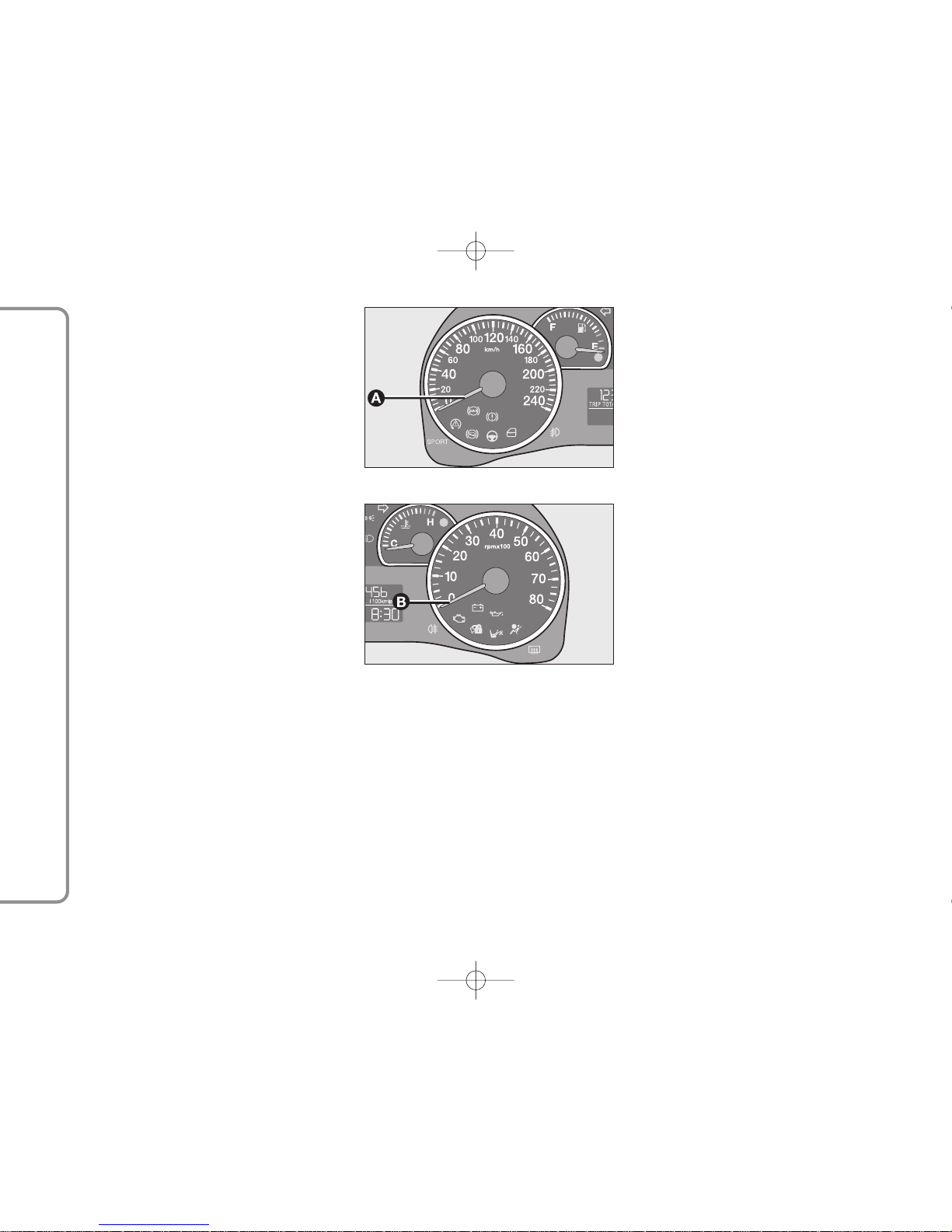

REV COUNTER fig. 5
The indicator Bshows the engine rev
number.
IMPORTANT The electronic injection
control system gradually shuts off the flow
of fuel when the engine is “over-revving”
resulting in a gradual loss of engine pow-
er.
When the engine is idling, the rev counter
may indicate a gradual or sudden higher-
ing of the speed.
This is normal as it takes place during reg-
ular operation, for example when activat-
ing the climate control system or the fan.
In particular a slow change in the speed
preserves the battery charge.
INSTRUMENTS
SPEEDOMETER
(Speed indicator) fig. 4
The indicator Ashows the car speed
(speedometer).
fig. 4 F0G0642m
fig. 5 F0G0643m
603.83.473 Panda 100 HP GB 5-07-2007 15:17 Pagina 4
5
FIAT PANDA 100HP

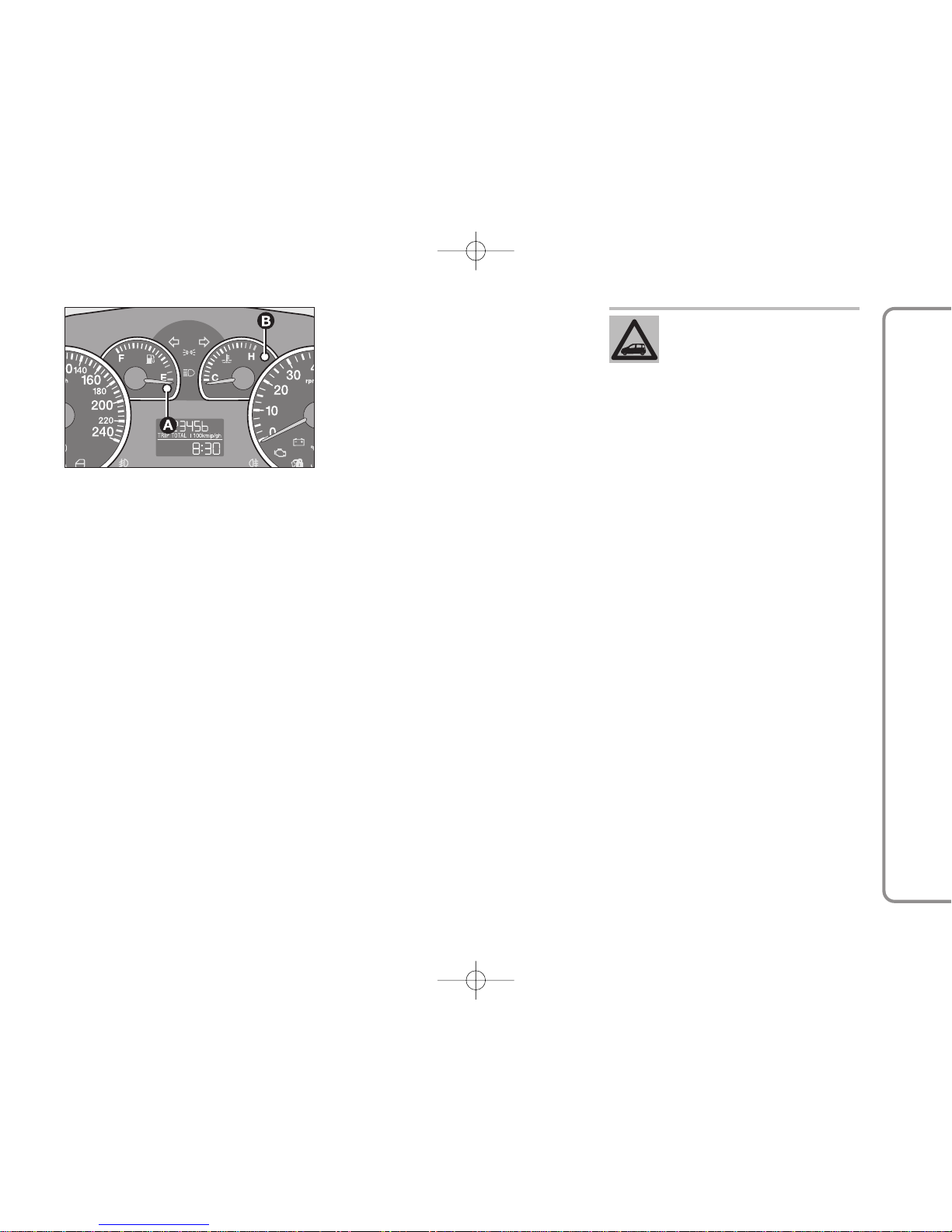

ENGINE COOLANT
TEMPERATURE GAUGE fig. 6
This shows the temperature of the engine
coolant fluid and begins working when the
fluid temperature exceeds approx. 50°C.
Under normal conditions, the needle
should hover around the middle of the
scale according to the working conditions.
CLow engine coolant temperature.
HHigh engine coolant temperature.
The turning on of the warning light B(on
certain versions with a message on the re-
configurable multifunction display) indi-
cates that the coolant fluid temperature is
too high; in this case, stop the engine and
contact a Fiat Dealership.
FUEL LEVEL GAUGE fig. 6
This shows the amount of fuel left in the
fuel tank.
Etank empty.
Ffull tank.
The reserve warning light Aturns on to
indicate that approximately 5 litres of fu-
el are left in the tank.
Do not travel with the fuel tank almost
empty: the gaps in fuel delivery could dam-
age the catalyst.
IMPORTANT The needle sets to Ewith
warning light Aflashing to indicate that the
system is failing. In this event contact Fiat
Dealership to have the system checked.
fig. 6 F0G0644m
If the needle reaches the red
area, stop the engine imme-
diately and contact a Fiat
Dealership.
603.83.473 Panda 100 HP GB 5-07-2007 15:17 Pagina 5
6
FIAT PANDA 100HP

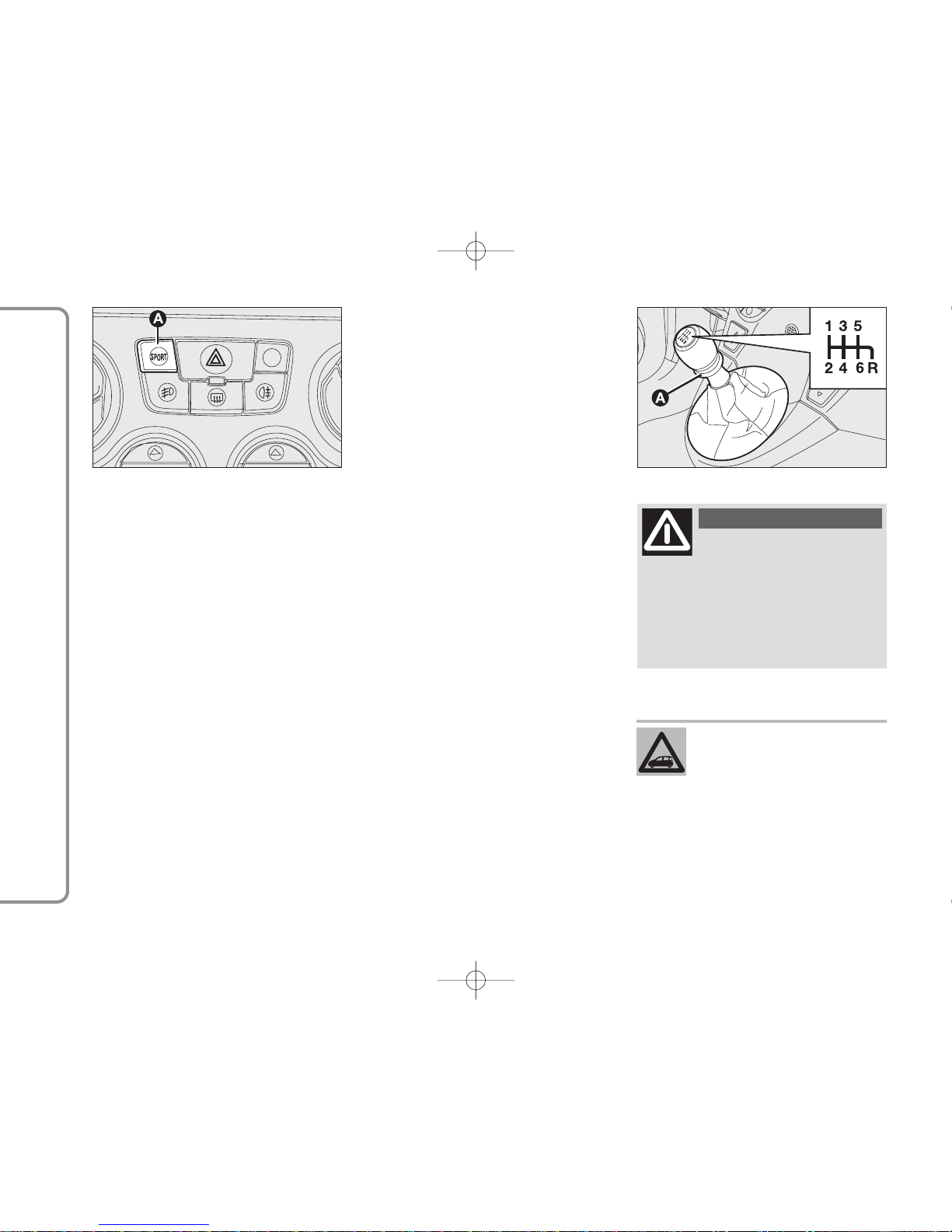

SPORT FUNCTION
The Fiat Panda 100HP version is fitted
with a system enabling to choose between
two driving modes: normal and sports.
Press the SPORT button A-fig. 7 for
sports driving characterized in prompt and
quick acceleration and higher effort on
steering wheel for proper driving feeling.
When this function is on, the word
SPORT on the instrument panel is turned
on. Press the SPORT button again to de-
activate this function and resume the nor-
mal driving mode.
IMPORTANT This function turns on
about 5 seconds after pressing the SPORT
button.
IMPORTANT With the SPORT function
on, when accelerating you may feel the
typical pick-up jerks of sports driving set-
ting.
fig. 7 F0G0645m
USING THE MANUAL
GEARBOX
To engage the gears, press the clutch ped-
al fully and shift the gear lever into one of
the required positions (the diagram is
shown on the knob fig. 8).
To engage the 6th gear, operate the gear
lever pressing it rightwards to prevent en-
gaging the 4th gear by mistake. Do the
same for shifting from 6th to 5th gear.
IMPORTANT The car can only be put in-
to reverse gear when it has stopped mov-
ing completely. With the engine running,
before engaging the reverse, wait at least
2 seconds with the clutch pedal fully down
to prevent damage and grating of the
gears.
To engage reverse Rfrom neutral, lift the
sliding ring Aunder the knob and shift the
lever to the right and back.
fig. 8 F0G0646m
Do not drive with your hand
resting on the gear lever as
the force exerted, even if
slight, could lead over time to
premature wear on the gearbox inter-
nal components.
To change gears properly
you must push the clutch
pedal fully down. It is therefore es-
sential that there is nothing under the
pedals: make sure the mats are lying
flat and do not get in the way of the
pedals.
WARNING
603.83.473 Panda 100 HP GB 5-07-2007 15:17 Pagina 6
7
FIAT PANDA 100HP
DRIVING STYLE
Acceleration
Accelerating violently increasing the revs
will greatly affect consumption and emis-
sions: to contain fuel consumption accel-
eration should be gradual.
Using the SPORT function, fuel consump-
tion will be slightly higher than the values
stated in paragraph “Fuel consumption” in
this Supplement.
WARNING LIGHTS
AND MESSAGES
SPORT FUNCTION
(green)
The word SPORT on the in-
strument panel will turn on when the cor-
responding function is activated by press-
ing the relevant button. Pressing the but-
ton again will turn off the SPORT indica-
tion.
SPORT
TYPES OF BULBS
Bulbs Type Power
Additional
brake light 12V 6W 6W
(third brake light)
603.83.473 Panda 100 HP GB 5-07-2007 15:17 Pagina 7
8
FIAT PANDA 100HP

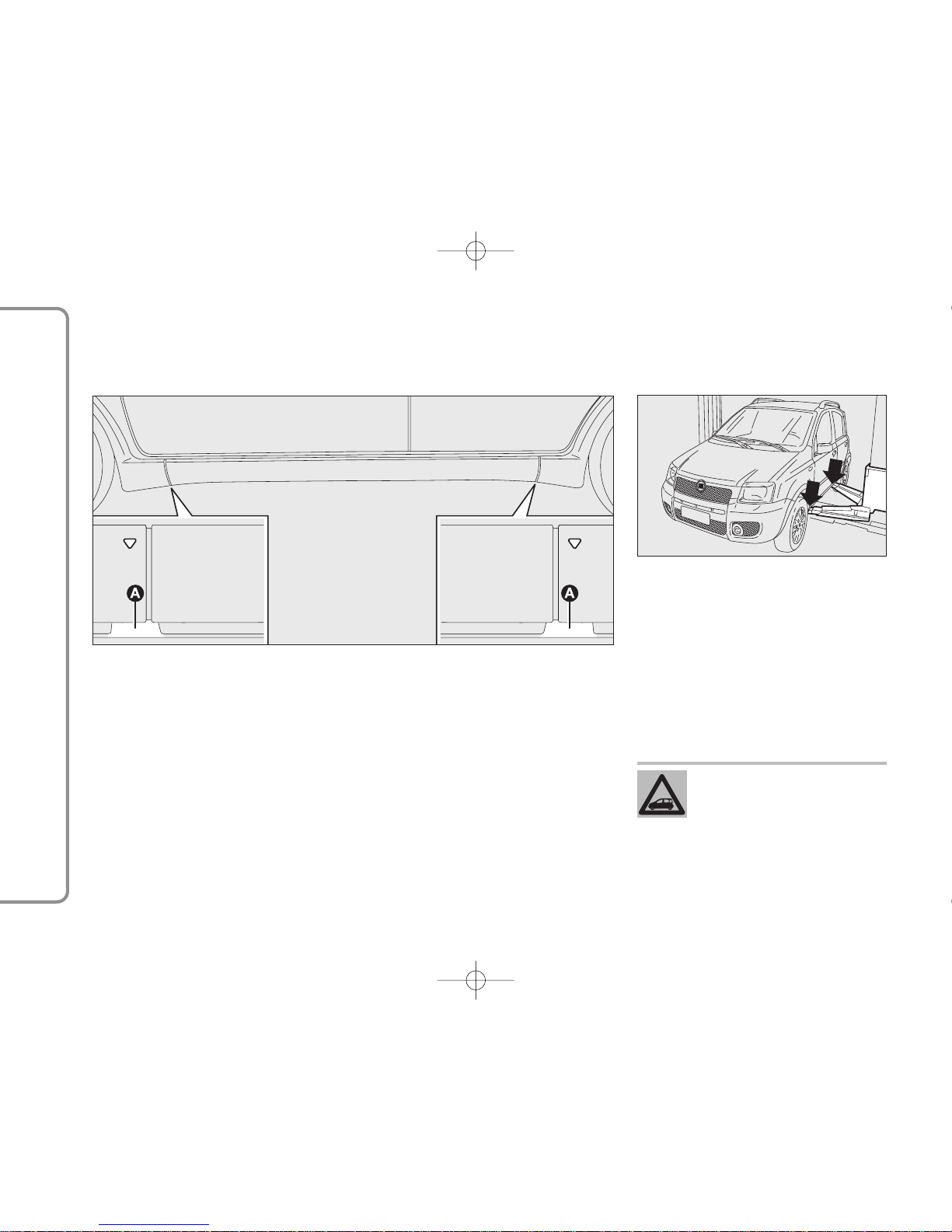

fig. 9 F0G0647m
If the car needs to be jacked up on one side, place the slot of the jack in correspon-
dence with the arrow (O) on the side member: the finish under the floor is interrupted
A-fig. 9 to enable fitting the jack on the groove fig. 9.
JACKING THE CAR
WITH THE JACK WITH ARM HOIST
fig. 10 F0G0711m
If the car needs to be jacked up, go to a
Fiat Dealership which is equipped with
shop jacks and jack arms.
Jack up the car only by positioning the jack
arms or the shop jack in the points shown
in fig. 10.
When jacking the car using
shop jack or jack arms, make
sure the arms are not inter-
fering with the car side skirts.
603.83.473 Panda 100 HP GB 5-07-2007 15:17 Pagina 8
9
FIAT PANDA 100HP
20 40 60 80 100 120 140 160 180
●●●●●●●●●
●●●●●●●●●
●●●●●●●●●
●●●●●●●●●
●●●●●●●●●
●● ●●
●●●●●●●●●
●●●●●●●●●
●
●● ●●
●● ●●
●●
SERVICE SCHEDULE
Service coupons shall be carried out every 20,000 km
Thousands of km
Check tyre conditions/wear and adjust pressure if required
Check lighting system operation
(headlights, direction indicators, hazard lights, boot lights,
warning lights, etc.)
Check windscreen wiper/washer operation,
adjust nozzles
Check windscreen/rear window blade position/wear
Check front disk brake pad conditions and wear
Check rear disk brake linings and wear
Sight inspect the conditions of:- bodywork,
underbody protection pipes and hoses (exhaust -
fuel - brakes), rubber parts (boots -
sleeves - bushes - etc.)
Check cleanness of locks, bonnet and boot and lever
cleanness and lubrication
Check tension and adjust accessory drive belts
(excluding engines with automatic belt tighteners)
Sight inspect accessory drive belt conditions
Check and adjust handbrake lever stroke
Check antievaporation system
