Festo EPCO-16 Manuel utilisateur

en Operating

instructions

8076277

2017-11c

[8076279]

Electric cylinder

EPCO

2Festo – EPCO – 2017-11c

Translation of the original instructions

Symbols: Installation and commissioning may only be per

formed in accordance with these instructions by

technicians with appropriate qualifications.

Warning

Caution

Note

Environment

Accessories

English 3.........................................................................

EPCO

Festo – EPCO – 2017-11c English 3

English – Electric cylinder EPCO

Table of contents

1 Operating elements and connections 4.........................................

2 Function and application 4...................................................

3 Transport and storage 5.....................................................

4 Prerequisites for use 5......................................................

5 Installation 6..............................................................

5.1 Mechanical assembly 6......................................................

5.2 Electrical installation 8.......................................................

5.3 Installing circuitry 9.........................................................

6 Commissioning 10...........................................................

7 Operation 12...............................................................

8 Maintenance and care 12.....................................................

9 Repair 13..................................................................

10 Accessories 13..............................................................

11 Troubleshooting 13..........................................................

12 Technical data 14............................................................

12.1 Mechanical data 14..........................................................

12.2 Electrical data 16............................................................

13 Characteristic curves 17......................................................

EPCO

4 Festo – EPCO – 2017-11c English

Documentation on the product

For all available product documentation èwww.festo.com/pk

1 Operating elements and connections

EPCO-16 EPCO-25/40

67543211 3

1Motor/holding brake connection

2Piston rod (propulsive tube)

3Encoder connection

4Cylinder housing

5Internal thread for fastening

6Wrench flats for counter holding

7Groove for mounting

Fig. 1

2 Function and application

A rotating ball screw converts the rotary movement of a motor into a linear movement. This moves the

piston rod 2backwards and forwards.

The piston rod is guided in a non-rotating manner. The position of the piston rod can be optionally quer

ied as follows:

– EPCO-...ST-E: by using an integrated, incremental positional transducer after a homing run

– EPCO-...ST: enables open-loop operation (without positional transducer and without positional

feedback)

– EPCO-...-A: with an integrated ring magnet and optional proximity sensors.

The EPCO electric cylinder is designed for accurately positioning effective loads in combination with the

CMMO-ST or CMMS-ST controller (permissible controllers è10 Accessories).

EPCO

Festo – EPCO – 2017-11c English 5

The device is intended for use in an industrial environment. Measures may need to be implemented in

residential areas for interference suppression.

Note

The EPCO is non-braking. When the supply voltage is not applied, the piston rod can be

moved freely. Automatic locking of the complete system can be optionally achieved with

a holding brake in the EPCO-...-ST-B.

3 Transport and storage

 Consider the weight of the electric cylinder.

Depending on the version, the EPCO can weigh up to 5 kg.

 The following should be observed with regard to storage:

– Storage times should be kept to a minimum

– Store in cool, dry, well-shaded locations that do not present a risk of corrosion.

4 Prerequisites for use

Warning

Unexpectedly fast-moving masses can harm people or property (risk of crushing).

 Initially, only apply limited power to the drive motor to ensure low speeds and

torques.

Note

Malfunctions will occur if the device is not used correctly.

 It is vital that the stipulations contained in this section are adhered to at all times.

 Take into consideration the legal regulations applicable for the destination, as well as:

– regulations and standards,

– regulations of the testing organizations and insurers,

– national specifications.

 Note the warnings and instructions on the product and in the relevant operating instructions.

 Remove all transport packaging, such as foils, caps and cardboard.

The material used in the packaging is intended for recycling (exception: oil paper = residual

waste).

 Observe the local regulations for environmentally friendly waste management of electronic compon

ents.

 Take into account the material specifications (èTechnical data chapter).

 Use the product in its original state, without any unauthorised product modifications.

 Take into consideration the ambient conditions at the location of use.

Corrosive environments reduce the service life of the product (e.g. ozone).

EPCO

6 Festo – EPCO – 2017-11c English

 Compare the limit values specified in these operating instructions with those of your application

(e.g. forces, torques, temperatures, masses, speeds). The relevant safety regulations can only be

adhered to by ensureing the product is operated in compliance with the load limits.

 Take the tolerance of the tightening torques into account. Unless otherwise specified, the tolerance

is ±20 %.

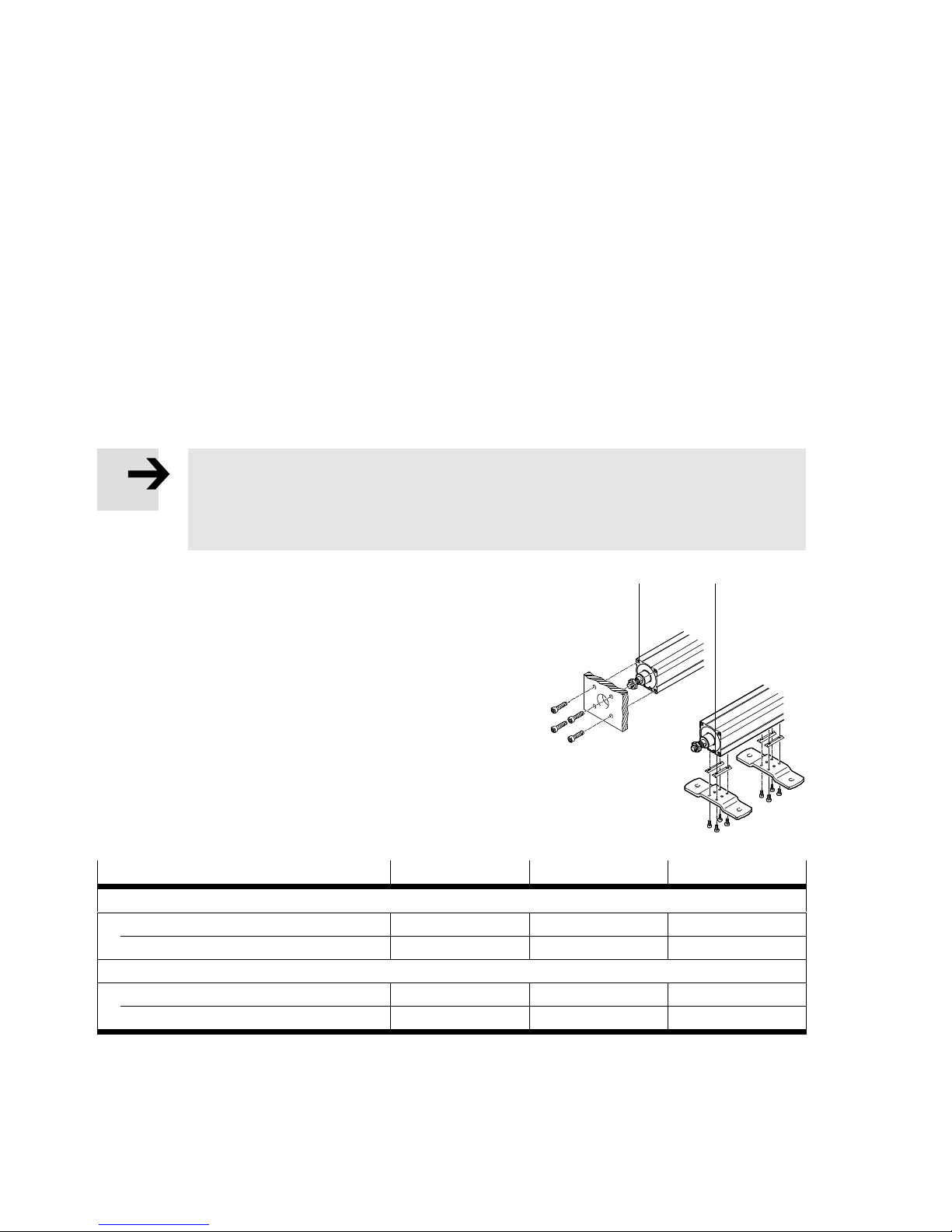

5 Installation

5.1 Mechanical assembly

 Do not modify the screws and threaded pins if not directly requested to do so in these operating

instructions.

Note

Excessive tensile loads may cause the threaded holes to be pulled out.

 In the event of high loads make sure that the EPCO is secured at other mounting

points in the grooves 7in addition to the front mounting threads 5.

 Make sure that the device is fitted free of mechanical stress

and distortion (evenness of the bearing surface: ≤ 0.2 mm).

 Position the EPCO so that all of the control sections are

accessible.

 Secure the EPCO with the mounting accessories

(è10 Accessories).

 Tighten the screws evenly.

Fig. 2

Size 16 25 40

Direct mounting 5

Female thread front side M4 M5 M6

Max. tightening torque [Nm] 3 4 5

Slot nut mounting 7

Spanner Size ß2.5 2.5 4

Max. tightening torque [Nm] 1.2 1.2 5.9

Tab. 1

EPCO

Festo – EPCO – 2017-11c English 7

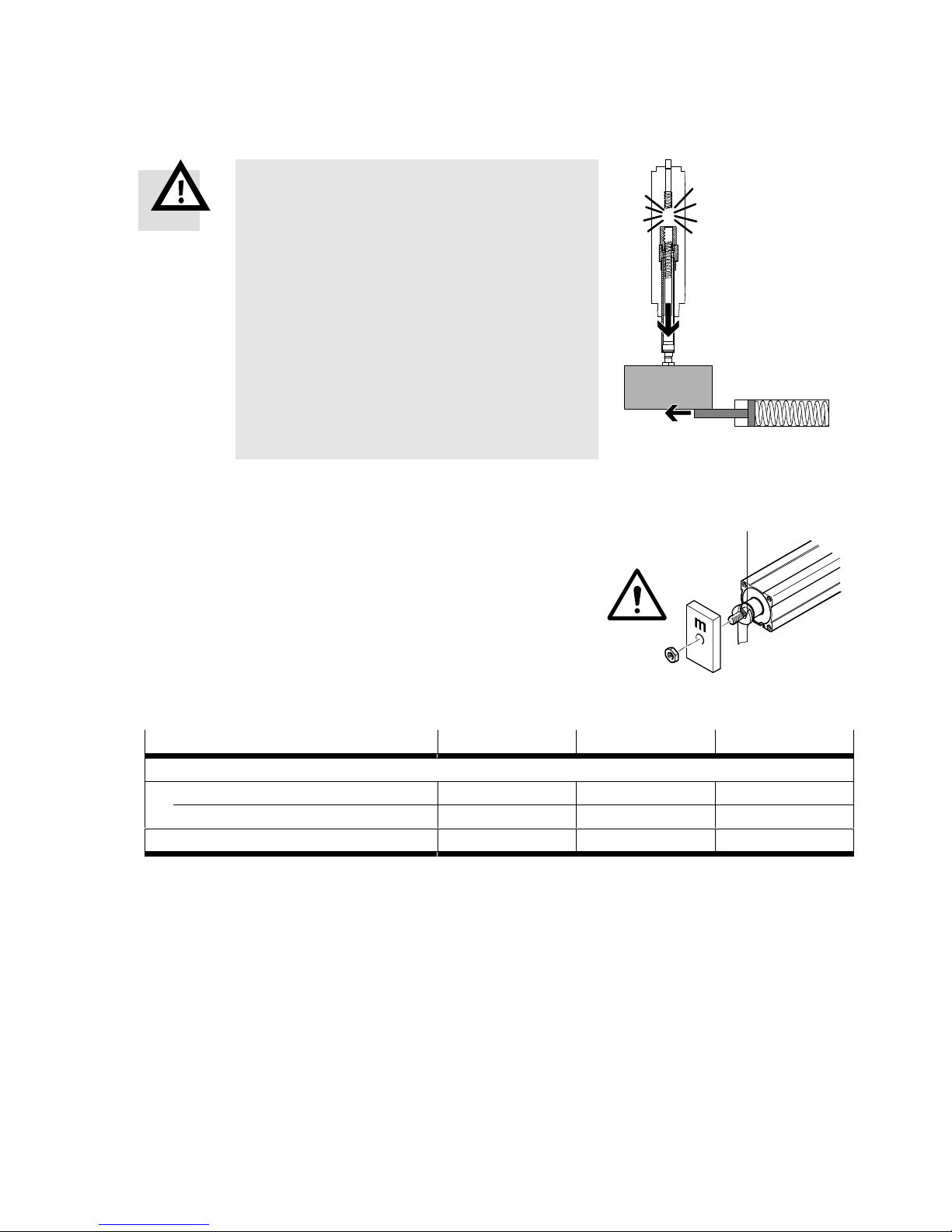

Fitting in a vertical or sloping position:

Warning

Uncontrolled moving loads can cause personal

injury and material damage (risk of crushing).

If a spindle nut fracture occurs inside the EPCO,

the loads will slide down.

 Check whether additional external safety

measures to protect against spindle nut frac

ture are necessary (e.g. toothed latches or

moveable bolts). In this way you can prevent

the load from sliding down.

Fig. 3

Installing the effective load

 Place the centre of gravity of the effective load, if possible,

centrally to the piston rod.

 When securing the effective load make sure that no torque

is transferred to the piston rod.

The wrench flat 6can be used to exert counter pressure.

 Secure the effective load to the piston rod.

The piston rod will bend depending on the effective load

(èAppendix 13 Characteristic curves). Fig. 4

Size 16 25 40

Piston rod thread

Male thread (EPCO-...) M6 M8 M10x1.25

Female thread (EPCO-...-F) M4 M6 M8

Spanner Size 6 ß 7 9 10

Tab. 2

EPCO

8 Festo – EPCO – 2017-11c English

Installation of external accessories

To protect the end positions against uncontrolled overrunning:

 Check whether proximity sensors are necessary (as safety limit switches or hardware limit

switches). This is only possible for the EPCO-...-A with integrated magnet.

If proximity switches (sensors) are used:

 Use proximity sensors with normally-closed function.

These protect the EPCO from overrunning the end position if the proximity sensor cable is fractured.

 To mount the proximity sensors use a mounting kit or a sensor

rail (è10 Accessories). These are bonded directly to the cylin

der profile (èAssembly instructions for the accessories).

 Avoid external influences from magnetic or ferritic parts in the

vicinity of the proximity sensors (minimum distance of 20 mm

from ferritic parts).

Fig. 5

5.2 Electrical installation

Warning

If the piston rod is moved externally, open, dangerous voltages may occur across the

electrical connections (generator principle).

 Make sure that the piston rod is only moved with wired connections.

Note

If unused plug connectors are touched, there is a danger that damage may occur to the

EPCO or to other parts of the system as a result of ESD (electrostatic discharge). Place

protective caps on unused terminals to prevent such discharges.

Note

To maintainEMC security:

The maximum length of the individual connection cables must not exceed 30 m.

1. Make sure the controller is switched off and that it is prevented from being restarted. Cancelling the

enable signal on the controller is not sufficient.

2. Connect the motor on the EPCO completely to the controller as shown in the following tables. The

pre-assembled cables from Festo (è10 Accessories) offer sufficiently large cable cross sections as

well as screening of the motor/encoder cable with earth contact on both sides.

EPCO

Festo – EPCO – 2017-11c English 9

Motor connection/holding brake: round plug (8-pin)/D-sub plug connector (9-pin) 1

Pin Allocation EPCO-16 EPCO-25/40

1String A

2String A/

3String B

4String B/

5 n.c.

6 n.c.

7Holding brake +24 V1)

8Holding brake GND1)

9 n.c.

1) Only for motors with holding brake EPCO−...−ST-B

Tab. 3

Encoder connection: round plug (8−pin) 22)

Pin Allocation EPCO-16 EPCO-25/40

1Signal trace A

2Signal trace A/

3Signal trace B

4Signal trace B/

5GND encoder

6Signal trace N

7Signal trace N/

8VCC auxiliary supply 5 V3)

2) Only for motors with encoder EPCO−...−ST-E

3) Short circuit proof, max. load 100 mA

Tab. 4

5.3 Installing circuitry

Note

Additional measures are necessary if used in safety relevant applications, e.g. in Europe

the standards listed under the EC machinery directive must be observed. Without

additional measures in accordance with statutory minimum requirements, the product

is not suitable for use in safety-related sections of control systems.

EPCO

10 Festo – EPCO – 2017-11c English

6 Commissioning

Warning

Moving masses can cause personal injury and

material damage (risk of crushing).

 Make sure that, in the travel range,

– nobody can place his/her hand in the path

of the moving components (e.g. through a

protective guard),

– there are no foreign objects in the path of

the moving components

It should not be possible to touch the EPCO

until the mass has come to a complete stand

still.

Fig. 6

Note

The motor can unexpectedly be started if the brake is released. Depending on the type

of device, the controller will unlock the holding brake automatically.

 Before releasing the holding brake, make sure that the EPCO cannot move

unexpectedly.

 Complete the commissioning of the motor in conjunction with the controller in

accordance with the controller manual.

Note

Incorrect set values for the braking ramp in STOP statuses (e.g. EMERGENCY OFF, Quick

Stop) result in an overloading of the spindle axis and can destroy it or drastically reduce

its service life.

 Check the settings for all braking ramps in your controller or the higher-order control

system (deceleration values and jerk).

 Taking the travel speed, moving mass and mounting position into account, make

sure that the delay values (brake delay and time delays) are set in such a way that

the maximum actuation moment or feed force of the spindle axis used is not

exceeded.

 To design the spindle axis use the Festo sizing software PositioningDrives

(èwww.festo.com).

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Festo Contrôleurs

Festo

Festo CMSX-...-C-U-F1 series Manuel utilisateur

Festo

Festo SPC-AIF Series Manuel utilisateur

Festo

Festo CMXH Manuel utilisateur

Festo

Festo CMMO-ST-C5-1-DIOP Manuel utilisateur

Festo

Festo CMMS-ST Instructions d'utilisation et d'installation

Festo

Festo SFC-DC series Guide de référence

Festo

Festo CMXR-C1 Mode d’emploi

Festo

Festo CMXR-C2 Mode d’emploi

Festo

Festo CMMP-AS-***-M0 Series Instructions d'utilisation et d'installation

Festo

Festo VPPM C1 Series Manuel utilisateur

Festo

Festo SEC-ST-48-6-P01 Manuel utilisateur

Festo

Festo EduTrainer 574175 Manuel de la liste des pièces

Festo

Festo GRLZ Series Manuel utilisateur

Festo

Festo LRP-1/4 Series Manuel utilisateur

Festo

Festo CMXR-C1 Instructions d'utilisation et d'installation

Festo

Festo VPPI S1BT Series Manuel utilisateur

Festo

Festo CECX-X-C1 Series Manuel utilisateur

Festo

Festo DMSP Series Manuel utilisateur

Festo

Festo CMMS-ST-C8-7-G2 Manuel utilisateur

Festo

Festo LRP-1/8-6 Manuel utilisateur

Festo

Festo CECC-X-M1 series Instructions d'utilisation et d'installation

Festo

Festo SPC200 Series Guide de l'utilisateur

Festo

Festo CMMO-ST-...-DIO Series Manuel utilisateur

Festo

Festo CMMO-ST-C5-1-LKP Manuel utilisateur

Manuels Contrôleurs populaires d'autres marques

Digiplex

Digiplex DGP-848 Mode d'emploi

YASKAWA

YASKAWA SGM series Manuel utilisateur

Sinope

Sinope Calypso RM3500ZB Manuel utilisateur

Isimet

Isimet DLA Series Style 2 Manuel d'installation

LSIS

LSIS sv-ip5a Manuel utilisateur

Rockwell Automation

Rockwell Automation 1769-L31 Manuel utilisateur

Airflow

Airflow Uno hab Manuel utilisateur

ABB

ABB ACS580-01 drives Manuel utilisateur

Panasonic

Panasonic GM1 Series Manuel utilisateur

Emerson

Emerson SW93 Manuel utilisateur

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manuel utilisateur

Panasonic

Panasonic FP? Positioning Unit RTEX Manuel utilisateur

Samson

Samson Type 5824 Manuel de service

Alpha IP

Alpha IP MIOB 21001 Manuel utilisateur

Siemens

Siemens OpenAir GMA 1 Series Manuel utilisateur

Surecom

Surecom SR-629 Manuel utilisateur

Fishman

Fishman TriplePlay Manuel utilisateur

Regulus

Regulus SRS1 T Manuel utilisateur
