KIT VIDEOCHALET CITYMAX Cod: 94017
INDEX
INTRODUCTION .................................................................................................. 18
THE CITYMAX MONITOR ................................................................................... 19
THE OUTDOOR PANEL ....................................................................................... 19
Camera Test Connector detail ................................................................ 20
MONITOR INSTALLATION .................................................................................. 20
OUTDOOR PANEL INSTALLATION .................................................................... 21
POWER SUPPLY INSTALLATION ...................................................................... 23
OPERATION ........................................................................................................ 24
INSTALLATION DIAGRAMS ............................................................................... 25
How to add terminals .............................................................................. 27
ACCESORIES ...................................................................................................... 28
Extension call .......................................................................................... 36
Stair light Relay ....................................................................................... 28
Second door control ............................................................................... 28
Connection to TV set ............................................................................... 28
TROUBLESHOOTING HINTS .............................................................................. 29
Pag 18
INTRODUCTION
The KIT VIDEOCHALET CITYMAX is an advanced Video Door Entry professional
system to be installed in bungalows or small residential complexes. It is basically
made up of an Outdoor Panel, which is installed outside the house, and a Mo-
nitor, installed inside. Moreover, the corresponding Power Supply must be
installed in an inner place.
VERY IMPORTANT NOTES:
The Power Supply should be installed on a hard
and flat surface, as inside the buiding as in the lobby,
etc... but always in inner places. It can be installed in
a DIN box for electric switches.
Before installing the KIT VIDEOCHALET CITYMAX,
install the cables needed to Monitor (or monitors),
Outdoor Panel and Power Supply, following the
installation diagram.
To install the Monitor, choose a hard and flat
surface, far away from direct heat sources (radiators,
heaters, ...) or very smoky environments (kitchens,
etc.). We advise to install the Monitor in a place where
the call could be heard all inside the house.
The Outdoor Panel is protected against humidity
and atmosferical agents. In adverse conditions with
permanently hard rain or salty environment, it is
recommended to install the Panel with a hood or under
shelter. Strong light coming straight into the camera
(against the light) will produce contrast and/or
brightness losses.
Pag 19
KIT VIDEOCHALET CITYMAX Cod: 94017
FLAT MONITOR
HIGH RESOLUTION
2
1
1
2
HIGH RESOLUTION
CCD CAMERA
PAN & TILT
INT.
EXT.
-
-
+
+
Pan & Tilt ± 1 °
TEST
+-CTM
V
Only in installations with AUXILIARY CAMERA KIT or
ADDITIONALVIDEO PANEL(optional).
*
*
THE CITYMAX MONITOR
THE OUTDOOR PANEL
AMPLIFIER
mesh
Terminals for
CONNECTION
DOORRELEASE
push button
2nd CAMERA
connection
BRIGHTNESS
control
CONTRAST
control
ON/OFF
switch
AUTO SWITCH-ON
push button
STAIRS LIGHT
push button
CAMERA
module
CALL
Push buttons
PAN & TILT
control
TEST
connector
Volume for
MONITOR
Volume for
OUTDOORPANEL
PUSHBUTTON
connector
Pag 20
9 º
1
2
3
1.6 m
FROM THE
FLOOR
TEST
+- CT M
V
+- CTMV
1.Use a plain screw-driver to separate the
base from the Monitor. Put it in, rotate
and slide the Monitor up.
2.Install the Monitor on a hard and flat
surface. Mark and drill the wall at the
holes in the base.
Camera Test Connector detail
The test connector included in the CityMax camera is used for testing that
both camera and Monitor are working correctly. Once the Monitor is plugged
into this connector the screen will be activated automatically.
1.TEST connector Detail. 2.Monitor Test directly in the Outdoor
Panel.
MONITOR INSTALLATION
The CityMax monitors allow a quick and easy installation, without neccesity
of doing any kind of building-work. Do not remove the screen protection film until
the Monitor is completely installed.
Pag 21
KIT VIDEOCHALET CITYMAX Cod: 94017
9 º
FLAT MONITOR
HIGH RESOLUTION
2
1
FLAT MONITOR
HIGH RESOLUTION
2
1
2
1
3
1.7m
4.To unhook the Monitor, insert the screw-
driver in the notch , turn it a few degrees
and slide up the Monitor.

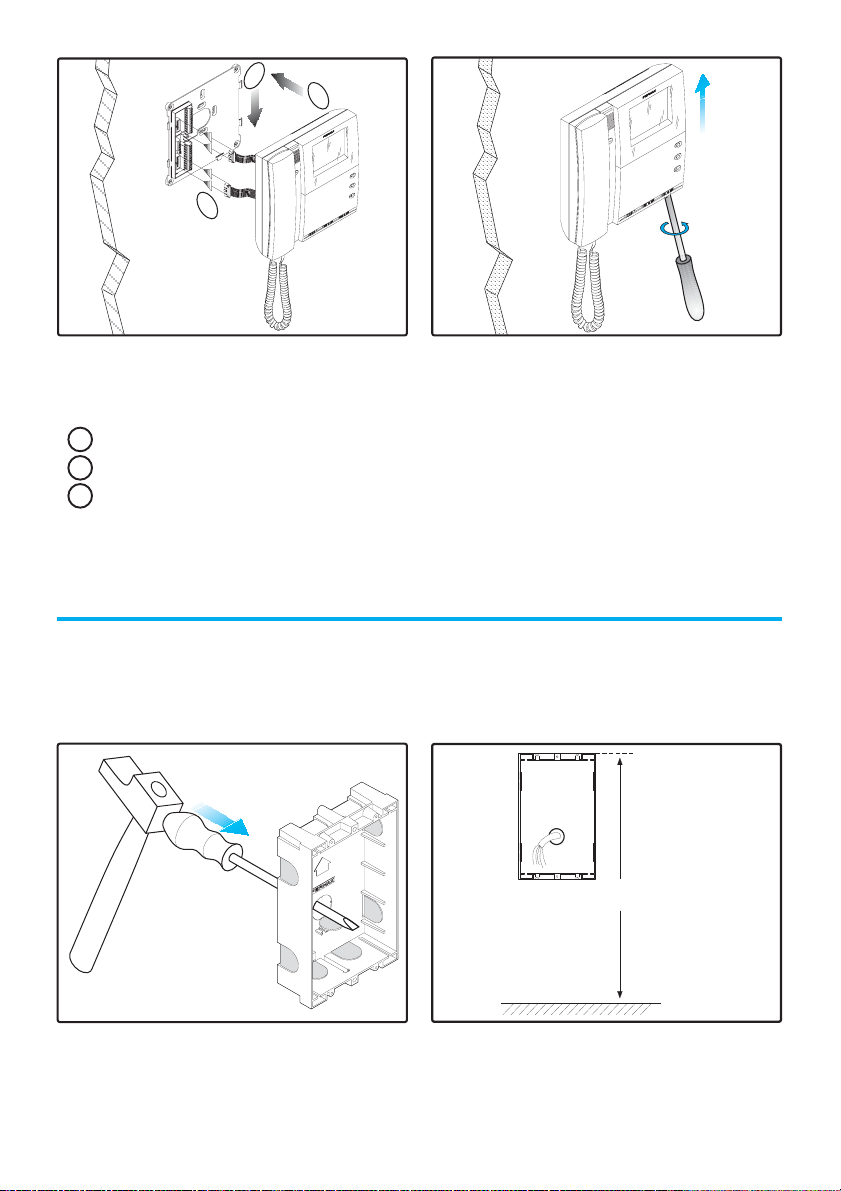

1.Before embedding the box, break the
flange where the cables will be passed
through.
2.Place the embedding box at the desired
height (1.7m aprox.). Make sure that the
box is totally flush with the wall.
OUTDOOR PANEL INSTALLATION
Follow the recommendations shown in this chapter to install the Outdoor
Panel correctly. Do not forget to remove the protective plastic film in the front of
the camera once the installation is finished.
3.Once the wires are connected, plug in
the connector and place the Monitor
following this sequence:
1 Plug-in the connectors.
2 Hang the Monitor in the hooks.
3 Push down the Monitor.
Pag 22
Pan & Tilt ± 1 °
TEST
+- CTM
V
Pan & Tilt ± 1 °
TEST
+- CT MV
MARIA
LORCA
HIGH RESOLUTION
CCD CAMERA
PAN & TILT
INT.
EXT.
-
-
+
+
TEST
+-CT M
V
INT
.
EXT.
-
-
+
+
Pan & T
ilt ± 1 °
TEST
+-CT M
V
6.Close the Panel and fasten the screws
with the allen key supplied. Place the
covers to finish the installation.
5.Push up the houvre behind nameplate
the louvre and place the label. You can
use the labels supplied with the Outdoor
Panel.
NOTE:
The camera included in the Outdoor
Panel has a Pan&Tilt control which
allows the objetive to be moved 10°in
all directions, so to focus the camera
into the desired direction, during the
Panel installation.
3.Place the waterproof tapes supplied with
the KIT.
4.Use the hinges to connect the wires and
handle the Panel comfortably.
Pag 23
KIT VIDEOCHALET CITYMAX Cod: 94017
12 V
+18V 1.5A
5-6 Hz. 5VA MAX.
12V 1A
FUENTE ALIMENTACION
KIT VIDEO
MADE IN SPAIN
12 V
+18V
5-6 Hz. 5VA MAX.
12V
ENTE ALIMENTACION
KIT VIDEO
MADE IN SP
MADE IN SP
AIN
AIN
12 V
+1 1.5A
5-6 H A MAX.
1 1A
FUENTE ALIMENTACION
KIT VIDEO
MADE IN
12 V
+18V
5-6 Hz. 5 VA MAX.
12V
FUENTE ALIMENTACION
KIT VIDEO
POWER SUPPLY INSTALLATION
Finally, the Power Supply must be placed in a place dry and safe from the
weather. Its DIN 10 format allows you to install it in any type box or directly on the
wall by using the wallplugs and screws supplied.
1.Drill 2 holes in the wall, place the
wallplugs and fasten the screws, fixing
the Power Supply to the wall.
2.The Power Supply can be fitted on a
DIN rail inside a box pressing it as
shown in figure.
3.The Power Supply can be unmounted
from the DIN rail by levering at the
flange with a flat screw-driver.
NOTE:
The Power Supply must be installed in a place dry and safe from
inclemency of weather. It is advisable to install it protected through a
thermo-magnetic circuit breaker at the main input.
4.Plug-in the wires in the corresponding
terminals following the installation
diagrams attached.
Pag 24
FLAT MONITOR
HIGH RESOLUTION
2
1
OPERATION
Calling
* When the monitor is idle, the screen and the led indicator are
off.
When the call pushbuton at the Outdoor Panel is pressed a
tone is heard from the monitor but also from the outdoor panel.
The screen turns on and led indicator turns off. Call sound is
also heard in any additional equipments in the same house. If
the call is unattended the equipments will automatically turn
off after 90 seconds.
Attending the call
* Picking up the handset it is possible to establish a conversa-
tion with the visitor.
Conversation time is not limited. Video will turn off after 90
seconds but you can speak as long as you want or since
handset is placed on the cradle.
Opening the door to the visitor
* Whenever you want, you can open the door pressing the but-
ton .
NOTE:
* The switch ON/OFF must be ON. Switch OFF if it is not going to be used
for a long period of time.
Manual activation (autoswitch on)
* It is possible to activate the monitor in any moment pressing
the button
1
.
The screen will turn on for 90 seconds. Then it will turn off
automatically.
Picking up the handset it is possible to speak with the person
on the front of the outdoor panel and it is also possible to
open the door (same as if a call were made).
FLAT MONITOR
HIGH RESOLUTION
2
1
FLAT MONITOR
HIGH RESOLUTION
2
1
FLAT MONITOR
HIGH RESOLUTION
2
1
Pag 25
KIT VIDEOCHALET CITYMAX Cod: 94017
INSTALLATION DIAGRAMS
The following are the installation diagrams for the KIT VIDEOCHALET 1 and 2
lines. Check suitable wire sections with the table.
Wiring for KIT VIDEOCHALET CITYMAX 1/L Ref. 6002
-+-+
VAC
1
AbAb
1 32 6
AMPLIFICADOR
CITY KIT
EXT.
INT.
4
6
7
E
+S
-
CT
1
2
3
M
V
V
M
+
CAM1
LE
CAM2
C
P2
P4
P3
P1
I
A
B
CN1
MVCT-+
PRIM 22 V SEC. 18 Vdc
WIRE SECTION AREA TABLE
less than 3
3 - 5
5 - 1.
LENGHT
(meters)
,5
mm2
Thin lines
on shematics
1
mm2
1
mm2
1
mm2
Thick lines
on schematics
1
mm2
1,5
mm2
COAXIAL
RG59
75 Ohm
75 Ohm
75 Ohm
