Feig Electronic CVEND plug Manuel utilisateur

INSTALLATION

Preliminary

Confidential

2015-02-20 - cVEND plug - User manual.docx

cVEND plug

Contactless Payment and Ticketing Module

Installation

cVEND plug

FEIG ELECTRONIC GmbH

Page 2 of 24

cVEND plug - User manual.docx

Note

FEIG ELECTRONIC GmbH

Lange Strasse 4

D-35781 Weilburg

Tel.: +49 6471 3109-0

http://www.feig.de

With the edition of this document, all previous editions become void. Indications made in this manual may be

changed without previous notice.

The reproduction, distribution and utilization of this document as well as the communication of its contents to

others without express authorization is prohibited. Offenders will be held liable for the payment of damages.

Composition of the information in this document has been done to the best of our knowledge. FEIG

ELECTRONIC GmbH does not guarantee the correctness and completeness of the details given in this

manual and may not be held liable for damages ensuing from incorrect or incomplete information. Since,

despite all our efforts, errors may not be completely avoided, we are always grateful for your useful tips.

The instructions given in this manual are based on advantageous boundary conditions. FEIG ELECTRONIC

GmbH does not give any guarantee promise for perfect function in cross environments and does not give

any guaranty for the functionality of the complete system which incorporates the subject of this document.

FEIG ELECTRONIC call explicit attention that devices which are subject of this document are not designed

with components and testing methods for a level of reliability suitable for use in or in connection with surgical

implants or as critical components in any life support systems whose failure to perform can reasonably be

expected to cause significant injury to a human. To avoid damage, injury, or death, the user or application

designer must take reasonably prudent steps to protect against system failures.

FEIG ELECTRONIC GmbH assumes no responsibility for the use of any information contained in this

document and makes no representation that they free of patent infringement. FEIG ELECTRONIC GmbH

does not convey any license under its patent rights nor the rights of others.

All brand names, trademarks or logos are property of their respective owners.

Contact:

Commercial Questions: [email protected]

Technical Questions: cvend-support@feig.de

Installation

cVEND plug

FEIG ELECTRONIC GmbH

Page 3 of 24

cVEND plug - User manual.docx

Contents

1. Warnings - Read before start-up ! 4

1.1. Safety Instructions ............................................................................................................4

1.2. Security Instructions.........................................................................................................4

2. Characterization 5

3. Mechanical Integration 7

3.1. Dimensions........................................................................................................................9

4. Connection 10

4.1. Connector X1 - Ethernet Interface.................................................................................. 11

4.2. Connector X2 - USB Device Interface ............................................................................ 12

4.3. Connector X3 - RS232 V.24 (UART#1) Interface............................................................13

4.4. Connector X4 - RS232-LVTTL (UART#0) Interface ........................................................ 14

4.5. Connector X5 –Power Supply Vcc................................................................................. 15

4.6. Wake-Up...........................................................................................................................16

4.7. Connector X6, X11, X12 - Extension Interfaces............................................................. 17

4.7.1. Connector X6 - RGB Display (cVEND plug flex only).................................................17

4.7.2. Connector X11 - SAM and SD Interface.....................................................................18

4.7.3. Connector X12 - Auxiliary Interfaces..........................................................................18

5. Technical Data 19

5.1. Standard Compliance......................................................................................................20

5.2. Radio Approvals.............................................................................................................. 20

5.2.1. Europe (CE)...............................................................................................................20

5.2.2. USA (FCC) and Canada (IC)......................................................................................21

6. cVEND plug SAM Extension - Option 23

Installation

cVEND plug

FEIG ELECTRONIC GmbH

Page 4 of 24

cVEND plug - User manual.docx

Warnings - Read before start-up !

1.1.

Safety Instructions

The device may only be used for the intended purpose designed for by the

manufacturer.

The operation manual should be conveniently kept available at all times for each user.

Unauthorized changes and the use of spare parts and additional devices which have not

been sold or recommended by the manufacturer may cause fire, electric shocks or

injuries. Such unauthorized measures shall exclude any liability by the manufacturer.

The liability-prescriptions of the manufacturer in the issue valid at the time of purchase

are valid for the device. The manufacturer shall not be held legally responsible for

inaccuracies, errors, or omissions in the manual or automatically set parameters for a

device or for an incorrect application of a device.

Repairs may only be executed by the manufacturer.

Installation, operation, and maintenance procedures should only be carried out by

qualified personnel.

Use of the device and its installation must be in accordance with national legal

requirements and local electrical codes .

When working on devices the valid safety regulations must be observed.

Special advice for carriers of cardiac pacemakers:

Although this device doesn't exceed the valid limits for electromagnetic fields you

should keep a minimum distance of 25 cm between the device and your cardiac pace-

maker and not stay in an immediate proximity of the device respective the antenna for

some time.

1.2.

Security Instructions

DO NOT DISASSEMBLE ANY PART! The device contains a battery-powered security

circuited. The security circuit will be triggered if security relevant parts are

disassembled. In such cases the device stops regular operation and can be reactivated

only by the manufacturer in a certified secure environment.

Installation

cVEND plug

FEIG ELECTRONIC GmbH

Page 5 of 24

cVEND plug - User manual.docx

Characterization

The cVEND plug is a secure contactless module for contactless credit cards (open-loop) and public

transport tickets (closed-loop). It fulfills the newest functional and security related payment card

industry standards.

cVEND plug is designed for flush integration into non conducting housings. It is EMVCo contact-

less certified, if installed according the guidelines described in this manual.

cVEND plug is available in two versions:

cVEND plug flex

The cVEND plug flex is a flexible secure platform to

develop a payment and ticketing solution. Due to the

variety of interfaces and the open SDK cVEND plug

flex can be the core element for a terminal. direct

connection of color or monochrome displays, touch

screens, external scanners or other peripheral com-

ponents are possible.

cVEND plug reader

The cVEND plug reader is a secure contactless

reader for payment and ticketing applications which

includes an EMVCo contactless Level 2 kernel for

credit card processing. The cVEND plug reader of-

fers an easy to use secure protocol and can be used

in payment mode as well as in transparent card

reader mode which makes it suitable for payment

and ticketing applications.

Installation

cVEND plug

FEIG ELECTRONIC GmbH

Page 6 of 24

cVEND plug - User manual.docx

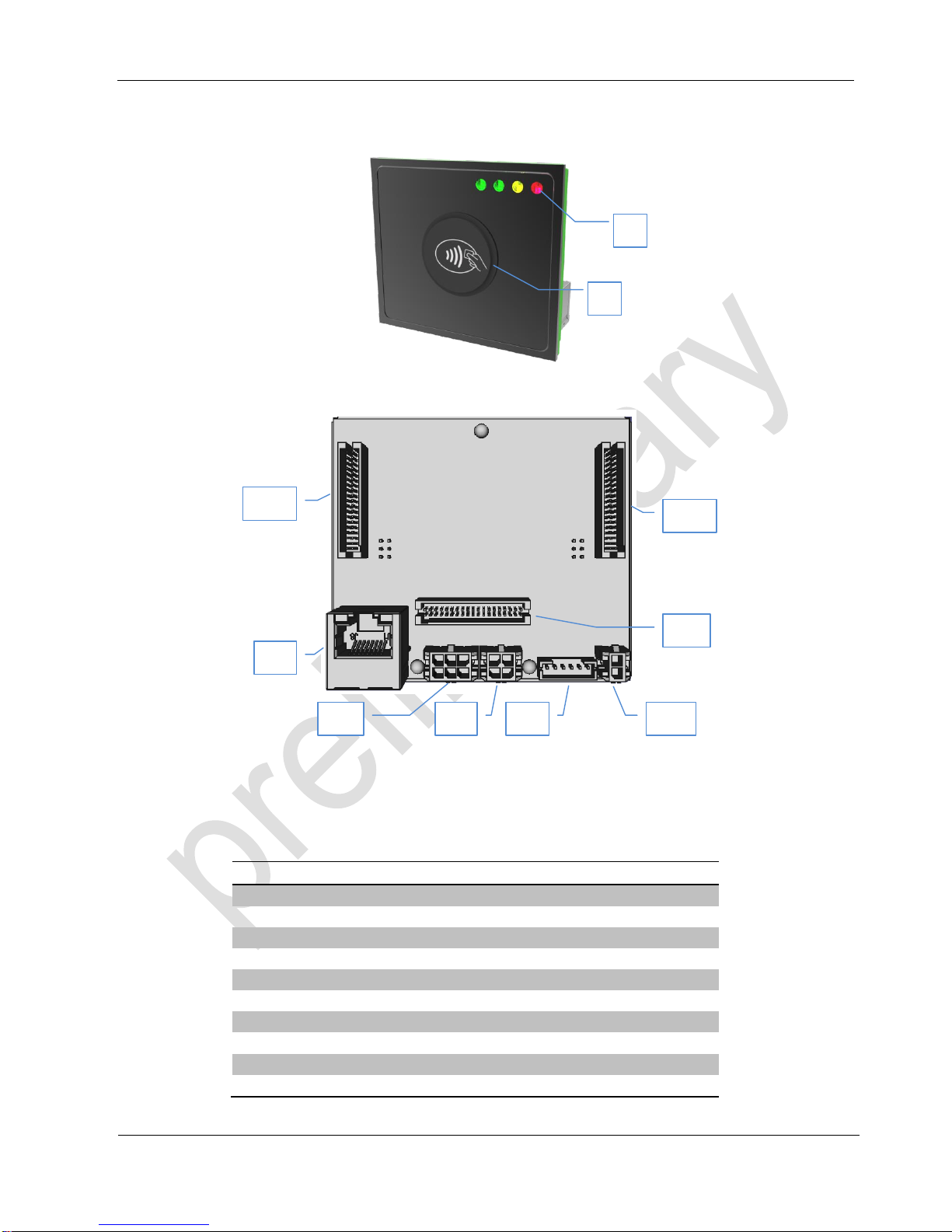

Fig. 1: cVEND plug front view - not installed

Fig. 2: cVEND plug rear view - not installed

Table 1: Interfaces and connectors

Label

Description

LEDs (4 x green, 1 x yellow, 1 x red)

From outside visible, illuminated plastic dome “Plug”

Ethernet Interface (10 / 100 Base-T network port)

USB Device Interface

RS232 V.24 (UART#1) Interface

RS232-LVTTL (UART#0) Interface

Power Supply 5V DC

Connector for RGB Display (cVEND plug flex only)

X11

Connector for SAM / SD-Card Extension Board

X12

Connector for Auxiliary Interfaces

X11

X12

Installation

cVEND plug

FEIG ELECTRONIC GmbH

Page 7 of 24

cVEND plug - User manual.docx

Mechanical Integration

For flush integration into non conducting housings one

round opening with a diameter of 28,5 mm is neces-

sary to show the back-lit contactless symbol. cVEND

plug is installed from inside the housing. cVEND plug

is designed for front plates with 3 mm thickness.

cVEND plug has to installed from inside the housing. If

the LEDs of cVEND plug shall be used, additional light

channels are to be provided.

NOTICE

To comply with EMVCo regulations:

The contactless logo must be visible.

The upper edge of the cVEND plug plastic dome and the target terminal front plate

must be on the same level.

Avoid any kind of conducting material surrounding the cVEND plug.

Do not use conducting materials for fastening.

The following figure shows cross-sectional view of cVEND plug plastic dome (1) flush installed into

target terminal front plate (2)

Fig. 3: cVEND plug (1) installed in front plate (2) - cross-sectional view

Installation

cVEND plug

FEIG ELECTRONIC GmbH

Page 8 of 24

cVEND plug - User manual.docx

The cVEND plug front consists of a silicon rubber mat (1) with integrated sealing (2) and a fixed

poly carbonate plastic dome (3) which shows the back-lit contactless symbol.

Fig. 4: Plug front with sealing (red colored)

For fastening the cVEND plug front has to be pressed tight against the housing front. Therefore a

clamp range of 2,5 mm (fastening area) on all sides of the cVEND plug antenna PCB is available.

The following figure shows the clamp range (red marked). The picture on the left side shows the

back view, the picture on the right side is perspective view. For detailed dimension see Chapter

3.1. Dimensions. 3D STEP Data are available on request.

Fig. 5: cVEND plug fastening area (red marked)

Installation

cVEND plug

FEIG ELECTRONIC GmbH

Page 9 of 24

cVEND plug - User manual.docx

3.1.

Dimensions

Fig. 6: cVEND plug front with LED position

Fig. 7: cVEND plug rear and side view (without cVEND SAM Extension Board)

Installation

cVEND plug

FEIG ELECTRONIC GmbH

Page 10 of 24

cVEND plug - User manual.docx

Connection

The connector I/O PINs are described from the cVEND plug view. A cVEND plug input must be

connected to one output or vice versa.

Fig. 8: cVEND plug - connector location

Fig. 9: cVEND plug with optional SAM Extension Board

SAM1

SAM2

SAM3

SAM4

µSD

6 5 4

3 2 1

4 3

2 1

1 2 3 4 5 6

X11

X12

Table des matières

Autres manuels Feig Electronic Unité de contrôle

Feig Electronic

Feig Electronic ID ISC.MU02.02-CU Manuel utilisateur

Feig Electronic

Feig Electronic ID MAX.U1002 Manuel utilisateur

Feig Electronic

Feig Electronic OBID i-scan ID ISC.M02 Manuel utilisateur

Feig Electronic

Feig Electronic OBID i-scan ID ISC.PR101-USB Manuel utilisateur

Feig Electronic

Feig Electronic OBID i-scan ID ISC.LRM2500-B Manuel utilisateur

Feig Electronic

Feig Electronic OBID i-scan ID ISC.LR2500-A Manuel utilisateur

Feig Electronic

Feig Electronic ID ISC.MRMU102-A Manuel utilisateur

Feig Electronic

Feig Electronic OBID i-scan ID ISC.M02.M8-B Manuel utilisateur

Feig Electronic

Feig Electronic OBID i-scan ID ISC.LRM2500-A Manuel utilisateur

Feig Electronic

Feig Electronic ID ISC.MRMU102-A Manuel utilisateur

Feig Electronic

Feig Electronic ID ISC.ANT.U500/270 Manuel utilisateur

Feig Electronic

Feig Electronic OBID i-scan ID ISC.LRM2500-B Manuel utilisateur

Feig Electronic

Feig Electronic TST WUI Manuel d'installation

Feig Electronic

Feig Electronic OBID i-scan ID ISC.M02 Manuel utilisateur

Feig Electronic

Feig Electronic ID ISC.MU02.02 Manuel utilisateur

Feig Electronic

Feig Electronic ID ISC.MRMU102-A Manuel utilisateur

Feig Electronic

Feig Electronic OBID i-scan ID ISC.MAT-A Manuel utilisateur

Feig Electronic

Feig Electronic OBID i-scan ID ISC.LR200 Series Manuel utilisateur

Feig Electronic

Feig Electronic OBID i-scan ID ISC.PRH102-B Manuel utilisateur

Feig Electronic

Feig Electronic ID ISC.LRM1002-E Manuel d'utilisation et d'entretien

Feig Electronic

Feig Electronic OBID i-scan D ISC.MU02.02 Manuel utilisateur

Feig Electronic

Feig Electronic OBID ID RWA02.ABCD Series Guide de l'utilisateur

Feig Electronic

Feig Electronic OBID i-scan ID ISC.M02.M8-B Manuel utilisateur

Feig Electronic

Feig Electronic ID ISC.M02.M8 Manuel utilisateur

Manuels Unité de contrôle populaires d'autres marques

Festo

Festo Compact Performance CP-FB6-E Manuel de la liste des pièces

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuel utilisateur

JS Automation

JS Automation MPC3034A Manuel utilisateur

JAUDT

JAUDT SW GII 6406 Series Guide rapide

Spektrum

Spektrum Air Module System Manuel utilisateur

BOC Edwards

BOC Edwards Q Series Manuel utilisateur

KHADAS

KHADAS BT Magic Manuel utilisateur

Etherma

Etherma eNEXHO-IL Manuel utilisateur

PMFoundations

PMFoundations Attenuverter Manuel utilisateur

GEA

GEA VARIVENT Manuel utilisateur

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuel utilisateur

Altronix

Altronix LINQ8PD Instructions de montage

Eaton

Eaton Powerware Series Manuel utilisateur

WAGO

WAGO 750-407/040-000 Manuel utilisateur

Sony

Sony CCU-590 Manuel utilisateur

Graco

Graco 25D614 Manuel utilisateur

Task Force Tips

Task Force Tips YE-RF-900 Manuel de programmation

Shini

Shini SPV-U Series Manuel utilisateur

Feig Electronic cVEND plug Manuel utilisateur

Manuels Unité de contrôle populaires d'autres marques
