FDS FD141CV-TS-HDSDI Manuel utilisateur

Document Number:

MAN –FD141CV-TS-HDSDI

Rev:

Revision Date:

01/12/2017

Page 1 of 13

TECHNICAL SUPPORT

470-239-7421 or FDSAvionics.com

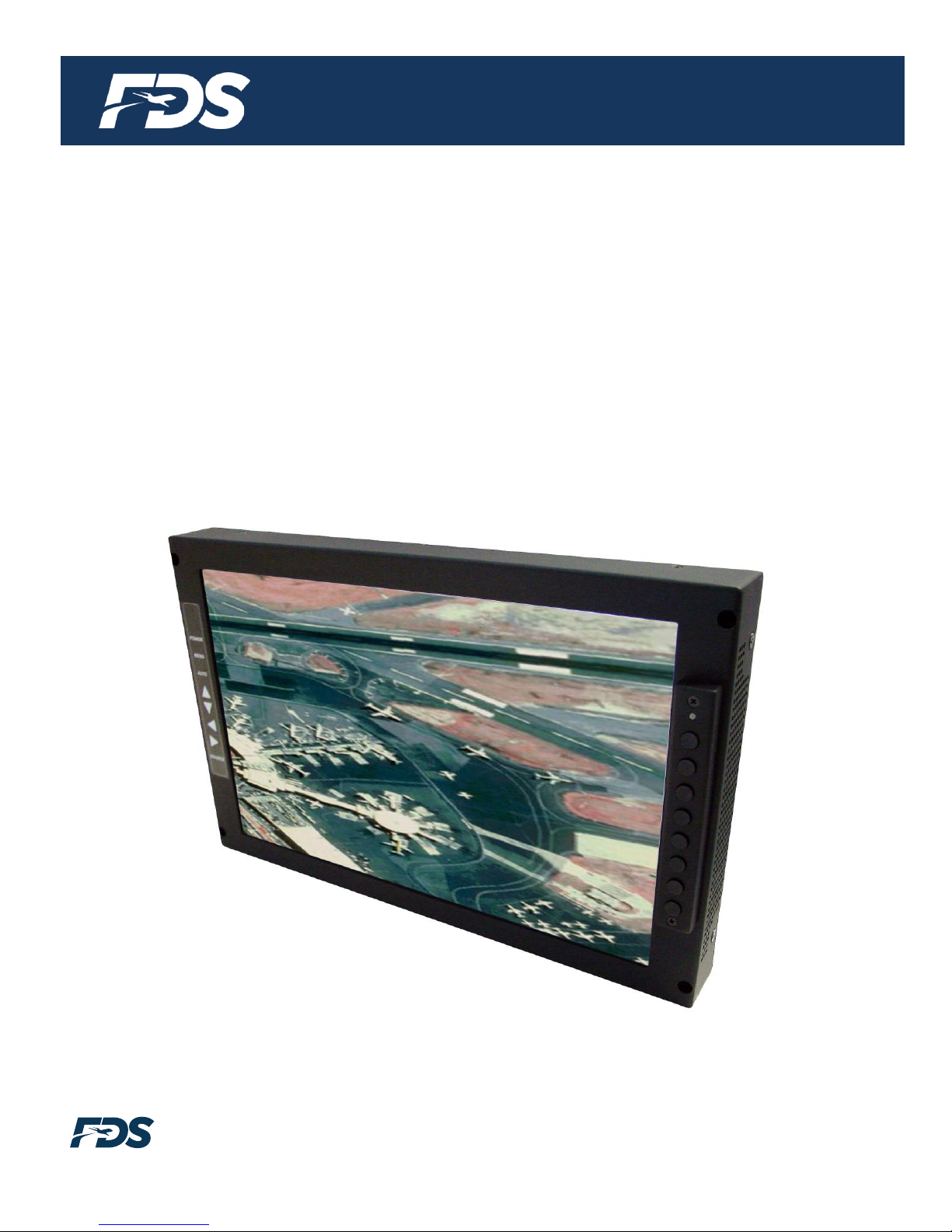

Installation and Operation Manual

FD141CV-TS-HDSDI

14.1” High-Definition Touchscreen LCD

Document Number:

MAN –FD141CV-TS-HDSDI

Rev:

Revision Date:

01/12/2017

Page 2 of 13

TECHNICAL SUPPORT

470-239-7421 or FDSAvionics.com

Table of Contents

General Information....................................................................................................................3

Front View.....................................................................................................................................3

Rear View ......................................................................................................................................3

Additional Information ..............................................................................................................4

Specifications................................................................................................................................4

Installation Instructions .............................................................................................................5

Power..............................................................................................................................................5

Wiring Suggestions .....................................................................................................................5

Power & Ground Wiring ............................................................................................................6

Power/Video..................................................................................................................................7

Operation Instructions................................................................................................................8

Button Control ..............................................................................................................................8

Installation Drawings ........................................................................................................... 9-10

Technical Support......................................................................................................................11

Instructions for Continued Airworthiness ...........................................................................11

Warranty ......................................................................................................................................12

Log of Revisions.........................................................................................................................13

Document Number:

MAN –FD141CV-TS-HDSDI

Rev:

Revision Date:

01/12/2017

Page 3 of 13

TECHNICAL SUPPORT

470-239-7421 or FDSAvionics.com

General Information

The FD141-TS-HDSDI is a 14.1" High-Definition Touchscreen LCD. The unit will allow

installation in the smallest of mounting areas with the minimum of interface equipment.

This 14” display is intended to support applications where high brightness is a critical

factor. It is an excellent flat panel display for use in rugged environments or anywhere

daylight applications are required.

Front View Rear View (with connector cover)

Rear View (inputs)

VGA

DVI

HD-SDI

INPUT

POWER/COMPOSITE

(SEE PINOUT)

HD-SDI

LOOP OUT

Document Number:

MAN –FD141CV-TS-HDSDI

Rev:

Revision Date:

01/12/2017

Page 4 of 13

TECHNICAL SUPPORT

470-239-7421 or FDSAvionics.com

Additional Information

The FD141CV-TS-HDSDI utilizes a state of the art digital video decoding chipset for the

analog video input. The unit includes 4 video source inputs. They are in order of picture

quality: (1)HD-SDI (High Definition camera), (1) DVI (computer input), (1)VGA (computer

graphics like Moving Maps) and (1) Composite.

The FD141CV-TS-HDSDI has touchscreen capability using support programs with RS-

232.

The FD141CV-TS-HDSDI is made of all metal components.

Specifications

Display Type

WXGA LCD with LED Backlight

Display Color

262,144 Colors

Screen Resolution

1280 x 800 Pixels

Brightness

1000 cd/m2

Dimensions

14.00”(W)x8.89”(H)x1.93”(D) (to button

cover)

Display Size

11.89”(W)x7.42”(H)

Weight

6lbs. 10oz.

Power

28V DC @ 1.5 AMPS

PC & Video Input

VGA (High-Density DB-15 Connector),

HD-SDI, DVI, Composite (via DB-25

Connector)

Video Type Supported

NTSC/PAL

Screen Control

Touchscreen

Viewing Angle

176on Both Axis

Materials

Aluminum

DO-160 Testing

RTCA/DO-160 Section 7, Category B

RTCA/DO-160 Section 21, Category B

Remote Control

N/A

Pixel Pitch

0.237(H)mm x 0.237(V)mm

Document Number:

MAN –FD141CV-TS-HDSDI

Rev:

Revision Date:

01/12/2017

Page 5 of 13

TECHNICAL SUPPORT

470-239-7421 or FDSAvionics.com

Installation Instructions

All cabin entertainment equipment, such as the FD141CV-TS-HDSDI, should be installed

on a non-essential bus and have a dedicated circuit breaker. It is a requirement that a

switch be installed in the cockpit so that the pilot can de-energize the entertainment

system should it become necessary.

To install the unit, (4) mounting locations are at the front corners of the unit. Four #10

socket-head screws (not supplied) are needed to secure the unit to the mounting surface.

It is strongly recommended that all four mounting locations be used. When installed, at

least ¼” gap should be maintained along the left and right sides and rear of the unit to

allow for convection cooling.

Power

This is a 28V DC monitor that requires 1.5 AMPS of power to operate. The unit turns on

automatically upon power application.

Wiring Suggestions

All shields should be grounded to the connector at the source, and floating at the display.

Avoid routing video wiring parallel to:

AC wiring

Strobe wiring

DC motor supply cables

Inverter cabling

Or any other potential noise source.

Document Number:

MAN –FD141CV-TS-HDSDI

Rev:

Revision Date:

01/12/2017

Page 6 of 13

TECHNICAL SUPPORT

470-239-7421 or FDSAvionics.com

Power and Ground Wiring

This is a 28VDC monitor that requires 1.5 amps of power to operate. To operate properly

this monitor requires an input voltage of 28VDC.

The rated current of the equipment and associated voltage drop should be taken into

consideration when selecting wire gauge. The following example is based on an install

with a 28VDC power system and a total of 50 feet of wire between the circuit breaker,

monitor and ground.

Example: 22awg wire has 16.2 Ohms per 1000 feet, this equates to .81 Ohms for 50 feet.

3 Amps of current on .81 Ohms will drop 2.43 Volts.

Resistance of Wire Type M22759/16-**

(** = Gauge)

Gauge (AWG)

Ohms/1000’

26.20

16.20

9.88

4.81

2.02

1.26

.70

Also, use short heavy gauge wire and a clean tight connection for ground.

It is the installer's responsibility to understand the product's requirements to install the

product in compliance with industry standards and safety.

Document Number:

MAN –FD141CV-TS-HDSDI

Rev:

Revision Date:

01/12/2017

Page 7 of 13

TECHNICAL SUPPORT

470-239-7421 or FDSAvionics.com

Power/Video

Pinout for DB-25 Receptacle

Connector P/N: M24308/2-283 or Equivalent

Crimp Contacts P/N: M39029/63-368 or Equivalent

Number

Description

28VDC Power

28VDC Ground

Composite Video - Signal

Composite Video - Ground

N/C

RS232 –Request to Send (RTS)

RS232 –Received Data (RxD)

RS232 –Transmit Data (TxD)

RS232 –Ground (GND)

N/C

Document Number:

MAN –FD141CV-TS-HDSDI

Rev:

Revision Date:

01/12/2017

Page 8 of 13

TECHNICAL SUPPORT

470-239-7421 or FDSAvionics.com

Operation Instructions

The FD141CV-TS-HDSDI is continuously on but can be de-energized by removing power

from the entertainment system. No pilot or aircrew action is necessary during flight or

ground operation.

The passengers will be able to change the video output from the FD141CV-TS-HDSDI

using the video source select button on the display.

When applying 28V DC power, the display will turn on and look for a valid input on the

last known source. If no input is found, the display will go to standby mode. Pressing the

Select button will select new video input.

Button Controls

Located at the right of the FD141CV-TS-HDSDI are 8 buttons. Their functions are shown

below as well as labelled on the left side of the monitor.

BUTTON

DESCRIPTION

POWER

Toggles the power ON or OFF. Also, wakes the

display up from SLEEP mode.

Opens the MENU.

AUTO

Auto-adjusts the display’s size and position.

DOWN

Moves to the next selection in the menu.

Moves to the previous selection in the menu.

LEFT

Decrease the selection’s value in the menu.

RIGHT

Increases the selection’s value in the menu.

SOURCE

Switches between sources coming into the display*.

*CMS will automatically control the monitor source

switching when using the Cabin Control Modules.

Document Number:

MAN –FD141CV-TS-HDSDI

Rev:

Revision Date:

01/12/2017

Page 9 of 13

TECHNICAL SUPPORT

470-239-7421 or FDSAvionics.com

Installation Drawing

Document Number:

MAN –FD141CV-TS-HDSDI

Rev:

Revision Date:

01/12/2017

Page 10 of 13

TECHNICAL SUPPORT

470-239-7421 or FDSAvionics.com

Installation Drawing
