F&F BIS-410-24V Manuel utilisateur

- 1 -

BIS-410 24 V

Bistable relay

with timer

F&F Filipowski sp. j.

Konstantynowska 79/81, 95-200 Pabianice, POLAND

phone/fax (+48 42) 215 23 83 / (+48 42) 227 09 71

www.fif.com.pl; e-mail: biuro@fif.com.pl

Do not dispose of this device in the trash along with other waste!

According to the Law on Waste, electro coming from households free of charge and can



the purchase of new equipment (in accordance with the principle of old-for-new, regard-

less of brand). Electro thrown in the trash or abandoned in nature, pose a threat to the

environment and human health.

Electronic bistable pulse relay BIS-410 allows switching on or off

the lighting or other device from several different points by pa-

rallel connected, momentary (bell) control switches.

The receiver is switched on after a current pulse caused by pres-

sing any momentary (bell) button connected to the relay.

The receiver is turned off after the next impulse or automatically

after the set off time.

A longer pressing of the momentary button (lasting at least 2

seconds) turns on the relay permanently.

The relay will be turned off only after pressing the momentary

button again (or after a power failure).

Purpose

Functioning

- 2 -

1.Disconnect the power supply.

2.Mount relay in the flush-mounted box.

3.Connect the power supply cables to PWR group: (+)-wire to

terminal 5 or 6, (–)-wire to terminal 3 or 4.

4.Momentary switches connected in parallel connect to terminal

1 and (+)-wire.

5.Connect the powered receiver in series to terminal 2 and

(–)-wire.

6.Set the switch-off time with the potentiometer.

BIS-410 24 V is not compatible with backlit buttons.

Mounting

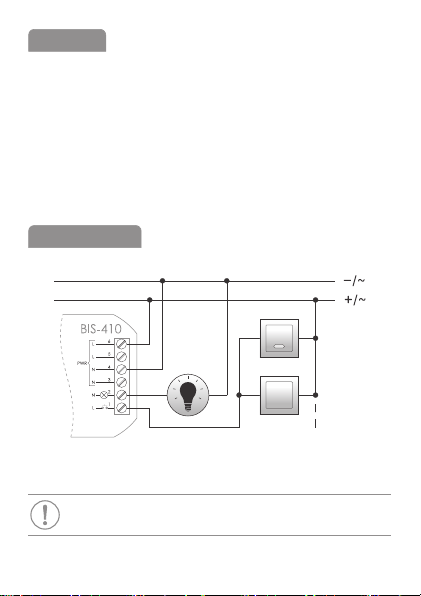

Wiring diagram

- 3 -

1 control input

2 relay output

3/4 (–) power supply

5/6 (+) power supply

power supply 9÷30 V AC/DC

contact 1×NO

maximum load current (AC-1) 16 A

activation delay 0,1÷0,2 s

switch-off time (adjustable) 1÷15 min.

power indication green LED

power consumption

standby 0.15 W

on 0.7 W

 

tightening torque 0.4 Nm

working temperature -25÷50°C

 

 

ingress protection IP20

Technical data

- 4 -

The F&F products are covered by a warranty of the 24 months

from the date of purchase. Effective only with proof of purchase.

Contact your dealer or directly with us.

F&F Filipowski sp. j. declares that the device is in conformity

with the essential requirements of The Low Voltage Directive

(LVD) 2014/35/EU and the Electromagnetic Compatibility (EMC)

Directive 2014/30/UE.

The CE Declaration of Conformity, along with the references to

the standards in relation to which conformity is declared, can be

found at www.fif.com.pl on the product page.

Warranty

CE declaration

E211108
