the gate opener

ENCODING INSTRUCTIONS

RADIO TRANSM ITTER JUBI• 433

RADIO RECEIVER EXTERNAL TYPE. ENCODING INSTRUCTIONS AND WORKING PRINCIPLE

LED

2nd PUSH

BUTTON

TRANSM ITTER

JUBI-SM ALL•433

2 CHANNELS

TRANSM ITTER

JUBI•433

4 CHANNELS

LED

ANY BUTTON IN THE TRANSM ITTER CAN BE PRESSED TO OPERTE ANY REQUIRED CHANNEL, PROVIDED THAT THE “ STRIP” IS INSERTED IN THE PROPER “ PIN” CONNECTORS

THAT CORRESPOND TO THE DESIRED CHANNEL. ENCODE THE UNIT AS DESCRIBED.

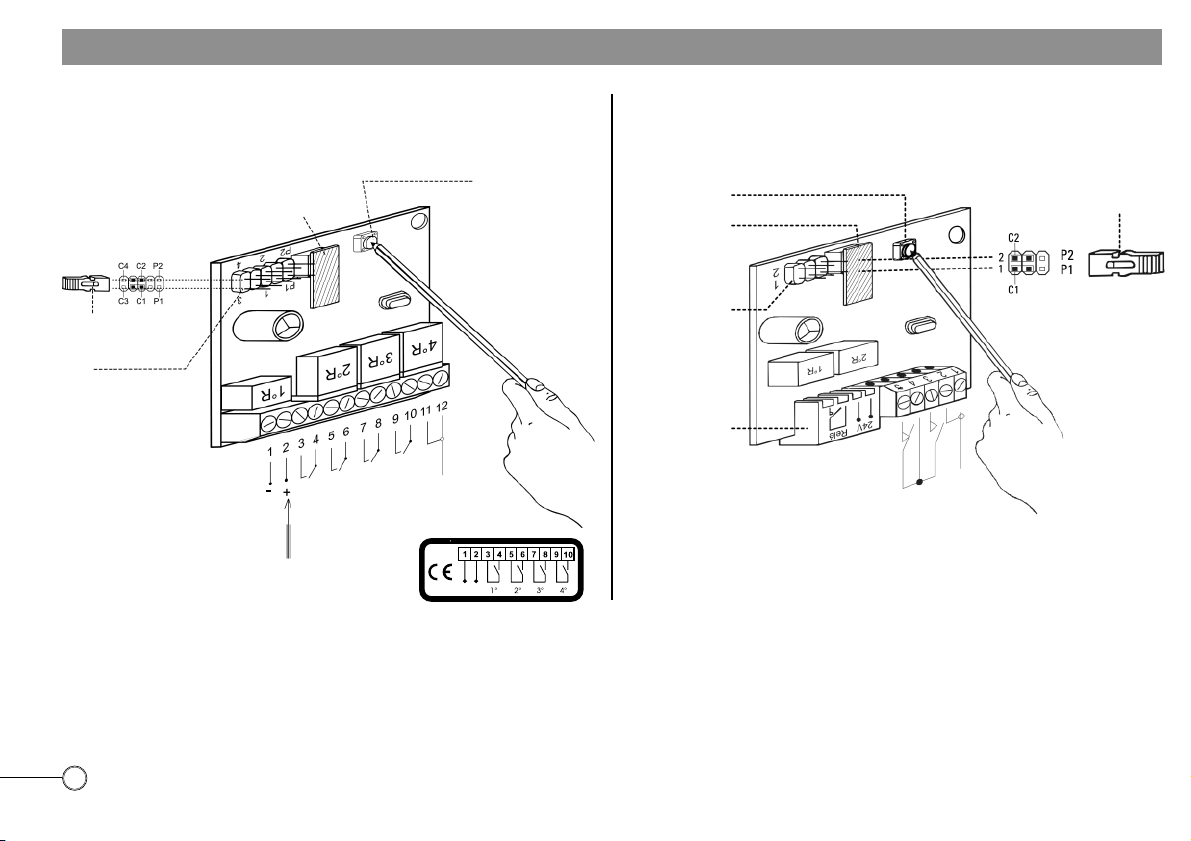

The instructions that follow explain how to set a personalized code (ie. user’s code) with any one receiver. First supply 24 Volt a.c. pow er to terminals 1 (–) and 2 (+) in the

receiver terminal board - then insert the “ STRIP” as in position “ C1” . This activates the relay “ 1R” that corresponds to terminals 3 and 4 (CHANNEL No. 1). The next step is

to press simultaneously the switch button “ P” on the receiver PC board and the switch button “ T” (any desired one) on the transmitter for about five seconds. Once the code

has been memorized by the unit, the “ LED” on the receiver PC board switches on. Release the transmitter button and the receiver switch button; remove the “ STRIP” jumper

and insert it on to a “ PIN” connector on standby. Now the radio remote control set has been encoded with a personalized, secret code and is ready to w ork. Repeat the above

sequence for channels 2-3-4. Insert the “ STRIP” jumper in the correct position as required, as follows:

Position “ C2“ . It corresponds to relay No. 2(2R) - Channel No. 2. - Terminals 5-6

Position “ C3“ . It corresponds to relay No. 3(3R) - Channel No. 3. - Terminals 7-8

Position “ C4“ . It corresponds to relay No. 4(4R) - Channel No. 4. - Terminals 9-10

SHOULD THE POWER SUPPLY FAIL OR THE 24 V a.c. - 12 Vd.c. BE DISCONNECTED FROM THE RECEIVER, THE USER’S CODE IS RETAINED IN THE REM OVABLE M EM ORY THAT

CAN BE FITTED ON TO ANOTHER CARD.

Drw g. No. 3706

RECEIVER FOR EXTERNAL APPLICATION

AERIAL

REM OVABLE

M EM ORY

CHANNEL 1

SWITCH BUTTON “ P“

“ STRIP“

JUM PER

24 V a.c.

POWER SUPPLY

CHANNEL 4

CHANNEL 3

CHANNEL 2

–

1st PUSH

BUTTON

TECHNICAL SPECIFICATIONS. RADIO RECEIVER EXTERNAL TYPE AND TRANSM ITTER

Made in Italy

Jubi 4 3 3

0678

433,92 MHz “Rolling-Code”

Drw g. No. 3707

TRANSM ITTER

Jubi•433 - 4 CHANNELS

84x43x17 mm

SHOULD THE POWER SUPPLY FAIL OR THE 24 V a.c. - 12 Vd.c. BE DISCONNECTED FROM THE RECEIVER, THE USER’S CODE IS RETAINED IN THE REM OVABLE M EM ORY THAT

CAN BE FITTED ON TO ANOTHER CARD.

RADIO RECEIVER TECHNICAL SPECIFICATIONS

Working frequenc y.............................................................................................................433.92 M Hz

Sensitivity (to operating pulse)..................................................................................................> 1 uV

Distance range ....................................................................................................................100 meters

Power supply w ith alternated current...................................................................24 Vac (+/–10%)

Power supply w ith direct current .....................................................................12 Vdc (+ 20% –5%)

Working absorption...........................................................................25 mA (1st energized channel)

Standby absorption .....................................................................................................................10 mA

Decrypt ......................................................................................................................................DIGITAL

No. of channels .....................................................................................................................................4

Changeover contact relay.................................N.O. (Channel 1) - N.O. or N.C. (Channels 2-3-4)

Relay rating ...................................................................................................................0,5 A –125 Vac

Excitation time ...........................................................................................200 ms (1 complete code)

Dropout time.........................................................................................300 ms (from last valid code)

Working temperature....................................................................................................–10°C + 55°C

* Channel 1 module is factory fitted. Fit the other relay modules into the respective connectors for

the remaining channels.

RADIO RECEIVER FOR EXTERNAL APPLICATION

TRANSM ITTER TECHNICAL SPECIFICATIONS

Working frequenc y.............................................................................................................433.92 M Hz

Carrier frequency tolerance ...............................................................................................+/–75 KHz

Radiated pow er .........................................................................................................................100 uW

Band width ................................................................................................................................>25 KHz

Apparent pow er of the harmonic products.......................................................<–54 dBm (<4 uW)

Supply voltage ..........................................................................................12 Vdc -23 A (+20% –50%)

M ean absorption .........................................................................................................................14 mA

Working temperature.......................................................................................................–40°C +85°C

No. of channels .....................................................................................................................................4

Distance range ....................................................................................................................120 meters

Code type...........................................................................DIGITAL (264 encrypted) “Rolling-Code“

•A radio signal is activated by pressing a button in the transmitter and stays on as long as

the button is kept dow n. A red led sw itches on to confirm the signal.

•An electric contact is closed instantaneously on releasing the button and the unit becomes

operating.

•Replace the 12V battery should the led flash on/off on pressing the button.

•To achieve best performance of the aerial, make sure that the core and the braided wire

of the coaxial cable are connected to their respective terminals as indicated.

•Keep the transmitter away from heat sources and handle it w ith care.

•Dispose properly of run dow n batteries.

PIN COM BINATIONS

FREE M EM ORY

Relay 1

Relay 2

Relay 3

Relay 4

RADIO RECEIVER

FOR EXTERNAL

APPLICATION

60x52x1,6 mm AERIAL

REM OVABLE

M EM ORY

CHANNEL 1

SWITCH BUTTON “P“

“STRIP“

JUM PER

24 V a.c.

POWER SUPPLY

CHANNEL 4

CHANNEL 3

CHANNEL 2

TOTA L M EM ORY REM OVAL

SELF-LEARNING PLUG-IN CARD. ENCODING INSTRUCTIONS AND WORKING PRINCIPLE

PLUG-IN RADIO RECEIVER CARD

PLUG-IN

CONNECTOR

ELECTRONIC

CONTROL PANEL

TYPE ELPRO

POWER SUPPLY 230 V

LED

ANY BUTTON IN THE TRANSM ITTER CAN BE SELECTED TO OPERATE ANY REQUIRED CHANNEL. INSERT THE

JUM PER IN THE DESIRED POSITION. ENCODE THE UNIT AS DESCRIBED.

How to set a personalized code (ie. user’s code) with a plug-in type receiver card. First supply it w ith power by

plugging it into an operating control box. Then insert the “STRIP”jumper as in position “C1”. This activates the relay

“1R”that is directly connected to the respective circuit in the control panel. The next step is to press simultaneously

the switch button “P”on the receiver card and a push button (any desired one) on the transmitter for about five

seconds. Once the code has been memorized by the unit, the led on the receiver card switches on. Release the

transmitter button and receiver switch button; remove the “STRIP”jumper and insert it on to one “PIN”only. Now

the radio remote control set has been encoded with a personalized secret code and is ready to work. Repeat the

above sequence to encode channel No. 2, which provides an extra output for user’s personal applications, but the

jumper must be inserted in position “C2”to activate the second relay “2R”through another transmitter button. The

connection to output for channel 2 can either be normally open or closed (N.O. - N.C.) to meet all possible applications.

SHOULD THE POWER SUPPLY FAIL OR THE 24 V a.c. - 12 Vd.c. BE DISCONNECTED FROM THE RECEIVER, THE USER’S CODE IS RETAINED IN THE REM OVABLE M EM ORY THAT

CAN BE FITTED ON TO ANOTHER CARD.

Drw g. No. 3751

~24 V

–+

REM OVABLE

M EM ORY

CHANNEL 1

SWITCH BUTTON “P“

“STRIP“

JUM PER

2nd PUSH

BUTTON

TRANSM ITTER

JUBI-SM ALL•433

2 CHANNELS

TRANSM ITTER

JUBI•433

4 CHANNELS

1st PUSH

BUTTON

TECHNICAL SPECIFICATIONS. PLUG-IN RADIO RECEIVER AND TRANSM ITTER

Made in Italy

0678

433,92 MHz “Rolling-Code”

Jubi 433

Small

Drw g. No. 3702

SWITCH BUTTON “P““STRIP“

JUM PER

PLUG-IN CONNECTOR

TRANSM ITTER Jubi-Small• 433, 2 CHANNELS, 40x48x14 mm

REM OVABLE

M EM ORY

PLUG-IN RADIO RECEIVER 56x43x1,6 mm

Relay 2

Relay 1

(C2)

(C1)

SHOULD THE POWER SUPPLY FAIL OR THE 24 V a.c. - 12 Vd.c. BE DISCONNECTED FROM THE RECEIVER, THE USER’S CODE IS RETAINED IN THE REM OVABLE M EM ORY THAT

CAN BE FITTED ON TO ANOTHER CARD.

PLUG-IN RADIO RECEIVER TECHNICAL SPECIFICATIONS
