Extron electronics IP Link IPL T CR48 Manuel utilisateur

User Guide

IPL T CR48

IP Link®

IP Link Ethernet Control Interface

68-738-05 Rev. D

08 19

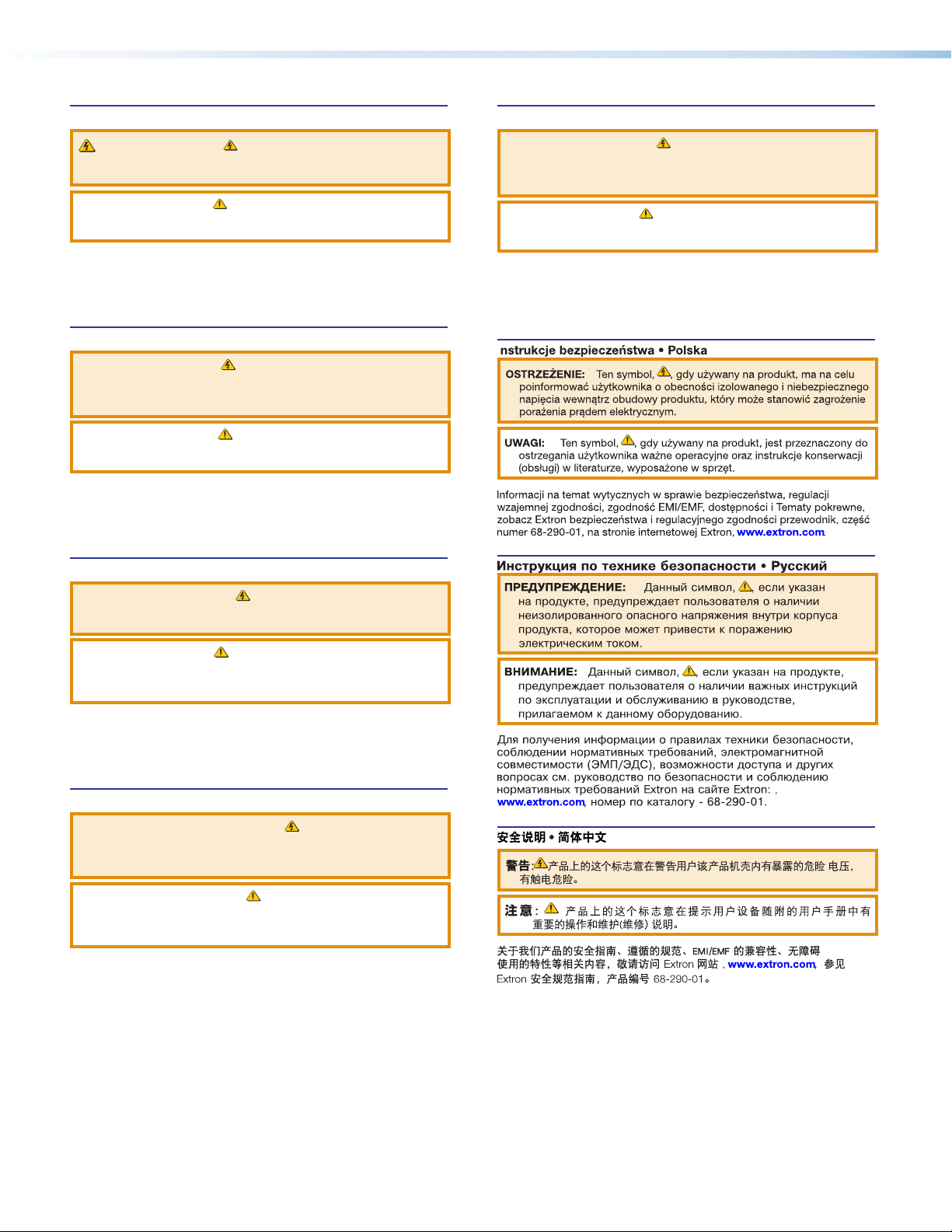

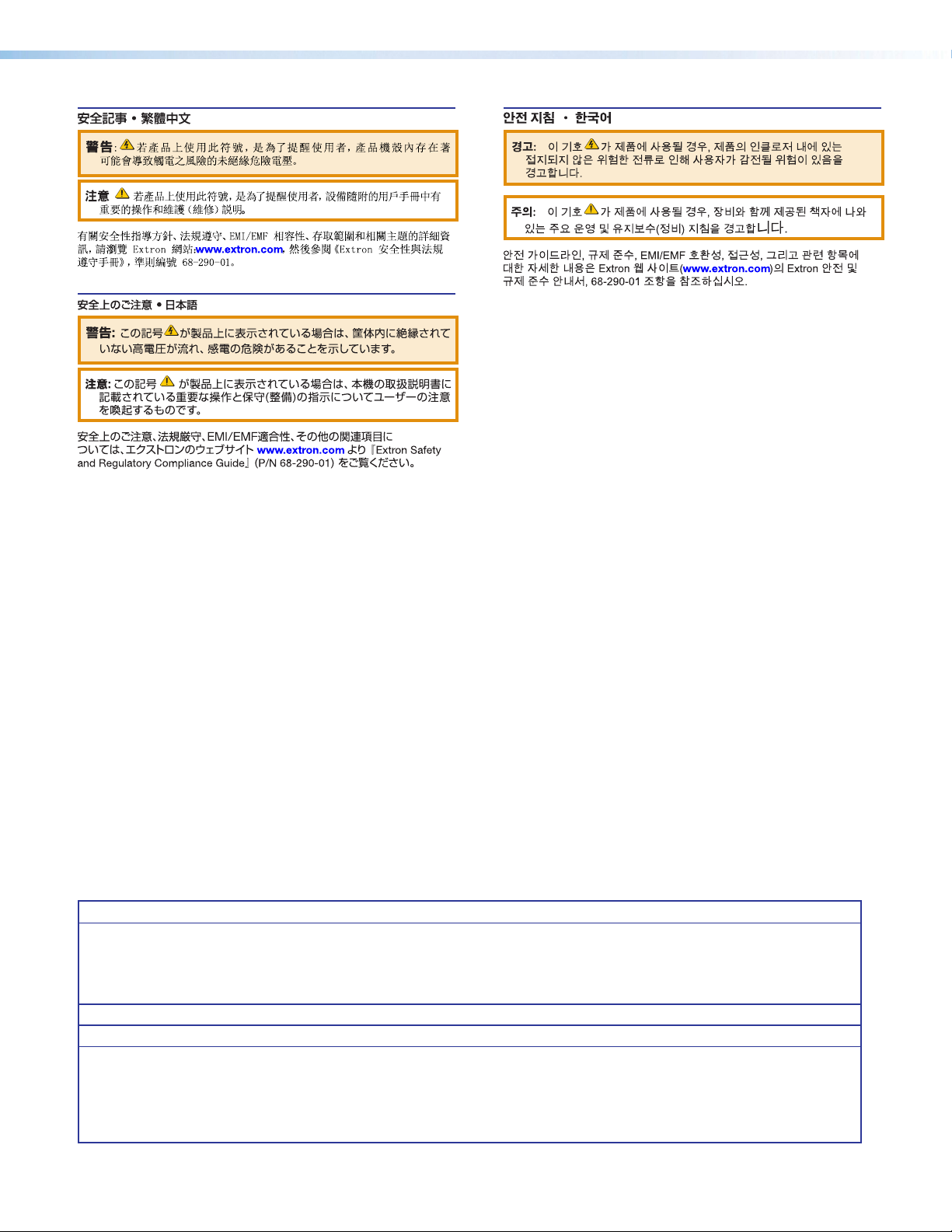

Safety Instructions

Safety Instructions • English

WARNING:This symbol, , when used on the product, is intended to

alert the user of the presence of uninsulated dangerous voltage within the

product’s enclosure that may present a risk of electric shock.

ATTENTION: This symbol, , when used on the product, is intended

to alert the user of important operating and maintenance (servicing)

instructions in the literature provided with the equipment.

For information on safety guidelines, regulatory compliances, EMI/EMF

compatibility, accessibility, and related topics, see the Extron Safety and

Regulatory Compliance Guide, part number 68-290-01, on the Extron

website, www.extron.com.

Sicherheitsanweisungen • Deutsch

WARNUNG: Dieses Symbol auf dem Produkt soll den Benutzer darauf

aufmerksam machen, dass im Inneren des Gehäuses dieses Produktes

gefährliche Spannungen herrschen, die nicht isoliert sind und die einen

elektrischen Schlag verursachen können.

VORSICHT: Dieses Symbol auf dem Produkt soll dem Benutzer in

der im Lieferumfang enthaltenen Dokumentation besonders wichtige

Hinweise zur Bedienung und Wartung (Instandhaltung) geben.

Weitere Informationen über die Sicherheitsrichtlinien, Produkthandhabung,

EMI/EMF-Kompatibilität, Zugänglichkeit und verwandte Themen finden Sie in

den Extron-Richtlinien für Sicherheit und Handhabung (Artikelnummer

68-290-01) auf der Extron-Website, www.extron.com.

Instrucciones de seguridad • Español

ADVERTENCIA: Este símbolo, , cuando se utiliza en el producto,

avisa al usuario de la presencia de voltaje peligroso sin aislar dentro del

producto, lo que puede representar un riesgo de descarga eléctrica.

ATENCIÓN: Este símbolo, , cuando se utiliza en el producto, avisa

al usuario de la presencia de importantes instrucciones de uso y

mantenimiento recogidas en la documentación proporcionada con el

equipo.

Para obtener información sobre directrices de seguridad, cumplimiento

de normativas, compatibilidad electromagnética, accesibilidad y temas

relacionados, consulte la Guía de cumplimiento de normativas y seguridad

de Extron, referencia 68-290-01, en el sitio Web de Extron, www.extron.com.

Instructions de sécurité • Français

AVERTISSEMENT : Ce pictogramme, , lorsqu’il est utilisé sur le

produit, signale à l’utilisateur la présence à l’intérieur du boîtier du

produit d’une tension électrique dangereuse susceptible de provoquer

un choc électrique.

ATTENTION : Ce pictogramme, , lorsqu’il est utilisé sur le produit,

signale à l’utilisateur des instructions d’utilisation ou de maintenance

importantes qui se trouvent dans la documentation fournie avec le

matériel.

Pour en savoir plus sur les règles de sécurité, la conformité à la

réglementation, la compatibilité EMI/EMF, l’accessibilité, et autres sujets

connexes, lisez les informations de sécurité et de conformité Extron, réf.

68-290-01, sur le site Extron, www.extron.com.

Istruzioni di sicurezza • Italiano

AVVERTENZA: Il simbolo, , se usato sul prodotto, serve ad

avvertire l’utente della presenza di tensione non isolata pericolosa

all’interno del contenitore del prodotto che può costituire un rischio di

scosse elettriche.

ATTENTZIONE: Il simbolo, , se usato sul prodotto, serve ad avvertire

l’utente della presenza di importanti istruzioni di funzionamento e

manutenzione nella documentazione fornita con l’apparecchio.

Per informazioni su parametri di sicurezza, conformità alle normative,

compatibilità EMI/EMF, accessibilità e argomenti simili, fare riferimento

alla Guida alla conformità normativa e di sicurezza di Extron, cod. articolo

68-290-01, sul sito web di Extron, www.extron.com.



Trademarks

All trademarks mentioned in this guide are the properties of their respective owners.

The following registered trademarks (®), registered service marks (SM), and trademarks (TM) are the property of RGBSystems, Inc. or

ExtronElectronics (see the current list of trademarks on the Terms of Use page at www.extron.com):

Registered Trademarks (®)

Extron, Cable Cubby, ControlScript, CrossPoint, DTP, eBUS, EDID Manager, EDID Minder, Flat Field, FlexOS, Glitch Free. Global

Configurator, GlobalScripter, GlobalViewer, Hideaway, HyperLane, IPIntercom, IPLink, KeyMinder, LinkLicense, LockIt, MediaLink,

MediaPort, NetPA, PlenumVault, PoleVault, PowerCage, PURE3, Quantum, Show Me, SoundField, SpeedMount, SpeedSwitch,

StudioStation, SystemINTEGRATOR, TeamWork, TouchLink, V-Lock, VideoLounge, VN-Matrix, VoiceLift, WallVault, WindoWall, XTP,

XTPSystems, and ZipClip

Registered Service Mark(SM) : S3 Service Support Solutions

Trademarks (™)

AAP, AFL (Accu-RateFrameLock), ADSP(Advanced Digital Sync Processing), Auto-Image, AVEdge, CableCover, CDRS(ClassD

Ripple Suppression), Codec Connect, DDSP(Digital Display Sync Processing), DMI (DynamicMotionInterpolation), DriverConfigurator,

DSPConfigurator, DSVP(Digital Sync Validation Processing), eLink, EQIP, Everlast, FastBite, FOX, FOXBOX, IP Intercom HelpDesk,

MAAP, MicroDigital, Opti-Torque, PendantConnect, ProDSP, QS-FPC(QuickSwitch Front Panel Controller), RoomAgent, Scope-Trigger,

ShareLink, SIS, SimpleInstructionSet, Skew-Free, SpeedNav, Triple-Action Switching, True4K, Vector™ 4K , WebShare, XTRA, and

ZipCaddy

FCC Class A Notice

This equipment has been tested and found to comply with the limits for a Class A digital

device, pursuant to part15 of the FCC rules. The ClassA limits provide reasonable

protection against harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio frequency energy

and, if not installed and used in accordance with the instruction manual, may cause

harmful interference to radio communications. Operation of this equipment in a

residential area is likely to cause interference. This interference must be corrected at the

expense of the user.

NOTE: For more information on safety guidelines, regulatory compliances, EMI/EMF

compatibility, accessibility, and related topics, see the Extron Safety and Regulatory

Compliance Guide on the Extron website.

VCCI-A Notice

この装置は、クラスＡ情報技術装置です。この装置を家庭環境で使用すると、電波妨害を引き

起こすことがあります。その場合には使用者が適切な対策を講ずるよう要求されることがあります。

ＶＣＣI－Ａ

Battery Notice

This product contains a battery. Do not open the unit to replace the battery. If the

battery needs replacing, return the entire unit to Extron (for the correct address, see the

Extron Warranty section on the last page of this guide).

CAUTION: Risk of explosion. Do not replace the battery with an incorrect type. Dispose

of used batteries according to the instructions.

ATTENTION : Risque d’explosion. Ne pas remplacer la pile par le mauvais type de pile.

Débarrassez-vous des piles usagées selon le mode d’emploi.

Conventions Used in this Guide

Notifications

The following notifications are used in this guide:

WARNING: Potential risk of severe injury or death.

AVERTISSEMENT : Risque potentiel de blessure grave ou de mort.

CAUTION: Risk of minor personal injury.

ATTENTION : Risque de blessuremineure.

ATTENTION:

• Risk of property damage.

• Risque de dommages matériels.

NOTE: A note draws attention to important information.

Software Commands

Commands are written in the fonts shown here:

^AR Merge Scene,,0p1 scene 1,1 ^B 51 ^W^C.0

[01]R 000400300 0040000800 00600[02] 35[17] [03]

E X! *X1&*X2)*X2#*X2! CE}

NOTE: For commands and examples of computer or device responses used in this

guide, the character “0” is the number zero and “O” is the capital letter “o.”

Computer responses and directory paths that do not have variables are written in the

font shown here:

Reply from 208.132.180.48: bytes=32 times=2ms TTL=32

C:\Program Files\Extron

Variables are written in slanted form as shown here:

ping xxx.xxx.xxx.xxx —t

SOH R Data STX Command ETB ETX

Selectable items, such as menu names, menu options, buttons, tabs, and field names

are written in the font shown here:

From the File menu, select New.

Click the OK button.

Specifications Availability

Product specifications are available on the Extron website, www.extron.com.

Extron Glossary of Terms

A glossary of terms is available at http://www.extron.com/technology/glossary.aspx.

Contents Contents

Introduction ...............................................1

About this Guide.................................................. 1

About the IPLTCR48 ......................................... 1

Features .............................................................. 1

Installation and Operation .........................3

Installation Overview ............................................ 3

Mounting the IPLTCR48 .................................... 3

UL Guidelines for Rack Mounting..................... 3

Rack Mounting ................................................ 4

Furniture or Projector Mounting ....................... 5

Rear Panel Features and Cabling......................... 5

Power.............................................................. 6

Ethernet/LAN................................................... 7

Connections .................................................... 7

Identiﬁcation .................................................... 8

Operation ............................................................ 8

Front Panel Indicators...................................... 8

Resetting the Controller ................................... 9

Connection and Conﬁguration.................11

Connecting the Hardware.................................. 11

Ethernet Connection...................................... 11

Contact Closure Input and

Relay Connections........................................ 12

Conﬁguring the Hardware.................................. 12

PC Conﬁguration ........................................... 12

IPLTCR48 Interface Conﬁguration................ 13

Communication and Control....................16

Ports Overview .................................................. 16

Contact Closure Input Ports........................... 16

Relay Ports .................................................... 16

Communication with the Interface...................... 17

Web Server.................................................... 17

Programmer Guide for the Telnet and

Web Browser ................................................... 23

Using the Command/Response Table............ 23

URL Encoding ............................................... 25

Command and Response Table for

SIS Commands ................................................ 27

Device Control................................................... 32

Custom Web Pages....................................... 32

Telnet (Port 23) .............................................. 32

Troubleshooting................................................. 33

Glossary...................................................34

viiIPL T CR48 • Contents

IPL T CR48 • Contents viii

Introduction

This section gives an overview of the user guide and describes the Extron IPLTCR48

IPLink Ethernet Control Interface and its features. Topics that are covered include:

• About this Guide

• About the IPLTCR48

• Features

About this Guide

This guide describes the function, installation, configuration, and operation of the

IPLTCR48 Ethernet Control Interface.

About the IPLTCR48

The IPLTCR48 is an Ethernet controller designed to be used as one of many nodes in

a distributed control system environment, or as a stand-alone controller allowing legacy

products to link to IP-based networks.

The IPLTCR48 has a single 5-pole captive screw connector for contact closure input and

two 8-pole captive screw connectors for relays. The contact closure input and relay ports

are fully software configurable using a web-based interface connected via an Ethernet port.

The unit hosts its own web pages, stored in blink memory within the device. The

IPLTCR48 supports Telnet, SMTP (Simple Mail Transfer Protocol), ICMP (Internet Control

Message Protocol) or Ping, and DHCP (Dynamic Host Configuration Protocol).

The IPLTCR48 is 1U high and one quarter rack wide (see www.extron.com for mounting

options). It can also be mounted near a screen or projector lift.

The interface ships with an external, desktop, 12 V, 1 A power supply that accepts

100-240 VAC input.

Features

• High speed —Constant high speed data throughput, with a 6 Mbit per second transfer

rate

• User customizable —You can tailor the on-board web pages with advanced

programmability, e-mail alerts, and storage to suit your needs and requirements. You

can also develop your own web pages using off-the-shelf web authoring software.

• GlobalViewer — Can be used to manage multiple IP Link products over the web

• Direct port access —Use existing software programs to control a device that has

no Ethernet support. Any existing Extron product with a serial control port can be

interfaced with a LAN.

IPL T CR48 • Introduction 1

• Built-in multi-level security —You can control the access to devices attached to the

unit. Two levels of password protection provide appropriate security.

NOTE: The factory configured passwords for all accounts on this device have been

set to the device serial number. In the event of a reset to factory defaults, the

passwords revert to no password (see Setting and changing passwords on

page19 to change a password).

• Contact closure input ports —Can be used to sense when a switch or relay has

been activated

• Supports Ethernet device drivers —Allows for control of up to six Ethernet-enabled

AV devices

NOTE: Ethernet driver support requires Global Configurator 3.0 and firmware

version 1.15 or higher.

• Easily connected —Provides RJ-45 auto-sense 10/100 Mbps Ethernet LAN

connection

• Easily configured and controlled —

• Using a standard web browser (Microsoft®Internet Explorer®version 6.0 or higher)

and web-based interface

• Using a standard Telnet client application

• Requires no centralized processor to operate within a system

• Choice of mounting options —The controller can be mounted near a screen or

projector lift or on a rack shelf

• Remote management —The IPLTCR48 allows you to remotely activate and

deactivate projector lifts, screens, and lighting systems.

• Multiple protocols supported —The IPLTCR48 supports Telnet, SMTP, ICMP, ARP,

and DHCP.

IPL T CR48 • Introduction 2
