Extron electronics RGB 302 Manuel utilisateur

User’s Manual

RGB 302/304

Universal Digital Interface

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201

Fax 07131 911203

[email protected]

Extron RGB 302/304 Universal Interface • User’s Manual

Chapter One • Introduction to the RGB 302/304

RGB302/304Features ......................................................... 1-1

SmartSave™ .......................................................... 1-2

LCDMenu Driven Controls ..................................... 1-2

Memory Blocks and Memory Cycling...................... 1-2

LevelControl(picture)............................................. 1-2

PeakingControl(sharpness)................................... 1-3

HorizontalShiftControl(centering).......................... 1-3

Vertical Shift Control (centering).............................. 1-3

AutomaticSyncOutput Detection ........................... 1-3

Automatic SyncStripping ........................................ 1-3

KeyboardLockout ................................................... 1-3

Auto-switching Power Supply.................................. 1-3

AudioInterface........................................................ 1-3

DIP Switch Settings ................................................ 1-4

RS-232 ControlInterface for RemoteControl .......... 1-4

BenefitsofWindowsRGB302/304Software .......... 1-4

FrontPanelControls .............................................................. 1-5

Menubutton ............................................................ 1-5

Cursorbuttons ........................................................ 1-5

Nextbutton ............................................................. 1-5

LCD Display ........................................................... 1-5

RGB302/304Specifications.................................................. 1-6

ChapterTwo • Installing the RGB 302/304

EasySetup Procedure .......................................................... 2-1

RearPanel DIP Switch Settings ............................................ 2-3

AudioConnections ................................................................ 2-3

Installation Check .................................................................. 2-4

MemoryCyclingFeature ....................................................... 2-5

Preset Memory Blocks .......................................................... 2-6

Power Supply ........................................................................ 2-6

RS-232InterfaceSpecifications ............................................ 2-6

ApplicationDiagrams............................................................. 2-7

ChapterThree • Front Panel Menus

RGB 302/304Menu Sequence .............................................. 3-1

Usingthe Menu System ........................................................ 3-2

DefaultCycleMenus ............................................................. 3-3

Default Cycle Hot Keys........................................... 3-4

LanguageMenu ...................................................... 3-4

Keyboard Lock/Unlock Menu .................................. 3-5

Digital Display Sync Processing ............................. 3-5

ImageControlsMenus .......................................................... 3-6

Horizontal ShiftMenu .............................................. 3-6

VerticalShiftMenu .................................................. 3-6

LevelControlMenu ................................................. 3-7

PeakingControlMenu ............................................. 3-7

Page i

Contents

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201

Fax 07131 911203

[email protected]

Extron RGB 302/304 Universal Interface • User’s Manual

Sync Controls Menus ............................................................ 3-8

SyncOutputMenu .................................................. 3-8

HorizontalPolarityMenu ......................................... 3-9

VerticalPolarityMenu ............................................. 3-9

OptionControlsMenus........................................................ 3-10

LCDBackliteMenu ............................................... 3-10

MemoryCyclingMenu .......................................... 3-10

SystemReset Menu ............................................. 3-10

ConfirmResetMenu ............................................. 3-11

ExitMenu ............................................................................ 3-11

DefaultSettings on Power Up .............................................. 3-11

Default SettingsonSystemReset ....................................... 3-11

Chapter Four • Using theWindows® Control Program

InstallingWindows®ControlSoftware ................................... 4-1

NormalWindowsControlPanel ............................................. 4-2

RGB 302/304 Help ................................................................ 4-3

Appendix A • Programmer’s Guide

RemoteControlPort (RS-232) .............................................. A-1

Host-to-RGB302/304Instructions ........................................A-2

SimpleCommands ................................................................A-3

Error Codes .......................................................................... A-4

RGB 302/304-Initiated Messages ..........................................A-5

RGB 302/304 User’s Manual

68-354-01

FirstEdition

89-03

Writtenandprintedin theUSA

Page ii

Contents

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201

Fax 07131 911203

[email protected]

Extron RGB 302/304 Universal Interface • User’s Manual Page iii

Legend

Legend of Icons

The following icons may be used in this manual:

______ Important information – for example, an action or a

step that must be done before proceeding.

______ A Warning – possible dangerous voltage present.

______ A Warning – possible damage could occur.

___ A Note, a Hint, or a Tip that may be helpful.

____ Possible Electrostatic Discharge (ESD) damage

could result from touching electronic components.

_____ Indicates word definitions. Additional information may

be referenced in another section, or in another

document.

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201

Fax 07131 911203

[email protected]

Extron RGB 302/304 Universal Interface • User’s Manual

Notes

Page iv

____

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201

Fax 07131 911203

[email protected]

Extron RGB 302/304 Universal Interface • User’s Manual

Chapter One

Introduction to the RGB 302/304

SmartSave™

LCD Menu Driven Controls

Memory Blocks and Memory Cycling

Image Display Controls

Automatic Sync Output Detection

Keyboard Lockout

RS-232 Control Interface

Front Panel Controls

Specifications

RGB 302/304 Universal Digital Interface

User’s manual

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201

Fax 07131 911203

[email protected]

Extron RGB 302/304 Universal Interface • User’s Manual

The Extron RGB 302/304 is a digitally controlled

UniversalAnalog/ECLComputer-VideoInterface.It

can connect most computers to a video presentation

device, such as a large screen projector or data

monitor. The RGB 302/304’s SmartSave™ feature

automatically selects sync settings and other

parameters for a quick and easy setup.

AmongtheRGB302/304features are RGB input/

outputconnectors,an MBC power jack, audio input/

outputconnectors,an RS-232 connector, and rear

panel DIP switches.

TheRGB304isidentical in performance and features

as the RGB 302 with the exception being that, unlike

the RGB 302, the RGB 304 has its 9-pin Analog/ECL

input,Audioinput,andMBCpowerjacklocatedonthe

frontpanel of the unit, as shown below. This difference

allows the RGB 304 to be installed in situations where

front panel access to such connectors may be

necessary, such as the mounting of the unit in a rack

mountenvironment.

RGB302/304 Features

The RGB 302/304 features allow video output to be

controlled in several ways:

• Automaticsync output detection and setup for quick

installation

• CustomsetupandadjustmentsmadefromtheFront

Panel(shownbelow)

• RGB 302/304 Windows® software, through an RS-232

interface

• User-writtenprogramsthroughtheRS-232port

Page 1-1

Chapter 1 • Introduction to the RGB 302/304

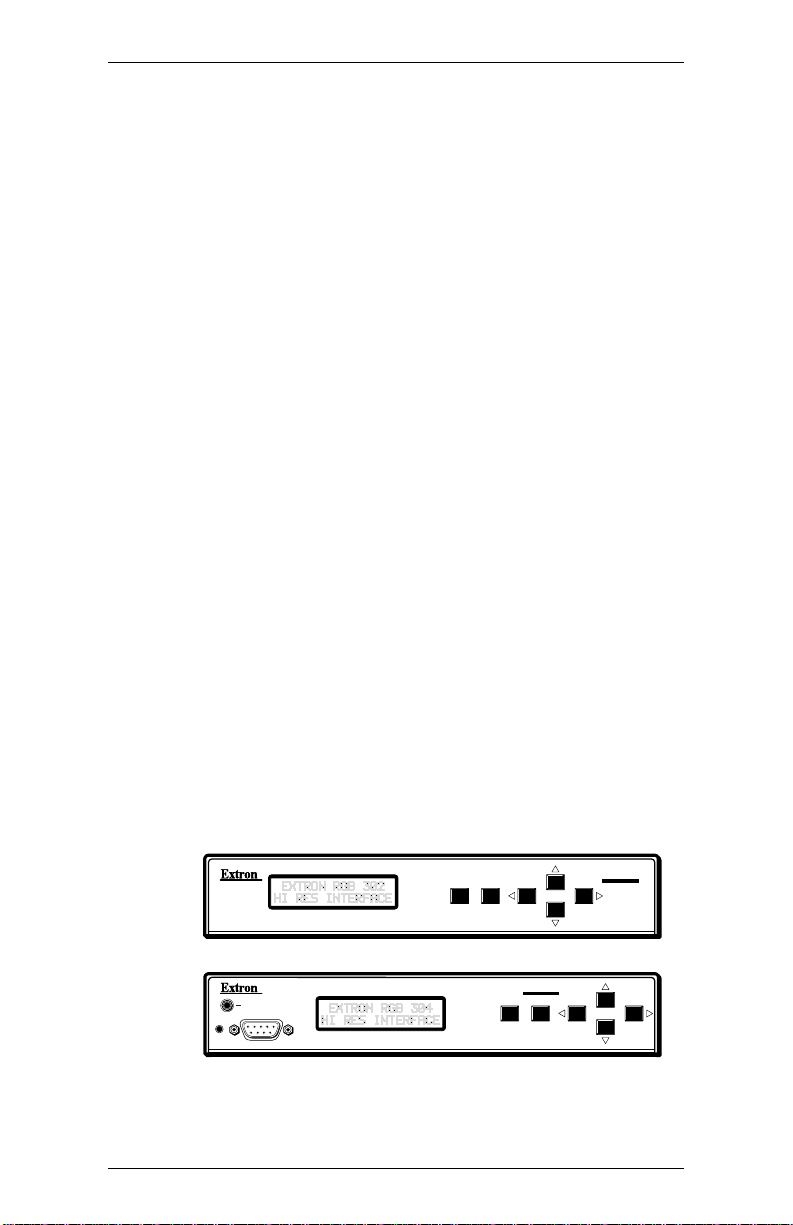

MENU NEXT
