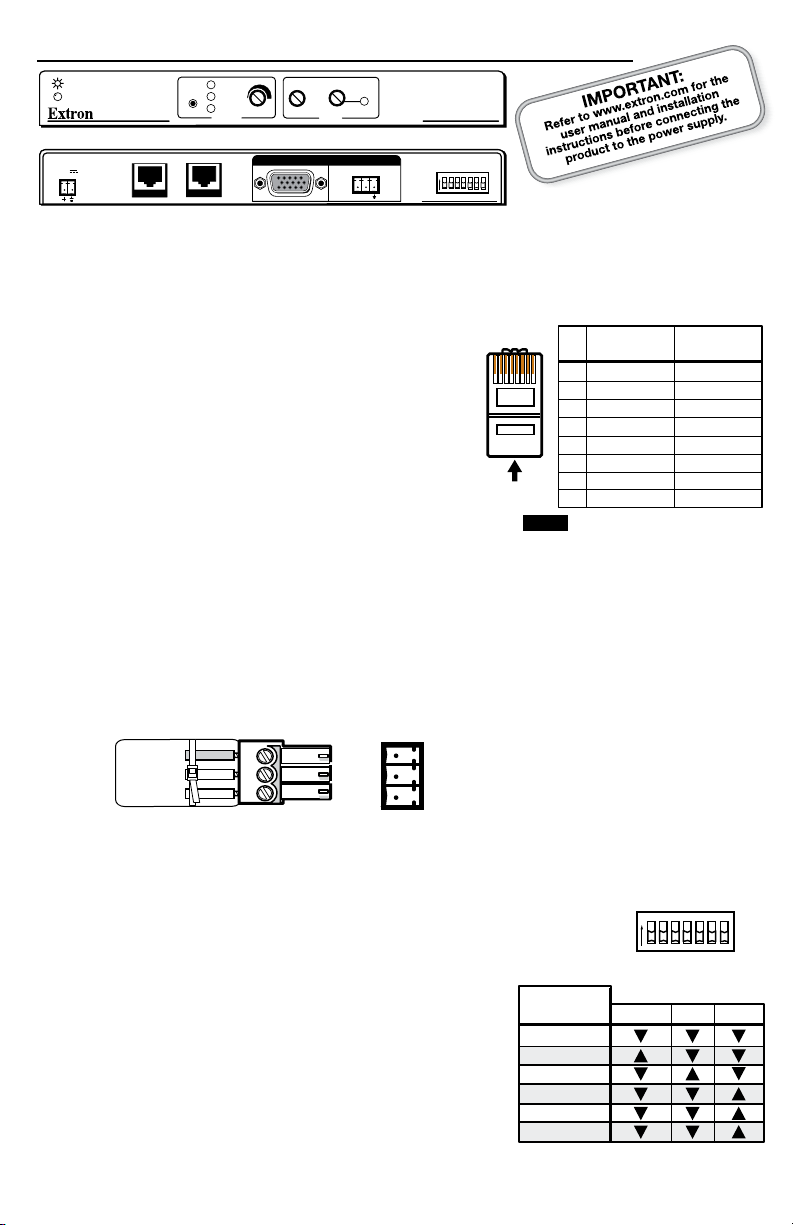

This guide provides basic instructions for an experienced installer to set up and operate any of

the Extron®MTP 1500RL 15HD RS series of extended mini twisted pair receivers; the

MTP 1500RL 15HD RS and the MTP 1500RL 15HD RS SEQ (model shown above). For full

details, refer to the MTP 1500RL 15HD RS Series User’s Manual, available at www.extron.com.

Installation

Step 1 — Mounting

Turn off or disconnect all equipment power sources

and mount the MTP 1500RL 15HD receiver as required.

Step 2 — Connect input

Connect the RJ-45 cable from an MTP transmitter

to the Input port on the MTP 1500RL 15HD receiver.

Terminate the cable as shown on the right, using the

same standard (A or B) at both ends.

Step 3 — Connect outputs

Attach the applicable output cables (video, RS-232, and buffered output).

a. High resolution video output — Connect a suitable display device to the 15-pin HD

connector (RGB).

b. RS-232 connector — Connect an RS-232 compatible device into the 3-pole captive screw

connector (wired as below) for bidirectional or unidirectional communication up to

1,000 feet (maximum).

Ground

Gnd

Receive

Transmit

Connected RS-232

Device Pins MTP Reciever

Pins

c. Buffered output — Connect up to 8 daisy-chained MTP receivers to this RJ-45 connector.

Step 4 — Receiver DIP switches

•H sync (H+) and V sync (V+) switches — Set these switches up (On)

for positive sync or down for negative sync.

•Composite Sync, (SOG), and Video switches — Set these switches as

shown in the table at right to output the indicated format.

•End Unit switch — Set this switch up if either of the

following is true:

a. The receiver being conﬁgured is the only

receiver connected to the transmitter.

b. The receiver being conﬁgured is the last

receiver in a daisy-chained system.

•BI-232 switch — Set this up (On) for bidirectional

or down for unidirectional communication.

Setup Guide — MTP 1500RL 15HD RS Series

MTP 1500RL SERIES

RGB

PEAKING

LEVEL

DELAY

RED

GREEN

BLUE

SELECT

ADJUST

INPUT BUFFERED OUTPUT

POWER

12V

1.0A MAX

MTP 1500RL 15HD RS SEQ

MTP

RS-232

RxTx

OUTPUT

MTP

MIN/MAX

H +

V +

CSYNC

SOG

VIDEO

END

BI-232

MTP

(Continued on reverse side)

Wire color

White-green

NOTE If you are using Enhanced

Skew-Free

™

A/V cable, use the

TIA/EIA T568A standard only.

Green

White-orange

White-blue

Orange

White-brown

Brown

Wire color

T568A T568B

White-orange

Orange

White-green

White-blue

Green

White-brown

Brown

Blue Blue

Insert

TP Wires

Pins:

12345678

Format

Output

Format C Sync SOG Video

RGBHV

RGBS

RGsB

Component*

S-video*

Composite*

* Input video format must match.

H +

V +

CSYNC

SOG

VIDEO

END

BI-232

Step 5 — Power

Plug the included external 12 VDC power supply into the

2-pole captive screw connector. Wire the connector as shown.

Step 6 — Peaking and Level

Image sharpness is adjusted with the Peaking control. Increased

peaking compensates for mid- and high-frequency detail loss.

The LED lights red when minimum (zero) and maximum

peaking is reached.

Image brightness is adjusted using the Level control.

View the image and adjust either control for the best image quality.

Step 7 — Skew compensation (SEQ model only)

Pair skew can be measured with test equipment or by viewing a crosshatch test pattern.

The SEQ receivers have built-in skew compensation capabilities. Adjust the equalization as

follows:

a. Zero the skew delay for red, green, and blue by using a

Tweeker or small screwdriver to press and hold the Select

button for 3 seconds. When the Red, Green, and Blue LEDs

all go out, release the Select button.

b. Use UTP cable test equipment or examine the displayed image

to determine which video signal, red, green, or blue, is shifted furthest to the right.

c. Adjust the furthest left video signal by using a Tweeker or screwdriver to press

and release the Select button until the LED for the left-shifted color lights.

d. Slowly rotate the Adjust control clockwise until the shifted color is properly aligned.

e. Repeat steps 6c and 6d to align the third color if needed.

Extron USA - West

Headquarters

+800.633.9876

Inside USA / Canada Only

+1.714.491.1500

+1.714.491.1517FAX

Extron USA - East

+800.633.9876

Inside USA / Canada Only

+1.919.863.1794

+1.919.863.1797FAX

Extron Europe

+800.3987.6673

Inside Europe Only

+31.33.453.4040

+31.33.453.4050 FAX

Extron Asia

+800.7339.8766

Inside Asia Only

+65.6383.4400

+65.6383.4664FAX

Extron Japan

+81.3.3511.7655

+81.3.3511.7656FAX

Extron China

+400.883.1568

Inside China Only

+86.21.3760.1568

+86.21.3760.1566 FAX

Extron Middle East

+971.4.2991800

+971.4.2991880 FAX

Setup Guide — MTP 1500RL 15HD RS Series, cont’d

DELAY

RED

GREEN

BLUE

SELECT

ADJUST

Po wer Supply

Output Cord

SECTION A–A

Ridges

Smooth

A A

Captive

Screw

Connector

Tie Wrap

16 (5 mm) Max.

INPUT

Tx Rx

RS-232

MONITOR

POWER

12V

.5AMAX

OUTPUT

CABLE

NORM LONG

MTPT VGA RS

POWER

12V

1.0AMAX

RS-232

OUTPUT

INPUT BUFFEREDOUTPUT

MTP1500RL 15HD RS SEQ

H+

V+

CSYNC

SOG

VIDEO

END

BI-232

MTP

POWER

12V

1.0AMAX

RS-232

OUTPUT

INPUTBUFFEREDOUTPUT

MTP1500RL 15HD RS SEQ

H+

V+

CSYNC

SOG

VIDEO

END

BI-232

MTP

Flat Panel

Display

Flat Panel

Display

Extron

MTP 1500RL 15HD RS SEQ

Mini Tw isted Pair Receiver

with Loop-T hrough and Skew EQ

500 ft UTP Cable

(CAT 5/5e/6)

Extron

MTP T 15HD RS

Mini Twisted Pair

Transmitter

RS-232

RGBHV

500 ft UTP Cable

(CAT 5/5e/6)

RS-232

RGBHV

Extron

MTP 1500RL 15HD RS SEQ

Mini Tw isted Pair Receiver

with Loop-T hrough and Skew EQ

Example of a typical MTP 1500RL 15HD RS SEQ application

68-1555-50

Rev. A

08 09
