Extron electronics DTP2 R 212 Series Manuel utilisateur

User Guide

DTP2R212 Series

DTP Systems

HDMI DTP2 Receiver and Switcher with Audio De-Embedding

68-2986-01 Rev. G

11 22

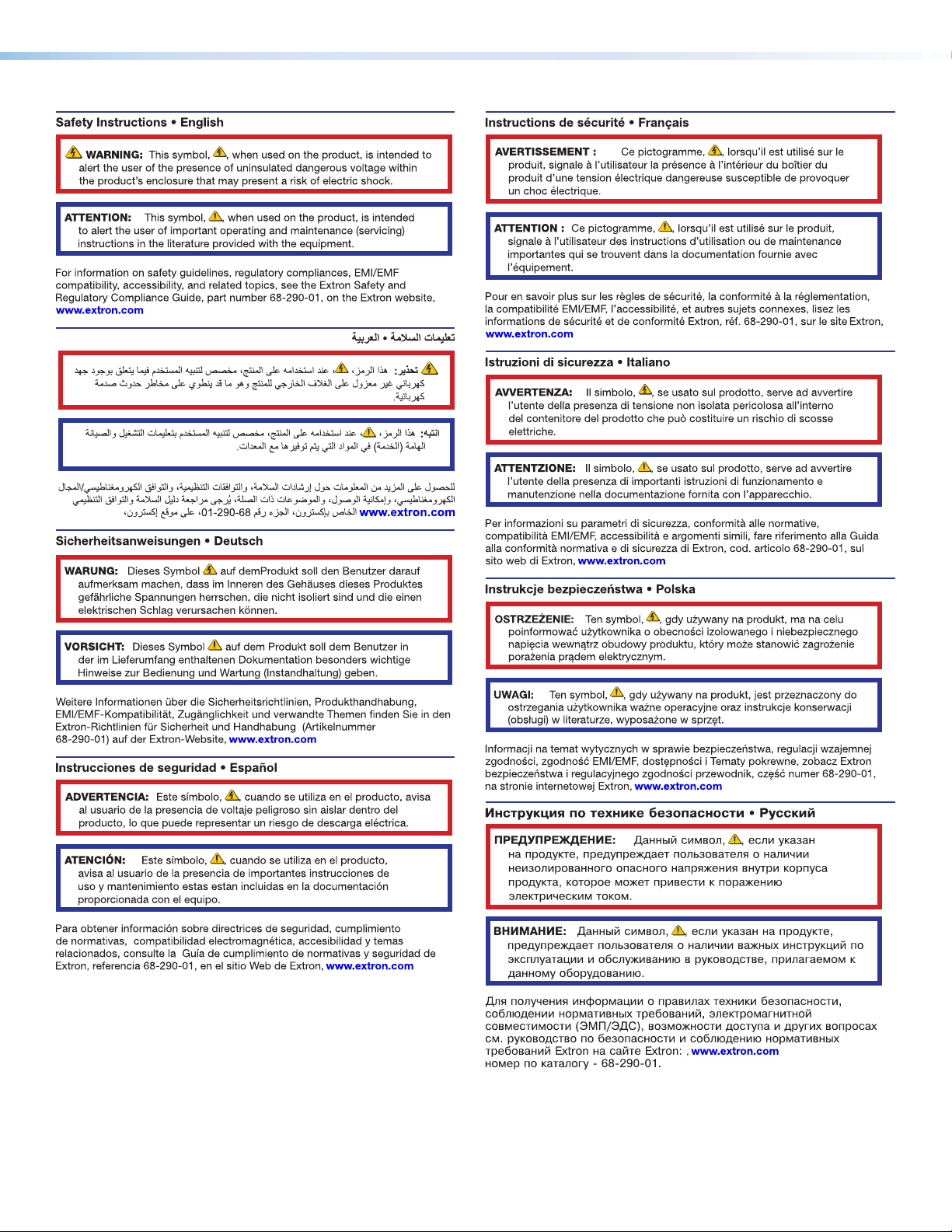

Safety Instructions

Trademarks

All trademarks mentioned in this guide are the properties of their respective owners.

The following registered trademarks(®), registered service marks(SM), and trademarks(TM) are the property of RGBSystems, Inc. or Extron

(see the current list of trademarks on the Terms of Use page at www.extron.com):

Registered Trademarks (®)

Extron, Cable Cubby, ControlScript, CrossPoint, DTP, eBUS, EDID Manager, EDID Minder, eLink, Flat Field, FlexOS, Glitch Free,

GlobalConfigurator, GlobalScripter, GlobalViewer, Hideaway, HyperLane, IPIntercom, IPLink, KeyMinder, LinkLicense, LockIt,

MediaLink, MediaPort, NAV, NetPA, PlenumVault, PoleVault, PowerCage, PURE3, Quantum, ShareLink, Show Me, SoundField,

SpeedMount, SpeedSwitch, StudioStation, SystemINTEGRATOR, TeamWork, TouchLink, V-Lock, VN-Matrix, VoiceLift, WallVault, WindoWall,

XPA, XTP, XTPSystems, and ZipClip

Registered Service Mark(SM) : S3 Service Support Solutions

Trademarks (™)

AAP, AFL (Accu-RATEFrameLock), ADSP(Advanced Digital Sync Processing), AVEdge, CableCover, CDRS(ClassD Ripple Suppression),

Codec Connect, DDSP(Digital Display Sync Processing), DMI (DynamicMotionInterpolation), DriverConfigurator, DSPConfigurator,

DSVP(Digital Sync Validation Processing), EQIP, Everlast, FastBite, Flex55, FOX, FOXBOX, IP Intercom HelpDesk, MAAP,

MicroDigital, Opti-Torque, PendantConnect, ProDSP, QS-FPC(QuickSwitch Front Panel Controller), RoomAgent, Scope-Trigger, SIS,

SimpleInstructionSet, Skew-Free, SpeedNav, Triple-Action Switching, True4K, True8K, Vector™ 4K, WebShare, XTRA, and ZipCaddy



FCC Class A Notice

This equipment has been tested and found to comply with the limits for a Class A digital device,

pursuant to part15 of the FCC rules. The ClassA limits provide reasonable protection against harmful

interference when the equipment is operated in a commercial environment. This equipment generates,

uses, and can radiate radio frequency energy and, if not installed and used in accordance with the

instruction manual, may cause harmful interference to radio communications. Operation of this

equipment in a residential area is likely to cause interference. This interference must be corrected at

the expense of the user.

ATTENTION:

• The Twisted Pair Extension technology works with unshielded twisted pair (UTP)

or shielded twisted pair (STP) cables; but to ensure FCC Class A and CE

compliance, STP cables and STP Connectors are required.

• La technologie extension paires torsadées fonctionne avec les câbles paires

torsadées blindées(UTP) ou non blindées(STP). Afin de s’assurer de la

compatibilité entre FCC ClasseA et CE, les câbles STP et les connecteurs STP

sont nécessaires.

NOTES:

• This unit was tested with shielded I/O cables on the peripheral devices. Shielded

cables must be used to ensure compliance with FCC emissions limits.

• For more information on safety guidelines, regulatory compliances, EMI/EMF

compatibility, accessibility, and related topics, see the Extron Safety and

Regulatory Compliance Guide on the Extron website.

Conventions Used in this Guide

Notifications

The following notifications are used in this guide:

CAUTION: Risk of minor personal injury.

ATTENTION : Risque de blessuremineure.

ATTENTION:

• Risk of property damage.

• Risque de dommages matériels.

NOTE: A note draws attention to important information.

TIP: A tip provides a suggestion to make working with the application easier.

Software Commands

Commands are written in the fonts shown here:

^AR Merge Scene,,0p1 scene 1,1 ^B 51 ^W^C.0

[01]R000400300004000080000600[02]35 [17] [03]

X! *X1&*

X2)*

X2#*

X2! CE}

NOTE: For commands and examples of computer or device responses mentioned

in this guide, the character “0” is used for the number zero and “O” is the capital

letter “o.”

Computer responses and directory paths that do not have variables are written in the font

shown here:

Reply from 208.132.180.48: bytes=32 times=2ms TTL=32

C:\Program Files\Extron

Variables are written in slanted form as shown here:

ping xxx.xxx.xxx.xxx —t

SOH R Data STX Command ETB ETX

Selectable items, such as menu names, menu options, buttons, tabs, and field names are

written in the font shown here:

From the File menu, select New.

Click the OK button.

Specifications Availability

Product specifications are available on the Extron website, www.extron.com.

Extron Glossary of Terms

A glossary of terms is available at http://www.extron.com/technology/glossary.aspx.

viiDTP2 R 212 Series • Contents

Contents

Introduction ................................................ 1

About this Guide.................................................. 1

About the DTP2R212 ........................................ 1

Features ............................................................. 2

Application Diagrams........................................... 5

Installation.................................................. 6

Installation Overview ............................................ 6

Rear Panel Features ............................................ 7

Wiring Connections ........................................... 11

Power Connector .......................................... 11

LAN Connector Wiring................................... 13

TP Connector and Cable

Recommendations ....................................... 13

Analog Audio Output Connector.................... 14

Display and Remote RS‑232 Control ............. 15

Remote Control (SA models only) .................. 15

Over DTP2 RS‑232 and IR Control ................ 16

LockIt Lacing Brackets ...................................... 17

Operation.................................................. 18

Front Panel Features.......................................... 18

Operations......................................................... 19

Powering on the Receiver.............................. 19

Selecting an Input.......................................... 19

Front Panel Lockout (Executive Mode)........... 20

Connecting to the USB Port .............................. 20

Conﬁguration..................................................... 20

Enabling Auto‑Input Switching....................... 20

EDID Minder .................................................. 21

HDCP............................................................ 21

Audio Configuration ....................................... 21

CEC Control ................................................. 22

Conﬁguration Software ............................. 23

Software/Firmware Installation ........................... 23

Connecting to PCS............................................ 25

Device Discover Panel .................................. 25

TCP/IP Panel................................................. 26

Offline Device Preview ................................... 27

Software Overview............................................. 28

Software Menu ............................................. 28

Device Menu.................................................. 31

Updating Firmware ............................................ 32

Uploading Firmware to the Switcher .............. 32

SIS Commands ......................................... 35

Using Simple Instruction Set (SIS) Commands... 35

Host‑to‑switcher Communications ................ 35

Switcher‑initiated Messages .......................... 35

Password Messages ..................................... 36

Error Responses............................................ 36

Timeout ......................................................... 37

Unsolicited Responses .................................. 37

Using the Command and Response Table ..... 37

Symbol Deﬁnitions............................................. 37

Command and Response Table for SIS

Commands ..................................................... 42

Command and Response Table for CEC SIS

Commands ...................................................... 51

Internal Web Page..................................... 53

Accessing the Internal Web Page ...................... 53

Web Page Panels.............................................. 54

Device Info Panel........................................... 54

Device Status Panel....................................... 55

Network Settings Panel ................................. 55

Firmware Panel.............................................. 56

Roles and Permissions Panel......................... 57

DTP2 R 212 Series • Contents viii

Mounting .................................................. 58

Mounting the DTP2R212 ................................. 58

Tabletop Use ................................................. 58

Mounting Kits ............................................... 58

Furniture Mounting......................................... 59

DTP2 R 212 Series • Introduction 1

Introduction

This section gives an overview of the Extron DTP2R 212 and DTP2 R 212 SA switching

receivers. Topics include:

• About this Guide

• About the DTP2R212

• Features

• Application Diagrams

About this Guide

This guide describes the DTP2R212 and DTP2R212 SA two‑input switching receivers

and provides instructions on how to install, configure, and operate them. The DTP2R212

switches and extends signals up to 330 feet (100 meters).

Details regarding configurating and operating the receivers through the Extron Product

Configuration Software (PCS) can be found in the DTP2R212 PCS Help File available after

you’ve opened up PCS (see Device Menu on page31).

In this guide, the DTP2R212 and DTP2R212 SA are commonly referred to as “receiver”,

“switcher”, “switching receiver”, or simply as DTP2R212.

About the DTP2R212

The Extron DTP2R212 is a two‑input switcher for 4K video signals with two simultaneous

outputs. The switching receiver features one HDMI and one DTP2 input, and one local

HDMI output. The device also features EDID Minder for managing EDID, and Key Minder for

managing HDCP outputs.

The DTP2R212 can also extract embedded HDMI two‑channel PCM audio to a stereo

captive screw output or an optional stereo amplifier output (DTP2 R 212 SA).

• The DTP2R212 receives the digital signal from Legacy DTP inputs up to 330feet

(100meters) with a maximum resolution of up to 4K @ 60 Hz, 4:2:0, with HDCP1.4,

supporting data rates up to 10.2Gbps.

• The DTP2R212 receives the digital signal from DTP2 inputs up to 330feet

(100meters) with a maximum resolution of up to 4K @ 60 Hz, 4:4:4, with HDCP2.3,

supporting data rates up to 18Gbps.

The switcher is housed in a one‑inch high, three‑quarter rack wide, rack‑mountable metal

enclosure, and is powered by an external power supply.

DTP2 R 212 Series • Introduction 2

Features

• Receives HDMI plus control and analog audio up to 330 feet (100 meters)

over a shielded CATx cable — The DTP2 R 212 models provide high reliability and

maximum performance on an economical and easily installed cable infrastructure.

• HDMI and DTP2 inputs

• HDMI input is ideal for connecting to a local source, such as a laptop or

ShareLink wireless collaboration gateway

• Supports computer and video resolutions up to 4K/60 @ 4:4:4 — Support of

4K/60 at 4:4:4 chroma sampling requires connection to a matching DTP2 product.

• Auto-switching between inputs — Auto‑switching allows for simple, unmanaged

installation. When multiple inputs are active, the switching priority is configurable.

• Supported HDMI 2.0b specification features include data rates up to 18 Gbps,

HDR, Deep Color up to 12-bit, 3D, HD lossless audio formats, and CEC

• Support for HDR – High Dynamic Range video — Enables greater contrast range

and wider color gamut by providing the necessary video bandwidth, color depth, and

metadata interchange capability for HDR video.

• HDCP 2.3 compliant — Ensures display of content‑protected 4K video media and

maintains interoperability with earlier versions of HDCP.

• Stereo audio de-embedding — Embedded HDMI two‑channel PCM audio can be

extracted to the stereo captive screw output or the optional stereo amplifier output.

• CEC - Consumer Electronics Control Capability — Standard, built‑in CEC

commands can be triggered to control displays or other AV devices connected to

the HDMI output. The ability to control specific functions, such as power on/off, input

selection, or volume level, is dependent on implementation by the device manufacturer.

• Extron XTP DTP 24 shielded twisted pair cable is strongly recommended for

optimal performance

• Compatible with CATx shielded twisted pair cable — The DTP2R212 models fully

support a maximum transmission distance of 330 feet (100 meters) for all compatible

resolutions when used with CATx shielded twisted pair cable. Shielded twisted pair

cabling with solid center conductor sizes of 24 AWG or better is recommended for

optimal performance.

• Remote power capability with DTP2 products — For simplified installation, the

standard DTP2 R 212 without amplifier can be remotely powered by a DTP2 transmitter

over the twisted pair connection. It can also be configured to provide power to the

connected DTP2 transmitter.

• Accepts additional analog stereo audio signals — The DTP2R212 models accept

stereo analog audio from a DTP‑enabled product. This audio may be switched to the

stereo captive screw output or the optional stereo amplifier output, independent of the

video input selection.

• Stereo audio embedding — Pass‑through audio from the DTP input can be

embedded onto the HDMI output.

• Bidirectional RS-232 and IR pass-through for AV device control — Bidirectional

RS‑232 control and IR signals can be transmitted alongside the video signal, allowing

remote AV devices to be controlled without the need for additional cabling.

• RS-232 insertion from the Ethernet control port — Saves system resources and

simplifies installation by enabling a control processor to access remote RS‑232 devices

over Ethernet.

Autres manuels pour DTP2 R 212 Series

Table des matières

Autres manuels Extron electronics Récepteur

Extron electronics

Extron electronics Twisted Pair Transmitter TP T 15HD A Manuel utilisateur

Extron electronics

Extron electronics Twisted Pair Transmitter VTT001 Manuel utilisateur

Extron electronics

Extron electronics MTP/HDMI U R Manuel utilisateur

Extron electronics

Extron electronics FOX 500 Tx Manuel utilisateur

Extron electronics

Extron electronics MTP 15HD RS Series Manuel utilisateur

Extron electronics

Extron electronics XTP R HWP 201 4K Manuel utilisateur

Extron electronics

Extron electronics MTP U R A Manuel utilisateur

Extron electronics

Extron electronics MTP 1500RL 15HD A SEQ Manuel utilisateur

Extron electronics

Extron electronics Digital Video Transmitter and Receiver DVI 201... Manuel utilisateur

Extron electronics

Extron electronics XTP SFR HD 4K Manuel utilisateur

Extron electronics

Extron electronics Twisted Pair Transmitter VTT001 Manuel utilisateur

Extron electronics

Extron electronics MTP R 15HD RSA D Manuel utilisateur

Extron electronics

Extron electronics FOX3 T 301 Manuel utilisateur

Extron electronics

Extron electronics XTP R HWP 201 Manuel utilisateur

Extron electronics

Extron electronics MTP 15HD A Series Manuel utilisateur

Extron electronics

Extron electronics MTP 15HD A Series Manuel utilisateur

Extron electronics

Extron electronics FOX3 SR 301 Manuel utilisateur

Extron electronics

Extron electronics TPT101 Manuel utilisateur

Extron electronics

Extron electronics DTP2 R 212 Series Manuel utilisateur

Extron electronics

Extron electronics DDTX/DDRX DVI Manuel utilisateur

Extron electronics

Extron electronics MTP 1500RL 15HD A SEQ Manuel utilisateur

Extron electronics

Extron electronics MTP R 15HD RSA D Manuel utilisateur

Extron electronics

Extron electronics Dual Link DVI Transmitter and Receiver DVI DL 201... Manuel utilisateur

Extron electronics

Extron electronics Digital Video Transmitter and Receiver HDMI 201... Manuel utilisateur

Manuels Récepteur populaires d'autres marques

Garmin

Garmin GA 23 Manuel utilisateur

Aiphone

Aiphone PS-12F Manuel utilisateur

IMES

IMES TCS-01CA-PMI Manuel utilisateur

BWI Eagle

BWI Eagle AIR-EAGLE SR Manuel

AMIMON

AMIMON AMN12310 WHDI Manuel utilisateur

Dual

Dual DMCPA79BT Mode d'emploi

Sound Associates

Sound Associates SA652P Manuel utilisateur

Sherwood

Sherwood NewCastle R-772 Manuel utilisateur

Audio

Audio A10-RX Series Manuel utilisateur

AllSee

AllSee PushShare PSRV1.1 Manuel utilisateur

DEMAG

DEMAG DRC-DR D2 Manuel utilisateur

Teleco

Teleco TVRCL868A02 Manuel utilisateur

Bosch

Bosch RF3222E Manuel utilisateur

Kramer

Kramer 631R Manuel utilisateur

Xpress

Xpress xmc10 Manuel utilisateur

JVC

JVC KD-MR1BTS Manuel utilisateur

Omega Engineering

Omega Engineering UWTC-REC3 Manuel utilisateur

e-survey

e-survey E300 Pro Manuel utilisateur
