SMB 203 L and SMB 205 L Installation GuideSMB 203 L and SMB 205 L Installation Guide

SMB 203 L and SMB 205 L Installation Guide

NFor illustration purposes, the following steps use the SMB 205 L as an example, but

the instructions apply to the SMB 203 L as well.

1. For tabletop placement, the four included adhesive rubber feet may be applied to

the bottom corners of the mounting base.

2. For angled installations, securely mount the SMB using the two keyhole slots

and/or mounting holes in the mounting base.

Mount the SMB using the keyhole slots and/or

the mounting holes:

• Position the SMB at the

desired location.

• Mark the holes on the

surface to be drilled. See

the illustration at right.

3. Drill 1/16" pilot holes for

the keyhole slots or the

mounting holes. For the

keyhole slots, insert screws

into the pilot holes, but

do not tighten them down until the SMB is slid into position. For the mounting

holes, position the SMB over the holes and secure the SMB into position.

4. Cables may access the SMB through the AAP openings in the rear panel and the

bottom mounting base.

If cables are to access the SMB through the rear panel, use the rear panel AAP

openings, as shown here. AAP modules are sold separately.

Rear Mounting

Nuts

AAPs

(not included)

Optional Split AAP

Mark pilot holes

for keyhole slot (1/16”)

or mounting hole (1/16”).

Mark pilot holes

for keyhole slot (1/16”)

or mounting hole (1/16”).

Extron Electronics, USA

1230 South Lewis Street

Anaheim, CA 92805

800.633.9876 714.491.1500

FAX 714.491.1517

Extron Electronics, Europe

Beeldschermweg 6C

3821 AH Amersfoort, The Netherlands

+800.3987.6673 +31.33.453.4040

FAX +31.33.453.4050

Extron Electronics, Asia

135 Joo Seng Rd. #04-01

PM Industrial Bldg., Singapore 368363

+800.7339.8766 +65.6383.4400

FAX +65.6383.4664

Extron Electronics, Japan

Kyodo Building, 16 Ichibancho

Chiyoda-ku, Tokyo 102-0082

Japan

+81.3.3511.7655 FAX +81.3.3511.7656

www.extron.com

Number of accessible AAP openings

SMB 203 L........................... 1 double-space (back), 1 double-space (bottom)

SMB 205 L........................... 2 double-space (back), 2 double-space (bottom)

Included blank AAP plates

SMB 203 L........................... 1 double-space

SMB 205 L........................... 2 double-space

Furniture mounting holes............ 4 (2 are slotted)

Cable management lance punches

SMB 203 L....................................... 2

SMB 205 L....................................... 3

Front angle ..................................... 36° from vertical, 54° from horizontal

Product weight

SMB 203 L........................... 1.1 lbs (0.5 kg)

SMB 205 L........................... 1.6 lbs (0.7 kg)

Shipping weight ............................ 2 lbs (1 kg)

Vibration ........................................ ISTA 1A in carton (International Safe Transit

Association)

Warranty ........................................ 3 years parts and labor

NSpeciﬁcations are subject to change without notice.

68-1497-01 Rev. A

11 07

Models

Models Part number

SMB 203 L (black, white) 60-942-02, -03

SMB 205 L (black, white) 60-943-02, -03

Included Parts

These items are included in each order of the SMB 203 L or SMB 205 L.

Included parts Replacement

part number

Adhesive rubber feet (4)

Blank double-spaced AAP (1), SMB 203 L only

70-090-12 (black)

70-090-22 (white)

Blank double-spaced AAP (2), SMB 205 L only

70-090-12 (black)

70-090-22 (white)

SMB 203 L and SMB 205 L Installation GuideSMB 203 L and SMB 205 L Installation Guide

If cables are to access the SMB through a hole cut into the mounting surface:

• Mark the pass-through location through the mounting base AAP opening(s).

• Detach the SMB from the mounting surface and cut the opening(s) using an

appropriate saw, drill, or other tool.

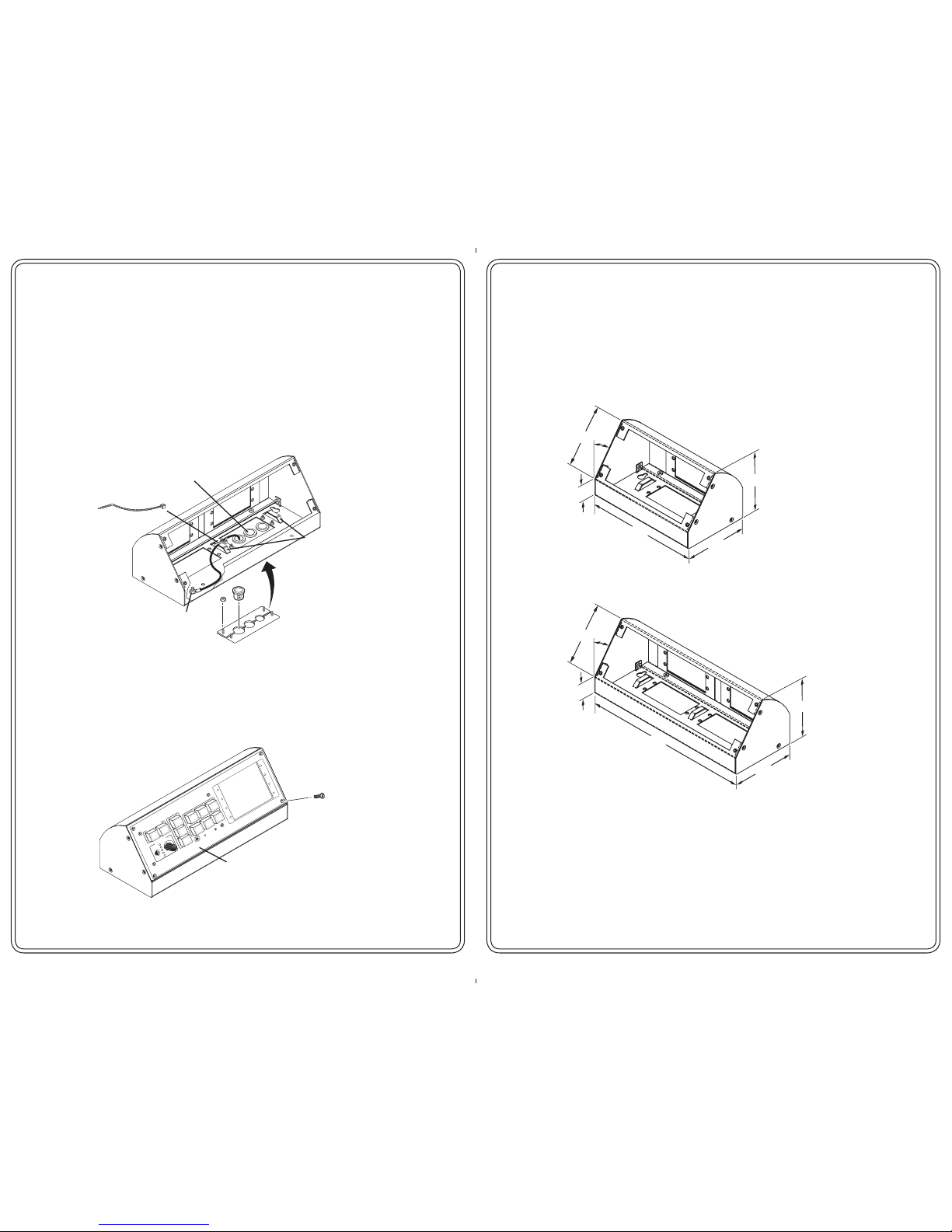

5. With the SMB fastened to the mounting surface, run all necessary cables through

the pass-through opening before installing any device(s) into the SMB. See the

following illustration.

NThe SMB has cable management tiedown points for securing the cables

into position. There is also a grounding stud for grounding any installed

device(s).

Optional Split AAP

Cable Tie

Pass-through Openings

for Cables

Ground Stud

Cable Management Tiedown Points

6. Test all device(s) to be installed with the cables attached prior to fastening them to

the SMB.

7. Attach the device to the front of the SMB enclosure.

Front

Mounting

Screws

Extron

MLC 226 AAP L

Extron

PROJECTOR

123

456

VOLUME

CONFIG

AUX

VIDEO

DVD

VCR

DOC

CAM

LAPTOP

AUTO


MUTE

ON OFF

MediaLink

Speciﬁcations

General

Mounting........................................ Surface mountable or mountable to furniture

including lecterns and tabletops

Enclosure type .............................. Metal

Enclosure dimensions

SMB 203 L .......................... 3.6" H x 6.5" W x 3.8" D

9.2 cm H x 16.5 cm W x 9.7 cm D

3.82"

3.60"

6.51"

1.00"

3.20" 36°

SMB 205 L .......................... 3.6" H x 10.0" W x 3.8" D

9.2 cm H x 25.4 cm W x 9.7 cm D

3.82"

3.60"

10.00"

1.00"

3.20" 36°

Faceplate compatibility

SMB 203 L........................... Mounts a low-proﬁle, 3.2" high, 6.5" wide, L-type

faceplate

SMB 205 L........................... Mounts a low-proﬁle, 3.2" high, 10.0" wide, L-type

faceplate

NThe SMB 200 Series does not accommodate products with US gang-sized

faceplates; they mount only low-proﬁle, L-type faceplates, including those of

the MLC 226 IP L and MLM 104 LAAP.
