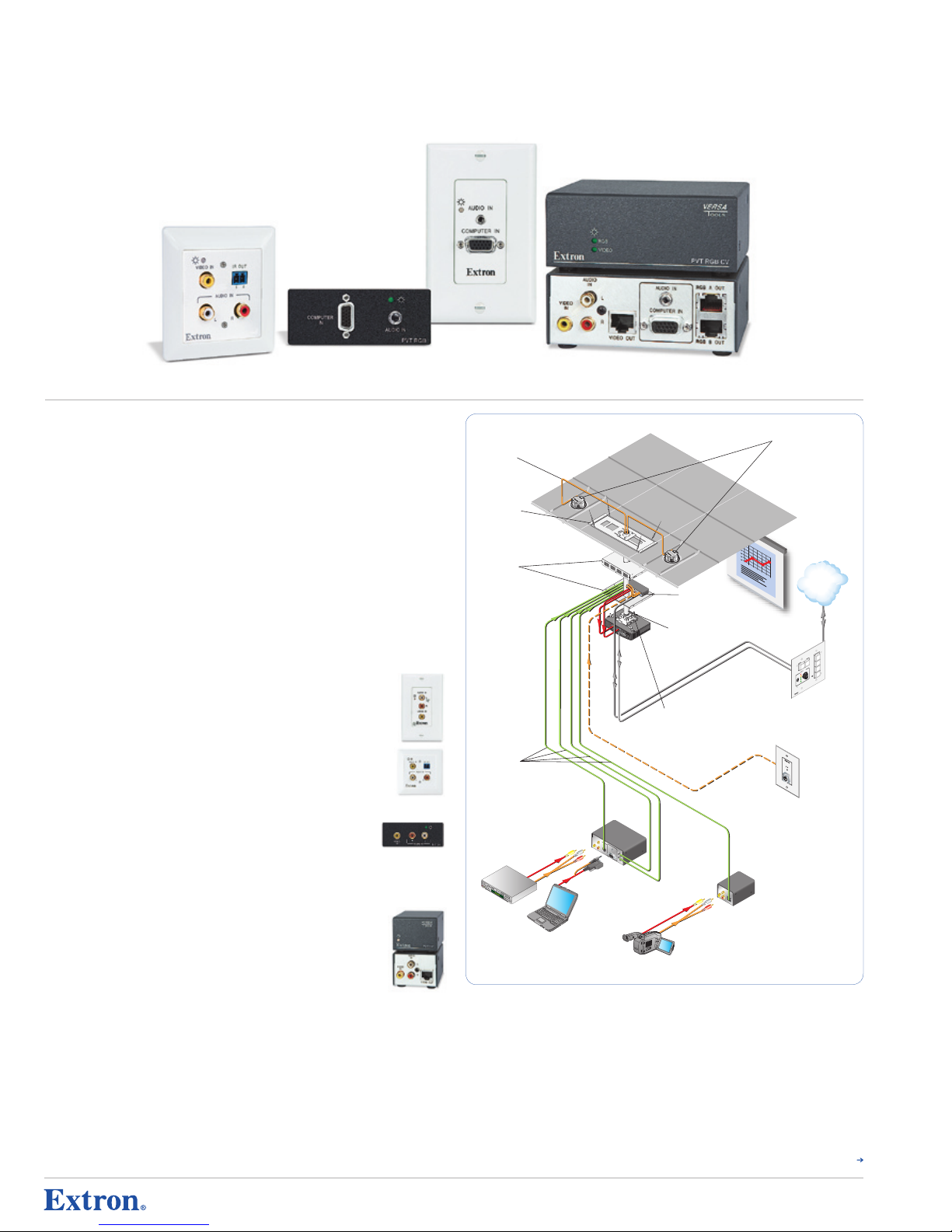

PoleVault SyStem comPonentS

PoleVault System A/V Source Inputs

VGA Computer-Video, Composite Video, and Audio Source Inputs

common features

• Available exclusively as part of a PoleVault System

• Send video and stereo audio signals to a PVS 204SA switcher over CAT 5, 5e, or

6 UTP cable

• Powered by the PVS 204SA switcher via twisted pair cable

• LED power indicator

description

PoleVault System A/V Source Input Wallplates are designed to work exclusively with the

PVS 204SA Four Input Twisted Pair PoleVault Switcher as part of a PoleVault System. All

PVT Series source inputs can be used with any CAT 5, 5e, or 6 twisted pair cable. PoleVault A/V

Source Inputs require no local power supply and are powered remotely by the PVS 204SA

switcher via the twisted pair cable.

PVT Series inputs are available in four form factors:

Decora®wallplates: Designed for mounting in a one gang US external

wall box.

EU wallplates: Designed for mounting in a European junction box with 60 mm

mounting centers using the included matching Jung AS500 Series cover.

AAP modules: Provide ﬂexible mounting options when used in conjunction

with other products, such as Extron MediaLink™controllers with AAP openings,

Extron AAP mounting frames, or third-party ﬂoorboxes.

Rack-mountable enclosures: Utilized in applications with space for permanently

installing source equipment, such as in equipment closets, inside podiums,

or credenzas.

Continued
