Extron electronics EWB 112 Manuel utilisateur

IMPORTANT:

Go to for the

complete user guide, installation

instructions, and specifications.

www.extron.com

EWB 112 • Installation Guide

Overview

The Extron EWB 112 is a two-gang external wall box. It provides

complete compatibility in t and nish with Extron devices such

as the MLC Plus 100 and DTP T UWP 4K 232 D. Figure 1 shows

a typical application.

This guide provides basic instructions for installation of either

model by an experienced installer.

Equipment Needed but not Provided

• Stud detector • Cable raceway (optional)

• Electric drill • Fasteners for wall mounting

(see the table under gure 2,

below)

• Screw driver

• Small wire cutters

ON PC

VIDEO

MUTE

OFF

LAPTOP

ON PC

VIDEO

MUTE

OFF

LAPTOP

MLC Plus 100

EWB 112

Figure 1. Typical Application for EWB 110 Series Wall Box

EWB 112 Mounting Holes

The EWB 112 is mounted directly onto the wall. Use the mounting holes shown in gure 2.

6-32

Figure 2. EWB 112 Mounting Holes

ADevice mounting holes (4) — use #6-32 screws.

BPrimary wall mounting holes (4) — use screws and fasteners that are appropriate for the wall.

Wall Type Fastener Minimum Size

Fastener

Quantity Drill Bit Size Notes

Dry wall Toggle bolts 3/16 inch at least 2 1/2 inch Wall thickness 3/8 inch minimum

Solid wood Wood screws #6 at least 2 1/8 inch Wall thickness 3/8 inch minimum

Masonry Masonry screws 3/16 inch at least 2 5/32 inch masonry bit Do not mount to masonry joints.

CAdditional wall mounting holes (2) — These holes should be used only if the primary wall mounting holes (C) cannot be

used.

DHole for optional #6 hex grounding screw.

EHole for optional M3 hex grounding screw.

NOTE: The nuts and screws are not provided and must be obtained separately.

FKnockout covers (4) — see Knockout Covers on the next page.

gure 2

wall mounting holes table

EWB 112 • Installation Guide (Continued)

For information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the

Extron Safety and Regulatory Compliance Guide on the Extron website.

All trademarks mentioned are the property of their respective owners. 68-3293-01 Rev. A

10 18

Installation

Run cables to the wall box. You can use any of the four openings with a surface

raceway. The raceway must be purchased separately.

Knockout Covers

The rear panel has four covers that can be removed to ll the unused openings. Two of

the four covers contains a nested knockout that can be removed to provide a smaller

opening to match the prole of smaller raceways or cables.

• The four openings (without covers) are 1.28" x 0.77" (33 mm x 20 mm).

• The nested knockouts are 0.7" x 0.5" (18 mm x 13 mm).

Install the covers by following these instructions.

1. Remove the cover, using small wire cutters to cut the plastic attaching the cover to

the wall box (1).

2. If required, use the wire cutters to remove the nested knockout.

3. Ensure the cover is in the correct orientation and slide it into place (2).

Use small wire

cutters to remove

knockout cover.

Slide knockout

cover onto slots.

Figure 3. Covering Knockouts

Wall Mounting

1. If required, locate the center of a wall stud and hold the wall box

where it will be mounted.

2. Mark the position of the four wall mounting holes (see gure 4). Wall

studs should be used where possible. If they are not available, use

appropriate fasteners to secure the screws.

3. Select a suitable fastener and drill pilot holes in the wall (see the

wall mounting holes table on the previous page).

4. If required, insert a grounding screw (not provided, see ﬁgure 2, D

and Eon the previous page).

5. Fasten the wall box to the wall.

6. If required, install a cable raceway to manage the cables.

6-32

2.89"

73 mm

2.10"

53 mm

3.28"

83 mm

4 x #6-32

2 x 0.15" Ø

(3.8 mm)

4 x 0.18"

(4.7 mm)

Figure 4. Mounting Holes Dimensions

Completing the Installation

1. Run and connect cables to the device, following the instructions in

the device user guide.

2. Mount the device (see gure 5) using the #6-32 screws provided

with the device and following the instructions in the device user

guide.

6-32

Extron

DISPLAY

VOLUME

MLC Plus 100

EWB 112

Faceplate

Figure 5. Completing the Installation

Table des matières

Autres manuels Extron electronics Enceinte

Extron electronics

Extron electronics EWB 212 Manuel utilisateur

Extron electronics

Extron electronics MLM-WB Manuel utilisateur

Extron electronics

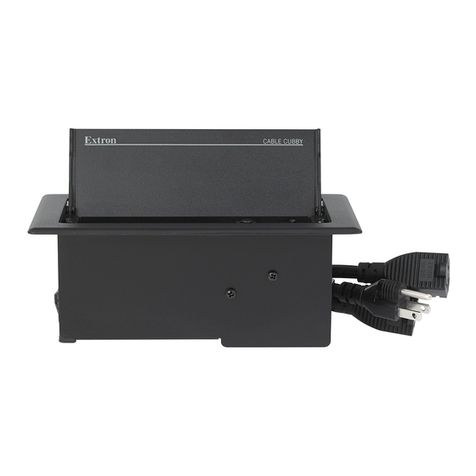

Extron electronics Cable Cubby 202 Manuel utilisateur

Extron electronics

Extron electronics HSA 200SE Manuel utilisateur

Extron electronics

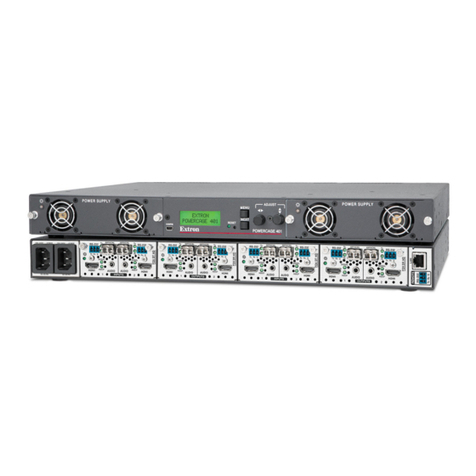

Extron electronics PowerCage 401 Manuel utilisateur

Extron electronics

Extron electronics CS 120P Manuel utilisateur

Extron electronics

Extron electronics PowerCage 401 Manuel utilisateur

Extron electronics

Extron electronics PowerCage 411 Series Manuel utilisateur

Extron electronics

Extron electronics Cable Cubby 300S Manuel utilisateur

Extron electronics

Extron electronics NBP 1200C Manuel utilisateur

Extron electronics

Extron electronics HSA 822 Manuel utilisateur

Extron electronics

Extron electronics CCD 220 Manuel utilisateur

Extron electronics

Extron electronics PowerCage 411 Manuel utilisateur

Extron electronics

Extron electronics HSA 822M Manuel utilisateur

Extron electronics

Extron electronics SMB 110 Series Manuel utilisateur

Extron electronics

Extron electronics EBP 1200C Manuel utilisateur

Extron electronics

Extron electronics PowerCage 1600 Manuel utilisateur

Extron electronics

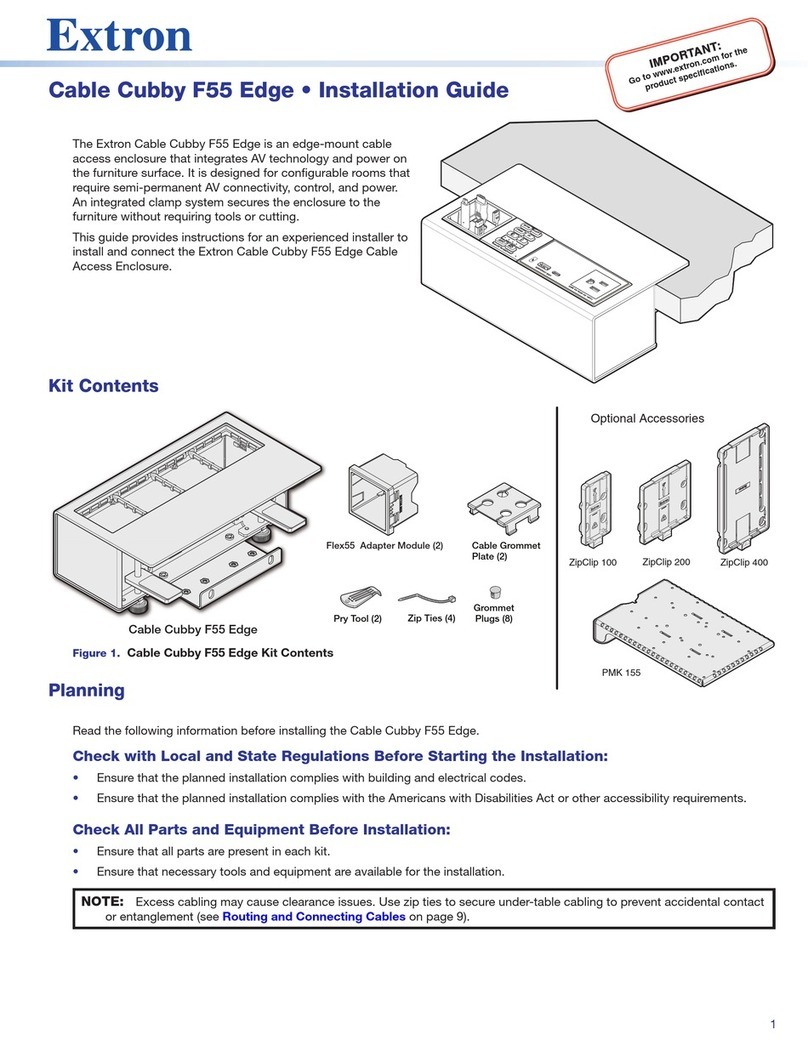

Extron electronics Cable Cubby F55 Edge Manuel utilisateur
