Cable Cubby 202 • Installation Guide

This guide provides instructions for an experienced installer to install and connect the

Extron Cable Cubby 202 Cable Access Enclosures.

The Cable Cubby units are furniture-mounted enclosures for cable access,

connections, and AC power. Cables that are not in use can be stored out of

the way while remaining connected to the presentation system.

Planning

Check with local and state regulations before

starting the installation:

Ensure that the planned installation complies with building and

electrical codes.

Ensure that the planned installation complies with the Americans with Disabilities

Act or other accessibility requirements.

Check all parts and equipment before installation:

Ensure that all parts are present in each kit.

Ensure that necessary tools and equipment are available for the installation.

Preparing the Table

Cut a hole in the surface where the enclosure will be installed. Read the following information before making a cut.

Determine the best location for the enclosure

Ensure that the location where the Cable Cubby is to be installed is convenient for as many users as possible.

Ensure that the edge on which the lid opens is oriented correctly.

Ensure that there is ample space under the table for cables.

Choose a method for cutting the hole in the table

See the next page for details on cutting the hole in the table.

CABLE CUBBY

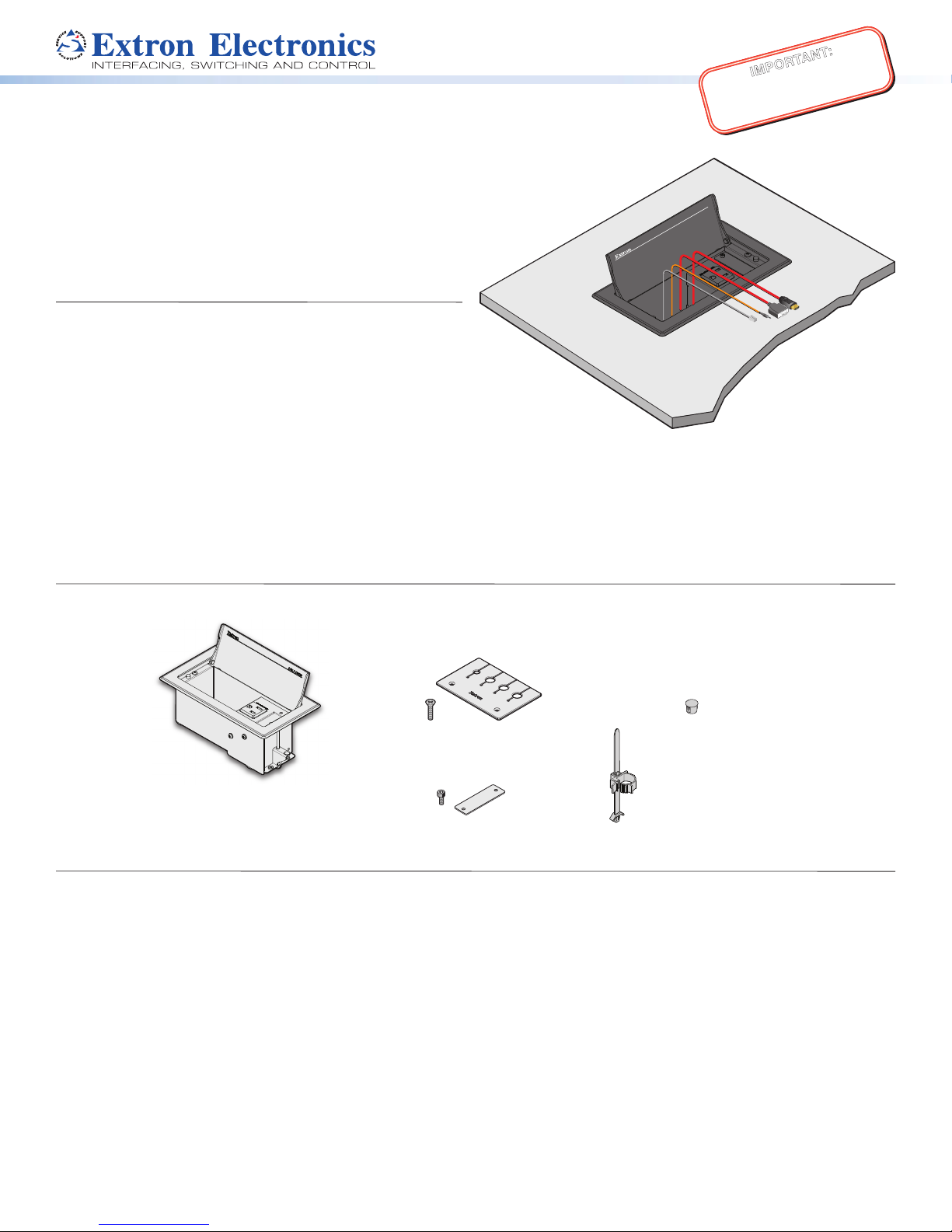

Kit Contents

Grommet Plugs

(3) 3/8", (1) 1/4"

AC Cord

Retainer Clip

(Non-US models only)

Cable Grommet Plate

and #4-40 Plate Screws

Cable Cubby 202

Mini AAP and #4-40 Mounting

Screws (US model only)

Cable Cubby 202 • Installation Guide (Continued)

Preparing the Cable Cubby

Assemble the cable pass-through plate and (for US models) install a Mini AAP.

Choose one of the following methods for cutting the hole:

Hand Router and Routing Template Jigsaw and Paper Cut-Out Template CNC Wood Router

If using a CNC wood router or

other precise machinery, use the

exact cut-out dimensions (see the

table below).

Visit www.extron.com for Cable Cubby

routing template part numbers and

instructions.

Dimensions and cut-out templates are

available online at www.extron.com.

The opening in the table for the Cable Cubby should be cut only by licensed and bonded craftspeople.

CAUTION: Wear safety glasses when operating power equipment. Failure to comply can result in eye injury.

ATTENTION: Portez des lunettes de sécurité lorsque vous utilisez l’équipement électrique. Ne pas respecter cela peut

conduire à une blessure à l’oeil.

Cut-out Dimensions

User Access

Width

Side Dimension

7.0"

(17.8 cm)

3.25"

(8.3 cm)

US models only:

Install a Mini AAP into the

opening by the AC connection.

Connect AV cables to the Mini

AAP if necessary, and secure

the plate using the provided

plate screws.

Insert the assembled plate into the

enclosure and secure the plate, using

the included plate screws.

Assemble the cable pass-through

plate with your choice of AV cables.

Snap the included hole plugs into

any unused holes.

Cut-Out Template for the Extron

Cable Cubby 202

User Access

0.00” (0.00 cm)

0.02 (0.05 cm)

Outer Edge of Front Bezel

(Do not cut this line.)

1. Confirm the product to be installed.

2. Remove the surface cut-out area

(gray) from the template.

3. Measure the cutout and template.

4. Mark the position on the

furniture where the Cable Cubby 202

will be installed.

5. Double check dimensions and position,

then cut the opening.

P/N ??-????-01 Rev.A

Page size: 11" x 17"

Print scale 1:1

Do not shrink.

3.25"

(8.25 cm)

7.0"

(17.78 cm)

SURFACE

CUT-OUT

AREA

Cut-OutRadius:

0.25" (0.6cm)

Cut-Out T

Cab

Cut-Out Template for the Extron

Cable Cubby 202

User Access

0.00” (0.00 cm)

0.02 (0.05 cm)

Outer Edge of Front Bezel

(Do not cut this line.)

1. Confirm the product to be installed.

2. Remove the surface cut-out area

(gray) from the template.

3. Measure the cutout and template.

4. Mark the position on the

furniture where the Cable Cubby 202

will be installed.

5. Double check dimensions and position,

then cut the opening.

P/N ??-????-01 Rev.A

Page size: 11" x 17"

Print scale 1:1

Do not shrink.

3.25"

(8.25 cm)

7.0"

(17.78 cm)

SURFACE

CUT-OUT

AREA

Cut-OutRadius:

0.25" (0.6cm)

Cut-Out T

Cab

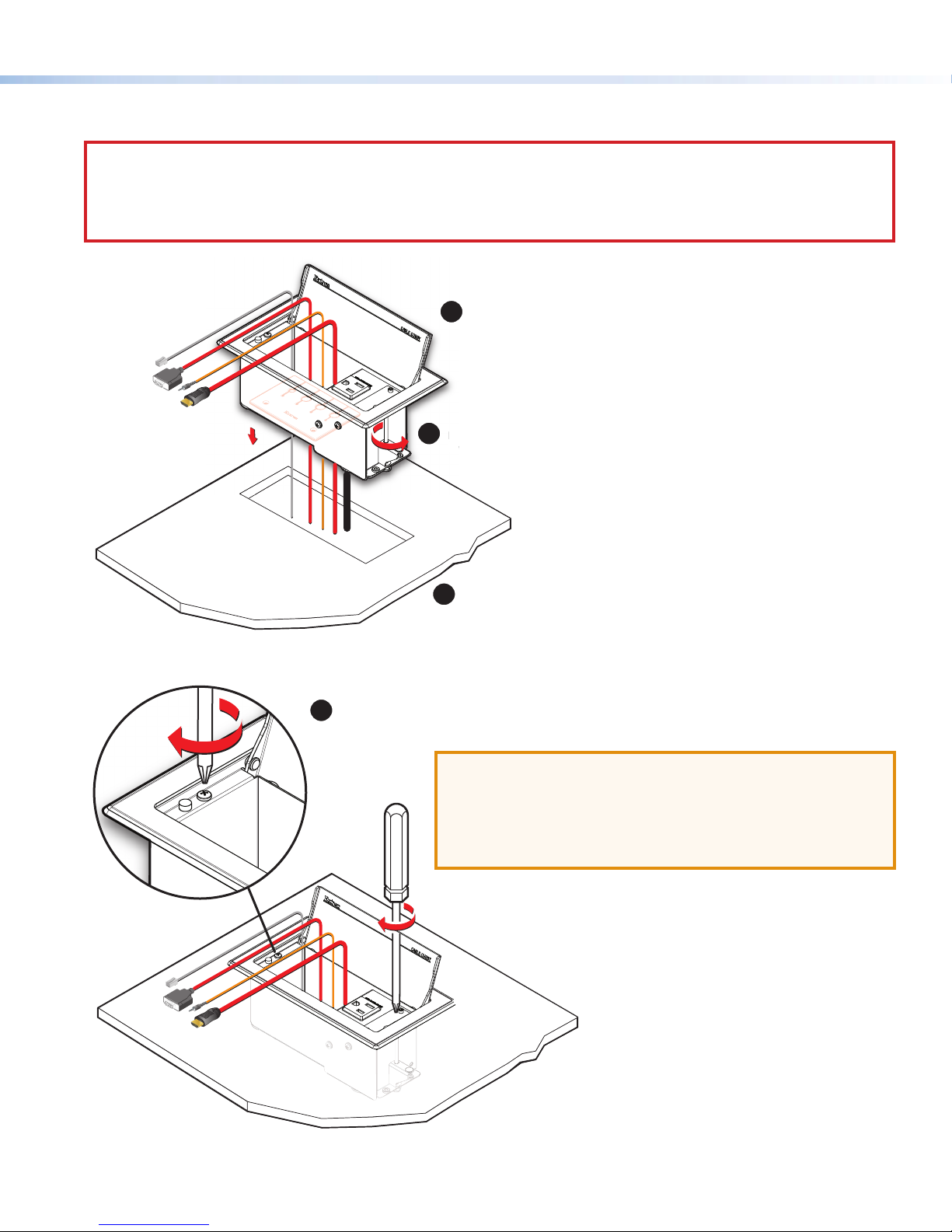

Mounting and Installing the Cable Cubby in the Table

CAUTION: The anged edges of the top of the surface enclosure are sharp. These edges are also soft and may be easily

nicked or bent. Exercise caution when handling the enclosure to prevent personal injury or damage to the enclosure.

ATTENTION: Les extrémités à brides du haut de la surface du boîtier sont aiguisées. Ces extrémités sont aussi lisses

et peuvent facilement être coupées ou pliées. Soyez prudents lorsque vous manipulez le boîtier an d’éviter de

l’endommager ou de vous blesser.

Ensure that the Cable Cubby is rmly seated in the table.

Using a screw driver or drill, turn the clamp screw clockwise

and slowly tighten it to secure the enclosure to the surface.

Lower the Cable Cubby into the hole

to test the t. If necessary, carefully

enlarge the opening.

Remove the plastic strips and lm on the

surface of the Cable Cubby.

Ensure that the side clamps are

seated against the enclosure.

Ensure that the Cable Cubby is rmly seated in the table.

Using a screw driver or drill, turn the clamp screw clockwise

and slowly tighten it to secure the enclosure to the surface.

Lower the Cable Cubby into the hole

to test the t. If necessary, carefully

enlarge the opening.

Remove the plastic strips and lm on the

surface of the Cable Cubby.

Ensure that the side clamps are

seated against the enclosure.

ATTENTION: Do not overtighten the Phillips head screws on the

screw clamps. Overtightening can bend the horizontal ange of

the screw clamp.

ATTENTION: Ne serrez pas trop les vis à tête Phillips sur les pinces à

visser. Le fait de trop serrer peut faire se plier la xation horizontale

de la pince à vis.

68-2486-01

Rev. A

04 14

Extron Headquarters

+800.633.9876 Inside USA/Canada Only

Extron USA - West Extron USA - East

+1.714.491.1500 +1.919.850.1000

+1.714.491.1517 FAX +1.919.850.1001 FAX

Extron Europe

+800.3987.6673

Inside Europe Only

+31.33.453.4040

+31.33.453.4050 FAX

Extron Asia

+65.6383.4400

+65.6383.4664 FAX

Extron Japan

+81.3.3511.7655

+81.3.3511.7656 FAX

Extron China

+86.21.3760.1568

+86.21.3760.1566 FAX

Extron Middle East

+971.4.299.1800

+971.4.299.1880 FAX

Extron Korea

+82.2.3444.1571

+82.2.3444.1575 FAX

Extron India

1800.3070.3777

(Inside India Only)

+91.80.3055.3777

+91.80.3055.3737 FAX

Routing and Connecting Cables

Installation Checklist

Planning (page 1)

Check with local and state regulations before starting the installation.

Check all parts and equipment before installation.

Preparing the Table (pages 1 and 2)

Determine the best location for the enclosure.

Choose a method for cutting the hole in the table.

Preparing the Cable Cubby (page 2)

Assemble the cable pass-through plate and (for US models) install a Mini AAP.

Mounting and Installing the Cable Cubby in the Table (page 3)

Routing and Connecting Cables (page 4)

NOTE:

• For cable pass-through

applications, allow at least

36 inches (0.9 m) of cable

loop for each cable.

• Ensure that there is no

tension on the power cable.

Connect cables to the AV

system

and connect the AC power cord.

Use zip ties to secu

cables to the r

ectangular

holes in r

ear of Cable

Cubb

Cable Retainer for Non-US Models

For non-US models, secure the power cable with

the included cable retainer as shown below.

CAUTION:

Risk of Electric Shock.

This equipment must be

grounded.

ATTENTION:

Risque de choc électrique.

Cet équipement doit être xé

au sol.
