MLCPlus84D • Setup Guide

The Extron MLCPlus 84 D MediaLink®Controller with IP Link®Pro integrates Ethernet

connection into AV systems to allow users to remotely control, monitor, and troubleshoot AV

equipment, including display devices and switchers. The controller includes an embedded

Web server and support for Power over Ethernet (PoE). It also includes

ports for bidirectional serial control, IR output, relays, digital input, and

volume control.

The MLCPlus84D fits a standard US two-gang electrical

junction box or mud ring. It includes a two-gang

Decora®-style wallplate and a two-gang mud ring.

This guide provides instructions for an experienced

installer to install an MLCPlus84 Series controller and

to create a basic configuration. Configure the

controller using Extron GlobalConfigurator (GC)

software running in Global Configurator Professional

(GCProfessional) or GlobalConfigurator Plus (GCPlus)

mode. The MLC integrates with Extron GlobalViewer®

Enterprise (GVE) software and the GlobalViewer

Web-based AV resource management for remote control

applications. Global Configurator and other useful software

applications are available at www.extron.com.

Installation

Step 1: Get Ready

Use the following check list to prepare for the installation.

Download and install the latest version of the following:

• Global Configurator software — for setting up and configuring the controller. GC includes the Toolbelt feature and a

way to upgrade the firmware of the controller. You must have an Extron Insider account and contact an Extron support

representative to obtain GC software (see Locating Software, Firmware, and Driver Files on the Extron Website on

page10).

• IPLinkPro device drivers — for use with GC, to make control of other devices possible.

All are available from www.extron.com (see Locating Software, Firmware, and Driver Files on the Extron Website on page10).

Obtain network information for the unit from the network administrator. You will need the following details for each IPLinkPro

device:

DHCP setting (on or off) Subnet mask User name

Device (MLC Plus 84) IP address Gateway IP address Passwords

Write down the MAC address of each IPLinkPro device (such as the MLC Plus 84) to be used.

Obtain model names and setup information for devices the MLC Plus 84 will control.

Step 2: Prepare the Installation Site

ATTENTION:

• Installation and service must be performed by authorized personnel only.

• L’installation et l’entretien doivent être effectués par le personnel autorisé uniquement.

• Extron recommends installing the MLC Plus 84 into a grounded, UL Listed electrical junction box.

• Extron recommande d’installer le MLC Plus 84 dans un boîtier d’encastrement électrique mis à la terre, listé UL.

• If the controller will be installed into ne furniture, it is best to hire a licenced, bonded craftsperson to cut the access

hole and perform the physical installation so the surface will not be damaged.

• S’il est prévu d’installer le contrôleur dans du beau mobilier, il est préférable de faire appel à un artisan autorisé et

qualié pour couper le trou d’accès et réaliser l’installation de telle façon que la surface ne soit pas endommagée.

• Follow all national and local building and electrical codes that apply to the installation site.

• Respectez tous les codes électriques et du bâtiment, nationaux et locaux, qui s’appliquent au site de l’installation.

Figure 1. MLCPlus84D

Front Panel

Figure 2. MLCPlus84D

Rear Panel

LAPTOP

DOC CAM

DVD

AUX VIDEO

VGA

HDMI

DOC CAM

LAPTOP

DISPLAY

VOLUME

AUTO IMAGE

AV MUTE

OFF

LAN/PoE

MAC:00-05-A6-XX-XX-XX

S/N: ####### E######

00-05-A6-XX-XX-XX

Tx Rx

G1 2 C

GCVGS

POWER

12V

0.4A MAX

COM 1 COM 2 VOL

GIN

D IN RELAYS

MLC Plus 84 D • Setup Guide (Continued)

NOTE: For the installation to meet UL requirements and to comply with National Electrical Code (NEC), the MLC must be

installed in a UL Listed junction box. The end user or installer must furnish the junction box. It is not included with the

MLCPlus84.

Americans with Disabilities Act (ADA) Compliance

When planning where to install the MLCPlus84, you may need to consider factors affecting accessibility of the controller such as

height from the floor, distance from obstructions, and how far a user must reach to press the buttons. For guidelines, see

sections 307 (“Protruding Objects”) and 308 (“Reach Ranges”) of the 2010 ADA Standards for Accessible Design available at

http://www.ada.gov/regs2010/2010ADAStandards/2010ADAStandards.pdf.

Site Preparation

The MLCPlus84D fits a standard US two-gang junction box or mud ring and Decora-style wallplate. Optional mud rings,

ULListed junction boxes, external junction boxes, and surface mounting boxes are available for use with the MLCPlus84.

Read any installation instructions and UL guidelines that come with the mounting devices, then install the box or mud ring in the

opening at the installation site. To prepare the site:

1. Using the size of the junction box or mud ring for reference, cut the hole in the mounting surface. Protect the surface prior to

and during cutting so the surface is not damaged.

2. Run cables to the mounting location, leaving enough slack for device installation.

3. Install the junction box or mud ring into the wall or furniture.

4. Secure the cables with a clamp for strain relief and so they do not slip back

down into the wall or furniture. Wall

Mud Ring

Figure 3. Installing a Mud Ring

Step 3: Change Buttons or a Faceplate (optional)

If desired, replace one or more buttons or button pairs using available additional buttons. Optional button kits are available in

various languages, and replacement faceplates are available, as well.

NOTE: A custom button builder tool is available at http://www.extron.com/product/custombuttonbuilder/index.aspx

where you can order custom-labeled buttons for the MLCPlus84.

The faceplates must be removed to access buttons.

To replace the buttons or faceplates:

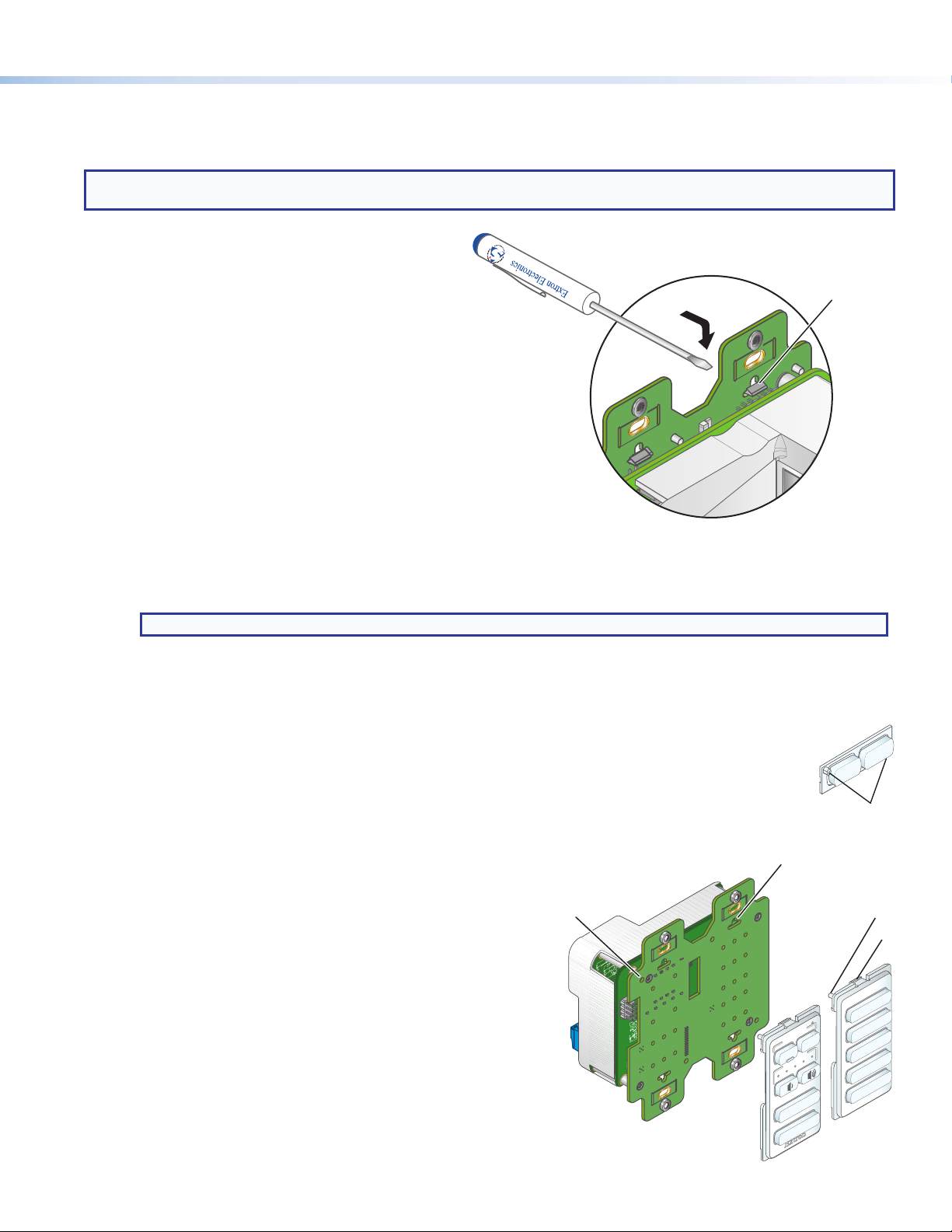

1. Remove one or both faceplates as follows:

a. Insert the tip of a small, flat-bladed screwdriver

(such as an Extron Tweeker) through one of the

circuit board slots at the top or bottom of an MLC

faceplate, as shown at right.

b. Angle the screwdriver to press gently down on

the tab to release and pry the faceplate from the

circuit board.

c. If the faceplate has not fully detached from

the circuit board, repeat steps 1a and 1b with

the hole and tabs at the opposite end of the

faceplate.

d. Lift the faceplate away from the circuit board.

2. Remove any buttons to be replaced as follows:

a. Press the button or button pair from the front of the faceplate out through the back of its faceplate opening. If necessary,

pull the buttons out gently from the back.

NOTE: The smaller buttons are arranged in pairs connected by a rubbery membrane.

b. If you are replacing the faceplate, repeat step 2a until all buttons are removed.

c. Set the removed buttons aside for later use.

3. Insert a button or button pair as follows:

a. Insert a new button or button pair from the back into the appropriate opening in the faceplate.

b. Align the two pegs in the upper left and lower right corners of the button or button pair with the

corresponding holes in the faceplate. Press the button or buttons into the faceplate so the buttons and

pegs are seated into the holes and faceplate opening.

c. Repeat steps 3a and 3b for any additional buttons that will be replaced or installed.

4. Reattach the original faceplate or attach the replacement

faceplate to the controller as follows:

a. Align the tabs (at top and bottom) and pegs (at

upper left and lower right corners) on the back of the

faceplate with the slots and holes on front of the circuit

board.

b. Gently but firmly press the faceplate against the circuit

board until the tabs and pegs are inserted into the slots

and holes, and the tabs click into place.

LAN/PoE

Press tab down.

Tilt screwdriver to

release f

aceplate

from circuit board.

Figure 4. Using a Screwdriver to Release the

Faceplate Tabs, Rear View

OFF

Pegs (2)

LAPTOP

DOC CAM

DVD

AUX VIDEO

VGA

HDMI

DOC CAM

LAPTOP

DISPLAY

VOLUME

AUTO IMAGE

AV MUTE

OFF

Peg

Insert tab on

faceplate into slot.

Insert peg

on faceplate

into hole.

Figure 5. Aligning and Reattaching the Faceplate

MLC Plus 84 D • Setup Guide (Continued)

Front Panel Features

AV MUTE

Extron

DISPLAY

ON OFF PC

LAPTOP

DOC CAM

HDMI

VGA

VOLUME

AUTO IMAGE

Transmit/

Activity LED

olume

LEDs

olume

Buttons

Display

Power

Buttons

Function

Buttons

allplate

Source Control

Buttons

Figure 6. MLCPlus84D Front Panel With Wallplate

Extron

DISPLAY

ON OFF PC

LAPTOP

DOC CAM

HDMI

VGA

VOLUME

AV MUTE

AUTO IMAGE

MAC: 00-05-A6-XX-XX-XX

S/N: ####### E######

00-05-A6-XX-XX-XX

Reset Button

and

LED

MAC

Address

Faceplate Tab

Access Holes (4)

Faceplates

(2)

Figure 7. MLCPlus84D Front Panel Without Wallplate

Rear and Side Panel Features

LAN/PoE

Tx Rx

G12CGCVGS

POWER

12V

0.4A MAX

COM 1 COM 2 VOL

GIN

D IN RELAYS

Power

input

connector

COM

(RS-232)

ports

output

port

Relay

ports

Digital

input

port

Volume

control

port

LAN/PoE (Ethernet)

connector and LEDs

Figure 8. MLCPlus84D Rear Panel Features

LAN/PoE

(Ethernet)

connector

and LEDs

Figure 9. MLCPlus84D Right Side Panel Features

Step 4: Cable All Devices

1. Cable devices to the controller (see the features sections below and Cabling and Features on page 5).

2. Connect power cords and power on all the devices.

Cabling and Features

Attach cables using the following wiring diagrams as a guide. Full details are available in the MLCPlus84 Series User Guide.

ATTENTION:

• Installation and service must be performed by authorized personnel only.

• L’installation et l’entretien doivent être effectués par le personnel autorisé uniquement.

Power

The MLCPlus84 supports Power over Ethernet (PoE) (see Control and Power — LAN (Ethernet) and PoE below). Alternatively,

you can power the controller using an optional Extron 12 VDC, 1 A desktop power supply, as shown below.

POWER

12V

0.4A MAX

M 1

Ridged

Smooth

Ground

all devices.

– Return

+12 VDC input

Ridged

Smooth

1AMAX

100-240V 50-60Hz

External

Power Supply

(12 VDC, 1 A max.,

Extron P/N 28-071-57LF)

Tie Wrap

3/16"

(5 mm)

Max.

Rear Panel

Power Input, External Power Supply (optional)

• Front panel buttons blink during

boot-up.

• Once the MLC Plus 84 is

powered and operational, the

buttons are lit according to

conguration, and “Display”

and “Volume” are backlit.

• Connect to an

Extron 12 VDC,

1 A power supply.

• If PoE is available,

the MLC Plus 84

uses PoE,

otherwise it uses

power via this port.

NOTE:

Check the

polarity of the

power supply

before

connecting it to

the controller.

Control and Power — LAN (Ethernet) and PoE

Pins:

12345678

Insert Twisted

Pair Wires

MLC Plus 84

Side Panel

LAN/PoE (Ethernet and Power Over Ethernet)

Connect to an Ethernet network with a straight through cable. This port must be congured.

Ethernet

NOTE:

MAC address information

(00-05-A6-##-##-##)

is located on the rear of

the enclosure.

Link LED:

Lights green

to indicate a network

connection.

Activity LED:

Blinks yellow

to indicate data is being

sent or received.

TCP/IP

Network Extron Devices

(Switchers, Scalers)

Straight-through Cable

(for connection to a switch, hub, or router)

End 1 End 2

Pin Wire Color Pin Wire Color

1 white-orange 1 white-orange

2 orange 2 orange

3 white-green 3 white-green

4 blue 4 blue

5 white-blue 5 white-blue

6 green 6 green

7 white-brown 7 white-brown

8 brown 8 brown

Crossover Cable

(for direct connection to a PC)

End 1 End 2

Pin Wire Color Pin Wire Color

1 white-orange 1 white-green

2 orange 2 green

3 white-green 3 white-orange

4 blue 4 blue

5 white-blue 5 white-blue

6 green 6 orange

7 white-brown 7 white-brown

8 brown 8 brown

T568B T568AT568BTIA/EIA-T568B

Default protocol:

• MLC Plus 84 IP address: 192.168.254.250

• Gateway IP address: 0.0.0.0

• Subnet mask: 255.255.255.0

• DNS address: 127.0.0.1

• DHCP: off

• Link speed and duplex level: autodetected

• Data rates: 10/100/1000Base-T

For best results, use this port to upload

conguration les and rmware.

All conguration can be performed via this port.

Power over Ethernet (PoE):

• If PoE is available, the MLC Plus 84 uses PoE.

• If PoE is dropped (disconnects), the controller switches

seamlessly to the external 12 VDC power supply, if it is installed.

Default login credentials:

• Username: admin • Password: extron

MAC: 00-05-A6-XX-XX-XX

S/N: ####### E######

00-05-A6-XX-XX-XX

MAC: 00-05-A6-XX-XX-XX

S/N: ####### E######

MAC

Address

ATTENTION:

• Power over Ethernet (PoE) is intended for indoor use only. It is to be connected only to networks or circuits that are not

routed to the outside plant or building.

• L’alimentation via Ethernet (PoE) est destinée à une utilisation en intérieur uniquement. Elle doit être connectée

seulement à des réseaux ou des circuits qui ne sont pas routés au réseau ou au bâtiment extérieur.

ATTENTION: Always use a power

supply provided by or specified

by Extron. Use of an unauthorized

power supply voids all regulatory

compliance certification and may

cause damage to the supply and

the end product.

ATTENTION : Utilisez toujours une source

d’alimentation fournie ou recommandée

par Extron. L’utilisation d’une source

d’alimentation non autorisée annule

toute conformité réglementaire et peut

endommager la source d’alimentation

ainsi que le produit final.

MLC Plus 84 D • Setup Guide (Continued)

Control, Bidirectional — Serial (COM)

Tx Rx

OWER

12V

x.x

MAX

COM 1 COM 2

NOTE: If you use cable

that has a drain wire,

tie the drain wire to

ground at both ends.

Strip wires

3/16" (5 mm) max.

Transmit

Receive Transmit (Tx)

Receive (Rx)

Ground RS-232-

Controllable

Device

3-pole COM

(RS-232)

Select protocol via software. COM port default protocol:

• 9600 baud

• 8 data bits • 1 stop bit

• no parity • no ow control

NOTE: These COM ports support software ow control only.

Serial (COM) Ports

Rear Panel

Heat Shrink

Over Shield Wires

3-pole

COM port

Control, Unidirectional — IR Output

Rear

Panel

(-)

(+)

(-)

(+)

(-) To the

IR Receiver of

a Projector,

Display, or

Source Device

Two Single IR Emitters

Ground

IR Output

Ground

IR Output

Unidirectional IR

3/16" (5 mm) max.

To Projector, Panel Display, or the Wired

IR Remote of a Source Device

IR Output Port

Output options:

• IR (30 kHz to 300 kHz,

with or without carrier signals)

Ground (−)

IR Signal (+)

Dual IR Emitter

Ground (−)

IR Signal (+)

One Single IR Emitter

Control — Volume Control

GCV

VOL

10V 50mA

GCV

REMOTE

10V 50mA

GCV

10V

REMOTE

VOL/MUTE

REMOTE

VOL/MUTE

10V 50mA

STANDBY

10V 50mA

GCV

VOL

Ground (Gnd)

Reference voltage input (from amplier) – This allows the MLC Plus 84 to detect when the amp is present.

Control voltage (variable output to amp from MLC Plus 84) – This signal controls the amp volume.

Ground

Reference voltage

Control voltage

Rear

Panel

Control voltage output:

0 - 10 VDC

Reference

voltage: ≤10 VDC

NOTE:

Use shielded cable and

place the MLC Plus 84 as close

as possible to the amplier to

avoid picking up background

noise via the cable.

NOTE: When audio mute is active, the MLC Plus 84

sets output voltage to

0 VDC, even if the voltage

range (minimum and maximum voltage limits) have

been set to levels above zero, such as 2 V to 8 V.

Volume Control

This port can be used to control the volume and mute or unmute the audio for some

Extron audio ampliers with remote volume capability.

• Connect to an Extron audio ampier

to permit volume control via the

MLC Plus 84.

• Do not exceed 25 VDC input voltage.

Settings to conﬁgure via software:

• Maximum and minimum voltage

limits

• Soft Start mode: off or on (default) − to

allow volume to gradually increase from

mute to the previous level after muting

or power-on to prevent loud audio bursts

Example:

Connecting to

Extron Ampliﬁers

MLC Plus 84

Rear

Panel

C or

VOL/MUTE

V or 10V G or

MPA 401 Series

MPA 181T,

MP 101 Series

MPA 152MPA 152 Plus

XPA 1002

Control, Unidirectional — Digital Input

GIN

D IN

ELAY

Digital Input

Congure the port with or without

+5 VDC pull-up.

Use this port to:

• Monitor or trigger events and

functions (toggle relays, issue

commands, send e-mail), once

congured.

• Power an LED, incandescent

light, or other device that

accepts a TTL signal.

Rear

nel

Switch, Sensor, LED,

Relay, or Similar Item)

12C

RELAYS

Rear

nel

To Room

Control

Equipment

Closed

Normally

Open

Normally

Open

Common

Relays

• Connect devices for relay control.

• Do not exceed a total of 24V, 1A

for each port.

All relays are

normally open.

Control — Relay

MLC Plus 84 D • Setup Guide (Continued)

Step 5: Set up the MLCPlus84 for Network Communication

1. Connect the PC that you will use for setup and the

MLCPlus84 to the same Ethernet subnetwork. For

LAN connections for the MLC, see Control and Power

— LAN (Ethernet) and PoE on page5.

2. Start Global Configurator and use the Toolbelt feature

of the software (or stand-alone Toolbelt software) to

set the IP address, subnet, gateway IP address, DHCP

status, and related settings. Network setup is essential

prior to configuration. Use the flowchart at right as a

guide to setting up the controller for network use.

NOTE: When setting up DHCP during network

configuration or if using a host name instead of

an IP address during project recovery, the user

must enter a qualified host name (HostName.

Domain).

For example: somename.somedomain.com.

Step 6: Configure the MLC Plus 84 Controller

The most basic steps are outlined below in the recommended order.

NOTE: See the Global Configurator Help file as needed for step-by-step instructions and detailed information. The help file

for GC includes an introduction to the software, and how to start a project and configuration.

1. Using GC, create a new GCPlus or GCProfessional project and configure the controller and any installed IP Link Pro

devices. The configuration tells the controller how its ports function; how to control other products; what to monitor; when to

do things; and whom to notify, how, and under what circumstances.

a. Configure ports on the controller.

• Select device drivers and link them to each assigned serial, IR, or Ethernet port.

• Configure settings (serial protocol, relay behavior, digital input, volume control settings) as needed.

b. Set up monitors, schedules, macros, and local variables.

c. Set up the front panel buttons: assign appropriate commands and actions, macros, timers, local variables, monitors, or

schedules to the buttons.

2. Save the project.

3. Build and upload the system configuration to the controller.

Step 7: Test and Troubleshoot

1. Test the system. See the MLCPlus84SeriesUser Guide for an outline of the system testing and troubleshooting procedure.

2. Make adjustments to wiring or configuration as needed. Remember that the rear and side panel ports will not be accessible

after the controller is mounted.

Step 8: Complete the Physical Installation

Mount the unit to a wall or furniture (see Mounting on page9).

Connect the controller and PC to the same LAN and apply power.

Open the Toolbelt utility in Global Congurator.

Use Toolbelt to display a list of MLC Plus 84 units and all other

IP Link Pro devices connected to the network.

Using the MAC address, locate the desired device

in the list and select it.

Network Communication Setup,

Connected/Online Method

Enable DHCP or you must type in the IP address, subnet address,

and gateway, then congure other network settings as needed.

Figure 10. Network Setup, Online Method

Mounting

NOTE: Extron recommends taking safety precautions to avoid electrostatic discharge issues during installation.

Mount the MLCPlus84 as follows:

1. Insert the cabled MLCPlus84 into the mud ring or junction box within the wall or furniture, aligning the mounting holes in the

MLCPlus84 with those in box or mud ring.

2. Secure the MLCPlus84 to the junction box, wall or surface

mounting box, or mud ring as follows:

a. Insert the included screws through the

oval slots at the top and bottom of

the MLCPlus84 and into the

corresponding threaded

holes in the box or mud

ring.

b. Using a Phillips screwdriver,

lightly tighten the screws

until snug.

ATTENTION:

• Do NOT over tighten

the screws or you

may damage the

circuit board.

• Veillez à ne pas trop

serrer les vis car vous

pourriez endommager

la carte de circuit.

LAPTOP

DOC CAM

DVD

AUX VIDEO

VGA

HDMI

DOC CAM

LAPTOP

DISPLAY

VOLUME

AUTO IMAGE

AV MUTE

OFF

Mud Ring

Wall

Wallplate

MLC Plus 84 D

Figure 12. Installing the MLCPlus84 in a Mud Ring

3. Attach the wallplate to the MLCPlus84: insert the included screws through the circular holes in the wallplate and the tabs on

the MLCPlus84. Tighten the screws using a flat bladed screwdriver until snug.

LAPTOP

DOC CAM

DVD

AUX VIDEO

VGA

HDMI

DOC CAM

LAPTOP

DISPLAY

VOLUME

AUTO IMAGE

AV MUTE

OFF

Junction

Box

Wall

Wallplate

MLC Plus 84 D

Figure 11. Installing the MLCPlus84

in a Junction Box

Reset Modes: a Brief Summary

The MLC Plus 84 Series controllers offer the following reset modes:

• Use Factory Firmware: Press and hold the rear panel Reset button while applying power to the unit. Use this mode to

revert to factory firmware in the event of a firmware failure.

• Project Recovery: See the MLC Plus 84 Series User Guide for instructions. Use this mode to recover the project in

the event of a lost user name and password.

• Reset All IP Settings: Press and hold the rear panel Reset button for 6 seconds. After the Reset LED blinks twice,

release and momentarily press the Reset button. Use this mode to reset all network settings to

factory default values without affecting user-loaded files.

• Reset to Factory Defaults: Press and hold the rear panel Reset button for 9 seconds. After the Reset LED blinks three

times, release and momentarily press the Reset button within 1 second. Use this mode to

return the controller to factory default settings.

For detailed information on each mode and its use, see the MLC Plus 84 Series User Guide at www.extron.com.

About Global Conﬁgurator (with GC Professional and GC Plus Modes)

What the Software Does

Global Configurator is the software tool for network setup and configuration of a MediaLink Plus controller.

Global Configurator:

• Loads device drivers for controlling and monitoring the status of devices within the AV system.

• Creates the configuration containing all the settings for the controller and the products with which it interacts in the AV

system.

• Generates a graphical user interface called GlobalViewer that is uploaded to the MLC (a GlobalViewer host device) along with

the completed configuration and can be accessed as a Web page.

Using GlobalViewer, users can monitor and control Extron and third-party equipment such as projectors, displays, computer

monitors, VCRs, and DVD players.

Resources

Obtaining Control Drivers

Extron provides an extensive selection of device

drivers available on the Extron Website. If the

system requires a control driver that is not already

available, you can request a new serial (RS-232) or

Ethernet driver from Extron.

Obtaining Instructions, Information, and Assistance

A checklist of basic setup steps is provided in this guide. For

additional information see the help files and the MLCPlus84IPSeries

User Guide, available at www.extron.com.

If you have questions during installation and setup, call the ExtronS3

Sales & Technical Support Hotline or the ExtronS3 Control

Systems Support Hotline (1.800.633.9877).

Locating Software, Firmware, and Driver Files on the Extron Website

There are three main ways to find software, firmware, and device drivers within www.extron.com:

• Via links from the Web page for the specific product

• Via the Download page (Click on the Download tab at the top of any page within www.extron.com.)

• Via links from search results

NOTE: To obtain Global Configurator (available to run in GC Plus mode) software, you must have an Extron Insider account

and contact an Extron support representative. Extron provides training to our customers on how to use the software.

Access to Global Configurator Professional is available to users who successfully complete Extron Control Professional

Certification.

NOTE: New RS-232 and Ethernet drivers are required. You must use serial and Ethernet drivers developed specifically

for the IPLinkPro platform. With the exception of IR device drivers, drivers used for the previous generation IPLink

(non-Pro) controllers are not compatible.

Autres manuels pour MLC Plus 84 D

Table des matières

Autres manuels Extron electronics Contrôleurs

Extron electronics

Extron electronics MLC 206 Manuel utilisateur

Extron electronics

Extron electronics MLC Plus 84 D Manuel utilisateur

Extron electronics

Extron electronics Control Modules ACM Manuel utilisateur

Extron electronics

Extron electronics MEDIALINK MLC 206 Manuel utilisateur

Extron electronics

Extron electronics RAC 104 Manuel utilisateur

Extron electronics

Extron electronics MLC 226 IP Series Manuel utilisateur

Extron electronics

Extron electronics MLC 226 IP Series Manuel utilisateur

Extron electronics

Extron electronics MEDIALINK MLC 52 Series Manuel utilisateur

Extron electronics

Extron electronics Basic MediaLink Controllers MLC 52 IR Manuel utilisateur

Extron electronics

Extron electronics TLP Pro 720C Manuel utilisateur

Extron electronics

Extron electronics Basic MediaLink Controllers MLC 52 RS Manuel utilisateur

Extron electronics

Extron electronics MediaLink Controllers with IP Link MLC 104 IP... Manuel utilisateur

Extron electronics

Extron electronics VNM Enterprise Manuel utilisateur

Extron electronics

Extron electronics MediaLink MLC 104 Plus Series Manuel utilisateur

Extron electronics

Extron electronics VNM EC 201 Manuel utilisateur

Extron electronics

Extron electronics Basic MediaLink Controllers MLC 52 IR Manuel utilisateur

Extron electronics

Extron electronics MediaLink MLC Plus 50 Manuel utilisateur

Extron electronics

Extron electronics FPC 6000 Manuel utilisateur

Extron electronics

Extron electronics MLC Plus 84 EU Manuel utilisateur

Extron electronics

Extron electronics MLC 62 Series Manuel utilisateur

Extron electronics

Extron electronics MLC 104 IP Plus Series Manuel utilisateur

Extron electronics

Extron electronics PC 101 Manuel utilisateur

Extron electronics

Extron electronics VCM 200 D Manuel utilisateur

Extron electronics

Extron electronics MediaLink Controllers with IP Link MLC 104 IP... Manuel utilisateur

Manuels Contrôleurs populaires d'autres marques

Digiplex

Digiplex DGP-848 Mode d'emploi

YASKAWA

YASKAWA SGM series Manuel utilisateur

Sinope

Sinope Calypso RM3500ZB Manuel utilisateur

Isimet

Isimet DLA Series Style 2 Manuel d'installation

LSIS

LSIS sv-ip5a Manuel utilisateur

Rockwell Automation

Rockwell Automation 1769-L31 Manuel utilisateur

Airflow

Airflow Uno hab Manuel utilisateur

ABB

ABB ACS580-01 drives Manuel utilisateur

Panasonic

Panasonic GM1 Series Manuel utilisateur

Emerson

Emerson SW93 Manuel utilisateur

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manuel utilisateur

Panasonic

Panasonic FP? Positioning Unit RTEX Manuel utilisateur

Samson

Samson Type 5824 Manuel de service

Alpha IP

Alpha IP MIOB 21001 Manuel utilisateur

Siemens

Siemens OpenAir GMA 1 Series Manuel utilisateur

Surecom

Surecom SR-629 Manuel utilisateur

Fishman

Fishman TriplePlay Manuel utilisateur

Regulus

Regulus SRS1 T Manuel utilisateur
