Speciﬁcations — MLC 226 Series

Extron MLC 226 Series MediaLink® Controllers • Specications

IP Intercom

Connection type (IPI–MLC)......... RJ-45 jack for CAT 5, CAT 5e, or CAT 6 cable

Audio

Frequency response .......... 20 Hz to 3.3 kHz, ±1 dB

Audio processing

Audio format ............. PCM, µ-law companded

Sampling rate............. 8 kHz

Sample size................. 16 bit, µ-law companded to 8 bit

Audio latency............. Software: 30 ms through 160 ms

Network: <150 ms, typical

Audio output

Number/signal type......... 1 mono (for use with an optional IP Intercom)

Line level output ............... -10 dBV (316 mVrms), unbalanced (via 3.5 mm captive screw connector,

2 pole)

Communication

Transport bandwidth for IPI control and audio, half duplex

80 kbps (0.08% of 100Base-T

Ethernet protocol............... TCP/IP (control), UDP (audio)

Control — host ports

Serial host port............................... 2 bidirectional RS-232: 1 rear panel 9-pin female D connector (shared with

digital input), 1 front panel 2.5 mm mini stereo jack

Baud rate and protocol................. 38400, 8 data bits, 1 stop bit, no parity

Serial control pin conﬁgurations. 9-pin female D connector: 2 = TX, 3 = RX, 5 = GND

Mini stereo jack: tip = TX, ring = RX, sleeve = GND

Ethernet host port ......................... 1 RJ-45 female

Ethernet data rate (for network communication)

10/100Base-T, half/full duplex with autodetect

Ethernet protocol........................... ARP, DHCP, ICMP (ping), TCP/IP, Telnet, HTTP, SMTP

Ethernet default settings .............. Link speed and duplex level = autodetected

IP address = 192.168.254.254

Subnet mask = 255.255.0.0

Default gateway = 0.0.0.0

DHCP = off

Web server...................................... Up to 200 simultaneous sessions

7.25 MB nonvolatile user memory

Secondary control panel (SCP).... (1) 3.5 mm 5-pole direct insertion captive screw connector (shared with

control module and IR Link port)

IR remote control........................... IR 402 (optional)

Front panel: 30' maximum, 40 degrees off axis

Rear panel: 38 kHz, hardwired, modulated

Program control............................. Extron's conﬁguration program for Windows®

Extron's Simple Instruction Set (SIS™)

Microsoft® Internet Explorer, Telnet

IR learning frequencies................. 30 kHz to 62 kHz

IR learning distance ...................... 2" (5.1 cm) to 12" (30.5 cm) from the front panel

Control — relay

Number/type ................................ 6 momentary or latching (conﬁgurable via software)

Connectors ..................................... (3) 3.5 mm captive screw connectors, 3 pole

Connector conﬁguration .............. Groups A, B, C; each with 1 common and 2 normally open relays (default)

Contact rating ................................ 24 V, 1 A

Speciﬁcations — MLC 226 Series, cont’d

Extron MLC 226 Series MediaLink® Controllers • Specications

Control — serial ports

Display control port...................... (1) 3.5 mm direct insertion captive screw connector, 3 pole, programmable

for bidirectional RS-232 control (±5 V) or TTL level (0 to 5 V) infrared control

up to 1 MHz

Switcher control port.................... (1) 3.5 mm direct insertion captive screw connector, 3 pole, for bidirectional

RS-232 control (±5 V)

Baud rate and protocol (RS-232) . 115200 to 300 baud (9600 baud = default); 8 (default) or 7 data bits;

1(default) or 2 stop bits; no parity (default), or even or odd parity

Control— IR/serial ports

IR/serial control ports.................. (3) 3.5 mm direct insertion captive screw connectors, 2 pole

Programmable:unidirectional RS-232 (±5 V) control, or TTL level (0 to 5 V)

infrared control up to 1 MHz

Baud rate and protocol................. 115200 to 300 baud (9600 baud = default) ; 8 (default) or 7 data bits;

1(default) or 2 stop bits; no parity (default), or even or odd parity

Digital I/O control

Number/type ................................ 1 digital input/output (conﬁgurable), 1 digital input

Connector ....................................... 1 rear panel 9-pin female D connector (shared with the serial host port)

(1) 3.5 mm direct insertion captive screw connector (shared with power

sense port)

Pin conﬁguration........................... 9-pin female D connector: 1 = digital input, 5 = GND;

power sense = digital in, GND = GND

Digital inputs

Input voltage range........... 0-12 VDC

Input impedance ............... 28k ohms

Programmable pullup ...... 2k ohms to +5 VDC

Threshold low to high ...... >2.8 VDC

Threshold high to low ...... <2.0VDC

Digital output ................................ 250 mA sink from 24 VDC, maximum

General

External power supply................. 100 VAC to 240 VAC, 50/60 Hz, external; to 12 VDC, 1 A, regulated

Power input requirements

MLC 226 IP DV+ ............... 12 VDC, 0.515 A (includes MLC 226 IP and IRCM-DV+)

All other models................ 12 VDC, 0.495 A (0.515 A with 1 IRCM-DV+ connected)

N An MLC 226 Series controller must be powered by its own power supply. It cannot be powered by

an MLS switcher.

Temperature/humidity................ Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing

Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Cooling ........................................... Convection, unvented

Rack mount

MLC 226 IP DV+ ............... No, but wall- and furniture-mountable

All other models................ Yes, with optional rack mounting kits, and also wall- and furniture-

mountable with optional mounting kits

Enclosure type

MLC 226 IP controller only No faceplate, metal rear enclosure

MLC 226 IP, MLC 226 IP DV+

High-impact plastic faceplate, metal rear enclosure

MLC 226 IP with RAL9010 white faceplate, MLC 226 IP AAP, MLC 226 IP L

Metal faceplate, metal rear enclosure

Extron MLC 226 Series MediaLink® Controllers • Specications

Enclosure dimensions

MLC 226 faceplate............. 4.5" H x 6.4" W x 0.1" D (11.4 cm H x 16.3 cm W x 0.3 cm D) (3 gang)

MLC 226 AAP, MLC 226 IP DV+ faceplates

4.5" H x 10.0" W x 0.1" D (11.4 cm H x 25.4 cm W x 0.3 cm D) (5 gang)

MLC 226 L faceplate ......... 3.15" H x 6.5" W x 0.1" D (8.0 cm H x 16.5 cm W x 0.3 cm D)

Device

MLC 226 IP DV+ ....... 2.75" H x 5.3" W x 2.0" D (7.0 cm H x 13.5 cm W x 5.9 cm D) and

2.7" H x 2.6" W x 0.9" D (6.9 cm H x 6.6 cm W x 2.3 cm D)

(Depth excludes knob and buttons. Fits some 5 gang boxes. Allow at least

2.1" (5.3 cm) depth in the wall or furniture.)

MLC 226 IP DV+ Rear

4.5”

10.1”

5.25"

2.1”

2.7"

A DB C EA DB C E

Speciﬁcations — MLC 226 Series, cont’d

Extron MLC 226 Series MediaLink® Controllers • Specications

All other models........ 2.75" H x 5.3" W x 2.0" D (7.0 cm H x 13.5 cm W x 5.9 cm D)

(Depth excludes knob and buttons. Fits some 3 gang boxes)

MLC 226 IP Rear

4.5”

MLC 226 IP L Rear

3.15”

6.5”

6.4”

5.25"

2.1”

2.7"

5.25"

2.1”

2.7"

MLC 226 IP AAP Rear

4.5”

10.1”

5.25"

2.1”

2.7"

Extron MLC 226 Series MediaLink® Controllers • Specications

Product weight

MLC 226 IP DV+ ............... 2.1 lbs (1.0 kg)

All other models................ 1.9 lbs (0.9 kg)

Shipping weight ............................ 6 lbs (3 kg)

Vibration......................................... ISTA 1A in carton (International Safe Transit Association)

Regulatory compliance

Safety................................... CE, C-tick, CUL, UL

EMI/EMC .......................... CE, C-tick, FCC Class A, VCCI, ICES

Accessibility ....................... Complies with the appropriate requirements of Section 508 of the

Rehabilitation Act (29U.S.C.794d).

MTBF............................................... 30,000 hours

Warranty......................................... 3 years parts and labor

N All nominal levels are at ±10%.

N Speciﬁcations are subject to change without notice.

7.6-070808-D12

Autres manuels pour MLC 226 IP Series

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Extron electronics Contrôleurs

Extron electronics

Extron electronics MLC Plus 84 D Manuel utilisateur

Extron electronics

Extron electronics MLC Plus 84 D Manuel utilisateur

Extron electronics

Extron electronics MediaLink MLC Plus 84 Series Manuel utilisateur

Extron electronics

Extron electronics PC 101 Manuel utilisateur

Extron electronics

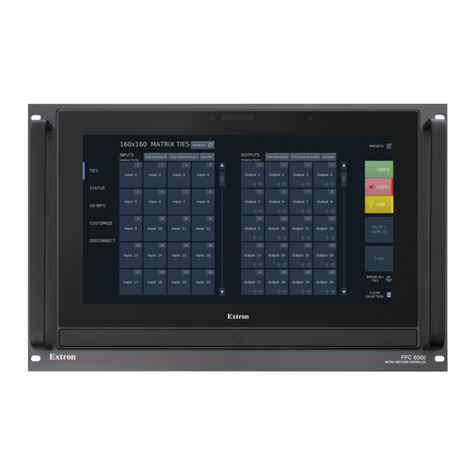

Extron electronics FPC 6000 Manuel utilisateur
