MLC Plus 84 EU and MLC Plus 84 MK •

Setup Guide

The Extron MLCPlus84EU and

MLCPlus84MK

MediaLink® Controllers with

IPLink®Pro integrate Ethernet

connection into AV systems to allow

users to remotely control, monitor, and

troubleshoot AV equipment, including

display devices and switchers. Each

controller includes an embedded

Web server and support for Power

over Ethernet (PoE). It also includes

ports for bidirectional serial control,

IR output, relays, digital input, and

volume control.

Figure 1. MLCPlus84MK Front Panel

The MLCPlus84EU fits most standard two-gang European wall boxes. The MLCPlus84MK fits most standard two-gang

MK-type wall boxes. These two models are identical except for the EU- or MK-specific wallplates and mounting hardware.

This guide provides instructions for an experienced installer to install an MLCPlus84 Series controller and to create a basic

configuration. Configure the controller using Extron GlobalConfigurator (GC) software running in Global Configurator Professional

(GCProfessional) or GlobalConfigurator Plus (GCPlus) mode. The MLC integrates with Extron GlobalViewer® Enterprise (GVE)

software and the GlobalViewer Web-based AV resource management for remote control applications. Global Configurator and

other useful software applications are available at www.extron.com.

Installation

Step 1: Get Ready

Download and install the latest version of the following:

• Global Configurator software — for setting up and configuring the controller. GC includes the Toolbelt feature and a

way to upgrade the firmware of the controller. You must have an Extron Insider account and contact an Extron support

representative to obtain GC software (see Locating Software, Firmware, and Driver Files on the Extron Website on

page11).

• IPLinkPro device drivers — for use with GC, to make control of other devices possible.

All are avail able from www.extron.com (see Locating Software, Firmware, and Driver Files on the Extron Website on page11).

Obtain network information for the unit from the network administrator. You will need the following details for each IPLinkPro device:

DHCP setting (on or off) Subnet mask User name

Device (MLC Plus 84) IP address Gateway IP address Passwords

Write down the MAC address of each IPLinkPro device (such as the MLC Plus 84) to be used.

Obtain model names and setup information for devices the MLC Plus 84 will control.

Step 2: Prepare the Installation Site

ATTENTION:

• Installation and service must be performed by authorized personnel only.

• L’installation et l’entretien doivent être effectués par le personnel autorisé uniquement.

• Extron recommends installing the MLC Plus 84 into a grounded electrical junction box.

• Extron recommande d’installer le MLC Plus 84 dans un boîtier d’encastrement électrique mis à la terre.

• If the controller will be installed into fine fu niture, it is best to hire a licenced, bonded craftsperson to cut the access

hole and perform the physical installation so the surface will not be damaged.

• S’il est prévu d’installer le contrôleur dans du beau mobilier, il est préférable de faire appel à un artisan autorisé et

qualifié pour couper le t ou d’accès et réaliser l’installation de telle façon que la surface ne soit pas endommagée.

Figure 2. MLCPlus84EU Front Panel

VOLUME

DISPLAY

OFF

DOC

CAM

LAPTOP

HDMI VGA

DISPLAY

OFF

DOC

CAM

LAPTOP

1LAPTOP

HDMI 1 HDMI 2

VOLUME

MUTE

VOLUME

MUTE

MLC Plus 84 EU and MLC Plus 84 MK • Setup Guide (Continued)

ATTENTION:

• Follow all national and local building and electrical codes that apply to the installation site.

• Respectez tous les codes électriques et du bâtiment, nationaux et locaux, qui s’appliquent au site de l’installation.

NOTE: Follow the local and national electrical and building codes that apply to the installation site. In most cases you will

need to use an approved electrical junction box. The end user or installer must furnish the junction box. It is not included

with the MLCPlus84. Read any installation instructions and regulatory guidelines that come with the mounting devices

(raceway, junction box, surface mounting box) before installing the raceway or box.

Select and prepare the site before cabling the controller. This may include cutting a hole in the installation surface or installing a

cabling raceway, running the cables to that site, installing the wall box, and pulling cables through it.

Accessibility

If applicable, when planning where to install the MLCPlus84, you may need to consider factors affecting accessibility of the

controller such as height from the floor, distance from obstructions, and how far a user must reach to press the buttons. For

guidelines, see sections 307 (“Protruding Objects”) and 308 (“Reach Ranges”) of the 2010 ADA Standards for Accessible Design

available at http://www.ada.gov/regs2010/2010ADAStandards/2010ADAStandards.pdf.

Site Preparation

The MLCPlus84EU fits a standard two-gang European wall (junction) box or external wall box.

The MLCPlus84MK fits a standard two-gang MK-type junction box or external wall box. The installer must provide the box.

Read any installation instructions and regulatory guidelines that come with the wall box before installation. To prepare the site:

1. For installation into a wall or furniture: Measure, mark, and carefully cut a hole in the mounting surface.

For all types of installations: Run cables to the junction box.

2. Secure the cables with a clamp for strain relief and so they do not slip back down into the wall or furniture.

3. Secure the box to the raceway, stud, wall, or furniture.

4. For wall mount installations, attach the mounting bracket (metal) to the junction box or

external wall box.

For raceway installations, install the metal spacer (if needed), then attach the metal

mounting bracket to the junction box or external wall box and raceway.

NOTE: If using a cable raceway, you may need to insert a metal spacer

between the raceway and the mounting bracket to close a gap and

make the installation flush. See figure 3 at right.

Euro Channel

Junction Box

Metal Spacers

(If needed)

MLC Plus 84 EU

84 EU

DISPLAY

OFF

DOC

CAM

LAPTOP

HDMI 1 HDMI 2

Wall Frame

Mounting

Bracket

Figure 4. Installing Spacers Between the Mounting Bracket and Raceway

a. Hold the mounting bracket with the desired side facing you and feed the cables through the bracket.

• To install the MLCPlus84 securely so it cannot easily be removed after installation, hold and install the bracket so

that the side labeled “Front” faces out toward you and the unlabeled side faces the wall or furniture.

• To install the MLCPlus84 so it can be removed easily, hold and install the bracket so the unlabeled side faces

outward toward you and the side labeled “Front” faces the wall or furniture.

Junction Box

Mounting Bra

cket

Spacer

Raceway

Figure 3. Installing a Spacer Between

the Mounting Bracket and

Raceway (side view)

Wall Box

Metal Bracket

External Wall Box

Metal Bracket

Figure 5. Mounting the Bracket to an EU Wall Box

b. Place the bracket against the box, aligning the holes in the bracket with the corresponding threaded holes on the edges

of the box.

c. Insert the provided screws into those holes, hold the bracket to ensure it is aligned straight (visually level), and tighten

the screws to secure the bracket to the mounting surface.

Step 3: Change Buttons (optional)

If desired, replace one or more buttons or button pairs using available additional buttons. Optional button kits are available in

various languages.

NOTE: A custom button builder tool is available at http://www.extron.com/product/custombuttonbuilder/index.aspx

where you can order custom-labeled buttons for the MLCPlus84.

The faceplates must be removed to access buttons. To replace the buttons:

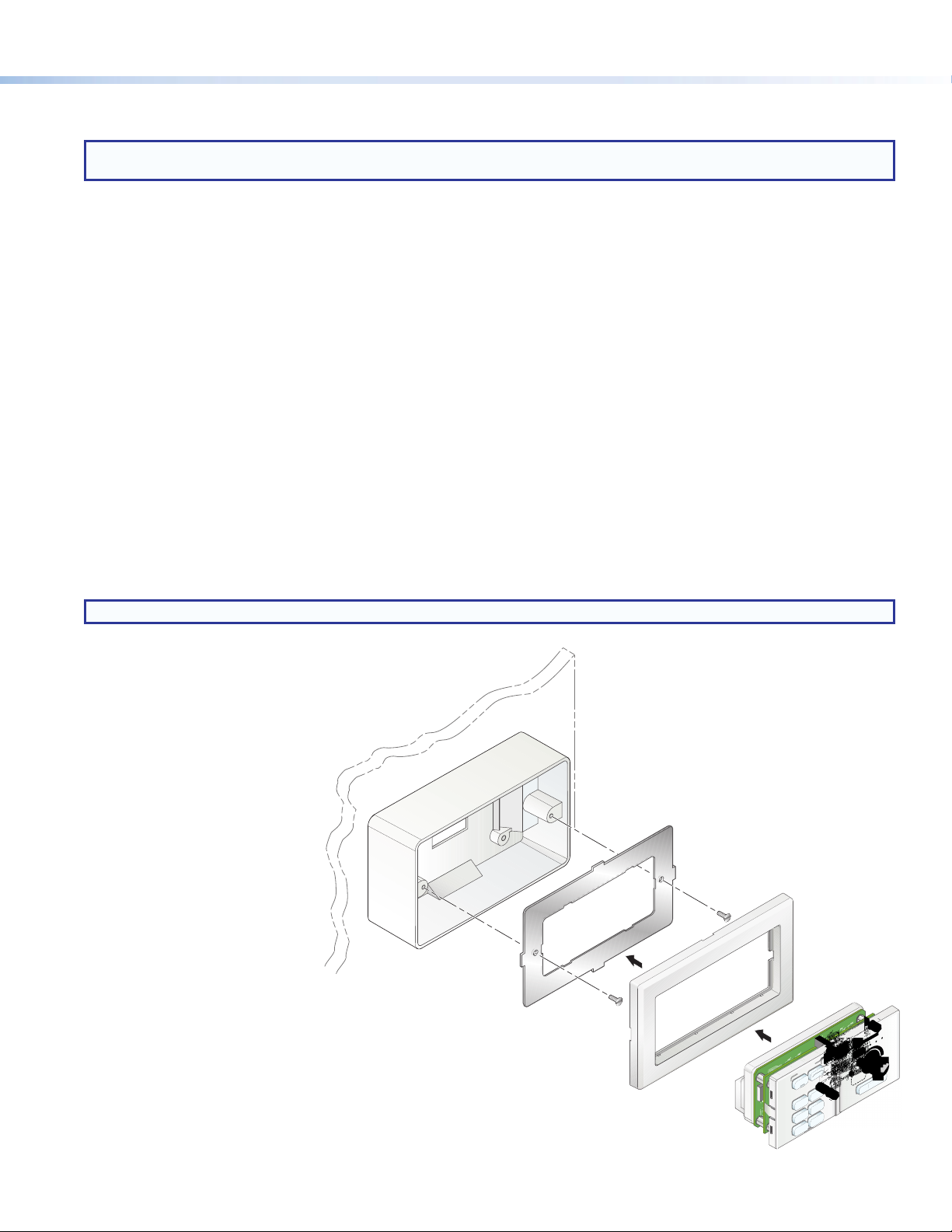

Figure 6. Mounting the Bracket to an MK Wall Box

1. Remove one or both faceplates as follows:

a. Slide the

center divider

bar up

(as shown in

figure7) and

remove it

from the unit.

Set it aside

for later

use.

Figure 7. Removing the Center Divider

MUTE

DISPLAY

OFF

DOC

CAM

LAPTOP

HDMI VGA

b. If removing the volume control faceplate, remove the

volume control knob as follows:

1. Viewing the unit from the bottom, look through the

faceplate notch below the Volume knob and rotate

MUTE

DISPLAY

OFF

DOC

CAM

LAPTOP

HDMI 1 HDMI 2

Notc

Figure 8. Loosening the Set Screw to Remove

the Volume Knob

MLC Plus 84 EU and MLC Plus 84 MK • Setup Guide (Continued)

the knob until the set screw is visible through

and aligned with the opening.

2. Use a small (

1/20") Allen wrench (hex key) inserted

into the notch in the faceplate at the bottom of

the knob to loosen the set screw that secures

the knob.

3. Pull the knob away from the faceplate and set

it aside.

c. Insert the tip of a small, flat-bladed screwdriver

(such as an Extron Tweeker) through one of the

slots at the sides of an EU or

MK model faceplate, as

shown at right. There

are four slots per

faceplate, two

on each

side.

d. Press the tab into the body of the MLCPlus84

to release the faceplate from the circuit board.

e. Repeat steps 1c and 1d with the remaining slots

and tabs around the edges of the faceplate.

f. Lift the faceplate away from the circuit board.

MUTE

DISPLAY

OFF

DOC

CAM

LAPTOP

HDMI VGA

Slot

Figure 9. Pressing Faceplate Mounting

Tabs to Remove the Faceplate

c. Repeat steps 3a and 3b for any additional buttons

that will be replaced or installed.

4. Reattach the faceplate to the controller as follows:

a. Align the two EU or MK mounting tabs on the sides

of the faceplate with the slots on the sides of

MLCPlus84. Align the eight faceplate mounting

tabs (shown in the inset in figure10) on the

MLCPlus84 with the

corresponding slots in

the sides of the

faceplates.

b. Gently but firmly press the faceplate against the

MLCPlus84 until all the tabs are inserted into the

slots and the ridge on each tab snaps into place in

the faceplate.

NOTE: It is important to make sure that ALL

eight tabs are securely snapped into place.

5. If reattaching the volume control faceplate, place the

knob back on its shaft and use the small Allen wrench to

tighten the set screw to secure the knob

Step 4: Cable All Devices

1. Cable devices to the controller (see Cabling and

Features on page6).

2. Connect power cords and power on all the devices.

NOTE: The EU and MK models are identical except

for mounting hardware. Features, connectors, and

operation are identical.

VOLUME

MUTE

VOLU

MUT

DISPLAY

OFF

DOC

CAM

LAPTOP

HDMI VGA

Figure 10. Aligning and Reattaching

the Faceplates

1. 2. Remove any buttons to be replaced as follows:

a. Press the button or button pair from the front of

the faceplate out through the back of its faceplate

opening. If necessary, pull the buttons out gently

from the back.

NOTE: The smaller buttons are arranged in

pairs connected by a rubbery membrane.

b. If you are replacing the faceplate, repeat step 2a

until all buttons are removed.

c. Set the removed buttons aside for later use.

3. Insert a button or button pair as follows:

a. Insert a new button or button pair from the back

into the appropriate opening in the faceplate.

b. Align the two pegs in the upper left and

lower right corners of the button or

button pair (shown at right)

with the corresponding holes in the

faceplate. Press the button or

buttons into the faceplate so the buttons and pegs

are seated into the holes and faceplate opening.

OFF

Pegs (2)

Front Panel Features

MUTE

VOLUME

MUTE

LUM

Extron

DISPLAY

OFF

PC DOC

CAM

LAPTOP

HDMI VGA

LAPTOP

MUTE

VOLUME

MUTE

LUM

Extron

DISPLAY

OFF

PC DOC

CAM

LAPTOP

HDMI VGA

LAPTOP

Transmit/

Activity LED

Display Power

Buttons

Source Control

Buttons

Wall Frames

Volume

LEDs

Volume

Control

Knob

Faceplates (2)

MLC Plus 84 EU

MLC Plus 84 MK

Figure 11. MLCPlus84EU (left) and MLCPlus84MK (right) Front Panels With Wall Frames

Rear Panel Features

RESET

LAN/PoE

POWER

12V

0.4A MAX

Tx Rx

G12C

GCV

COM 1 COM 2 VOLIR

D IN RELAYS

RESET

LAN/PoE

POWER

12V

0.4A MAX

Tx Rx

G12C

GCV

COM 1 COM 2 VOLIR

D IN RELAYS

Power

input

connector

COM

(RS-232)

ports

output

port

Relay

ports Reset

LED

Reset

button

Digital

input

port

Volume

control

port

LAN/PoE (Ethernet)

connector and LEDs MAC address

MLC Plus 84 EU

MLC Plus 84 MK

MAC: 00-05-A6-XX-XX-XX

S/N: ####### E######

00-05-A6-XX-XX-XX

Figure 12. Rear Panel Features: MLCPlus84EU (left) and MLCPlus84MK (right)

Side Panel Features

LAN/PoE

(Ethernet)

connector

and LEDs

MLC Plus 84 EU

Figure 13. Right Side Panel Features

MLC Plus 84 EU and MLC Plus 84 MK • Setup Guide (Continued)

Cabling and Features

Attach cables using the following wiring diagrams as a guide. Full details are available in the MLCPlus84 Series User Guide.

ATTENTION:

• Installation and service must be performed by authorized personnel only.

• L’installation et l’entretien doivent être effectués par le personnel autorisé uniquement.

Power

The MLCPlus84 supports Power over Ethernet (PoE) (see Control and Power — LAN (Ethernet) and PoE on the next page).

Alternatively, you can power the controller using an optional Extron 12 VDC, 1 A desktop power supply, as shown below.

POWER

12V

0.4A MAX

OM 1

Ridged

Smooth

Ground

all devices.

– Return

+12 VDC input

Ridged

Smooth

1AMAX

100-240V 50-60Hz

External

Power Supply

(12 VDC, 1 A max.,

Extron P/N 28-071-57LF)

Tie Wrap

3/16"

(5 mm)

Max.

Rear PanelPower Input, External Power Supply (optional)

• Front panel buttons blink during

boot-up.

• Once the MLC Plus 84 is

powered and operational, the

buttons are lit according to

conÿguration, and “Display”

and “Volume” are backlit.

• Connect to an

Extron 12 VDC,

1 A power supply.

• If PoE is available,

the MLC Plus 84

uses PoE,

otherwise it uses

power via this port.

NOTE:

Check the

polarity of the

power supply

before

connecting it to

the controller.

Control and Power — LAN (Ethernet) and PoE

Pins:

12345678

Insert Twisted

Pair Wires

MLC Plus 84

Side Panel

LAN/PoE (Ethernet and Power Over Ethernet)

Connect to an Ethernet network with a straight through cable. This port must be conÿgured.

Ethernet

NOTE:

MAC address information

(00-05-A6-##-##-##)

is located on the bottom of

the rear enclosure.

Link LED:

Lights green

to indicate a network

connection.

Activity LED:

Blinks yellow

to indicate data is being

sent or received.

TCP/IP

Network Extron Devices

(Switchers, Scalers)

Straight-through Cable

(for connection to a switch, hub, or router)

End 1 End 2

Pin Wire Color Pin Wire Color

1 white-orange 1 white-orange

2 orange 2 orange

3 white-green 3 white-green

4 blue 4 blue

5 white-blue 5 white-blue

6 green 6 green

7 white-brown 7 white-brown

8 brown 8 brown

Crossover Cable

(for direct connection to a PC)

End 1 End 2

Pin Wire Color Pin Wire Color

1 white-orange 1 white-green

2 orange 2 green

3 white-green 3 white-orange

4 blue 4 blue

5 white-blue 5 white-blue

6 green 6 orange

7 white-brown 7 white-brown

8 brown 8 brown

T568B T568AT568BTIA/EIA-T568B

Default protocol:

• MLC Plus 84 IP address: 192.168.254.250

• Gateway IP address: 0.0.0.0

• Subnet mask: 255.255.255.0

• DNS address: 127.0.0.1

• DHCP: off

• Link speed and duplex level:

autodetected

• Data rates: 10/100Base-T

Use this port to upload conÿguration ÿles

and ÿrmware.

Power over Ethernet (PoE):

• If PoE is available, the MLC Plus 84 uses PoE.

• If PoE is dropped (disconnects), the controller switches seamlessly

to the external 12 VDC power supply, if it is installed.

Default login credentials:

• Username: admin • Password: extron

MAC: 00-05-A6-XX-XX-XX

S/N: ####### E######

00-05-A6-XX-XX-XX

MAC: 00-05-A6-XX-XX-XX

S/N: ####### E######

MAC

Address

ATTENTION:

• Power over Ethernet (PoE) is intended for indoor use only. It is to be connected only to networks or circuits that are not

routed to the outside plant or building.

• L’alimentation via Ethernet (PoE) est destinée à une utilisation en intérieur uniquement. Elle doit être connectée

seulement à des réseaux ou des circuits qui ne sont pas routés au réseau ou au bâtiment extérieur.

ATTENTION: Always use a power

supply provided by or specified

by Extron. Use of an unauthorized

power supply voids all regulatory

compliance certification and may

cause damage to the supply and

the end product.

ATTENTION : Utilisez toujours une source

d’alimentation fournie ou recommandée

par Extron. L’utilisation d’une source

d’alimentation non autorisée annule

toute conformité réglementaire et peut

endommager la source d’alimentation

ainsi que le produit final.

Control, Bidirectional — Serial (COM)

Tx Rx

OWER

12V

MAX

COM 1 COM 2

NOTE: If you use cable

that has a drain wire,

tie the drain wire to

ground at both ends.

Strip wires

3/16" (5 mm) max.

Transmit

Receive Transmit (Tx)

Receive (Rx)

Ground RS-232-

Controllable

Device

3-pole COM

(RS-232)

Select protocol via software. COM port default protocol:

• 9600 baud

• 8 data bits • 1 stop bit

• no parity • no ˜ow contr ol

NOTE: These COM ports support software ˜ow contr ol only.

Serial (COM) Ports

Rear Panel

Heat Shrink

Over Shield Wires

3-pole

COM port

Control, Unidirectional — IR Output

Rear

Panel

(-)

(+)

(-)

(+)

(-) To the

IR Receiver of

a Projector,

Display, or

Source Device

Two Single IR Emitters

Ground

IR Output

Ground

IR Output

Unidirectional IR

3/16" (5 mm) max.

To Projector, Panel Display, or the Wired

IR Remote of a Source Device

IR Output Port

Output options:

• IR (30 kHz to 300 kHz,

with or without carrier signals)

Ground (−)

IR Signal (+)

Dual IR Emitter

Control, Unidirectional — Digital Input

GIN

D IN

ELAY

Digital Input

Conÿgure the port with or without

+5 VDC pull-up.

Use this port to:

• Monitor or trigger events and

functions (toggle relays, issue

commands, send e-mail), once

conÿgured.

• Power an LED, incandescent

light, or other device that

accepts a TTL signal.

Rear

nel

Switch, Sensor, LED,

Relay, or Similar Item)

12C

DIN

RELAYS

Rear

Panel

Normally

Open

Common

To Room

Control

Equipment

Closed

Normally

Open

All relays are

normally open.

Relays

• Connect devices for relay control.

• Do not exceed a total of 24˜V, 1˜A

for each port.

Control — Relay

Ground (−)

IR Signal (+)

One Single IR Emitter

MLC Plus 84 EU and MLC Plus 84 MK • Setup Guide (Continued)

Control — Volume Control

10V 50mA

GCV

REMOTE

10V 50mA

GCV

10V

REMOTE

VOL/MUTE

REMOTE

VOL/MUTE

10V 50mA

STANDBY

10V 50mA

GCV

VOL

D IN

GCV

VOL

GCV

Ground

Reference voltage

Control voltage

Ground (Gnd)

Reference voltage input (from ampliÿer) – This allows the MLC Plus 84 to detect when the amp is present.

Control voltage (variable output to amp from MLC Plus 84) – This signal controls the amp volume.

EU or MK

Model

Rear Panel

Example:

Connecting to

Extron Ampliﬁers

MLC Plus 84 EU or

MLC Plus 84 MK

Rear Panel

C or

VOL/MUTE

V or 10V G or

MPA 401 Series

MPA 181T,

MP 101 Series

MPA 152MPA 152 Plus

XPA 1002

Control voltage output:

0 - 10 VDC

Reference

voltage: °10 VDC

Volume Control

This port can be used to control the volume and mute or unmute the audio for some

Extron audio ampliÿers with remote volume capability.

• Connect to an Extron audio ampiÿer

to permit volume control via the

MLC Plus 84.

• Do not exceed 25 VDC input voltage.

Settings to conﬁgure via software:

• Maximum and minimum voltage

limits

• Soft Start mode: off or on (default) − to

allow volume to gradually increase from

mute to the previous level after muting

or power-on to prevent loud audio bursts

NOTE:

Use shielded cable and

place the MLC Plus 84 as close

as possible to the ampliÿer to

avoid picking up background

noise via the cable.

NOTE: When audio mute is active, the MLC Plus 84

sets output voltage to

0 VDC, even if the voltage

range (minimum and maximum voltage limits) have

been set to levels above zero, such as 2 V to 8 V.

Step 5: Set up the MLCPlus84 for Network Communication

1. Connect the PC that you will use for setup and the

MLCPlus84 to the same Ethernet subnetwork.

For LAN connections for the MLCPlus84, see Control

and Power — LAN (Ethernet) and PoE on page6.

2. Start Global Configurator and use the Toolbelt feature

of the software (or stand-alone Toolbelt software) to

set the IP address, subnet, gateway IP address, DHCP

status, and related settings. Network setup is essential

prior to configuration. Use the flowchart at right as a

guide to setting up the controller for network use.

NOTE: When setting up DHCP during network

configuration or if using a host name instead of

an IP address during project recovery, the user

must enter a qualified host name (HostName.

Domain).

For example: somename.somedomain.com.

Connect the controller and PC to the same LAN and apply power.

Open the Toolbelt utility in Global Conÿgurator.

Use Toolbelt to display a list of MLC Plus 84 units and all other

IP Link Pro devices connected to the network.

Using the MAC address, locate the desired device

in the list and select it.

Network Communication Setup,

Connected/Online Method

Enable DHCP or you must type in the IP address, subnet address,

and gateway, then conÿgure other network settings as needed.

Figure 14. Network Setup, Online Method

Step 6: Configure the MLC Plus 84 Controller

The most basic steps are outlined in this section in the recommended order.

NOTE: See the Global Configurator Help file as needed for step-by-step instructions and detailed information. The help file

for GC includes an introduction to the software, and how to start a project and configuration.

1. Using GC, create a new GCPlus or GCProfessional project and configure the controller and any installed IP Link Pro

devices. The configuration tells the controller how its ports function; how to control other products; what to monitor; when to

do things; and whom to notify, how, and under what circumstances.

a. Configure ports on the controller.

• Select device drivers and link them to each assigned serial, IR, or Ethernet port.

• Configure settings (serial protocol, relay behavior, digital input, volume control settings) as needed.

b. Set up monitors, schedules, macros, and local variables.

c. Set up the front panel buttons: assign appropriate commands and actions, macros, timers, local variables, monitors, or

schedules to the buttons.

2. Save the project.

3. Build and upload the system configuration to the controller.

Step 7: Test and Troubleshoot

1. Test the system. See the MLCPlus84SeriesUser Guide for an outline of the system testing and troubleshooting procedure.

2. Make adjustments to wiring or configuration as needed. Remember that the rear and side panel ports will not be accessible

after the controller is mounted.

Step 8: Complete the Physical Installation

Before mounting the MLCPlus84, make sure that all device cables have been fed through the wall frame and are connected to

the MLCPlus84 rear panel. Disconnect power at the source from all devices in the system.

NOTE: Extron recommends taking safety precautions to avoid electrostatic discharge issues during installation.

To mount the unit on the raceway, wall, or furniture:

1. Align the MLCPlus84 wall frame to the mounting bracket

(metal), which you attached to the mounting surface

during site preparation (see Site Preparation on

page2).

2. Holding the wall frame in place on

the bracket, press the cabled

MLCPlus84 into the frame

until the two tabs on either

side of the unit snap into

the opening of the bracket,

holding the MLCPlus84 in

place.

Mounting

Bracket

Wall Frame

Wall Box

MLC Plus 84 MK

MUTE

DISPLAY

OFF

DOC

CAM

LAPTOP

HDMI VGA

Figure 15. Mounting the MK Model

MLC Plus 84 EU and MLC Plus 84 MK • Setup Guide (Continued)

MLC Plus 84 EU

MUTE

DISPLAY

OFF

DOC

CAM

LAPTOP

HDMI VGA

Wall Box

Mounting

Bracket

Wall Frame

Figure 16. Mounting the EU Model

Reset Modes: a Brief Summary

The MLC Plus 84 Series controllers offer the following reset modes:

• Use Factory Firmware: Press and hold the rear panel Reset button while applying power to the unit. Use this mode to

revert to factory firmware in the event of a firmware failure.

• Project Recovery: See the MLC Plus 84 Series User Guide for instructions. Use this mode to recover the project in

the event of a lost user name and password.

• Reset All IP Settings: Press and hold the rear panel Reset button for 6 seconds. After the Reset LED blinks twice,

release and momentarily press the Reset button. Use this mode to reset all network settings to

factory default values without affecting user-loaded files.

• Reset to Factory Defaults: Press and hold the rear panel Reset button for 9 seconds. After the Reset LED blinks three

times, release and momentarily press the Reset button within 1 second. Use this mode to

return the controller to factory default settings.

For detailed information on each mode and its use, see the MLC Plus 84 Series User Guide at www.extron.com.

About Global Configurator (with GC P ofessional and GC Plus Modes)

What the Software Does

Global Configurator is the software tool for network setup and configuration of a MediaLink Plus controller.

Global Configurator:

• Loads device drivers for controlling and monitoring the status of devices within the AV system.

• Creates the configuration containing all the settings for the controller and the products with which it interacts in the AV

system.

• Generates a graphical user interface called GlobalViewer that is uploaded to the MLCPlus84 (a GlobalViewer host device)

along with the completed configuration and can be accessed as a Web page.

Using GlobalViewer, users can monitor and control Extron and third-party equipment such as projectors, displays, computer

monitors, VCRs, and DVD players.

Autres manuels pour MLC Plus 84 EU

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Extron electronics Contrôleurs

Extron electronics

Extron electronics MEDIALINK MLC 52 Series Manuel utilisateur

Extron electronics

Extron electronics MLC Plus 84 D Manuel utilisateur

Extron electronics

Extron electronics MLC 226 IP Series Manuel utilisateur

Extron electronics

Extron electronics RAC 104 Manuel utilisateur

Extron electronics

Extron electronics MediaLink MLC Plus 50 Manuel utilisateur

Extron electronics

Extron electronics MediaLink MLC 104 Plus Series Manuel utilisateur

Extron electronics

Extron electronics VNM EC 200 Manuel utilisateur

Extron electronics

Extron electronics MediaLink Controllers with IP Link MLC 104 IP... Manuel utilisateur

Extron electronics

Extron electronics Basic MediaLink Controllers MLC 52 IR Manuel utilisateur

Extron electronics

Extron electronics MLC 60 Series Manuel utilisateur

Extron electronics

Extron electronics Control Modules ACM Manuel utilisateur

Extron electronics

Extron electronics FPC 6000 Manuel utilisateur

Extron electronics

Extron electronics VCM 200 D Manuel utilisateur

Extron electronics

Extron electronics MediaLink MLC Plus 50 Manuel utilisateur

Extron electronics

Extron electronics IPA T RLY4 Manuel utilisateur

Extron electronics

Extron electronics MediaLink MLC Plus 100 Manuel utilisateur

Extron electronics

Extron electronics MEDIALINK MLC 206 Manuel utilisateur

Extron electronics

Extron electronics Basic MediaLink Controllers MLC 52 RS Manuel utilisateur

Extron electronics

Extron electronics Priority Page Controller PPC 25 Manuel utilisateur

Extron electronics

Extron electronics CCI Pro 700 Manuel utilisateur

Extron electronics

Extron electronics MLC 104 IP Plus Series Manuel utilisateur

Extron electronics

Extron electronics MLC 62 Series Manuel utilisateur

Extron electronics

Extron electronics CTR 8 Manuel utilisateur

Extron electronics

Extron electronics MediaLink Controllers with IP Link MLC 104 IP... Manuel utilisateur

Manuels Contrôleurs populaires d'autres marques

Digiplex

Digiplex DGP-848 Mode d'emploi

YASKAWA

YASKAWA SGM series Manuel utilisateur

Sinope

Sinope Calypso RM3500ZB Manuel utilisateur

Isimet

Isimet DLA Series Style 2 Manuel d'installation

LSIS

LSIS sv-ip5a Manuel utilisateur

Rockwell Automation

Rockwell Automation 1769-L31 Manuel utilisateur

Airflow

Airflow Uno hab Manuel utilisateur

ABB

ABB ACS580-01 drives Manuel utilisateur

Panasonic

Panasonic GM1 Series Manuel utilisateur

Emerson

Emerson SW93 Manuel utilisateur

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manuel utilisateur

Panasonic

Panasonic FP? Positioning Unit RTEX Manuel utilisateur

Samson

Samson Type 5824 Manuel de service

Alpha IP

Alpha IP MIOB 21001 Manuel utilisateur

Siemens

Siemens OpenAir GMA 1 Series Manuel utilisateur

Surecom

Surecom SR-629 Manuel utilisateur

Fishman

Fishman TriplePlay Manuel utilisateur

Regulus

Regulus SRS1 T Manuel utilisateur
