FPC 6000 • Setup Guide

Overview

The Extron FPC 6000 uses an Extron TLP Pro 1520M TouchLink®touchscreen to provide an

intuitive 15-inch front panel controller for Extron FOX®matrix switchers. The FPC 6000 is a

stand-alone device that does not require an external controller. This guide provides instructions

for experienced installers to mount and install the touchpanel.

Setup Checklist

The FPC 6000 touchpanel ships with a Power over Ethernet (PoE) power injector and a 7U high, 19-inch wide, rack-mountable

metal panel.

Get Ready

Obtain the following network information from your network administrator:

DHCP status — on or off. If DHCP is off, you must also obtain the following:

IP address — by default, this is 192.168.254.251

Subnet mask — by default, this is 255.255.255.0

Gateway — by default, this is 0.0.0.0

User name — by default, this is admin

Password — the factory congured passwords for all accounts on this device have been set to the device serial num-

ber. Passwords are case sensitive.

NOTES:

• If the device is reset to default settings, the password is the default password configuration. The default

password, extron.

• To change the password, use the Extron Toolbelt utility (see the Toolbelt Help File). Contact your Extron

representative about obtaining a license for Toolbelt.

• The password can also be changed via the device’s webpage.

IP address for the matrix switcher

Username is for the matrix switcher

Password is for the matrix switcher (see the user guide for your matrix switcher for information about the password).

Mount and Cable All Devices

NOTE: The FPC 6000 ships with a PoE power injector. You can use a 12 VDC 3.0 A power supply instead, but that power

supply must be purchased separately.

ATTENTION:

• Do not power on the touchpanels or control processors until you have read the Attention in the “Rear Panel Features”

section of the FPC 6000 User Guide.

• Ne branchez pas les écrans tactiles ou les contrôleurs avant d’avoir lu la mise en garde dans la section «Rear Panel

Features » du FPC 6000UserGuide.

Choose a suitable location and mount the units. When the FPC 6000 ships it is already mounted in a 7U high, 19-inch

wide, rack-mountable metal panel. Secure the panel to any standard instrument rack or console (see Mounting on the

next page).

A Power over Ethernet power injector is provided with the FPC 6000. Connect the power injector to the FPC 6000 (see

ﬁgure 4 on page 4).

Connect the power injector to the LAN and power it on (see ﬁgure 4).

MATRIXSWITCHER CONTROLLER

FPC 5500

FPC 6000 • Setup Guide (Continued)

Set up the FPC 6000 for

Network Communication

Use the Setup Menu (see page 4) to set the DHCP status and,

if necessary, the IP address, subnet mask, gateway, and related

settings for the touchpanel.

The FPC 6000 requires no further conguration.

Mounting

Extron recommends mounting the FPC 6000 in a rack, using the

provided rack mounting panel. However, wall mounting the FPC

6000 is another option.

ATTENTION:

• All structural steps and electrical installation

must be performed by qualified personnel in

accordance with local and national building

codes and electrical codes.

• Toute étape structurelle et installation électrique,

doit être effectuée par un personnel qualifié,

conformément aux codes du bâtiment, aux

codes incendie et sécurité, et aux codes

électriques, locaux et nationaux.

1. Decide where the FPC 6000, pre-installed in a 7U high,

19-inch wide, rack-mountable panel, will be mounted.

2. Use the four provided rack-mounting screws to secure the FPC 6000 to any standard equipment rack or control console.

Follow the instructions in the Underwriters Laboratories Guidelines for Rack Mounting (see the FPC 6000 User Guide,

available at www.extron.com) to ensure the rack is mounted safely.

FPC 6000

#10-32 screws (4)

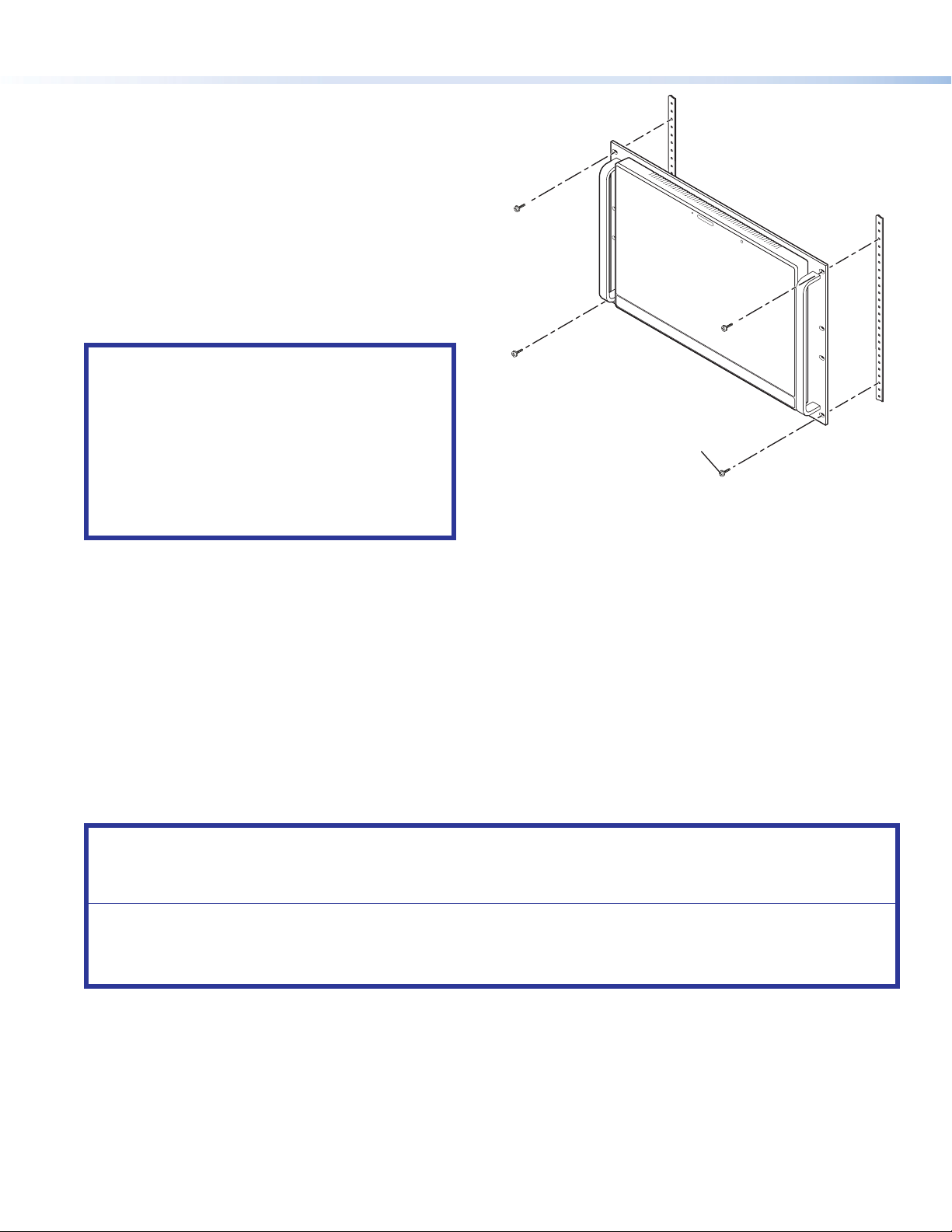

Figure 1. Rack Mounting the FPC 6000

Wall Mounting the FPC 6000

The FPC 6000 can also be wall-mounted, either using the Extron BB 700M wall box or directly into drywall. To use the BB 700M,

see the TLP Pro 1220MG, TLP Pro 1520MG, and TLP Pro 1720MG Setup Guides, at www.extron.com.

Some local building codes require the touchpanel to be mounted in a wall box. If the wall box is not required by local building

codes, you can mount the touchpanel directly into drywall.

ATTENTION:

• Do not install the FPC 6000 in a fire resistant rated wall or partition assembly.

• Ne pas installer le FPC 6000 dans un mur résistant au feu ou une cloison.

• All structural steps and electrical installation must be performed by qualified personnel in accordance with local and

national building codes and electrical codes.

• Toute étape structurelle et installation électrique, doit être effectuée par un personnel qualifié, conformément aux codes

du bâtiment, aux codes incendie et sécurité, et aux codes électriques, locaux et nationaux.

FPC 6000

Back View

Hold the touchpanel at

a slight angle. Mount

the touchpanel over

the two hooks on the

mounting plate.

Align the mounting plate with

the wall and mark for screws.

Secure the mounting plate

to the wall with 4 screws.

Place the 2 provided mounting screws

with washers in the mounting screw slot

in the touchpanel.

Secure the touchpanel by tightening the

mounting screws against the base of the

mounting plate.

The ﬂange at the bottom of the

mounting plate sits in a groove

in the bottom of the

touchpanel.

Figure 2. Wall Mounting the FPC 6000

Front Panel Features

F G

Figure 3. FPC 6000 Front Panel

gure 3

ACommunication LED — Lights briefly when unit is

powered on.

BStatus Light — Lights briefly when unit is powered on.

CAmbient Light Sensor — Monitors ambient light level

and adjusts screen brightness.

DCapacitive Touch Screen — A 15.6 inch screen with

1366x768 resolution.

ESpeakers — Provide audible feedback from button

presses.

FMotion Sensor — Detects motion in front of the

touchpanel.

GMenu Button — Activates the setup menu and

calibration screen (see Setup Menu on page 4). It

is accessed from under the touchpanel. It performs the

same function as the rear panel Menu button but is

easier to reach when the touchpanel is installed.

NOTE: Extron recommends using the Settings link

on the Login Screen (see page 5) to open the

on-screen menus.

Wall Mounting Installation

1. Download the cut-out template for the TLP Pro

1520MG from www.extron.com. Print it at 100%

(no scaling).

2. Use the template to mark the wall, cut the hole, and

drill the four pilot holes (see figure 2, 1).

The size of the cut-out hole is 8.90 inches (226 mm)

wide by 5.70 inches (145 mm) high.

3. The FPC 6000 ships, already mounted, in a

rackmountable metal panel. Remove the FPC 6000,

and unscrew the mounting plate from the panel.

4. Secure the mounting plate to the mounting

surface with four #10 screws (2). Use screws and

fasteners that are appropriate for the mounting

surface.

5. Run and connect cables to the back of the

touchpanel (3, see Rear Panel Features on the

next page).

6. Insert the two provided Phillips pan head #6-32 x

¾-inch screws with washers in the mounting screw

slot (4, see figure 4,Jon the next page). Leave

a gap for the ange at the bottom of the mounting

plate to t into (6).

7. Hold the touchpanel at a slight angle and lower the

notches at the top of the back panel (5) over the

hooks of the mounting plate.

8. Swing down the bottom of the touchpanel so it lies

flat against the mounting plate. The flange at the

bottom of the mounting plate sits in a groove in the

bottom of the touchpanel (6).

9. Secure the touchpanel to the mounting plate with

the mounting screws (7).

FPC 6000 • Setup Guide (Continued)

Rear Panel Features

AReset LED — Provides feedback about the reset

status when the user presses the Reset button

(see Reset Modes: a Brief Summary on page 8.

BReset Button — Press the Reset button to reset

the unit in any of three different modes (see Reset

Modes: a Brief Summary).

CMenu Button — Activates the setup menu and

calibration screen (see Setup Menu,below).

NOTE: Extron recommends using the

Settings link on the Login Screen (see

page 5) to open the on-screen menus.

DUSB Connectors — No function in FPC 6000.

EAudio Output — No function in FPC 6000.

FXTP/LAN/PoE Input —

NOTE: The FPC 6000 can be powered by either the provided PoE power injector or a 12 VDC, 3.0 A power supply

(which must be purchased separately). Do not remotely power the touchpanel using an XTP device.

• XTP input — Do not connect the FPC 6000 directly to an XTP source.

• LAN input — If you use the provided 12 VDC power supply, connect the FPC 6000 directly to the network using a

twisted pair cable, terminated with an RJ-45 connector.

• PoE input — If you use the provided PoE power injector, connect the FPC 6000 to the power injector output and

connect the power injector input to the LAN (see figure 5).

ATTENTION:

• Do not power on the touchpanels or control processors until you

have read the Attention in the “Rear Panel Features” section of the

FPC 6000 User Guide.

• Ne branchez pas les écrans tactiles ou les contrôleurs avant d’avoir

lu la mise en garde dans la section «Rear Panel Features » du FPC

6000 User Guide.

GHDMI Input — No function in FPC 6000.

HMounting Slot (2) — Used to attach the mounting plate to the FPC 6000.

I12 VDC Power Supply Input — If you are not using PoE, connect a 12 VDC,

3.0 A power supply to this captive screw connector. The power supply must be

purchased separately. Extron recommends the PS 1230 Limited Power Source (LPS).

JMounting Screw Slot (2) — Used to secure the mounting plate to the FPC 6000.

RESET

HDMI IN

LAN

POWER

12V

1.0A MAX

Figure 4. FPC 6000 Rear Panel

gure 4

Setup Menu

Press the Settings link on the Login screen to open

the setup menu. Select any of the ve available screens

(Status, Network, Display, Audio, and Advanced) by

pressing the appropriate button in the navigation bar at the

top of the screen (for more information, see the FPC 6000

User Guide).

The setup menu is used to congure the network settings

for the FPC 6000.

StatusDisplay Audio Advanced Exit

Network

Info

Model: FPC 6000

Part Number:60-1706-01

Firmware

Version: 1.00.0001-b003

Network

IP Address:

DHCP:

Host Name:

Off

192.168.254.251

FCP-6000-AB-CD-EF

Display

Resolution:

GUI Project:

Sleep Timer:

1366x768

N/A

5 Minutes

Audio

Master Vo lume:

Master Mute: Off

Advanced

Controller IP:N/A

Project Size:N/A

Bootloader

Version: 1.00.0000

PoE: Active

Figure 6. Setup Menu: Status Screen for FPC 6000

100-240V~50/60 Hz

1.1A MAX INPUT OUTPUT

POWERED TLP

LAN

To Network Device To FPC 6000

Extron PI 140

Figure 5. Connecting the PoE Power

Injector

FPC 6000 Web Page

1. Open a web browser on a PC connected to the

same subnet as the FPC 6000.

2. Enter the IP address of the FPC 6000 into the web

browser.

3. In the dialog box that opens, enter the touchpanel

user name (by default, this is admin) and

password.

Figure 7. FPC 6000 Web Page

NOTES:

• The factory configured passwords for all accounts on this device have been set to the device serial number. Passwords

are case sensitive.

• If the device is reset to default settings, the password is reset to - extron - the default configuration.

• To change the password, you must use the Extron Toolbelt utility (see the Toolbelt Help File). Contact your Extron

representative about obtaining a license for Toolbelt.

Operation

The FPC 6000 has a Login Screen, four tabs (Ties, Status, I/O Info, Customize) and the Disconnect button, that allow you to

control, monitor, access, and manage a range of Extron matrix switchers over a local area network.

When the FPC 6000 is powered on, it opens to the login

screen.

1. Press the Matrix IP Address text box. An

onscreen keyboard appears.

2. Enter the IP address of the matrix switcher. If you

have previously connected to the matrix switcher,

the IP address may already be displayed, or may be

available in the drop-down menu.

3. In the Matrix Type field, select the appropriate

type for your matrix.

4. Press the Username text box and enter the user

name of the matrix switcher.

5. Press the Password text box and enter the

password of the matrix switcher.

NOTE: See the FPC 6000 User Guide for the matrix switcher for information about device passwords.

6. Press Connect. The FPC 6000 attempts to connect to the matrix switcher.

If the connection is successful, the FPC 6000 opens to the Ties screen.

If the connection is unsuccessful, you see an error message. Check that you have the correct values for the IP address,

matrix type, username, and password before re-entering the values.

Figure 8. FPC 6000 Login Screen

FPC 6000 • Setup Guide (Continued)

Ties

Press the Ties menu button.

AMenu Buttons — For navigating to the other

main screens.

BInput Buttons — The block of numbered

buttons on the left shows 20 matrix switcher

inputs at a time. Use the scroll bar to see

more. Inputs with an active source have a blue

rectangle in the top right corner.

CSegmented Buttons —

• Grid (Standard) - Default layout.

• Grid (Internal Audio) - Displays the Internal

Audio.

• NumPad - Provides option to

enter Input/Output in numerical format.

DRefresh — Use this button to reload the current matrix ties.

EOutput Buttons — The block of numbered buttons on the right shows 20 matrix switcher outputs at a time. Use the scroll

bar to see more.

FPresets — This menu allows you to save and recall Global presets and recall Room presets.

GSignal Selection Buttons — Allows you to select a specific matrix signal or signals (Video, Audio, USB).

NOTE: FOX3 USB breakaway switching requires a Matrix LinkLicense.

HMute Controls — Allow you to mute audio and video on a selected output.

ITake — Use this button to set up potential ties. For those ties to go into effect, press Take.

JBreak All Ties — Allow you to break all ties when no input is selected. When an input or output is selected, this will change

to “Select All”.

KClear Selection — Use this button to clear potential ties.

For complete instructions about creating and breaking ties, or saving and recalling presets, see the FPC 6000 User Guide.

TIES

I/O INFO

STATUS

DISCONNECT

CUSTOMIZE

REFRESH

OUTPUTSPRESETS

SELECT ALL

CLEAR

SELECTION

MATRIX TIES

INPUTS

Viewing Mode:

Grid (Standard) Grid (Internal Audio) Numpad

Viewing Mode:

Grid (Standard) Grid (Internal Audio) Numpad

TAKE

MUTE/

UNMUTE

VIDEO

AUDIO

VIDE

USB

Input

Input Input

Input

Input Input

Input

Input Input

Output

Figure 9. FPC 6000 Ties Screen

Create Ties

NOTE: One input can be tied to multiple outputs but each output can be tied to only one input.

1. Press an input button to select it. The color of the button changes to blue. If the input is already tied to one or more outputs,

those output buttons change color to orange.

2. Press one or more previously untied output buttons to select them. The selected button changes color and an orange plus

sign appears in the bottom right corner of the button. The Take button becomes activated.

3. Press Take. The tie is made.

Break Ties

1. Press an input button to select it. The color of the button changes to blue and any outputs already tied to that input change

to orange.

2. Press one or more of the previously tied output buttons to select them. An orange minus sign appears in the bottom right

corner of the button. The Take button becomes activated.

3. Press Take. The tie is broken.

Break All Ties

1. When no input is selected, press Break All Ties. The screen displays a pop-up window asking if you want to break all ties.

2. Press Yes if you want to proceed.

Select All

1. Press an input button to select it. The color of the button changes to blue and any outputs already tied to that input change

to orange.

2. Press Select All. All the output buttons are selected. The Take button becomes active and a new Break button is also

available.

3. Press Take to tie the selected input to all outputs, or press Break to break all existing ties to the selected input.

Save Presets (Global Presets only)

NOTE: To save rooms or room presets, use Simple Instruction Set™ commands (see the user guide for your matrix switcher).

The FPC 6000 can save global presets and recall global and room presets.

1. Press Presets to open the presets menu.

2. Press Save As.... A drop-down menu shows all the previously saved and unassigned presets.

3. Select a preset. You can overwrite an existing preset or select [unassigned] and create a new preset.

4. If you select an unassigned preset, an on-screen keyboard opens. Enter a name for the preset.

5. Press Submit on the keyboard (for a new preset) or press Save Preset to overwrite an existing preset.

Recall Presets

When you recall a preset, it overwrites the current conguration for the matrix switcher.

1. Press Presets to open the presets menu.

2. Press Recall from....

3. Select either Global or Room from the Preset Type menu.

• If you select Global, a list of global presets appears. Select a preset and press Recall Preset.

• If you select Room, a list of rooms appears. Select a room. A list of presets for that room appears. Select a preset and press

Recall Preset.

Status

Press the Status menu button.

The Status screen is read-only and provides

information about the status of the matrix switcher.

Figure 10. FPC 6000 Status Screen

I/O Info

The I/O Info screen allows you to nd complete

information about a single input or output.

1. Press I/O Info in the menu bar.

2. Select either the Inputs or Outputs tab.

• To select Inputs, press an input button.

If there are any tied outputs, they are listed

on the right of the screen.

• To select Outputs, press any output

button. If it is tied to an input, that input is

shown on the right of the screen.

Figure 11. FPC 6000 I/O Info Screen

DEVICE

FOX3-Matrix-320x-19-D8-36

Model FOX3 Matrix 320x

Part Number 60-1578-02

Firmware 1.01.0002

Firmware Date 04 Nov 2020 17:03 U

Date 17 Nov 2020

Time 14:32:17

TIES

I/O INFO

STATUS

DISCONNECT

CUSTOMIZE

SYSTEM STATUS SYSTEM INFORMATION

TEMPERATUREPASS 86° F / 3O° C

SERIAL PORT

Port Type RS-232

Baud Rate 9600

Data Bits 8

Parity N

Stop Bits 1

Flow Control N

LINKLICENSE

POWER SUPPLY

Primary PS1 status PASS

Redundant PS2 status FAIL

+12 Volts (Primary) PASS 12.43V

+12 Volts (redundant) FAIL OV

FANS

FAN 1 PASS 2066

FAN 2 PASS 2892

FAN 3 PASS 2094

FAN 4 PASS 2064

FAN 5 PASS 2868

FAN 6 PASS 2094

FAN 7 PASS 2068

FAN 8 PASS 2870

FAN 9 PASS 2071

TIES

I/O INFO

STATUS

DISCONNECT

CUSTOMIZE

REFRESH

INPUT

Grid (Standard) Numpad

Input 15

Input 13

Input 14

Input 16

Input 19

Input 20

Input 17

Input 18

Input 23

Input 24

Input 21

Input 22

Input 26

Input 28

Input 25

Input 27

Input 30

Input 32

Input 29

Input 31

I/O INFORMATION

Viewing Mode:

Inputs

Outputs

Output 1

Output 2

Output 3

Output 4

Output 5

Output 6

Output 7

Output 8

Output 9

31 Input 31

Tied Outputs:

Selected Input:

SFP Module Status FINI

Board Conﬁg Type Slot 4, Non-reclocking Singlem

Laser Status 1 (Enable)

Re-clocker status 5 (10.0 Gbps)

68-3259-50 Rev. C

01 21

For information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the

Extron Safety and Regulatory Compliance Guide on the Extron website.

All trademarks mentioned are the property of their respective owners.

Worldwide Headquarters: Extron USA West, 1025 E. Ball Road, Anaheim, CA 92805, 800.633.9876

FPC 6000 • Setup Guide (Continued)

Customize

The Customize screen allows you to alter the

appearance of the graphical user interface.

Press Customize in the menu bar.

1. Select one of the three options:

• Dark (default)

• Medium

• Light

The selected option is highlighted in blue.

2. Press Save Changes to save the selection.

Figure 12. FPC 6000 Customize Screen

NOTE: You can also access the settings of the panel by clicking on the settings.

Reset Modes: a Brief Summary

The FPC 6000 offers the following reset modes (see the FPC 6000 User Guide for complete information):

• Use Factory Firmware — With the unit powered off, press and hold the Reset button (see figure 4, Bon page 4) while

reapplying power to the unit.

• Reset All IP Settings — Press and hold the Reset button for 6 seconds. After the Reset LED (A) blinks twice, release and

momentarily press the Reset button. Use this mode to reset all network settings to factory defaults without affecting

user-loaded files.

• Reset to Factory Defaults — Press and hold the Reset button for 9 seconds. After the Reset LED blinks three times,

release and momentarily press the Reset button. Use this mode to return the touchpanel to factory default settings.

CUSTOMIZE

SAVE CHANGES

TIES

I/OINFO

STATUS

DISCONNECT

CUSTOMIZE

REFRESH

OUTPUTSPRESETS

SELECTALL

CLEAR

SELECTION

MATRIX TIES

INPUTS

ViewingMode:

Grid(Standard) Grid(InternalAudio) Numpad

ViewingMode:

Grid(Standard) Grid(InternalAudio) Numpad

Input183

183

Input181

181

Input182

182

Input184

184

Input187

187

Input188

188

Input185

185

Input186

186

Input191

191

Input192

192

Input189

189

Input190

190

Input194

194

Input196

196

Input193

193

Input195

195

Input198

198

Input200

200

Input197

197

Input199

199

Output111

111

Output109

109

Output112

112

Output115

115

Output116

116

Output113

113

Output114

114

Output119

119

Output120

120

Output117

117

Output118

118

Output123

123

Output124

124

Output126

126

Output128

128

Output125

125

Output127

127

Output110

110

Output122

122

Output121

121

Dark Theme

DEFAULT COLOR SETTINGS

TIES

I/OINFO

STATUS

DISCONNECT

CUSTOMIZE

REFRESH

OUTPUTSPRESETS

SELECTALL

CLEAR

SELECTION

MATRIX TIES

INPUTS

ViewingMode:

Grid(Standard) Grid(InternalAudio) Numpad

ViewingMode:

Grid(Standard) Grid(InternalAudio) Numpad

Input183

183

Input181

181

Input182

182

Input184

184

Input187

187

Input188

188

Input185

185

Input186

186

Input191

191

Input192

192

Input189

189

Input190

190

Input194

194

Input196

196

Input193

193

Input195

195

Input198

198

Input200

200

Input197

197

Input199

199

Output111

111

Output109

109

Output112

112

Output115

115

Output116

116

Output113

113

Output114

114

Output119

119

Output120

120

Output117

117

Output118

118

Output123

123

Output124

124

Output126

126

Output128

128

Output125

125

Output127

127

Output110

110

Output122

122

Output121

121

Medium Theme

TIES

I/OINFO

STATUS

DISCONNECT

CUSTOMIZE

REFRESH

OUTPUTSPRESETS

SELECTALL

CLEAR

SELECTION

MATRIX TIES

INPUTS

ViewingMode:

Grid(Standard) Grid(InternalAudio) Numpad

ViewingMode:

Grid(Standard) Grid(InternalAudio) Numpad

Input183

183

Input181

181

Input182

182

Input184

184

Input187

187

Input188

188

Input185

185

Input186

186

Input191

191

Input192

192

Input189

189

Input190

190

Input194

194

Input196

196

Input193

193

Input195

195

Input198

198

Input200

200

Input197

197

Input199

199

Output111

111

Output109

109

Output112

112

Output115

115

Output116

116

Output113

113

Output114

114

Output119

119

Output120

120

Output117

117

Output118

118

Output123

123

Output124

124

Output126

126

Output128

128

Output125

125

Output127

127

Output110

110

Output122

122

Output121

121

Light Theme

TAKE

MUTE/

UNMUTE

VIDEO

AUDIO

Output116

VIDE

USB

TAKE

MUTE/

UNMUTE

VIDEO

AUDIO

VIDE

USB

TAKE

MUTE/

UNMUTE

VIDEO

AUDIO

IDE

USB

TIES

I/O INFO

STATUS

DISCONNECT

CUSTOMIZE

Autres manuels pour FPC 6000

Table des matières

Autres manuels Extron electronics Contrôleurs

Extron electronics

Extron electronics MLC Plus 84 D Manuel utilisateur

Extron electronics

Extron electronics IPA T RLY4 Manuel utilisateur

Extron electronics

Extron electronics VNM Enterprise Manuel utilisateur

Extron electronics

Extron electronics MediaLink MLC Plus 50 Manuel utilisateur

Extron electronics

Extron electronics VNM EC 200 Manuel utilisateur

Extron electronics

Extron electronics MediaLink MLC 104 Plus Series Manuel utilisateur

Extron electronics

Extron electronics CCI Pro 700 Manuel utilisateur

Extron electronics

Extron electronics Basic MediaLink Controllers MLC 52 IR Manuel utilisateur

Extron electronics

Extron electronics MLC 62 Series Manuel utilisateur

Extron electronics

Extron electronics TLP Pro 720C Manuel utilisateur

Extron electronics

Extron electronics PC 101 Manuel utilisateur

Extron electronics

Extron electronics FPC 6000 Manuel utilisateur

Extron electronics

Extron electronics FPC 6000 Manuel utilisateur

Extron electronics

Extron electronics RAC 104 Manuel utilisateur

Extron electronics

Extron electronics MediaLink MLC Plus 50 Manuel utilisateur

Extron electronics

Extron electronics MLC Plus 84 EU Manuel utilisateur

Extron electronics

Extron electronics MLC 60 Series Manuel utilisateur

Extron electronics

Extron electronics RAC 104 Manuel utilisateur

Extron electronics

Extron electronics MLC 226 IP Series Manuel utilisateur

Extron electronics

Extron electronics MEDIALINK MLC 52 Series Manuel utilisateur

Extron electronics

Extron electronics MLC 226 Series Manuel utilisateur

Extron electronics

Extron electronics Basic MediaLink Controllers MLC 52 RS Manuel utilisateur

Extron electronics

Extron electronics MLC 104 IP PLUS Manuel utilisateur

Extron electronics

Extron electronics MEDIALINK MLC 52 Series Manuel utilisateur

Manuels Contrôleurs populaires d'autres marques

Digiplex

Digiplex DGP-848 Mode d'emploi

YASKAWA

YASKAWA SGM series Manuel utilisateur

Sinope

Sinope Calypso RM3500ZB Manuel utilisateur

Isimet

Isimet DLA Series Style 2 Manuel d'installation

LSIS

LSIS sv-ip5a Manuel utilisateur

Rockwell Automation

Rockwell Automation 1769-L31 Manuel utilisateur

Airflow

Airflow Uno hab Manuel utilisateur

ABB

ABB ACS580-01 drives Manuel utilisateur

Panasonic

Panasonic GM1 Series Manuel utilisateur

Emerson

Emerson SW93 Manuel utilisateur

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manuel utilisateur

Panasonic

Panasonic FP? Positioning Unit RTEX Manuel utilisateur

Samson

Samson Type 5824 Manuel de service

Alpha IP

Alpha IP MIOB 21001 Manuel utilisateur

Siemens

Siemens OpenAir GMA 1 Series Manuel utilisateur

Surecom

Surecom SR-629 Manuel utilisateur

Fishman

Fishman TriplePlay Manuel utilisateur

Regulus

Regulus SRS1 T Manuel utilisateur
