Extech Instruments AUT500 Manuel utilisateur

USER GUIDE

Automotive Multimeter

MODEL AUT500

AUT500-EU-EN v1.0 5/13

Introduction

Thank you for selecting the Extech AUT500 Automotive Multimeter. The AUT500 is an Auto Range

Multimeter that measures AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Frequency,

Diode, Continuity, RPM, Dwell, and Duty Cycle. The AUT500 also measures contact temperature via

supplied Thermocouple probe.

The AUT500 features a rugged design for heavy duty use. This device is shipped fully tested and

calibrated and, with proper use, will provide years of reliable service. Please visit our website

(www.extech.com) to check for the latest version of this User Guide, Product Updates, and Customer

Support.

Safety

International Safety Symbols

This symbol, adjacent to another symbol or terminal, indicates the user must refer to the

manual for further information.

This symbol, adjacent to a terminal, indicates that, under normal use, hazardous voltages

may be present

Double insulation

This WARNING symbol indicates a potentially hazardous situation, which if not

avoided, could result in death or serious injury.

This CAUTION symbol indicates a potentially hazardous situation, which if not

avoided, may result damage to the product.

This symbol advises the user that the terminal(s) so marked must not be

connected to a circuit point at which the voltage with respect to earth ground

exceeds (in this case) 600 VAC or VDC.

CAUTIONS

Improper use of this meter can cause damage, shock, injury or death. Read and understand

this user manual before operating the meter.

Always remove the test leads before replacing the battery or fuses.

Inspect the condition of the test leads and the meter itself for any damage before operating the

meter. Repair any damage or replace the unit before use.

Use great care when making measurements if the voltages are greater than 25VAC rms or

35VDC. These voltages are considered a shock hazard.

Always discharge capacitors and remove power from the device under test before performing

Diode, Resistance or Continuity tests.

Voltage checks on electrical outlets can be difficult and misleading because of the uncertainty

of connection to the recessed electrical contacts. Other means should be used to ensure that

the terminals are not "live".

WARNING

CAUTION

MAX

600V

AUT500-EU-EN v1.0 5/13

If the equipment is used in a manner not specified by the manufacturer, the protection provided

by the equipment may be impaired.

This device is not a toy and must not reach children’s hands. It contains hazardous objects as

well as small parts that the children could swallow. In case a child swallows any of them,

please contact a physician immediately

Do not leave batteries and packing material lying around unattended; they can be dangerous

for children if they use them as toys

In case the device is going to be unused for an extended period of time, remove the batteries

to prevent them from training

Expired or damaged batteries can cause cauterization on contact with the skin. Always,

therefore, use suitable hand gloves in such cases

See that the batteries are not short-circuited. Do not throw batteries into the fire.

DANGERS

Engines produce carbon monoxide which is odorless, causes slower reaction time, and can

lead to serious injury. When the engine is operating keep service areas well ventilated or

attach the vehicle exhaust system to the shop exhaust removal system.

Set the parking brake and block the wheels before testing or repairing the vehicle. It is

especially important to block the wheels on front-wheel drive vehicles; the parking brake does

not hold the drive wheels.

Wear an eye shield when testing or repairing vehicles.

Keep the meter away from spark plug and coil wires.

Exceeding the limits of this meter is dangerous. This will expose you to serious or possibly fatal

injury. Carefully read and understand the cautions and the specification limits of this meter.

Avoid electrical shock; do not touch the test leads, tips, or the circuit under test.

Do not try a voltage measurement with the test leads in the 20A or the mA terminal.

Choose the proper range and function for the measurement. Do not try voltage or current

measurements that may exceed the ratings marked on the Function/Range switch or terminal.

When measuring current, connect the meter in series with the load.

Never connect more than one set of test leads to the meter.

Disconnect the live test lead before disconnecting the common test lead.

The mA and the 20A terminals are protected by fuses. To avoid possible injury or damage, use

only in circuits limited to 400mA.

AUT500-EU-EN v1.0 5/13

OVERVOLTAGE CATEGORY III

This meter meets the IEC 610-1-2001 standard for OVERVOLTAGE CATEGORY III. Cat III meters are

protected against overvoltage transients in fixed installation at the distribution level. Examples include

switches in the fixed installation and some equipment for industrial use with permanent connection to

the fixed installation.

METER SAFETY RULES

This meter has been designed for safe use, but must be operated with caution. The rules listed below

must be carefully followed for safe operation.

1. NEVER apply voltage or current to the meter that exceeds the specified maximum:

Input Protection Limits

Function Maximum Input

Voltage DC or V AC

Ohms, Continuity

Diode, Capacitance, Type K Temperature

Frequency, % Duty, Pulse-ms, Dwell

RPM

600V AC or DC

mA AC/DC 400mA 250V

20A AC/DC 20A AC or DC*

* 20A measurements for 30 seconds maximum

Notes: Resistance (Ohms) cannot be measured if voltage is present. Resistance can only be

measured on a non-powered circuit

2. USE EXTREME CAUTION when working with high voltages.

3. DO NOT measure voltage if the voltage on the "COM" input jack exceeds 600V above earth

ground.

4. NEVER connect the meter leads across a voltage source while the function switch is in the

current, resistance, or diode mode. Doing so can damage the meter.

5. ALWAYS discharge filter capacitors in power supplies and disconnect the power when making

resistance or diode tests.

6. ALWAYS turn off the power and disconnect the test leads before opening the covers to replace

the fuse or batteries.

7. NEVER operate the meter unless the back cover and the battery and fuse covers are in place

and fastened securely.

AUT500-EU-EN v1.0 5/13

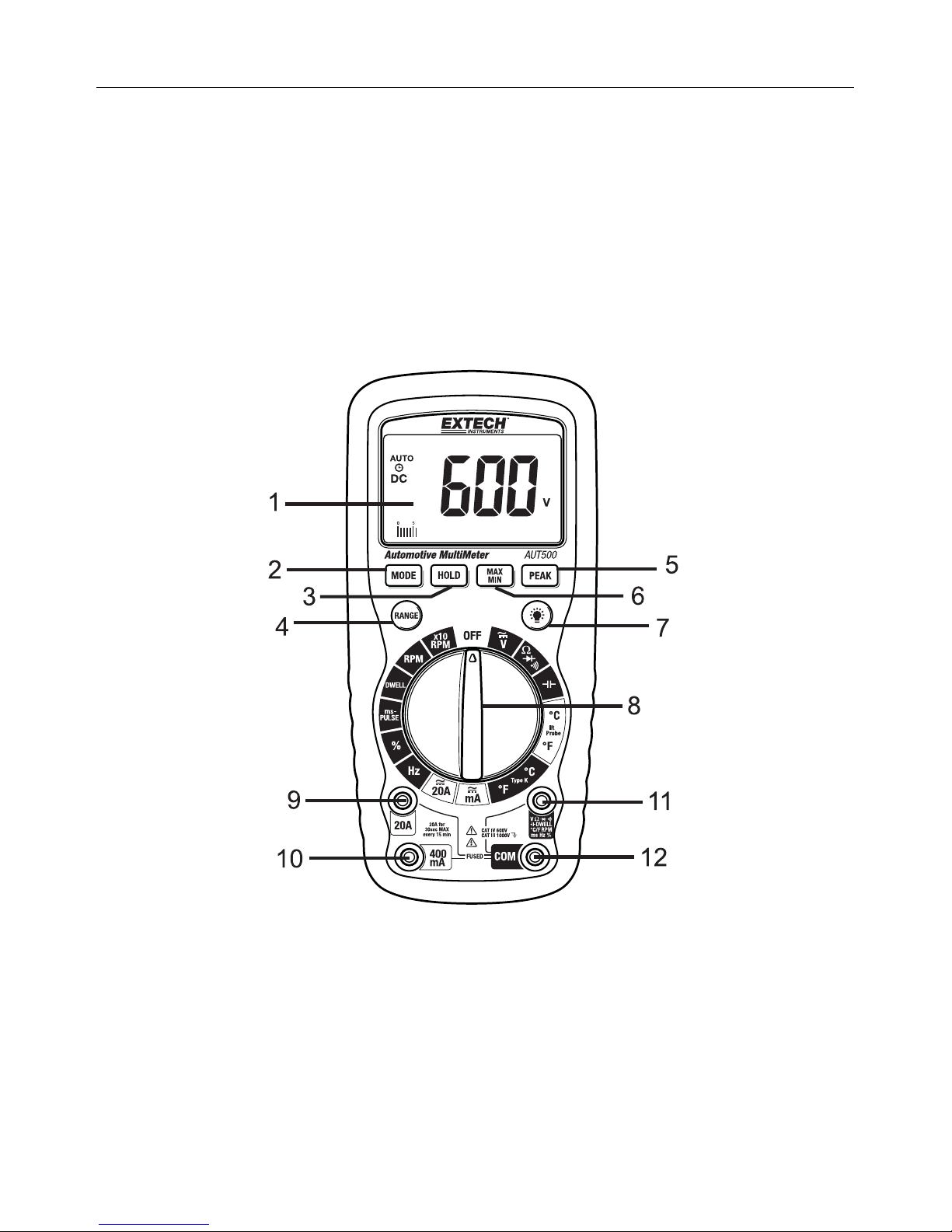

Controls and Jacks

1. LCD display

2. MODE button

3. HOLD button

4. RANGE button

5. PEAK button

6. MAX-MIN button

7. Backlight button

8. Function switch

9. 20A input jack

10. 400mA input jack

11. Positive input jack

12. COM input jack

Note: Tilt stand, test lead holders, and battery compartment are located on rear of unit. Fuses are

accessible by removing the meter’s back cover, instructions provided later in this guide.

AUT500-EU-EN v1.0 5/13

Symbols and Annunciators

•))) Continuity

Diode test

Battery status

n nano (10-9) (capacitance)

µ micro (10-6) (amps, cap)

m milli (10-3) (volts, amps, milli-seconds: ms)

A Amps

k kilo (103) (ohms)

F Farads (capacitance)

M mega (106) (ohms)

 Ohms (resistance, continuity)

Hz Hertz (frequency)

V Volts

% Percent

REL Relative (unused in this model)

AC Alternating current

DC Direct current

MAX Highest reading

MIN Lowest reading

ºF Degrees Fahrenheit

ºC Degrees Centigrade

Pmax Maximum peak

Pmin Minimum peak

RPM Rotations per minute

Trig Positive (+) or Negative (-) Trigger

CYL Cylinder (4, 5, 6, and 8)

Display Hold

x10 Multiply displayed reading by 10

Bargraph

Manual range (top left on LCD)

AUTO Auto range mode

Auto Power OFF icon (middle left on LCD)

Dwell angle icon

AUT500-EU-EN v1.0 5/13

Operating Instructions

WARNING: Risk of electrocution. High-voltage circuits, both AC and DC, are very dangerous and

should be measured with great care.

1. ALWAYS turn the function switch to the OFF position when the meter is not in use.

2. If “OL” appears in the display during a measurement, the value exceeds the range selected. Change

to a higher range.

NOTE: On some low AC and DC voltage ranges, with the test leads not connected to a device, the

display may show a random, changing reading. This response is normal and is caused by the high-

input sensitivity. The reading will stabilize and give a proper measurement when connected to a

circuit.

DC VOLTAGE MEASUREMENTS

CAUTION: Do not measure DC voltages if a motor on the circuit is being switched ON or OFF.

Large voltage surges may occur that can damage the meter.

1. Set the function switch to the ‘V’ position.

2. Press the MODE button to indicate “DC” on the display.

3. Insert the black test lead banana plug into the negative COM jack.

Insert the red test lead banana plug into the positive Vjack.

4. Touch the black test probe tip to the negative side of the circuit.

Touch the red test probe tip to the positive side of the circuit.

5. Read the voltage in the display as numerical digits and as bar-graph

representation.

AUT500-EU-EN v1.0 5/13

AC VOLTAGE MEASUREMENTS

WARNING: Risk of Electrocution. The probe tips may not be long enough to contact the live parts

inside some 240V outlets for appliances because the contacts are recessed deep in the outlets. As

a result, the reading may show 0 volts when the outlet actually has voltage on it. Make sure the

probe tips are touching the metal contacts inside the outlet before assuming that no voltage is

present.

CAUTION: Do not measure AC voltages if a motor on the circuit is being switched ON or OFF.

Large voltage surges may occur that can damage the meter.

1. Set the function switch to the ‘V’ position.

2. Press the MODE button to indicate “AC” on the display.

3. Insert the black test lead banana plug into the negative COM jack.

Insert red test lead banana plug into the positive Vjack.

4. Touch the black test probe tip to the neutral side of the circuit.

Touch the red test probe tip to the “hot” side of the circuit.

5. Read the voltage in the display as numerical digits and as bar-graph

representation.

DC CURRENT MEASUREMENTS

CAUTION: Do not make current measurements on the 20A scale for longer than 30 seconds.

Exceeding 30 seconds may cause damage to the meter and/or the test leads.

1. Insert the black test lead banana plug into the negative COM jack.

2. For current measurements up to 400mA DC, set the function switch to the

mA position and insert the red test lead banana plug into the 400mA jack.

3. For current measurements up to 20A DC, set the function switch to the

20A range and insert the red test lead banana plug into the 20A jack.

4. Press the MODE button to indicate “DC” on the display.

5. Remove power from the circuit under test, then open up the circuit at the

point where you wish to measure current.

6. Touch the black test probe tip to the negative side of the circuit.

Touch the red test probe tip to the positive side of the circuit.

7. Apply power to the circuit.

8. Read the current in the display as numerical digits and as bar-graph

representation.

AUT500-EU-EN v1.0 5/13

AC CURRENT MEASUREMENTS

CAUTION: Do not make current measurements on the 20A scale for longer than 30 seconds.

Exceeding 30 seconds may cause damage to the meter and/or the test leads.

1. Insert the black test lead banana plug into the negative COM jack

2. For current measurements up to 400mA AC, set the function switch

to the mA position and insert the red test lead banana plug into the

400mA jack.

3. For current measurements up to 20A AC, set the function switch to

the 20A range and insert the red test lead banana plug into the 20A

jack.

4. Press the MODE button to indicate “AC” on the display.

5. Remove power from the circuit under test, then open up the circuit

at the point where you wish to measure current.

6. Touch the black test probe tip to the neutral side of the circuit.

Touch the red test probe tip to the “hot” side of the circuit.

7. Apply power to the circuit.

8. Read the current in the display as numerical digits and as bar-graph

representation.

RESISTANCE MEASUREMENTS

WARNING: To avoid electric shock, disconnect power to the unit under test and discharge all

capacitors before taking any resistance measurements. Remove the batteries and unplug the line

cords.

1. Set the function switch to the Ω position.

2. Insert the black test lead banana plug into the negative COM jack.

Insert the red test lead banana plug into the positive jack.

3. Press the MODE button to indicate “"on the display.

4. Touch the test probe tips across the circuit or part under test. It is best

to disconnect one side of the part under test so the rest of the circuit

will not interfere with the resistance reading.

5. Read the resistance in the display.

AUT500-EU-EN v1.0 5/13

CONTINUITY CHECK

WARNING: To avoid electric shock, never measure continuity on circuits or wires that have

voltage on them.

1. Set the function switch to the Ωposition. Refer to the Resistance measurement diagram

above for reference.

2. Insert the black lead banana plug into the negative COM jack.

Insert the red test lead banana plug into the positive jack.

3. Press the MODE button to indicate “ " on the display

4. Touch the test probe tips to the circuit or wire you wish to check.

5. If the resistance is less than approximately 35, the audible signal will sound. If the circuit is open,

the display will indicate “OL”.

DIODE TEST

1. Set the function switch to the Ωposition.

2. Insert the black test lead banana plug into the negative

COM jack and the red test lead banana plug into the

positive Vjack.

3. Press the MODE button to indicate and Von the

display.

4. Touch the test probes to the diode under test. Forward

voltage will typically indicate 0.400 to 0.700V. Reverse

voltage will indicate “OL”. Shorted devices will indicate

near 0V and an open device will indicate “OL” in both

polarities.

CONTACT TEMPERATURE MEASUREMENTS (TYPE K)

1. Set the function switch to the Type K ºC or ºF position.

2. Insert the Temperature Probe into the input jacks, making sure to observe the correct polarity.

3. Touch the Temperature Probe tip to the part under test. When the reading stabilizes (after

approximately 30 seconds) remove the probe tip from the surface

under test.

4. Read the temperature in the display as numerical digits and as

bar-graph representation.

Note: The temperature probe is fitted with a type K mini connector. A

mini connector to banana connector adaptor is supplied for

connection to the meter’s input banana jacks.

Table des matières

Autres manuels Extech Instruments Multimètre

Extech Instruments

Extech Instruments EX430-NIST Manuel utilisateur

Extech Instruments

Extech Instruments EX410A Manuel utilisateur

Extech Instruments

Extech Instruments EX230 Manuel utilisateur

Extech Instruments

Extech Instruments MultiMaster MM560 Manuel utilisateur

Extech Instruments

Extech Instruments 450 Manuel utilisateur

Extech Instruments

Extech Instruments 382075 Manuel utilisateur

Extech Instruments

Extech Instruments EX623 Manuel utilisateur

Extech Instruments

Extech Instruments EX360 Manuel utilisateur

Extech Instruments

Extech Instruments 401025 Manuel utilisateur

Extech Instruments

Extech Instruments MultiLog ML720 Manuel utilisateur

Extech Instruments

Extech Instruments EX520 Manuel utilisateur

Extech Instruments

Extech Instruments EX420A Manuel utilisateur

Extech Instruments

Extech Instruments SDL900 Manuel utilisateur

Extech Instruments

Extech Instruments MN15A Manuel utilisateur

Extech Instruments

Extech Instruments LT40 Manuel utilisateur

Extech Instruments

Extech Instruments MN30 Manuel utilisateur

Extech Instruments

Extech Instruments 411 Manuel utilisateur

Extech Instruments

Extech Instruments MiniTec Series Manuel utilisateur

Extech Instruments

Extech Instruments MA400 Manuel utilisateur

Extech Instruments

Extech Instruments MG300 Manuel utilisateur

Extech Instruments

Extech Instruments MO290 Manuel utilisateur

Extech Instruments

Extech Instruments Extech 470 Manuel utilisateur

Extech Instruments

Extech Instruments 380941 Manuel utilisateur

Extech Instruments

Extech Instruments EX210 Manuel utilisateur

Manuels Multimètre populaires d'autres marques

Agilent Technologies

Agilent Technologies 34420A Manuel utilisateur

Fluke

Fluke 83 Manuel utilisateur

Hameg

Hameg HM 8012 Manuel utilisateur

Mastech

Mastech MY70 Manuel utilisateur

Steren

Steren MUL-300 Manuel utilisateur

Somogyi Elektronic

Somogyi Elektronic home SMA 92 Manuel utilisateur

Gossen MetraWatt

Gossen MetraWatt METRAmax 6 Manuel utilisateur

PeakTech

PeakTech 4000 Manuel d'utilisation et d'entretien

YOKOGAWA

YOKOGAWA 90050B Manuel utilisateur

Gossen MetraWatt

Gossen MetraWatt METRALINE DMM16 Manuel utilisateur

Fluke

Fluke 8846A Manuel d'utilisation et d'entretien

Tempo Communications

Tempo Communications MM200 Manuel utilisateur

Elenco Electronics

Elenco Electronics CM-1555 Manuel utilisateur

Mastech

Mastech MS8238C Manuel utilisateur

SDAR

SDAR 830A, 830B, 830D, 830C Manuel utilisateur

RS PRO

RS PRO RS-9519BT Manuel utilisateur

BGS technic

BGS technic 8890 Manuel utilisateur

Amprobe

Amprobe Hexagon 60 Manuel utilisateur
