Extech Instruments EN300 Manuel utilisateur

User's Guide

5 in 1 Environmental Meter

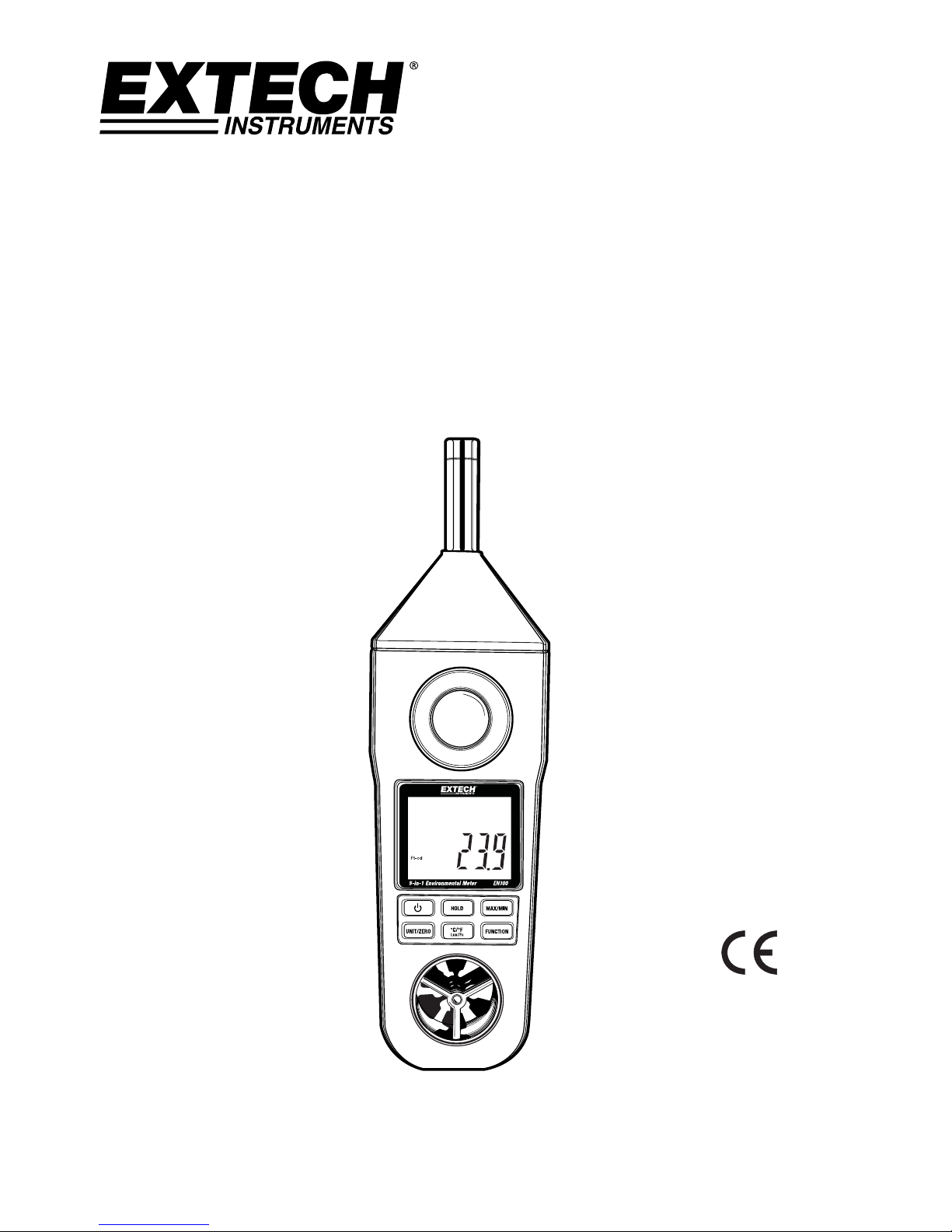

Model: EN300

Anemometer

Humidity Meter

Light Meter

Thermometer

Sound Level Meter

EN300-EU-EN v1.3 4/14

Introduction

Congratulations on your purchase of this Extech Meter. The EN300 is five professional meters

built into one convenient package. This meter ships fully tested and calibrated and, with proper

use, should provide many years of reliable service.

Features

This 5-in-1 professional measuring instrument provides the following functions:

1. Anemometer uses a low-friction ball bearing mounted wheel design for high accuracy.

2. Humidity meter uses a high precision humidity sensor for fast response time.

3. Light meter uses a photo diode and color correction filter light sensor; spectrum meets C.I.E.

photopic.

4. Type K thermometer uses standard type K (NiCr-NiAl) thermocouple input jack suitable for

diverse application type K probes.

5. The sound level meter meets IEC 61672 class 2 with "A" frequency weighting and "Fast"

time response.

Common Features:

Built-in microprocessor circuit assures excellent performance and accuracy.

Concise and compact button arrangement for ease of operation.

Record / recall maximum and minimum values.

Hold function freezes the current reading value.

Front panel °C / °F selection button.

Front panel Lux/Foot-candle selection button.

Five (5) air velocity measurement units, selected by a front panel button.

Dual display with simultaneous display of relative humidity and temperature or air velocity

and temperature.

Zero button for light meter.

Robust housing suitable for one hand operation

EN300-EU-EN v1.3 4/14

Safety

International Safety Symbols

This symbol, adjacent to another symbol or terminal, indicates the user must refer to the

manual for further information.

Double insulation

Cautions

Improper use of this meter can cause damage, shock, injury or death. Read and understand

this user manual before operating the meter.

Inspect the condition of the probe and the meter itself for any damage before operating the

meter. Repair or replace any damage before use.

If the equipment is used in a manner not specified by the manufacturer, the protection provided

by the equipment may be impaired.

This device is not a toy and must not reach children’s hands. It contains hazardous objects as

well as small parts that the children could swallow. In case a child swallows any of them,

please contact a physician immediately

Do not leave batteries and packing material lying around unattended; they can be dangerous

for children if they use them as toys

In case the device is going to be unused for an extended period of time, remove the batteries

to prevent them from draining

Expired or damaged batteries can cause cauterization on contact with the skin. Always,

therefore, use suitable hand gloves in such cases

See that the batteries are not short-circuited. Do not throw batteries into the fire.

EN300-EU-EN v1.3 4/14

Meter Description

1. Microphone

2. Light Sensor

3. LCD display

4. Hold Button

5. Power Button

6. Unit / Zero Button

7. Air Speed Sensor

8. Thermocouple Input Socket l

9. RS-232 Output Terminal

10. DC power adaptor socket

11. Max. / Min. Button

12. Function Button

13. °C/°F Button/Lux/Ft-cd Button

14. On rear: Battery Compartment, Tripod mount,

Stand

EN300-EU-EN v1.3 4/14

Operation

Powering the meter

1. Press the Power button to turn the instrument ON

2. If the meter does not turn on or if the " " low battery symbol appears in the display,

replace the batteries.

3. Press the Function button to select the measurement needed.

Note: The display orientation rotates, depending on the function selected.

Microphone up: Sound, Light, Temperature

Air speed sensor up: Airspeed + Temperature, Humidity + Temperature

Anemometer Air Velocity Measurement

1. Select the Anemometer function by pressing "Function Button" until the display indicates

Anemometer units (ft/min, m/s, km/h, MPH, or knots).

2. Press the "Unit/Zero Button" to select unit desired

3. Press the “°C/°F Button” to select the temperature unit.

4. Face the air velocity sensor into the source of wind.

5. The display will show the air velocity and the ambient temperature.

6. Allow time for the reading to stabilize and note the values indicated. Air velocity may fluctuate

slightly.

Temperature Measurement (Thermocouple)

1. Plug a type K thermocouple probe into the "Thermocouple Input Socket".

2. Select the temperature function by pressing "Function Button" unit the display shows

temperature units (°C or °F).

3. Contact the Thermocouple Sensor Head with object to be measured

4. The temperature value will be displayed on the LCD display.

Note: Verify the polarity when plugging a thermocouple probe into the temperature input socket.

Any temperature difference between thermocouple probe and thermometer can result in

inaccurate measurement result. Therefore, allow time for thermal equalization between probe

plug and meter input socket. The thermal equalization procedure takes few minutes and

should be applied only when the probe has been exposed to ambient temperature different

from the meter

EN300-EU-EN v1.3 4/14

Hygrometer Humidity & Ambient Temperature Measurement

1. Select the Relative Humidity function by pressing "Function Button" until the display indicates

%RH.

2. The humidity and temperature readings will be displayed on the LCD.

3. When the meter is placed into a new environment, a few minutes are required to reach a stable

condition.

Light Measurement

1. Select the Light Measurement function by pressing the "Function Button" until a light unit (Lux

or Ft-cd) is displayed.

2. Press the "Lux/Ft-cd Button" to switch between "Lux" or "Ft-cd".

3. The Display will show the light value

Zero Offset calibration of Light Function:

For best results, zero the light sensor prior to use in a dark environment. To accomplish this,

completely cover the light sensor and then press the "Unit/Zero Button".

The zero point can drift due to environment temperature and battery power change. It is

recommended that the zero be checked frequently using the above procedure.

Sound Level Measurement

1. Select the Sound Level function by pressing the "Function Button" until the Sound level unit

(dB) is displayed.

2. Hold the instrument in one hand and point the microphone towards the noise source. The

sound level value (dB) will be displayed on the LCD.

EN300-EU-EN v1.3 4/14

Changing °C / °F units

During temperature measurements, press the °C / °F button once to change the temperature units

from "°C" to "°F".

Hold Function

Press the "Hold Button" to freeze the current reading value, "HOLD" symbol appears on the display.

Press the button again to continue normal operation.

Data Record Function

1. The Data Record function records & displays the maximum and minimum reading values. Start

the Data Record function by pressing the "Max/Min Button" once. The "REC" symbol appears

on the display.

2. With the REC symbol on the display :

(a) Press the "Max/Min Button" once and the "Max" symbol along with the maximum value

will appear on the display.

(b) Press the "Max/Min Button" again; the "Min" symbol along with the minimum value will

appear on the display.

seconds. The display will revert to the current reading.

(d) Clear the Max/Min value recorded by pressing the "Hold Button" once. Previous recorded

Max/Min values will be erased and then return to REC function and continue recording.

Auto Power-off

To prolong the life of the batteries, the instrument has an "Auto Power-off" function. The meter will

automatically switch off if there are no button presses in any 10-minute period.

RS232 port

The RS232 port is used to send measurement data to a PC.

Battery Replacement

1. When the LCD display shows " " symbol, it is necessary to replace the battery. However,

measurement may still be made for several hours after the low battery indicator appears.

2. Remove the two battery cover screws and remove the battery cover.

3. Install fresh batteries DC 1.5 V battery, UM4/AAA x 6 PCs, and reinstall the cover.

You, as the end user, are legally bound (Battery ordinance) to return all used batteries

and accumulators; disposal in the household garbage is prohibited!

You can hand over your used batteries / accumulators at collection points in your

community or wherever batteries / accumulators are sold

Disposal: Follow the valid legal stipulations in respect of the disposal of the device at the

end of its lifecycle

EN300-EU-EN v1.3 4/14

Specifications

General Specifications

Display LCD display, LCD size: 41.5 x 31.5 mm.

Measurement 5 in 1 :

Anemometer (Air velocity + Temperature)

Humidity (%RH + Temperature)

Light

Thermometer ( type K )

Sound level

Operating Humidity 80%RH Max.

Operating Temperature 0 to 50°C (32 to 122°F)

Over Input Display Indication of "- - - - "

Data Output RS 232/USB PC serial interface

Power Supply 1.5 DC V battery ( UM4, AAA ) x 6 PCs,

9V DC adapter input. (AC power adapter is optional).

Power Consumption Anemometer: Approx. DC 11 mA

Other functions: Approx. DC 7.5 mA

Weight 335 g/0.74 lb (battery included).

Dimension HWD 248 x 70 x 34 mm (9.8 x 2.8 x 1.3 inch).

Electrical Specifications

Anemometer (Air velocity/Temperature)

Units Range Res. Accuracy

ft/min 80 to 5910ft/min 1 ≤3900ft/min: ± 3% F.S., >3900ft/min:± 4% F.S.

m/s 0.4 to 30.0m/s 0.1 ≤20m/s : ± 3% F.S., > 20m/s : ± 4% F.S.

km/h 1.4 to 108.0km/h 0.1 ≤72km/h: ± 3% F.S., >72km/h:± 4% F.S.

MPH 0.9 to 67.0mile/h 0.1 ≤45mile/h: ± 3% F.S.,>45mile/h:± 4% F.S.

knots 0.8 to 58.3 knots 0.1 ≤39 knots: ± 3% F.S.,>39 knots:± 4% F.S.

°F 32 to 122°F 0.1 ± 2.5°F

°C 0 to 50°C 0.1 ± 1.2°C

Type K Thermocouple Thermometer

Units Range Resolution Accuracy

°F -148 to 2372 °F 0.1°F ± (1% rdg + 2°F)

°C -100 to 1300 °C 0.1°C ± (1% rdg + 1°C)

Note: The type K thermocouple probe is optional

EN300-EU-EN v1.3 4/14

Hygrometer (Humidity/Temperature)

Units Range Resolution Accuracy

%RH 10 to 95 %RH 0.1 %RH < 70 %RH :± 4 %RH

≧

70 %RH :± ( 4%rdg + 1.2 %RH )

°F 32 to 122°F 0.1°F ± 2.5°F

°C 0 to 50°C 0.1°C ± 1.2°C

Light

Units Range Resolution Accuracy

Lux 0 to 2,200 Lux 1 Lux

± 5% rdg ± 8 digits

1,800 to 20,000 Lux 10 Lux

Ft-cd 0 to 204.0 Fc 0.1 Ft-cd

170 to 1,860 Fc 1 Ft-cd

Sound Level

Microphone ½” Electret condenser microphone

Measurement Range 35 to 130 dB, Auto range

Resolution 0.1dB

Frequency response 31.5Hz to 8,000Hz

Weighting " A " frequency weighting network

Time Response "Fast"

Accuracy Meets IEC 61672 class 2, A weight, Fast response

Note: Stated specification tests under the environment RF Field Strength less than 3 V/M &

frequency less than 30 MHz only

Note: Specification stated for 23± 5°C



Allrightsreservedincludingtherightofreproductioninwholeorinpartinanyform

ISO‐9001Certified

www.extech.com

Table des matières

Autres manuels Extech Instruments Multimètre

Extech Instruments

Extech Instruments 450 Manuel utilisateur

Extech Instruments

Extech Instruments 430 Manuel utilisateur

Extech Instruments

Extech Instruments MultiTec MT310 Manuel utilisateur

Extech Instruments

Extech Instruments 380941 Manuel utilisateur

Extech Instruments

Extech Instruments 38390 Manuel utilisateur

Extech Instruments

Extech Instruments EX320 Manuel utilisateur

Extech Instruments

Extech Instruments MA400 Manuel utilisateur

Extech Instruments

Extech Instruments 382065 Manuel utilisateur

Extech Instruments

Extech Instruments 380946 Manuel utilisateur

Extech Instruments

Extech Instruments 380942 Manuel utilisateur

Extech Instruments

Extech Instruments 38394 Manuel utilisateur

Extech Instruments

Extech Instruments RHT50 Manuel utilisateur

Extech Instruments

Extech Instruments 412355A Oyster Series Manuel utilisateur

Extech Instruments

Extech Instruments SDL350 Manuel utilisateur

Extech Instruments

Extech Instruments MultiLog ML720 Manuel utilisateur

Extech Instruments

Extech Instruments PQ3470 Manuel utilisateur

Extech Instruments

Extech Instruments DM220 Manuel utilisateur

Extech Instruments

Extech Instruments EX540-NIST Manuel utilisateur

Extech Instruments

Extech Instruments EX330 Manuel utilisateur

Extech Instruments

Extech Instruments MN15A Manuel utilisateur

Extech Instruments

Extech Instruments EX430-NIST Manuel utilisateur

Extech Instruments

Extech Instruments EX520 Manuel utilisateur

Extech Instruments

Extech Instruments MN62 Manuel utilisateur

Extech Instruments

Extech Instruments EX310 Manuel utilisateur

Manuels Multimètre populaires d'autres marques

Agilent Technologies

Agilent Technologies 34420A Manuel utilisateur

Fluke

Fluke 83 Manuel utilisateur

Hameg

Hameg HM 8012 Manuel utilisateur

Mastech

Mastech MY70 Manuel utilisateur

Steren

Steren MUL-300 Manuel utilisateur

Somogyi Elektronic

Somogyi Elektronic home SMA 92 Manuel utilisateur

Gossen MetraWatt

Gossen MetraWatt METRAmax 6 Manuel utilisateur

PeakTech

PeakTech 4000 Manuel d'utilisation et d'entretien

YOKOGAWA

YOKOGAWA 90050B Manuel utilisateur

Gossen MetraWatt

Gossen MetraWatt METRALINE DMM16 Manuel utilisateur

Fluke

Fluke 8846A Manuel d'utilisation et d'entretien

Tempo Communications

Tempo Communications MM200 Manuel utilisateur

Elenco Electronics

Elenco Electronics CM-1555 Manuel utilisateur

Mastech

Mastech MS8238C Manuel utilisateur

SDAR

SDAR 830A, 830B, 830D, 830C Manuel utilisateur

RS PRO

RS PRO RS-9519BT Manuel utilisateur

BGS technic

BGS technic 8890 Manuel utilisateur

Amprobe

Amprobe Hexagon 60 Manuel utilisateur
