Extech Instruments EX520-S Manuel utilisateur

User's Guide

True RMS Industrial Multimeter

Extech EX520

EX520 V2.3 04/29/07

Introduction

Congratulations on your purchase of the Extech EX520 True RMS Autoranging Multimeter.

This meter measures AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Frequency

(electrical & electronic), Diode Test, and Continuity plus Thermocouple Temperature. It

features a waterproof, rugged design for heavy duty use. Proper use and care of this meter

will provide many years of reliable service.

Safety

This symbol adjacent to another symbol, terminal or operating device

indicates that the operator must refer to an explanation in the Operating

Instructions to avoid personal injury or damage to the meter.

This WARNING symbol indicates a potentially hazardous situation, which

if not avoided, could result in death or serious injury.

This CAUTION symbol indicates a potentially hazardous situation, which

if not avoided, may result damage to the product.

This symbol advises the user that the terminal(s) so marked must not be

connected to a circuit point at which the voltage with respect to earth

ground exceeds (in this case) 1000 VAC or VDC.

This symbol adjacent to one or more terminals identifies them as being

associated with ranges that may, in normal use, be subjected to

particularly hazardous voltages. For maximum safety, the meter and its

test leads should not be handled when these terminals are energized.

This symbol indicates that a device is protected throughout by double

insulation or reinforced insulation.

PER IEC1010 OVERVOLTAGE INSTALLATION CATEGORY

OVERVOLTAGE CATEGORY I

Equipment of OVERVOLTAGE CATEGORY I is equipment for connection to circuits in

which measures are taken to limit the transient overvoltages to an appropriate low level.

Note – Examples include protected electronic circuits.

OVERVOLTAGE CATEGORY II

Equipment of OVERVOLTAGE CATEGORY II is energy-consuming equipment to be

supplied from the fixed installation.

Note – Examples include household, office, and laboratory appliances.

OVERVOLTAGE CATEGORY III

Equipment of OVERVOLTAGE CATEGORY III is equipment in fixed installations.

Note – Examples include switches in the fixed installation and some equipment for industrial

use with permanent connection to the fixed installation.

OVERVOLTAGE CATEGORY IV

Equipment of OVERVOLTAGE CATEGORY IV is for use at the origin of the installation.

Note – Examples include electricity meters and primary over-current protection equipment

WARNING

CAUTION

MAX

1000V

EX520 V2.3 04/29/07

SAFETY INSTRUCTIONS

This meter has been designed for safe use, but must be operated with caution. The rules

listed below must be carefully followed for safe operation.

1. NEVER apply voltage or current to the meter that exceeds the specified maximum:

Input Protection Limits

Function Maximum Input

V DC or V AC 1000VDC/AC rms

mA AC/DC 800mA 1000V fast acting fuse

A AC/DC 10A 1000V fast acting fuse (20A for 30 seconds

max every 15 minutes)

Frequency, Resistance, Capacitance,

Diode Test, Continuity 1000VDC/AC rms

Temperature 1000VDC/AC rms

2. USE EXTREME CAUTION when working with high voltages.

3. DO NOT measure voltage if the voltage on the "COM" input jack exceeds 600V above

earth ground.

4. NEVER connect the meter leads across a voltage source while the function switch is in

the current, resistance, or diode mode. Doing so can damage the meter.

5. ALWAYS discharge filter capacitors in power supplies and disconnect the power when

making resistance or diode tests.

6. ALWAYS turn off the power and disconnect the test leads before opening the covers to

replace the fuse or batteries.

7. NEVER operate the meter unless the back cover and the battery and fuse covers are in

place and fastened securely.

8. If the equipment is used in a manner not specified by the manufacturer, the protection

provided by the equipment may be impaired.

EX520 V2.3 04/29/07

Controls and Jacks

1. 6,000 count LCD display

2. RANGE button

3. Hz and % button

4. Mode button

5. Function switch

6. mA, µA and 10A input jacks

7. COM input jack

8. Positive input jack

9. HOLD and Backlight button

10. RELATIVE button

11. MAX/MIN button

Note: Tilt stand and battery compartment are

on rear of unit.

Symbols and Annunciators

Auto power off

•))) Continuity

Diode test

Battery status

n nano (10-9) (capacitance)

µ micro (10-6) (amps, cap)

m milli (10-3) (volts, amps)

A Amps

k kilo (103) (ohms)

F Farads (capacitance)

M mega (106) (ohms)

Ω Ohms

Hz Hertz (frequency) V Volts

% Percent (duty ratio) REL Relative

AC Alternating current AUTO Autoranging

DC Direct current HOLD Display hold

ºF Degrees Fahrenheit ºC Degrees Centigrade

MAX Maximum MIN Minimum

EX520 V2.3 04/29/07

Operating Instructions

WARNING: Risk of electrocution. High-voltage circuits, both AC and DC, are very

dangerous and should be measured with great care.

1. ALWAYS turn the function switch to the OFF position when the meter is not in use.

2. If “OL” appears in the display during a measurement, the value exceeds the range you

have selected. Change to a higher range.

DC VOLTAGE MEASUREMENTS

CAUTION: Do not measure DC voltages if a motor on the circuit is being switched ON or

OFF. Large voltage surges may occur that can damage the meter.

1. Set the function switch to the green VDC position.

2. Insert the black test lead banana plug into the negative COM

jack.

Insert the red test lead banana plug into the positive Vjack.

3. Touch the black test probe tip to the negative side of the circuit.

Touch the red test probe tip to the positive side of the circuit.

4. Read the voltage in the display.

AC VOLTAGE (FREQUENCY, DUTY CYCLE) MEASUREMENTS

WARNING: Risk of Electrocution. The probe tips may not be long enough to contact the

live parts inside some 240V outlets for appliances because the contacts are recessed

deep in the outlets. As a result, the reading may show 0 volts when the outlet actually has

voltage on it. Make sure the probe tips are touching the metal contacts inside the outlet

before assuming that no voltage is present.

CAUTION: Do not measure AC voltages if a motor on the circuit is being switched ON or

OFF. Large voltage surges may occur that can damage the meter.

1. Set the function switch to the green VAC/Hz/% position.

2. Insert the black test lead banana plug into the negative COM

jack.

Insert red test lead banana plug into the positive Vjack.

3. Touch the black test probe tip to the neutral side of the

circuit.

Touch the red test probe tip to the “hot” side of the circuit.

4. Read the voltage in the display.

5. Press the HZ/% button to indicate “Hz”.

6. Read the frequency in the display.

7. Press the Hz/% button again to indicate “%”.

8. Read the % of duty cycle in the display.

EX520 V2.3 04/29/07

DC CURRENT MEASUREMENTS

CAUTION: Do not make 20A current measurements for longer than 30 seconds.

Exceeding 30 seconds may cause damage to the meter and/or the test leads.

1. Insert the black test lead banana plug into the negative COM

jack.

2. For current measurements up to 6000µA DC, set the function

switch to the yellow µA position and insert the red test lead

banana plug into the µA/mA jack.

3. For current measurements up to 600mA DC, set the function

switch to the yellow mA position and insert the red test lead

banana plug into the µA/mA jack.

4. For current measurements up to 20A DC, set the function switch

to the yellow 10A/HZ/% position and insert the red test lead

banana plug into the 10A jack.

5. Press the MODE button to indicate “DC” on the display.

6. Remove power from the circuit under test, then open up the

circuit at the point where you wish to measure current.

7. Touch the black test probe tip to the negative side of the circuit.

Touch the red test probe tip to the positive side of the circuit.

8. Apply power to the circuit.

9. Read the current in the display.

AC CURRENT (FREQUENCY, DUTY CYCLE) MEASUREMENTS

CAUTION: Do not make 20A current measurements for longer than 30 seconds.

Exceeding 30 seconds may cause damage to the meter and/or the test leads.

1. Insert the black test lead banana plug into the negative COM

jack.

2. For current measurements up to 6000µA AC, set the function

switch to the yellow µA position and insert the red test lead

banana plug into the µA/mA jack.

3. For current measurements up to 600mA AC, set the function

switch to the yellow mA position and insert the red test lead

banana plug into the µA/mA jack.

4. For current measurements up to 20A AC, set the function

switch to the yellow 10A/HZ/% position and insert the red test

lead banana plug into the 10A jack.

5. Press the MODE button to indicate “AC” on the display.

6. Remove power from the circuit under test, then open up the

circuit at the point where you wish to measure current.

7. Touch the black test probe tip to the neutral side of the circuit.

Touch the red test probe tip to the “hot” side of the circuit.

8. Apply power to the circuit.

9. Read the current in the display.

10.Press the Hz/% button to indicate “Hz”.

11.Read the frequency in the display.

12.Press the Hz/% button again to indicate “%”.

13.Read the % duty cycle in the display.

14.Press the Hz/% button to return to current measurement.

EX520 V2.3 04/29/07

RESISTANCE MEASUREMENTS

WARNING: To avoid electric shock, disconnect power to the unit under test and

discharge all capacitors before taking any resistance measurements. Remove the

batteries and unplug the line cords.

1. Set the function switch to the green Ω CAP position.

2. Insert the black test lead banana plug into the negative COM

jack.

Insert the red test lead banana plug into the positive Ωjack.

3. Press the MODE button to indicate “Ω" on the display.

4. Touch the test probe tips across the circuit or part under test. It

is best to disconnect one side of the part under test so the rest

of the circuit will not interfere with the resistance reading.

5. Read the resistance in the display.

CONTINUITY CHECK

WARNING: To avoid electric shock, never measure continuity on circuits or wires that

have voltage on them.

1. Set the function switch to the green ΩCAP position.

2. Insert the black lead banana plug into the negative COM jack.

Insert the red test lead banana plug into the positive Ωjack.

3. Press the MODE button to indicate” "and “Ω”on the display

4. Touch the test probe tips to the circuit or wire you wish to check.

5. If the resistance is less than approximately 35Ω, the audible

signal will sound. If the circuit is open, the display will indicate

“OL”.

DIODE TEST

1. Set the function switch to the green ΩCAP position.

2. Insert the black test lead banana plug into the negative COM jack

and the red test lead banana plug into the positive Vjack.

3. Press the MODE button to indicate and Von the display.

4. Touch the test probes to the diode under test. Forward voltage will

typically indicate 0.400 to 0.700V. Reverse voltage will indicate

“OL”. Shorted devices will indicate near 0V and an open device will

indicate “OL” in both polarities.

EX520 V2.3 04/29/07

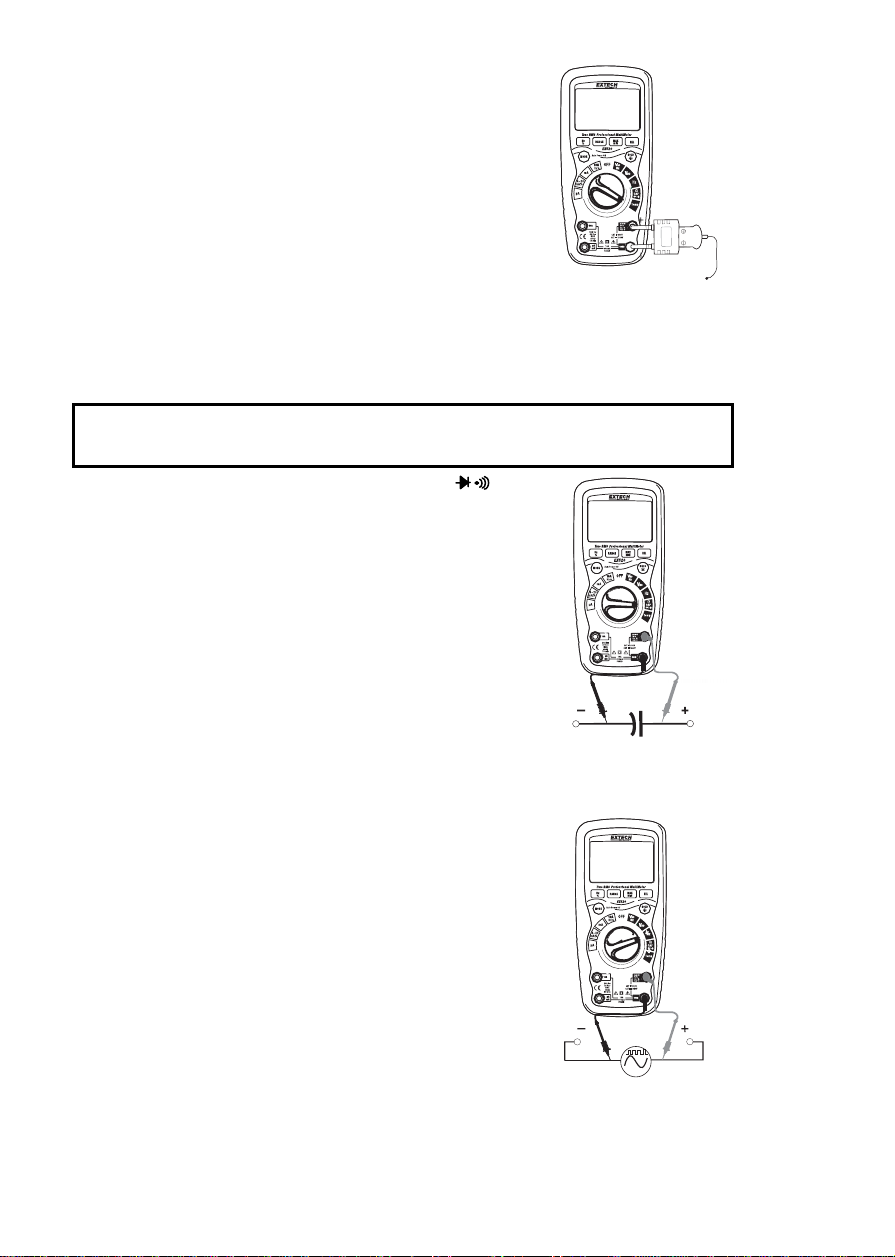

TEMPERATURE MEASUREMENTS

1. Set the function switch to the green Temp position.

2. Insert the Temperature Probe into the input jacks, making

sure to observe the correct polarity.

3. Press the MODE button to indicate ºF or ºC

4. Touch the Temperature Probe head to the part whose

temperature you wish to measure. Keep the probe touching

the part under test until the reading stabilizes (about 30

seconds).

5. Read the temperature in the display.

Note: The temperature probe is fitted with a type K mini connector.

A mini connector to banana connector adaptor is supplied

for connection to the input banana jacks.

CAPACITANCE MEASUREMENTS

WARNING: To avoid electric shock, disconnect power to the unit under test and

discharge all capacitors before taking any capacitance measurements. Remove the

batteries and unplug the line cords.

1. Set the rotary function switch to the green ΩCAP

position.

2. Insert the black test lead banana plug into the negative COM

jack.

Insert the red test lead banana plug into the positive Vjack.

3. Press the MODE button to indicate “nF” on the display.

4. Touch the test leads to the capacitor to be tested.

5. The test may take up to 3 minutes or more for large capacitors

to charge. Wait until the readings settle before ending the test.

6. Read the capacitance value in the display

FREQUENCY/DUTY CYCLE MEASUREMENTS (ELECTRONIC)

1. Set the rotary function switch to the green “Hz %” position.

2. Press the Hz/% button to indicate “Hz” in the display.

3. Insert the black lead banana plug into the negative COM jack

and the red test lead banana plug into the positive Hz jack.

4. Touch the test probe tips to the circuit under test.

5. Read the frequency on the display.

6. Press the Hz/% button again to indicate “%” on the display.

7. Read the % of duty cycle on the display.

EX520 V2.3 04/29/07

AUTORANGING/MANUAL RANGE SELECTION

When the meter is first turned on, it automatically goes into Autoranging. This automatically

selects the best range for the measurements being made and is generally the best mode

for most measurements. For measurement situations requiring that a range be manually

selected, perform the following:

1. Press the RANGE key. The “AUTO” display indicator will turn off.

2. Press the RANGE key to step through the available ranges until you select the range you

want.

3. To exit the Manual Ranging mode and return to Autoranging, press and hold the RANGE

key for 2 seconds.

Note: Manual ranging does not apply for the Capacitance and Frequency functions.

MAX/MIN

Note: When using the MAX/MIN function in Autoranging mode, the meter will “lock” into

the range that is displayed on the LCD when MAX/MIN is activated. If a MAX/Min

reading exceeds that range, an “OL” will be displayed. Select the desired range

BEFORE entering MAX/MIN mode.

1. Press the MAX/MIN key to activate the MAX/MIN recording mode. The display icon

"MAX" will appear. The meter will display and hold the maximum reading and will update

only when a new “max” occurs.

2. Press the MAX/MIN key again and the display icon "MIN" will appear. The meter will

display and hold the minimum reading and will update only when a new “min” occurs.

3. To exit MAX/MIN mode press and hold the MAX/MIN key for 2 seconds.

RELATIVE MODE

The relative measurement feature allows you to make measurements relative to a stored

reference value. A reference voltage, current, etc. can be stored and measurements made

in comparison to that value. The displayed value is the difference between the reference

value and the measured value.

1. Perform the measurement as described in the operating instructions.

2. Press the REL button to store the reading in the display and the "REL" indicator will

appear on the display.

3. The display will now indicate the difference between the stored value and the measured

value.

4. Press the REL button to exit the relative mode.

Note: The Relative function does not operate in the Frequency function.

DISPLAY BACKLIGHT

Press the HOLD key for >1 second to turn on or off the display backlight function. The

backlight will automatically turn off after 10 seconds.

HOLD

The hold function freezes the reading in the display. Press the HOLD key momentarily to

activate or to exit the HOLD function.

AUTO POWER OFF

The auto off feature will turn the meter off after 15 minutes. To disable the auto power off

feature, hold down the MODE button and turn the meter on.

LOW BATTERY INDICATION

The icon will appear in the lower left conner of the display when the battery voltage

becomes low. Replace the battery when this appears.

EX520 V2.3 04/29/07

Maintenance

WARNING: To avoid electric shock, disconnect the test leads from any source of voltage

before removing the back cover or the battery or fuse covers.

WARNING: To avoid electric shock, do not operate your meter until the battery and fuse

covers are in place and fastened securely.

This MultiMeter is designed to provide years of dependable service, if the following care

instructions are performed:

1. KEEP THE METER DRY. If it gets wet, wipe it off.

2. USE AND STORE THE METER IN NORMAL TEMPERATURES. Temperature

extremes can shorten the life of the electronic parts and distort or melt plastic parts.

3. HANDLE THE METER GENTLY AND CAREFULLY. Dropping it can damage the

electronic parts or the case.

4. KEEP THE METER CLEAN. Wipe the case occasionally with a damp cloth. DO NOT

use chemicals, cleaning solvents, or detergents.

5. USE ONLY FRESH BATTERIES OF THE RECOMMENDED SIZE AND TYPE. Remove

old or weak batteries so they do not leak and damage the unit.

6. IF THE METER IS TO BE STORED FOR A LONG PERIOD OF TIME, the batteries

should be removed to prevent damage to the unit.

BATTERY INSTALLATION

WARNING: To avoid electric shock, disconnect the test leads from any source of voltage

before removing the battery cover.

1. Turn power off and disconnect the test leads from the meter.

2. Open the rear battery cover by removing two screws (B) using a Phillips head

screwdriver.

3. Insert the battery into battery holder, observing the correct polarity.

4. Put the battery cover back in place. Secure with the screws.

WARNING: To avoid electric shock, do not operate the meter until the battery cover is in

place and fastened securely.

NOTE: If your meter does not work properly, check the fuses and batteries to make sure that

they are still good and that they are properly inserted.

F1 F2

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Extech Instruments Multimètre

Extech Instruments

Extech Instruments 382065 Manuel utilisateur

Extech Instruments

Extech Instruments MN62-K Manuel utilisateur

Extech Instruments

Extech Instruments EX310 Manuel utilisateur

Extech Instruments

Extech Instruments PQ3470 Manuel utilisateur

Extech Instruments

Extech Instruments MiniTec Series Manuel utilisateur

Extech Instruments

Extech Instruments 38070 Manuel utilisateur

Extech Instruments

Extech Instruments EX520 Manuel utilisateur

Extech Instruments

Extech Instruments EX411A Manuel utilisateur

Extech Instruments

Extech Instruments DM220 Manuel utilisateur

Extech Instruments

Extech Instruments MA430 Manuel utilisateur

Extech Instruments

Extech Instruments 380942 Manuel utilisateur

Extech Instruments

Extech Instruments MultiPro MP510 Manuel utilisateur

Extech Instruments

Extech Instruments 411 Manuel utilisateur

Extech Instruments

Extech Instruments MM750W Manuel utilisateur

Extech Instruments

Extech Instruments EX430-NIST Manuel utilisateur

Extech Instruments

Extech Instruments MultiTec MT310 Manuel utilisateur

Extech Instruments

Extech Instruments RC200 Manuel utilisateur

Extech Instruments

Extech Instruments EX530 Manuel utilisateur

Extech Instruments

Extech Instruments TK505 Manuel utilisateur

Extech Instruments

Extech Instruments MP510A Manuel utilisateur

Extech Instruments

Extech Instruments BT100 Manuel utilisateur

Extech Instruments

Extech Instruments EX210 Manuel utilisateur

Extech Instruments

Extech Instruments EX570 Manuel utilisateur

Extech Instruments

Extech Instruments Extech 470 Manuel utilisateur

Manuels Multimètre populaires d'autres marques

Agilent Technologies

Agilent Technologies 34420A Manuel utilisateur

Fluke

Fluke 83 Manuel utilisateur

Hameg

Hameg HM 8012 Manuel utilisateur

Mastech

Mastech MY70 Manuel utilisateur

Steren

Steren MUL-300 Manuel utilisateur

Somogyi Elektronic

Somogyi Elektronic home SMA 92 Manuel utilisateur

Gossen MetraWatt

Gossen MetraWatt METRAmax 6 Manuel utilisateur

PeakTech

PeakTech 4000 Manuel d'utilisation et d'entretien

YOKOGAWA

YOKOGAWA 90050B Manuel utilisateur

Gossen MetraWatt

Gossen MetraWatt METRALINE DMM16 Manuel utilisateur

Fluke

Fluke 8846A Manuel d'utilisation et d'entretien

Tempo Communications

Tempo Communications MM200 Manuel utilisateur

Elenco Electronics

Elenco Electronics CM-1555 Manuel utilisateur

Mastech

Mastech MS8238C Manuel utilisateur

SDAR

SDAR 830A, 830B, 830D, 830C Manuel utilisateur

RS PRO

RS PRO RS-9519BT Manuel utilisateur

BGS technic

BGS technic 8890 Manuel utilisateur

Amprobe

Amprobe Hexagon 60 Manuel utilisateur
