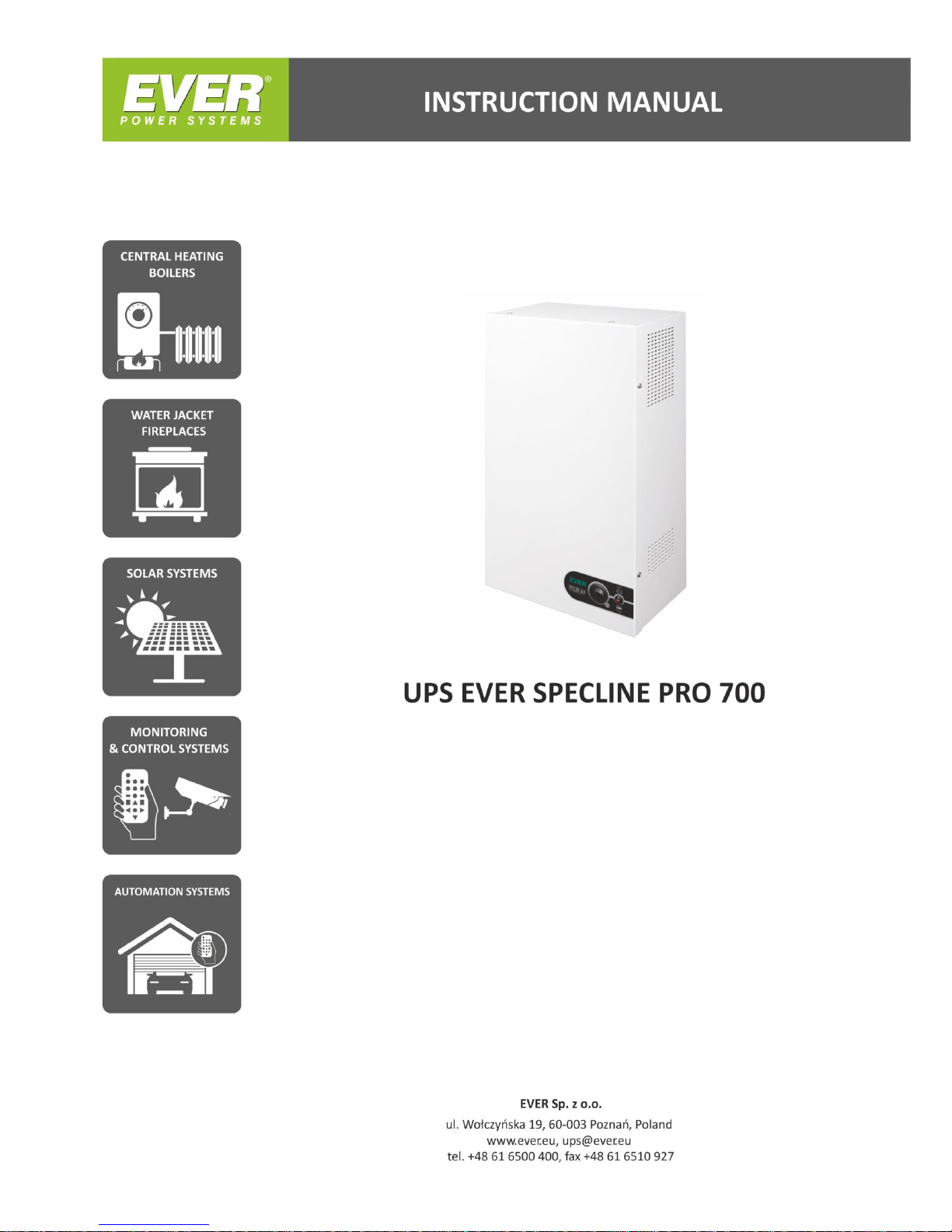

Instruction manual for SPECLINE PRO 700 series power supply units

2016-01-18 03:29

Technical Service, tel.: +48 61 6500 400

www.ever.eu

TABLE OF CONTENTS

TABLE OF CONTENTS...................................................................................................................................... 2

INTRODUCTION................................................................................................................................................. 3

GENERAL FEATURES OF THE UPS UNIT ................................................................................................... 4

SAFETY INSTRUCTIONS AND RECOMMENDATIONS ............................................................................ 5

UPS DESCRIPTION AND INSTALLATION ................................................................................................. 10

FRONT PANEL............................................................................................................................................... 10

CONNECTION PANEL –POWER SUPPLY UNIT...................................................................................... 11

CONNECTION PANEL –BATTERY MODULE.......................................................................................... 11

UNPACKING .................................................................................................................................................. 11

SELECTING THE POINT OF INSTALLATION........................................................................................... 11

FIRST START-UP........................................................................................................................................... 12

SWITCHING THE POWER SUPPLY UNIT ON WITHOUT

A MAINS CONNECTION –“COLD START” .............................................................................................. 13

CONNECTING BATTERY MODULE........................................................................................................... 14

DESCRIPTION OF OPERATION OF THE UPS........................................................................................... 15

GENERAL INFORMATION .......................................................................................................................... 15

PROTECTION DEVICES INCORPORATED IN THE POWER SUPPLY UNIT......................................... 16

COMMENTS REGARDING OPERATION.................................................................................................... 17

TECHNICAL PARAMETERS.......................................................................................................................... 19

INFORMATION ON LEGAL PROVISIONS AND THE GUARANTEE.................................................... 21

DECLARATION OF CONFORMITY ............................................................................................................ 21

GUARANTEE ................................................................................................................................................. 21

Instruction manual for SPECLINE PRO 700 series power supply units

www.ever.eu

Technical Service, tel.: +48 61 6500 400

2016-01-18 03:29

INTRODUCTION

Thank you for purchasing the EVER SPECLINE UPS power supply unit. It

belongs to our most modern, state-of-the-art series of technologically advanced

power supply units, which is primarily intended for securing the uninterrupted

operation of central heating boilers, fireplaces with water jackets, pumps, and solar

systems. The installation of a unit from this series guarantees correct operation for

many hours in the event of a power outage, thanks to the series connection of battery

module modules. In battery operation mode, the Clear Digital Sinus (CDS) system

enables the equipment to generate a sinusoidal waveform at output.

Specline series UPS units have been designed in such a way as to best meet all of

your expectations regarding protection against the consequences of power outages.

The power supply units are manufactured in Poland, in full compliance with the

requirements introduced for the CE mark.

Instruction manual for SPECLINE PRO 700 series power supply units

2016-01-18 03:29

Technical Service, tel.: +48 61 6500 400

www.ever.eu

GENERAL FEATURES OF THE UPS UNIT

The SPECLINE UPS units are designed to work with equipment supplied from ~ 230

VAC single-phase electric power mains. When in back-up mode, they output sine

wave voltage. This greatly enhances the list of tolerated voltages when compared to

UPS units with approximated sine wave. This series can provide energy for

practically any device whose power rating is not greater than the UPS unit’s power

rating. SPECLINE 700 units will not switch off automatically, even if no devices are

connected to their output sockets, which means they can be used with any low

power devices. Only the max power is limited and if the UPS is overloaded, it will

generate a visual and sound alarm.

Apart from excellent performance and reliability, SPECLINE 700 UPS units feature

these great advantages:

the CLEAR DIGITAL SINUS system generates an input voltage with a perfect

sinusoidal shape. This solution offers more opportunities to connect devices that

are sensitive to the supply voltage waveform, e.g.: laboratory equipment,

telecommunication devices;

synchronisation with the mains;

“cold start” –the unit can be started without being connected to the mains;

discharged battery sound indication;

intelligent charging method Cool Battery Charging (CBC), which extends

battery life - a novel charging method using the components of the internal

inverter;

microprocessor control of all parameters;

overload resistance;

short circuit protection;

system of passive mains filters;

enclosed batteries with a combined capacity of 14 Ah;

possibility of connecting up to three battery module or a car battery;

convenient and universal method of cable connection;

24 month guarantee

Instruction manual for SPECLINE PRO 700 series power supply units

www.ever.eu

Technical Service, tel.: +48 61 6500 400

2016-01-18 03:29

SAFETY INSTRUCTIONS AND RECOMMENDATIONS

A) General remarks

CAUTION! Before starting the execution of procedures described herein,

please read the general safety instructions (and also instructions in this

document), OHS information, environmental protection information and

legal regulations; please observe information and recommendations

found in these documents.

CAUTION! It is strictly forbidden for the user to perform any repair

works, as this would constitute a threat to health and/or life. Any repairs

and replacement of batteries should be conducted only by qualified

service technicians properly authorized pursuant to the valid legal

regulations.

CAUTION! The appliance should be operated and stored in conditions

concordant with those set in the specification (technical documentation).

CAUTION! The device is completely disconnected from the mains only

when the power lead is removed from the mains socket (the plug is

removed from the mains socket).

CAUTION! The appliance is equipped with an internal power source

(battery) or can operate with a fixed, external source of power (battery

modules). Dangerous voltage may be present at the output terminal,

even if the device is disconnected from the mains.

CAUTION! The user should place warning labels on all primary switch

disconnectors installed far from the UPS, to warn electrical service

technicians that the circuit is powered by a UPS. The following (or

equivalent) text should be placed on such warning labels:

DISCONNECT THE UPS BEFORE STARTING WORK ON THIS CIRCUIT.

Instruction manual for SPECLINE PRO 700 series power supply units

2016-01-18 03:29

Technical Service, tel.: +48 61 6500 400

www.ever.eu

CAUTION! Opening the housing may result in electric shock.

CAUTION! Do not touch any electrical connectors and internal metal

elements before disconnecting power.

CAUTION! All openings and spaces facilitating access to the UPS's

electrical connectors must be covered (with relevant covers). Failure to

observe this requirement may result in danger to health or life of people

attempting to touch such connectors or in the damage of the device.

CAUTION! In the event of a short-circuit, serious burns may be caused

by high current.

CAUTION! There are no end-user serviceable parts inside the UPS.

CAUTION! SPECLINE PRO 700 UPS units are not intended for use

directly with medical equipment, life support systems or equipment that

may affect health.

B) Installation notes

CAUTION! SPECLINE PRO 700 UPS units may only be installed and

maintained by qualified personnel.

CAUTION! Before installation of the UPS, OHS regulations for working

with electrical equipment with voltage up to 1 kV must be read.

CAUTION! Before connecting cables or making connections in the UPS

or in electrical installations, make sure there is no dangerous voltage on

electrical terminals and cables in the system.

CAUTION! The UPS may only be connected to a ~230 V mains socket

with a grounding connection (a bolt). The building's electrical installation

to which the UPS is connected must feature overload and short-circuit

protection.

Instruction manual for SPECLINE PRO 700 series power supply units

www.ever.eu

Technical Service, tel.: +48 61 6500 400

2016-01-18 03:29

CAUTION! Only TN-S or TN-C-S configuration is allowed on the UPS's

input, and only TN-S configuration is allowed on the UPS's output.

CAUTION! No extension cords should be connected to the UPS.

CAUTION! The device must not be installed near flammable materials!

Never perform works alone in conditions dangerous to health and/or life.

Shortly after moving the UPS from cold environment to warm environment,

moisture can condensate. The UPS must be completely dry before installation

and operation. The acclimatization time should be at least 2 hours.

UPS units and battery modules must not be installed in humid environment.

UPS units and battery modules must not be installed in places where they would

be subject to direct sunlight or near sources of heat.

Ventilation openings in the UPS housing must not be blocked - observe distances

to ventilation openings specified in the manual.

Before connecting the device, the technical condition of the connectors, sockets

and cables, and of the appliance itself, must be checked.

The device must be connected to a power circuit (mains socket) with three

terminals (phase, neutral and grounding), including a PE grounding conductor.

Failure to observe this requirement may result in electric shock.

To reduce the risk of electric shock (in case the grounding cannot be checked),

the device must be disconnected from the mains before installation or connecting

to other equipment - the power lead may only be connected again after making all

required connections.

A device powered through a lead with a plug has a grounding conductor that

carries away the leakage current from the receivers. The leakage currents of all

receivers connected to the UPS's output are summed in the UPS's power lead.

The summary leakage current may trigger protective devices (RCD) and result in

disconnecting power from the receivers.

When connecting and disconnecting signal cables, all activities should be

performed with one hand only (if feasible), in order to avoid electric shock from

touching two surfaces with various electrical potentials.

Instruction manual for SPECLINE PRO 700 series power supply units

2016-01-18 03:29

Technical Service, tel.: +48 61 6500 400

www.ever.eu

Leads connected to the UPS's output should not be longer than 10 m, in order to

maintain conformance with the EMC directive for products sold in Europe.

Connecting leads should be placed so that people walking over them will not step

or trip on them.

To limit the risk of fire, connections should only be made to circuits (electrical

systems) whose rating is adequate for the connected loads, with properly selected

overcurrent protection. Additionally, the breaker should feature at least 3 mm

insulating air gap.

C) UPS operation remarks

OHS regulations and guidelines specified in the device's manual must be

observed when handling and operating the UPS.

The instructions must be executed step by step. If any problems emerge when

executing the instructions given in this document, please contact EVER service

support (www.ever.eu).

Do not disconnect the grounding at the UPS or in the building's electrical system

terminals, as this will remove the UPS's protective grounding.

There may be voltage on the UPS's output terminals, even if the UPS is

disconnected from the building's electrical system (due to presence of power in

the device's internal batteries).

Liquids and foreign bodies must not penetrate the UPS's housing.

WARNING: This is a C2 category UPS. If installed in residential environment, this

product may interfere with radio signals, which may require additional precautions

to be employed by the user.

D) Maintenance, repair and defects related remarks

Dangerous voltages are present in the UPS. Only qualified service technicians

may perform maintenance works.

CAUTION - risk of electric shock. Even if the device is disconnected from the

mains (terminals of the electrical system), the elements inside the UPS are

connected to the battery, which may lead to danger. Disconnect the battery before

carrying out any service and/or maintenance works. Make sure there is no

dangerous voltage on the DC circuit internal elements.

WARNING: Only properly authorized and qualified service technicians who have

legally required protection gear may replace batteries.

Instruction manual for SPECLINE PRO 700 series power supply units

www.ever.eu

Technical Service, tel.: +48 61 6500 400

2016-01-18 03:29

CAUTION - risk of electric shock. Dangerous voltage may be present between the

battery circuit and the grounding point!

Batteries have high short-circuit current and pose a risk of electric shock. The

following precautions should be taken when working with batteries:

－remove jewelry, watches, rings and other metal items,

－only use tools with insulated handles.

The same number and type of batteries should be used. Using batteries of

improper type may result in explosion.

Dispose of used batteries according to the manual.

WARNING: Disposing of batteries in a fire may result in explosion.

WARNING: Opening or damaging batteries may cause electrolyte to leak;

electrolyte is harmful to skin and eyes, and may also be toxic.

To avoid the danger of fire and damage to the power system, replace broken

fuses with fuses of the same type and parameters.

Disconnect the device from the mains before cleaning. Do not use liquid or

sprayed cleaning agents.

Only qualified service technicians may disassemble UPS units.

E) Transport and packaging remarks

Exercise particular care when transporting the device.

Heavy equipment must be moved by at least two or more persons.

UPS units may be transported only in their original packaging boxes (to protect

the device from shocks and bumps).

The device should be operated and stored in conditions concordant with those set

in the specifications. UPS units must be stored in dry and well ventilated rooms.

If a UPS is to be stored for a longer time, its batteries must be recharged at least

every 6 months. The recharging procedure must be documented.

Check the recharging date. Do not use the UPS if the deadline passed and the

batteries were not recharged. If this occurs, contact service support.

Instruction manual for SPECLINE PRO 700 series power supply units

2016-01-18 03:29

Technical Service, tel.: +48 61 6500 400

www.ever.eu

UPS DESCRIPTION AND INSTALLATION

UPS

Battery Module

Fig. 1: View of the front panel

FRONT PANEL

1. The red signalling diode depicts various operating modes of the power supply

unit, symbolically expressed by means of graphical symbols:

a) red diode continuously on: mains power mode.

b) red diode flashing every 2.5 sec.: battery charging mode.

c) red diode flashing and an intermittent sound signal: battery operation

mode; if the signal becomes continuous, this means that the UPS will shut

down in max. 30 sec.

d) red diode flashes rapidly and the sound signal reaches a high pitch: an

overload or short-circuit condition.

2. Main switch –in the event of a power outage or when the power supply unit is

not connected to the mains, it starts the power supply unit in battery operation

mode –cf. also “cold start

Table des matières

Autres manuels Ever UPS

Ever

Ever POWERLINE 33 10k Manuel utilisateur

Ever

Ever SINLINE Manuel utilisateur

Ever

Ever EASYLINE AVR USB Manuel utilisateur

Ever

Ever POWERLINE RT 1000 Manuel utilisateur

Ever

Ever SPECLINE AVR 700 Manuel utilisateur

Ever

Ever Superline 6k Manuel utilisateur

Ever

Ever POWERLINE 31 series Manuel utilisateur

Ever

Ever SINLINE XL 1800 Manuel utilisateur

Ever

Ever SINLINE RT Manuel utilisateur

Ever

Ever POWERLINE RT PLUS 6000 Manuel utilisateur

Ever

Ever SINLINE XL Manuel utilisateur

Ever

Ever W/PGRLTO-3310K0/00 Manuel utilisateur

Ever

Ever SINLINE RT XL 1250 Manuel utilisateur

Ever

Ever POWERLINE GREEN 33 LITE Feuille d'instructions

Ever

Ever Duo II 350 Manuel utilisateur

Ever

Ever POWERLINE 60-33 Manuel utilisateur

Ever

Ever POWERLINE RT 1000 Manuel utilisateur

Ever

Ever SPECLINE Pro series Manuel utilisateur

Manuels UPS populaires d'autres marques

Pylontech

Pylontech Victron & Pylontech US5000 Manuel utilisateur

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Manuel utilisateur

Mecer

Mecer ME-1000-WTU Manuel utilisateur

Mustek

Mustek PowerMust 530(B) Plus Manuel d'installation et d'exploitation

Emerson

Emerson Liebert NXL series Manuel utilisateur

MAKELSAN

MAKELSAN BOXER SERIES Manuel utilisateur

Block

Block PC-0524-400-0 Manuel utilisateur

CyberPower

CyberPower CP585LCD Manuel utilisateur

Eaton

Eaton 3S Instructions de montage

CyberPower

CyberPower Office Tower Series UPS 1000 Manuel utilisateur

CyberPower

CyberPower BM100 Manuel utilisateur

Best Power

Best Power 610 Manuel utilisateur

Best Power

Best Power Unity/I UT3K Manuel utilisateur

Mustek

Mustek PowerMust 400 Offline Manuel utilisateur

Xantrex

Xantrex Trace 512 UR-UPS Manuel utilisateur

Forza

Forza SL-1501UL Manuel utilisateur

LEGRAND

LEGRAND keor 310081 Manuel utilisateur

ABB

ABB Conceptpower DPA 500 Manuel utilisateur
