EtherWAN EX32908 series Manuel utilisateur
EX32908 series www.etherwan.com
Quick Start Guide
This quick start guide describes how to install and use the
Industrial Gigabit Ethernet Switch. Capable of operating at
temperature extremes of -10°C to +60°C, this is the switch of
choice for harsh environments constrained by space.
Physical Description
The Port Status LEDs
1
EX32908 series www.etherwan.com
LED State Indication
Steady Power on.
Power (Green) Off Power off.
Steady Relay Starts alarm.
Fault (Red) Off Relay non-alarm.
Gigabit Ports
Steady A valid network connection established.
10/100Mbps: Green, 1000Mbps: Amber.
Blinking Transmitting or receiving data.
Act stands for Activity.
Link/Act
Off No link.

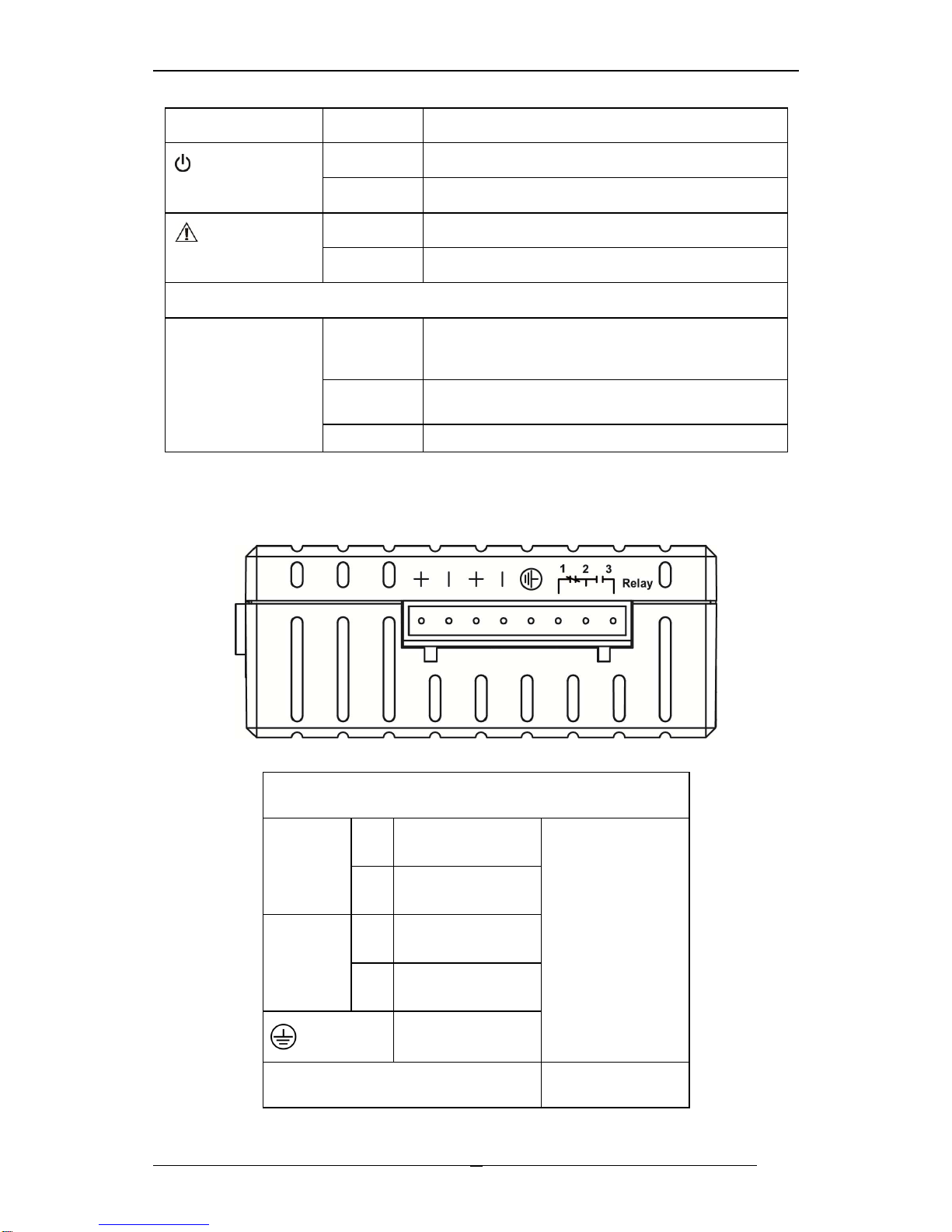

The Terminal Block and Power Inputs
Power Input Assignment
＋12~48VDC
Power1
－Power Ground
＋12~48VDC
Power2
－Power Ground
Earth Ground
Terminal Block
Relay Output Rating 1A @ 250VAC
2
EX32908 series www.etherwan.com
DC Terminal Block Power Input: The DC Terminal Block
power input can be used to power up this Switch.
DIP Switch Settings
DIP No. On Off
1 Port 1 Alarm Enable. Port 1 Alarm Disable.
2 Port 2 Alarm Enable. Port 2 Alarm Disable.
3 Port 3 Alarm Enable. Port 3 Alarm Disable.
4 Port 4 Alarm Enable. Port 4 Alarm Disable.
5 Port 5 Alarm Enable. Port 5 Alarm Disable.
6 Port 6 Alarm Enable. Port 6 Alarm Disable.
7 Port 7 Alarm Enable. Port 7 Alarm Disable.
8 Port 8 Alarm Enable. Port 8 Alarm Disable.
The Gigabit Ethernet Connectors
The 10/100/1000Base-TX Connections
The following lists the pinouts of 10/100/1000Base-TX
ports.
3
EX32908 series www.etherwan.com
Pin Signal Name Signal Definition
1 TP0＋Transmit and Receive Data 0 ＋
2 TP0－Transmit and Receive Data 0 －
3 TP1＋Transmit and Receive Data 1 ＋
4 TP2＋Transmit and Receive Data 2 ＋
5 TP2－Transmit and Receive Data 2 －
6 TP1－Transmit and Receive Data 1 －
7 TP3＋Transmit and Receive Data 3 ＋
8 TP3－Transmit and Receive Data 3 －
The 1000Base-SX/LX Connections
The fiber port pinouts: The Tx (transmit) port of device I is
connected to the Rx (receive) port of device II, and the Rx
(receive) port of device I to the Tx (transmit) port of device II.
The WDM 1000Base-BX Connections
The fiber port pinouts: Only one optical fiber is required to
transmit and receive data.
4
EX32908 series www.etherwan.com
5
Functional Description
Complies with EN61000-6-2 & EN61000-6-4 EMC
Generic standard immunity for industrial environment.
Supports 802.3/802.3u/802.3ab/802.3z/802.3x.
Auto-negotiation: 10/100/1000Mbps, Full/Half-duplex.
Auto MDI/MDIX.
1000Base-SX/LX: Multi mode SC or ST type, Single
mode SC type. 1000Base-BX: WDM Single mode SC
type.
Supports 4096 MAC addresses, 192K Bytes buffer
memory.
Supports IEEE802.3az Energy Efficient Ethernet (EEE).
High speed, non-blocking four traffic class QoS switch
fabric.
Supports Jumbo frame up to 9720 Bytes.
Power Supply: Redundant 12~48VDC Terminal Block
power inputs.
Power consumption: 6.5W Max.
Provides reverse polarity protection.
Provides overload current protection.
Operating temperature ranges from -10°C to 60°C
(14°F to 140°F).
Slim design with DIN-Rail mount installation.
EX32908 series www.etherwan.com
Assembly, Startup, and Dismantling
Assembly: Place the switch on the DIN rail from above
using the slot. Push the front of the switch toward the
mounting surface until it audibly snaps into place.
Startup: Connect the supply voltage to start up the
switch via the terminal block.
Dismantling: Pull out the lower edge and then remove
the switch from the DIN rail.
6
EX32908 series www.etherwan.com
7
Preface
A member of the growing family of rugged switches, this
switch addresses a need for a smaller switch. This switch
provides an affordable solution for rugged and outdoor
environment, transportation road-side cabinet, industrial floor
shop, multitenant dwellings or Fiber To The Home (FTTH)
applications. Capable of operating at temperature extremes of
-10°C to +60°C, this is the switch of choice for harsh
environments constrained by space.
Plug-and-Play Solution:
The switch is a plug-and-play Industrial Gigabit Ethernet
Switch in compact size. It doesn't have any complicated
software to set up.
This manual describes how to install and use the Industrial
Gigabit Ethernet Switch. This switch integrates full wire speed
switching technology. This switch brings the answer to
complicated hardened networking environments.
To get the most out of this manual, you should have an
understanding of Ethernet networking concepts.
In this manual, you will find:
Features on the switch
Illustrative LED functions
Installation instructions
Specifications
EX32908 series www.etherwan.com
8
Table of Contents
QUICK START GUIDE 1
PHYSICAL DESCRIPTION 1
The Port Status LEDs 1
The Terminal Block and Power Inputs 2
DIP Switch Settings 3
The Gigabit Ethernet Connectors 3
FUNCTIONAL DESCRIPTION 5
ASSEMBLY,STARTUP,AND DISMANTLING 6
PREFACE 7
TABLE OF CONTENTS 8
PRODUCT OVERVIEW 9
INDUSTRIAL GIGABIT ETHERNET SWITCH 9
PACKAGE CONTENTS 9
PRODUCT HIGHLIGHTS 10
Basic Features 10
FRONT PANEL DISPLAY 11
PHYSICAL PORTS 12
INSTALLATION 13
SELECTING A SITE FOR THE SWITCH 13
DIN RAIL MOUNTING 14
CONNECTING TO POWER 15
DC Terminal Block Power Inputs 15
CONNECTING TO YOUR NETWORK 17
Cable Type & Length 17
Cabling 18
SPECIFICATIONS 19
EX32908 series www.etherwan.com
Product Overview
Industrial Gigabit Ethernet Switch
Package Contents
When you unpack the product package, you shall find the
items listed below. Please inspect the contents, and report
any apparent damage or missing items immediately to your
authorized reseller.
This Switch
User’s Manual
9
EX32908 series www.etherwan.com
10
Product Highlights
Basic Features
Complies with EN61000-6-2 & EN61000-6-4 EMC
Generic standard immunity for industrial environment.
Supports 802.3/802.3u/802.3ab/802.3z/802.3x.
Auto-negotiation: 10/100/1000Mbps, Full/Half-duplex.
Auto MDI/MDIX.
1000Base-SX/LX: Multi mode SC or ST type, Single
mode SC type. 1000Base-BX: WDM Single mode SC
type.
Supports 4096 MAC addresses, 192K Bytes buffer
memory.
Supports IEEE802.3az Energy Efficient Ethernet (EEE).
High speed, non-blocking four traffic class QoS switch
fabric.
802.1Q VLAN Tag Based Priority, Class of
Service.
Output Queue Schedule Mode: Weighted Round
Robin (WRR) with 4 priority queues.
The configurations of QoS are as below:
CoS Field Value Packet Count Priority
0 or 1 1 Lowest
2 or 3 2 Low
4 or 5 4 High
6 or 7 8 Highest
Supports Jumbo frame up to 9720 Bytes.
Power Supply: Redundant 12~48VDC Terminal Block
power inputs.
Power consumption: 6.5W Max.
Provides reverse polarity protection.
Provides overload current protection.
Operating temperature ranges from -10°C to 60°C
(14°F to 140°F).
