Source Four HID PARNel™ User Guide

Source Four HID PARNel guidelines

Please note the following precautions prior to use:

• Do not mount the Source Four HID PARNel on or near combustible surfaces.

• Do not recess mount the Source Four HID PARNel.

• The Source Four HID PARNel can be canopy mounted from the ceiling.

• Always hang the Source Four HID PARNel with the color frame retaining clip in the

locked position.

• The Source Four HID PARNel is NOT dimmable. Dimming or regulated voltage will

damage the ballast and void the warranty.

Accessories

ETC Part #

Color frame 7.5 in. sq.(6.7 in. inside diameter) 7061A3047

Safety cable (31 in.) 7061A1022

C-clamp 7060A2009

Top hat, 3” PSF1022

Top hat, 6” PSF1023

Half hat PSF1027

Cross-baffle top hat PSF1031

Egg-crate louver PSF1028

Weighted base PSF1032

Gel Extender 3” PSF1030

Gel Extender 6” PSF1029

Barn door PSF1019

2 • Source Four HID PARnel

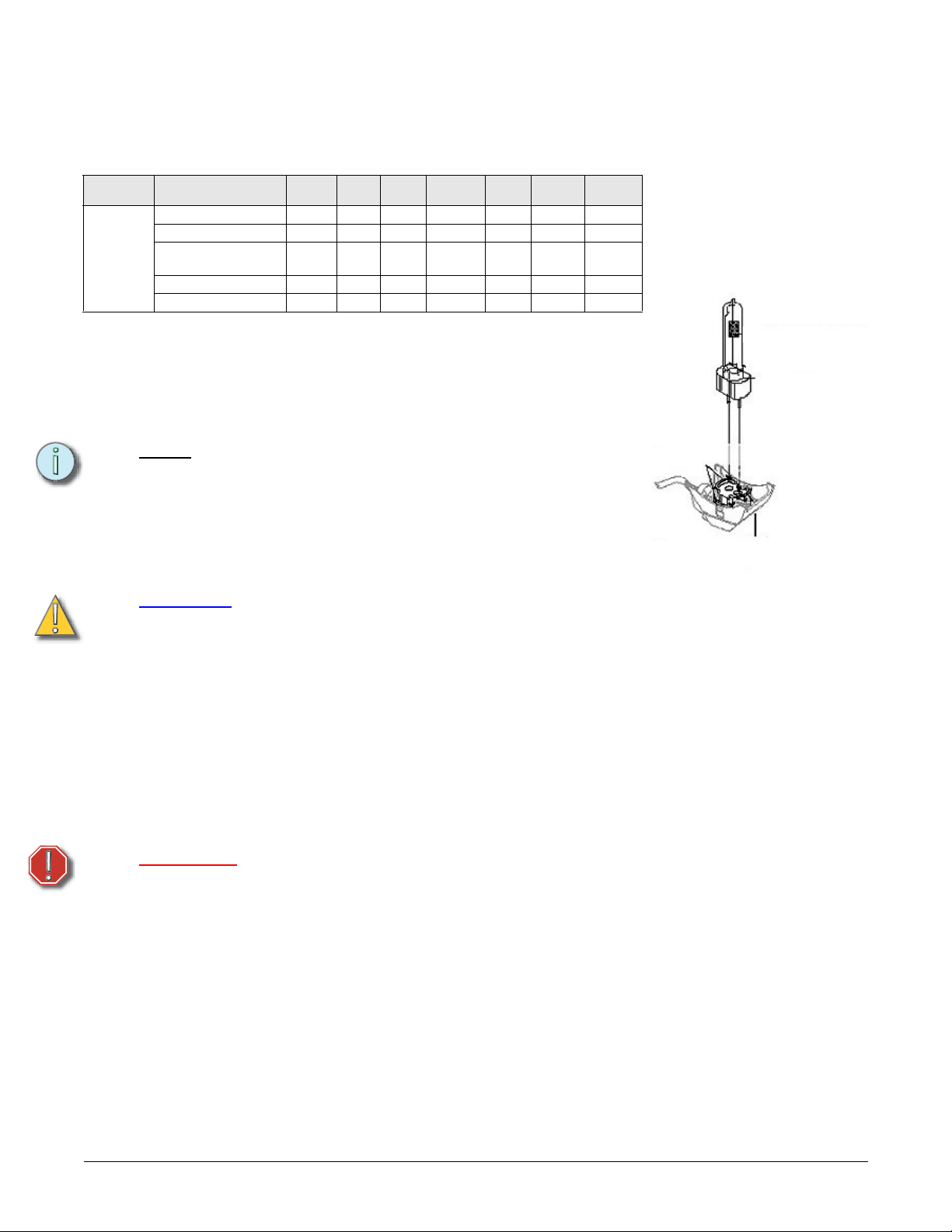

HID Lamp type and general information:

Do not use lamps other than the following types in the Source Four HID PARNel. Use

of lamps other than specified below will void UL/cUL safety compliance and your war-

ranty.

Installing the lamp

1. Disconnect power to the Source Four HID PARNel before installing the lamp.

2. Loosen the knurled bolt on the back of the lamp housing and pull the housing out.

3. Holding it by the base, remove the lamp from its box.

Note:

To avoid premature lamp failure, do not touch the lamp glass

with your fingers. If you touch the lamp during installation, clean

it carefully with rubbing alcohol and a clean, lint-free cloth before

operation.

4. Insert lamp base into socket assembly. (Figure 1)

5. Push down on the lamp base until the lamp seats firmly.

6. Reinstall the lamp housing by aligning the bolt hole and tightening the knurled bolt.

CAUTION:

Replace the lamp if it becomes damaged or thermally

deformed.

Improperly installed lamps will cause

premature lamp and socket failures.

Ballast information

• The only acceptable voltage is 120V (+/- 10%) 50/60HZ.

• The standard operating current is 1.5 Amps.

• The standard inrush current is <14 Amps.

• Room ambient temperature should not exceed 104ºF (40ºC).

• The lamp ignition voltage is 4.5Kv, non-hot restrike.

• The ballast case temperature should not exceed 167ºF (75ºC).

WARNING: DO NOT power the Source Four HID PARNel with a

dimmable power supply. Dimming will damage the

ballast and void the warranty.

Lamp Type Manufacturing Codes Watts Base Bulb LCL Ave.

Hrs.

Initial

lumens

Color

temp

Ceramic

Metal

Halide

CDM-T 150W/830 150 G12 T6 56mm 9000 14000 3000°K

CDM-T 150W/942 150 G12 T6 56mm 9000 12700 4000°K

MD150T6/U/G12/

830 150 G12 T6 56mm 9000 14000 3000°K

MBI150/T/30 150 G12 T7 57mm 6000 11500 3000°K

MBI150/T/40 150 G12 T7 57mm 6000 11250 4000°K

Figure 1

Source Four HID PARnel • 3

Color frame retaining clip usage

The color frame holder is equipped with a spring-loaded retaining clip that prevents

color frames and accessories from falling out. Make sure the Source Four HID PAR-

Nel has the color frame retaining clip in the locked position when hanging.(Figure 2)

Note:

Make sure to use colorframes or accessories with a 6.7 inch

inside diameter.

1. Release the retaining clip by pushing it sideways. The retaining clip opens.

2. Insert the color frame.

3. Press the retaining clip down until it locks.

Focus Knob Positioning

To adjust the Focus knob tension, loosen or tighten the Focus knob screw.

CAUTION:

The focus knob does not rotate 360º. Do not attempt

to exceed rotational limit. Overtightening may result in

damage or breakage of the knob.

Lens identification

The Source Four PARNel comes equipped with two types of lenses; Wave/Stippled

(WS) and Wave/Clear (WC). The type can be identified by the lens texture.

The WC rear lens is in a “fixed” position inside the fixture. The WS lens is in the

rotating ring at the front of the fixture. The wave surfaces face each other.

Figure 2

Retaining clip in

the locked positio

45º field angle

Focus knob in

flood position

Focus knob screw

Focus knob in

spot position

Focus knob screw

25º field angle

Wave / Stippled lens Wave / Clear lens

4 • Source Four HID PARnel

Changing Source Four PARNel lenses

Change lenses if they become cracked or badly scratched.

CAUTION:

Never operate the Source Four PARNel without a lens in

place.

Removing a wave/stippled front lens

1. Source Four PARNel lenses get hot while the unit is in operation. Let the fixture cool

before handling the lens.

2. Disconnect power from the fixture.

3. Place the fixture on a flat, stable work surface. Do not install or remove lenses with

the unit hanging.

4. Rotate the focus knob to full spot position.

5. Tilt the front of the fixture down at least 45 degrees.

6. Press the spring clip with your finger to release the lens (Figure 3).

7. Allow the lens to drop forward from under the clip.

8. When the lens drops, remove your finger, allowing the lens to slide forward until it

rests on the lens catchers (Figure 4).

9. Carefully remove the lens from the fixture.

Installing a wave/stippled lens (front)

1. Position the fixture with the front of the unit (the lens side) facing you, and tilted

slightly (Figure 3).

2. Rotate the focus knob to full spot position.

3. Hold the lens by the edge, and position it so the wave side faces the back of the

fixture (Figure 5).

4. From the top of the fixture, slide the lens behind the lens catchers and position its

base behind the tabs on the bottom of the lens rotation ring. See Positioning the

wave/stippled lens below.

5. Gently push the top of the lens inward until it snaps behind the spring clip.

Positioning the wave/stippled lens (front)

• There are seven “notches” cut into the stippled side of the lens. Position the lens so

that the cluster of three notches is on top. The center notch of the cluster coincides with

the spring clip on the lens retaining ring. (Figure 6)

• The bottom of the lens has a cluster of four notches. Place the two center notches

behind the tabs at the bottom of the lens rotating ring. (Figure 5)

Figure 3

Spring clip

Tab

Retaining clip

Focus Knob WS lens

WC lens

Lens catcher Figure 4

Figure 5

Spring clip

Retaining clip

Tab

Figure 6

Top center notch

Bottom two

center notches

Source Four HID PARnel • 5

Cleaning the reflector

1. Unplug the fixture before attempting to clean the reflector.

2. Remove the lamp before attempting to clean the reflector.

3. Remove the lenses so you can access the reflector from the front of the fixture.

4. Remove dust with a blast of oil free air, or wipe with a clean, soft, lint-free cotton cloth.

If this is sufficient to remove dust, go to step 7. Otherwise, continue to step 5.

5. Dampen a clean, soft, lint-free cotton cloth with a mild, soapy water solution and

gently wipe the reflector.

6. Remove any soapy water residue with a clean, soft, lint-free cotton cloth dampened

with water.

7. Reinstall the lenses before using the fixture.

CAUTION:

Do not use glass or window cleaners on the reflector.

Chemicals in the cleaners will harm the reflective coating.

Do not use paper towels or harsh materials to wipe the

reflector. These materials can scratch the surface of the

reflector.

Housing assembly instructions

If you take apart the Source Four HID PARNel for any reason, please use the following

steps for reassembly. Improper reassembly will result in void of warranty and loss of per-

formance.(See parts list on page 7)

Tools required: Phillips screwdriver.

1. Install the reflector mount silicon pads (11) and lens pad (15) in the left barrel (7 or 8).

2. With the wave side of the lens facing toward the front of the fixture, install the wave/

clear lens (21) into the rear lens track.

3. Assembly items 16, 17, 18, and 19 (Focus knob assembly). Rotate the focus knob full

spot position. The arrow on the focus knob will point approximately to the 11 O’clock

position.

4. Place the focus knob assembly into the left barrel.

5. Install the lens stop (14) and the rotator spring clip (12) into the lens rotator (12 or 13).

6. Install the lens rotator into the left barrel.

7. Install the rotator pressure clip (9) into the left barrel with screw (23).

8. Install the gel retainer clip (1) and the spring (22) into the right barrel (5 or 6).

9. Attach the right barrel to the left barrel using screws (3) in three places.

10. Check that the gel clip retainer (1) moves easily into position.

11. Check for smooth rotation of the lens rotator (12 or 13).

12. With the wave side facing inward, install the wave/stippled lens (20) into the lens

rotator.

6 • Source Four HID PARnel

Spare parts list

Source Four HID PARNel Final Assembly

Reference

Number

Part Number Description Quantity

Required

17061A2022 S4 HID PAR base

assembly (black) 1

27061A2022-1 S4 HID PAR base

assembly (white) 1

37061A2024-0X 120V HID PAR Lamp

socket assembly (black) 1

47061A2024-1X 120V HID PAR Lamp

socket assembly (white) 1

57061A3039 HID PAR yoke bracket

(black) 1

67061A3039-1 HID PAR yoke bracket

(white) 1

7HW5125 Bolt, carriage 1

8HW5126 Washer, flat 1

9HW5139 Washer, split ring lock 2

10 HW5172 Bolt, hex 2

11 HW5270 Bolt, spinlock 2

12 HW522 Washer, flat 2

13 HW8144 Handle, yoke knob

(black) 1

14 HW8144-1 Handle, yoke knob

(white) 1

5,6 3,4

13,14

10 9 12

1,2

12 9 10

Source Four HID PARnel • 7

Spare parts list

Source Four HID PARNel Housing Assembly

Reference

Number

Part Number Description Quantity

Required

17061A3005 Gel retainer clip 1

27061A3013 Spring clip rotator 1

37061A3014 Reflector, painted black 1

47061A3014-1 Reflector, painted white 1

57061A3025 Barrel, painted black 1

67061A3025-1 Barrel, painted white 1

770612019 Source Four PAR rivet assembly, black 1

870612019 Source Four PAR rivet assembly, white 1

970613029 Rotator pressure clip 1

10 HW492 Screw, 10-32 X 5/8, PhPH Taptite 3

11 7061A4001 Pad, silicon reflector mount 2

12 70614012 Lens rotator, black 1

13 70614012-1 Lens rotator, white 1

14 7061A4029 Lens stop 1

15 7061A4020 PARNel lens pad 4

16 7061A4013 Focus knob bushing 1

17 7061A4014 Focus knob gear 1

18 7061A4015 Focus knob 1

19 HW2154 Screw, PPH, 6-19 X 1/2L, 48-2 Plastite 1

20 7061A4010-2 PAR zoom wave/stippled lens 1

21 7061A4010-1 PAR zoom wave/clear lens 1

22 HW750 Spring, retainer 1

23 HW4145 Screw, 10-32 X 3/8, PhPH Taptite, BO 1

Americas



3030 Laura Lane, P.O. Box 620979, Middleton, Wisconsin 53562-0979 USA



Tel: +608 831 4116



+800 688 4116



Fax: +608 836 1736



+800 555 8912

Europe



Unit 4, Victoria Industrial Estate, Victoria Road, London W3 6UU, UK



Tel: +44 (0)20 8896 1000



Fax: +44 (0)20 8896 2000

Asia



Room 605-606, Tower III Enterprise Square, 9 Sheung Yuet Road, Kowloon Bay, Kowloon, Hong Kong



Tel: +852 2799 1220



Fax: +852 2799 9325

eb: www.etcconnect.com



Email: (US) [email protected]



(UK) mail@etceurope.com



(Asia) [email protected]

Service: service@etcconnect.com



Toll free: 800 775 4382



Comments about this document: techcomm@etcconnect.com

7061M1013



Rev A



Released 4/03

Table des matières

Autres manuels ETC Équipement d'éclairage

ETC

ETC High End Systems SolaPix 19 Manuel utilisateur

ETC

ETC ArcSystem Pro Multi-Cell RDM Manuel utilisateur

ETC

ETC ArcSystem Pro D1 Series Manuel utilisateur

ETC

ETC 3 Series Manuel utilisateur

ETC

ETC Desire Fresnel Manuel utilisateur

ETC

ETC Source Four LED Series Manuel utilisateur

ETC

ETC F-Drive W1 Series Manuel utilisateur

ETC

ETC High End Systems SolaPix 7 Manuel utilisateur

ETC

ETC Irideon WLZ Manuel utilisateur

ETC

ETC Echo Manuel utilisateur

ETC

ETC source four fresnel Manuel utilisateur

ETC

ETC Acclaim 100 series Manuel utilisateur

ETC

ETC ELTS2 Manuel utilisateur

ETC

ETC Selador CE Series Manuel utilisateur

ETC

ETC Cyberlight LED Manuel utilisateur

ETC

ETC Source Four LED Series Manuel utilisateur

ETC

ETC Halcyon Gold Manuel utilisateur

ETC

ETC Express Manuel utilisateur

ETC

ETC Source Four LED Series Manuel utilisateur

ETC

ETC Source Four Revolution Scroller Cartridge Manuel utilisateur

ETC

ETC Lustr+ Manuel utilisateur

ETC

ETC Source Four LED 3 Series Manuel utilisateur

ETC

ETC Source 4WRD Manuel utilisateur

ETC

ETC Source Four LED Series Guide d'installation

Manuels Équipement d'éclairage populaires d'autres marques

Brizo

Brizo 8SP-MU-4 Manuel utilisateur

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manuel utilisateur

IKEA

IKEA BJÖRKSPIREA Manuel utilisateur

Laserworld

Laserworld Evolution Series ES-400RGB Manuel utilisateur

Alien

Alien RG STAR Manuel utilisateur

EuroLite

EuroLite LED B-40 Manuel utilisateur

Qazqa

Qazqa Suplux SL 3 Black 103062 Manuel utilisateur

Commercial Electric

Commercial Electric 54568141 Manuel utilisateur

CREE LIGHTING

CREE LIGHTING 304 Series Manuel utilisateur

Goobay

Goobay 49867 Manuel utilisateur

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manuel utilisateur

Alkalite

Alkalite Krypton KT-81 Manuel utilisateur

Clas Ohlson

Clas Ohlson GU10 Manuel utilisateur

DTS

DTS DELTA 10 F Manuel utilisateur

ring

ring Solar Steplight Manuel utilisateur

One Stop Gardens

One Stop Gardens 57696 Instructions de montage

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manuel utilisateur

SIREM

SIREM Swimeo A2 Manuel utilisateur
