ETC Source 4WRD Manuel utilisateur

Part Number: 7067M1200-1.1.0 Rev: C

Released: 2017-07

Source 4

WRD

™

HPL to LED Retrofit

Installation and User Manual

Version 1.1.0

ETC

, Source Four

, Source 4

WRD

™

, Sensor

, and Unison

are

either registered trademarks or trademarks of Electronic

Theatre Controls, Inc. in the United States and other countries.

All other trademarks, both marked and not marked, are the

property of their respective owners.

This product is protected by one or more of the following

U.S. Patents: US 9,261,241 and 9,273,831.

ETC intends this document, whether printed or electronic, to be

provided in its entirety. This product is intended for

professional use only. Read this entire document before using

this product.

Table of Contents

Table of Contents i

Introduction . . . . . . . . . . . . . . . . . . . . . . . 1

Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Sensor dimmer settings . . . . . . . . . . . . . . . . . . 5

Color rendering and quality . . . . . . . . . . . . . . 6

Contacting ETC . . . . . . . . . . . . . . . . . . . . . 7

Retrofit kit installation . . . . . . . . . . . . . . . 8

Remove incandescent lamp housing . . . . . . . 8

Install Source 4WRD retrofit . . . . . . . . . . . . . . . 9

Fixture installation . . . . . . . . . . . . . . . . . 10

Attach C-clamp and safety cable . . . . . . . . . 10

Connect cables . . . . . . . . . . . . . . . . . . . . . . . . 11

DMX pinout . . . . . . . . . . . . . . . . . . . . . . . 12

User interface . . . . . . . . . . . . . . . . . . . . . 12

Error codes . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Focus the fixture . . . . . . . . . . . . . . . . . . . 13

Set the Z-adjustment . . . . . . . . . . . . . . . . . . . 13

Adjust the yoke position . . . . . . . . . . . . . . . . 14

Change the height position. . . . . . . . . . . 14

Set the angle within the yoke . . . . . . . . . 14

Shape the beam. . . . . . . . . . . . . . . . . . . . . . . 14

Use the color frame . . . . . . . . . . . . . . . . . 14

Use a pattern . . . . . . . . . . . . . . . . . . . . . . 15

ii Table of Contents

Cleaning and maintenance. . . . . . . . . . . 15

Clean the fixture. . . . . . . . . . . . . . . . . . . . . . . 15

Store the retrofit . . . . . . . . . . . . . . . . . . . . . . 16

Clean the lenses . . . . . . . . . . . . . . . . . . . . . . . 16

Clean the reflector . . . . . . . . . . . . . . . . . . . . . 17

Clean 5° and 10° polymer lenses . . . . . . . . . . 18

User Manual 1

Introduction

Congratulations on your purchase of the ETC Source 4WRD LED retrofit kit.

Replacing your existing incandescent burner assembly with the Source 4WRD

LED brings a new tool to your lighting inventory. The Source 4WRD LED

expands the options for existing Source Four®fixtures and adds a new white

LED fixture to the ETC family.

The following Source 4WRD options are available as 80 CRI and 90 CRI (Gallery)

variants:

•Source 4WRD LED retrofit kit: Used to modify an existing Source Four HPL

incandescent fixture to a white LED fixture. The Source 4WRD LED can

also be used with the Source 4WRD PAR or PARNel®Fixture Body to

create a Source 4WRD PAR or PARNel fixture. For more information, visit

etcconnect.com.

•Source 4WRD Light Engine: Combines the Source Four incandescent

fixture body with the Source 4WRD LED.

Note:

Source 4

WRD

LED retrofit kit is not compatible with

Source Four LED, Fresnel, PAR, or jr fixtures.

WARNING:

The Source 4

WRD

LED is not user serviceable. Field

modification of the Source 4

WRD

LED will void your ETC

warranty.

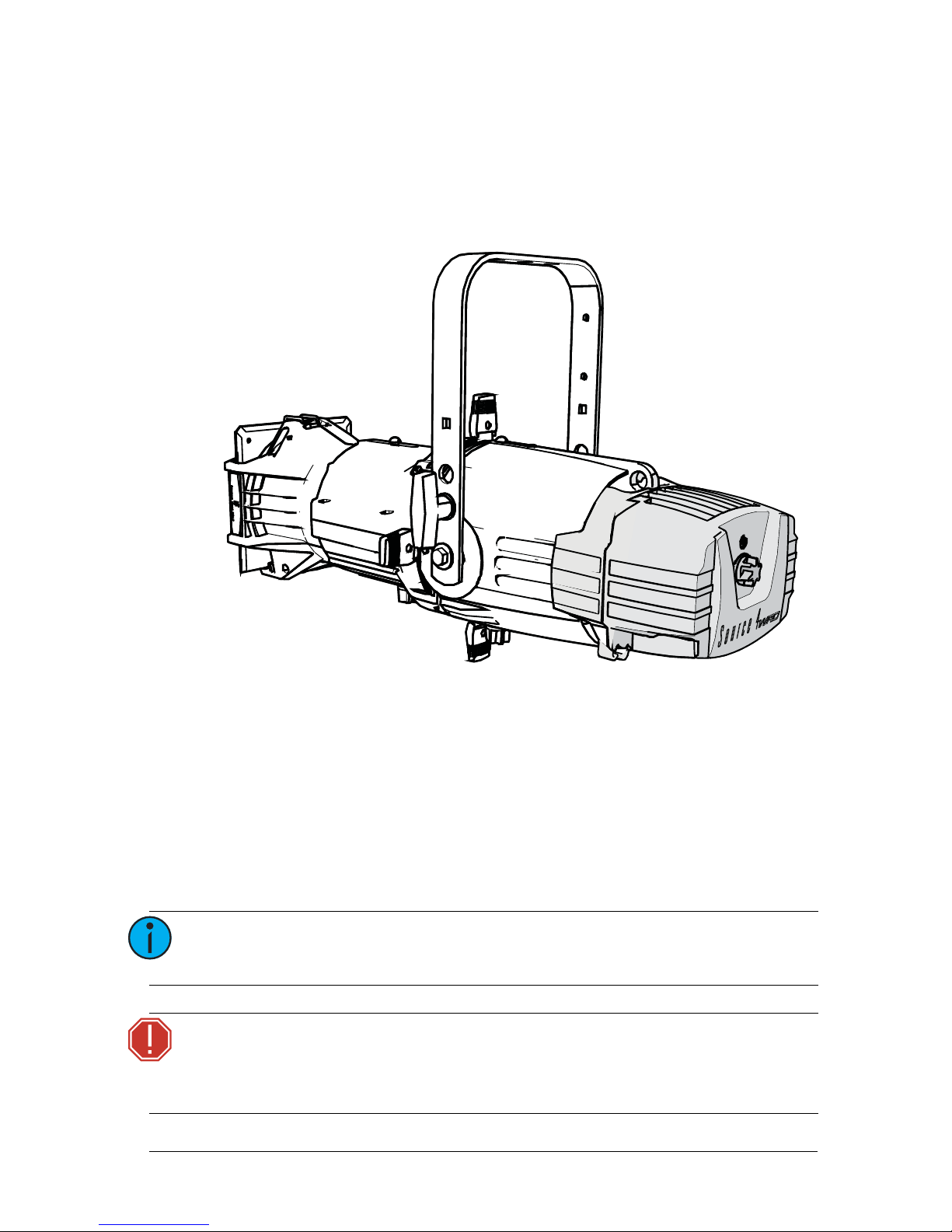

Source 4WRD LED

retrofit kit shown

installed on a Source

Four fixture

2Source 4

WRD

Safety

The Source 4WRD fixture is intended for professional use only. Read the entire

manual before using this equipment.

WARNING:

Note the following safety warnings before use:

• Do not mount the Source 4

WRD

fixture on or near a

flammable surface.

• Do not use the Source 4

WRD

fixture below 5°C (41°F).

• Minimum storage temperature is 5°C (41°F). When the

fixture has been stored or transported in cold

temperatures, allow it to warm to room temperature for

a minimum of 1 hour before applying power. Applying

power to a cold fixture will cause damage to the fixture

and void the ETC warranty.

• Do not use this fixture with a damaged power lead. If

the power lead (cord set) is damaged, it must be

replaced.

• Do not use this fixture if glass lens is deeply scratched or

cracked. Damaged lenses must be replaced.

• To prevent wiring damage, or abrasion, do not expose

wiring to edges of sheet metal or other sharp objects.

• Use the Source 4

WRD

fixture in dry locations only, where

humidity does not exceed 90 percent (non-condensing).

These fixtures are not intended for outdoor use.

• Mount and support the fixture only by the primary

suspension holes in the yoke.

• Suspend the fixture from a suitable structure using only

hardware rated for the weight of the fixture.

• In addition to primary suspension, attach a safety cable

(ETC Model 400SC or other approved safety cable or

device) to the fixture housing. An appropriate

attachment point (hole) is provided in the protruding

tab on the fixture housing.

• Disconnect the unit from power and DMX and allow the

fixture to cool before removing or installing the shutter

barrel or other adapters, and for performing all cleaning

and maintenance.

User Manual 3

Note:

• Maximum recommended ambient operating

temperature: Ta=50°C (122°F)

• Maximum anticipated external surface temperature:

Tmax=63°C (145°F) at Ta=50°C (122°F)

• External Temperature (steady state achieved) at

25°C (77°F) ambient: 38°C (100°F)

4Source 4

WRD

Specifications

Typical Power Consumption

Idle Power / Current DMX Mode: 1.2W/.046A; AC Mode: 0W

Full Intensity Power / Current 155.7W/1.35A

Physical • Rugged die-cast aluminum construction

• Advanced thermal management systems for long LED life

• Ambient operating temperature: 5°–50°C (41°F–122°F)

• Minimum storage temperature: 5°C (41°F)

•Weight:

- Source 4WRD LED retrofit kit only: 3.65 lb (1.66 kg)

- Source 4WRD LED installed on 26° fixture with yoke and

C-clamp:14 lb (6.35 kg)

Electrical • 114–125VAC 60Hz power input

• 155W draw at full (182W theoretical max. draw)

• Recommended two (2) fixtures per dimmed circuit

(D20 module)

• Max of 14 fixtures per non-dimmed circuit (R20 module)

• If using in DMX mode: Connect fixture to relay, constant

power, or dimmer with regulation off and parked at full

LEDs • 4 CREE LED modules

• 30,000 hour estimated L70 rating (life-test in progress,

results pending)

Optical • Compatible with all ETC Source Four lens tubes

Control • DMX512-A compliant

• DMX in and thru via two RJ45 connectors

• AC power for line-dimmed operation

• Simple seven-segment display and two-button user

interface includes local dimming control

Note:

Connecting both power and data from a SmartBar 1 to a

Source 4

WRD

fixture may cause flickering.

User Manual 5

Sensor dimmer settings

The Source 4WRD fixture can be dimmed from a DMX source, an existing

dimmer, or locally on the fixture.

When powering a fixture with a CEM classic, CEM+, or CEM3 for DMX

dimming or AC level setting, set the parameters as shown below to ensure

that the dimmer is out of regulated mode.

The following tables apply to ETC Sensor®control modules including CEM,

CEM+, and CEM3.

Note:

You may need to adjust dimmer settings for optimal

fixture control.

Note:

In CEM+, set Max Scale to 140V to guarantee that

regulation is off.

CEM+ and CEM3

Parameter Value

Curve Mod Square

Threshold 1%

Min Scale 6V

Max Scale 140V

Regulation OFF

Preheat Disabled

DC Prevent OFF

Inrush Protect OFF

Scale Load 100

CEM Classic v2.x CEM Classic v3.x

Parameter Value Parameter Value

Mode Normal Mode Normal

Boost 117 Curve Mod-Square

Scale 140

Threshold Normal

6Source 4

WRD

You may need to increase the SCR Off Time from the default setting. Contact

ETC for assistance in changing the SCR Off Time, or any other CEM classic,

CEM+, or CEM3 settings.

For the most current information on additional dimmer performance testing

for both ETC and non-ETC dimmers, please visit the ETC website:

etcconnect.com/Support/Articles/Dimmer-Settings-for-Use-with-Source-4wrd.aspx

Color rendering and quality

Source 4WRD fixtures are evaluated for Color Rendering Index (CRI) and Color

Quality Scale (CQS) performance using measured output spectrum. These

numbers may fluctuate slightly from fixture to fixture. This is a normal

characteristic of white LEDs, and this kind of variation is highly unlikely to be

apparent in most applications.

Note:

With AC dimming (line-dimmed) mode, performance

may vary based on the control settings of the dimmer

used. For this reason, ETC recommends using AC dimming

for level-setting or for architectural quality dimming

situations. ETC recommends testing the Source 4

WRD

fixture on all existing dimmers you wish to use.

Use DMX mode when high-performance, live, dynamic

dimming is required.

Fixture CRI CQS Color Fidelity Duv

Source 4WRD LED

(80 CRI) at 3000K ≥80 80 80 0.001

Source 4WRD LED Gallery

(90 CRI) at 3000K ≥90 90 90 0.001
