User’s manual

Thanks for choosing

an Esse-ti product

This product has been especially designed for easy

operation. It has been manufactured with perfect

workmanship using suitable materials for long-lasting

performance.

All Esse-ti products are subjected to extensive reliability

and operational testing in our laboratories in order to

provide total guarantee for the user.

The User shall be responsible for defects arising from the use of the product. Esse-ti shall only be

responsible for defects according to and within the limitations set by the Presidential Decree dated

24/05/1988 no. 224 (fulfilling the EEC directive no. 85/374 on the harmonization of statutory and

administrative regulations of the Member States on the liability for damages arising from defective

products under art. 15 of Law no. 183 of 16 April 1987).

Esse-ti reserves the right to modify the product characteristics at any time without prior notice.

TABLE OF CONTENTS

GENERAL INSTALLATION INSTRUCTIONS..............................5

General Notes.................................................................................5

Making the installation...................................................................5

DESCRIPTION..................................................................................6

Features .................................................................................................... 6

INSTALLATION...............................................................................7

Inserting the SIM card .............................................................................8

Inserting the antenna ................................................................................ 8

Connection to the telephone line .............................................................9

Connection to the power supply ..............................................................9

Turning the GSM400 gateway on.......................................................... 10

Gateway mounting operations ...............................................................11

GSM400 installation recommendations ................................................ 12

Absorption chart..................................................................................... 12

PROGRAMMING via telephone .....................................................13

Voltage of the telephone line .......................................................14

Use mode .....................................................................................15

Interdigit dialling time .................................................................16

Dialling codes ..............................................................................17

CLIP setting .................................................................................19

CLIR setting.................................................................................21

Permanent setting................................................................................... 21

Temporary setting ..................................................................................22

Roaming setting ...........................................................................23

Setting telephone number for notification service.......................25

setting the administrator telephone number .................................27

Programming password................................................................28

Low-battery check........................................................................29

Enabling ................................................................................................. 29

Programming the minimum value ......................................................... 30

automatic converter of selected telephone number ......................31

Entering preset numbers ........................................................................ 32

Matching telephone numbers manually................................................. 34

Matching telephone numbers automatically.......................................... 36

Adjustments .................................................................................37

Restoring default settings.............................................................39

Reset ............................................................................................40

programming via sms .......................................................................41

Message format ...................................................................................... 41

Notification message format.................................................................. 43

SERVICES.......................................................................................44

Incoming calls..............................................................................44

Outgoing calls ..............................................................................44

Measuring the signal level ...........................................................45

reading the battery status..............................................................46

Reading “Automatic converter” numbers ....................................47

RS232 PORT....................................................................................48

Connection example............................................................................... 49

SIGNALS.........................................................................................50

Tones............................................................................................50

Call signals...................................................................................51

LED..............................................................................................51

Status indicator LED (red)..................................................................... 51

GSM signal indicator LED (green)........................................................51

NOTE ...............................................................................................53

WARRANTY CONDITIONS..........................................................55

WARRANTY CERTIFICATE.........................................................56

Page 5

GENERAL INSTALLATION

INSTRUCTIONS

GENERAL NOTES

Carefully read the notes contained in this section as they provide important

information on safe correct installation, use and maintenance of the product.

The product must be EXCLUSIVELY used for the purpose it was designed for.

Esse-ti shall not be responsible for damages arising from improper use.

The product has been designed in compliance with the regulations in force and

must be installed in systems that comply with the provisions of law.

Always disconnect power supply before performing internal or external operations

on the product (cleaning, maintenance, etc.).

Always refer to an authorized service centre for repair.

The device must be installed in a ventilated place, making sure that the ventilation

slots are never obstructed.

Do not install the product in environments with risk of explosion.

Make sure that the product has been installed as required.

Do not introduce objects, liquids or powders inside the product. Do not use sprays

inside the product.

Packing components (such as plastic bags, foam polystyrene, etc.) must be kept out

of the reach of children because potentially dangerous.

MAKING THE INSTALLATION

Internal telephone installations must be carried out by specialised personnel.

The installation and connection of telephone terminals to the telecommunications

network that do not comply with the regulations in force is not permitted.

Page 6

DESCRIPTION

GSM400 is a device that, connected to a fixed telephone or to the PSTN

input terminals of a PABX or autodialer, allows you to make and receive

calls over the GSM network. For correct operation, a normal SIM card is

required. The GSM400 GC gateway comes with built-in backup

batteries. The GSM400 DATA gateway comes with built-in backup

batteries and serial port RS232 for data transmission.

Features

Local programming via DTMF tones;

Remote programming via SMS;

Display of caller identification;

CLIP / CLIR;

Roaming setting;

Low-battery check (only available on models: GC and DATA);

Low-battery notification by SMS;

Measurement of GSM signal level;

Automatic converter of selected telephone number;

Receiver and transmitter gain adjustment;

Remote reboot function;

GSM signal indicator LED;

Status indicator LED;

Dual Band GSM module;

2W transmission power;

12Vdc power supply input;

230Vac external adapter input;

RS232 port for data transmission (only available on model: DATA);

External antenna (cable length = 2,5m);

Optional external adapter (230Vac 50Hz input; 12Vdc 500mA

output; CE mark).

Page 7

INSTALLATION

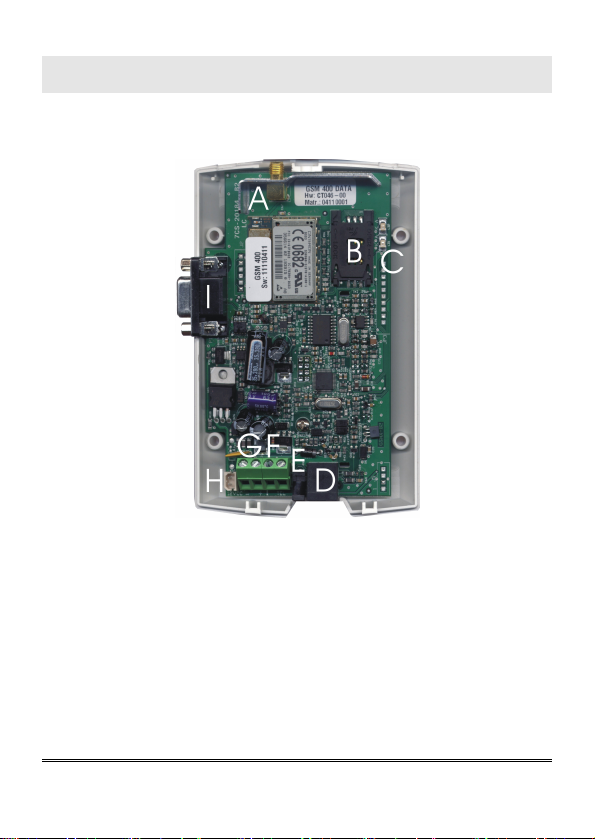

Remove the cover by pressing the upper side.

A ANTENNA cable connector

B SIM CARD housing with front panel

C LED indicating signal strength (green) and LED indicating device operation

status (red)

D Telephone line output (RJ11 connector) for telephone set connection or PABX

analogue line connection

E 230Vac external adapter input

F Telephone line output (terminal block) for connection of autodialer/PABX

analogue line

G 12Vdc power supply terminal block

H Backup battery connector (GC and DATA models only)

I RS232 port (DATA model only)

Page 8

Inserting the SIM card

Before inserting or replacing the SIM card, always make sure that the

gateway has been disconnected from the mains and that no electrostatic

discharge is present in order to avoid damaging it.

Take all necessary measures to avoid electrostatic discharge.

Shift the SIM card housing cover downward until it unblocks and

lift it.

Carefully slide the SIM card into its housing cover.

Lower the SIM card housing cover and shift it upward until it

blocks.

WARNING

The SIM Card PIN must be DISABLED. If the PIN is

enabled, it must be disabled through a mobile phone.

Inserting the antenna

Screw the antenna cable in to the connector on the top of the

module.

WARNING

Do not install the product near other electric or

electronic devices that were not especially designed to

be used with it. They could be subjected to RF

interference from the module.

Page 9

WARNING

NEVER connect the GSM400 gateway without having

previously installed the antenna. The gateway may get

damaged.

Connection to the telephone line

Connect the GSM400 to a standard telephone or to the PSTN input

terminals of a PABX or autodialer via the RJ-11 connector (D in the

picture at page 7);

Connect the GSM400 to a standard telephone or to the PSTN input

terminals of a PABX or autodialer using the TEL terminal (F in the

picture at page 7).

Connection to the power supply

Power supply via 230Vac external adapter

Connect the external adapter to the specific input (E in the picture

at page 7).

Connect the backup batteries (if present) to the dedicated input (H

in the picture at page 7).

Close the gateway cover.

12Vdc power supply

Connect the power supply cable to the terminal (G in the picture at

page 7) taking care to respect the polarity.

Connect the backup batteries (if present) to the dedicated input (H

in the picture at page 7).

Page 10

Close the gateway cover, paying attention to the power supply

cable.

WARNING

Backup batteries, if present, may be connected only

after GSM400 has been supplied

Note: the max voltage to be supplied to the mains terminal

G is 17Vdc.

Note: the min voltage required to supply the GSM400

gateway by the mains terminal G is 10Vdc.

Note: a protection cut-out switch must be installed upstream

to interrupt power supply in case of fault.

Turning the GSM400 gateway on

Power the GSM400.

Wait 15 seconds after power-up to give time to the GSM400 to

Make sure the red LED (device status) flashes briefly once every 3

seconds as shown in chapter “SIGNALS”.

Set parameters or make a call.

If the red LED flashes quicker and stays lit for a longer time (see

“SIGNALS”), the GSM gateway has not properly registered with the GSM

provider. Disconnect GSM400 and make sure the SIM card is inserted

correctly and that the PIN is not locking it.

Table des matières

Autres manuels Esse-ti Porte

Esse-ti

Esse-ti 4G.VoLTE Manuel utilisateur

Esse-ti

Esse-ti GSM500 Manuel utilisateur

Esse-ti

Esse-ti 4GRouter Manuel utilisateur

Esse-ti

Esse-ti GSM500 M2M Manuel utilisateur

Esse-ti

Esse-ti GSM 200 Manuel utilisateur

Esse-ti

Esse-ti 4G.evox Manuel utilisateur

Manuels Porte populaires d'autres marques

LST

LST M500RFE-AS Manuel utilisateur

Kinnex

Kinnex Media Gateway Manuel utilisateur

2N Telekomunikace

2N Telekomunikace 2N StarGate Manuel utilisateur

Mitsubishi Heavy Industries

Mitsubishi Heavy Industries Superlink SC-WBGW256 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications ZYWALL2 ET 2WE Manuel utilisateur

Telsey

Telsey CPVA 500 - SIP Manuel utilisateur

RTA

RTA 460A-NNA4 Fiche technique

Shaw

Shaw Gateway HDPVR Manuel utilisateur

ABB

ABB VSN900 Guide de démarrage rapide

Commander

Commander Pulse Manuel utilisateur

2N Telekomunikace

2N Telekomunikace ATEUS EasyGate 501309E Manuel utilisateur

NETGEAR

NETGEAR C6300BD Manuel utilisateur

Amit

Amit CDW531AM Manuel utilisateur

HMS

HMS Netbiter EasyConnect EC150 Manuel utilisateur

Huawei

Huawei EchoLife HG620 Manuel utilisateur

AT&T

AT&T U-verse 3801 Manuel d'utilisation et d'entretien

Logic IO

Logic IO RTCU MX2 turbo Manuel utilisateur

Suttle

Suttle MediaMAX MXM-521 Manuel utilisateur
