ERNITEC Orion Manuel utilisateur

INSTRUCTION MANUAL Ver 1.0 (3810-0132D)

Indoor Mini Speed Dome Camera Series

www.ernitec.com

Indoor Mini Speed Dome Camera

This lightning flash with arrowhead symbol is intended to alert the user to the

presence of un-insulated "dangerous voltage" within the product's enclosure that may

be of sufficient magnitude to constitute a risk of electric shock to persons.

This exclamation point symbol is intended to alert the user to the presence of

important operating and maintenance (servicing) instructions in the literature

accompanying the appliance.

Important Safeguard

1. Read Instructions

Read all of the safety and operating instructions before using the product.

2. Retain Instructions

Save these instructions for future reference.

3. Attachments/Accessories

Do not use attachments or accessories unless recommended by the appliance manufacturer as they may cause

hazards, damage product and void warranty.

4. Water and Moisture

Do not use this product near water or moisture.

5. Installation

Do not place or mount this product in or on an unstable or improperly supported location. Improperly installed

product may fall, causing serious injury to a child or adult, and damage to the product. Use only with a mounting

device recommended by the manufacturer, or sold with the product. To insure proper mounting, follow the

manufacturer's instructions and use only mounting accessories recommended by manufacturer.

6. Power source

This product should be operated only from the type of power source indicated on the marking label.

www.ernitec.com

Indoor Mini Speed Dome Camera

NOTICE

Precautions

■Operating

zBefore using, make sure power supply and others are properly connected.

zWhile operating, if any abnormal condition or malfunction is observed, stop using the camera immediately

and then contact your local dealer.

■Handling

zDo not disassemble or tamper with parts inside the camera.

zDo not drop or subject the camera to shock and vibration as this can damage camera.

zCare must be taken when you clean the clear dome cover. Especially, scratch and dust will ruin your

quality of camera.

■Installation and Storage

zDo not install the camera in areas of extreme temperature, which exceed the allowable range.

zAvoid installing in humid or dusty places.

zAvoid installing in places where radiation is present.

zAvoid installing in places where there are strong magnetic fields and electric signals.

zAvoid installing in places where the camera would be subject to strong vibrations.

zNever expose the camera to rain and water.

1. Introduction

Features 5

Product & Accessories ……………………….………………………………………………………………………. 7

Parts Name & Functions ..…………………….……………………………………………………………………… 8

2. Installation

DIP Switch Setup ……………………………………………………………………………………………………… 9

Direct Installation on the Ceiling …………………………………………………………………………………… 11

Installation using Pendant Mount Bracket .....…………………………………………………………………….. 12

Installation using Wall Mount Bracket ……………………………………………………………………………… 13

Cabling ………………………………………………………………………………………………………………… 15

3. Operation

Check points before Operation …………………………………………………………………………………….. 18

Preset and Pattern Function Pre-Check …………………………………………………………………………… 18

Starting OSD Menu …………………………………………………………………………………………………… 19

Reserved Preset ………………………………………………………………………………………………………. 19

Preset ………………………………………………………………………………………………………………...... 19

Swing ………………………………………………………………………………………………………………...... 20

Pattern ..……………………………………………………………………………………………………………...... 21

Group ………………………………………………………………………………………………………………...... 22

www.ernitec.com

Indoor Mini Speed Dome Camera

CONTENTS

Other Functions …..………………………………………………………………………………………………...... 23

OSD Display of Main Screen ……………………………………………………………………………………...... 24

4. Menu

General Rules of Key operation for Menu .……………………………………………………………………...... 25

Main Menu ………………………………….……………………………………………………………………....... 25

Display Setup .……………………………….……………………………………………………………………...... 26

Privacy Zone Mask Setup .................…….……………………………………………………………………...... 27

Zoom Camera Setup .……………………….……………………………………………………………………...... 28

Motion Setup .……………………………….……………………………………………………………………...... 30

Preset Setup 32

Swing Setup ………………………………….……………………………………………………………………...... 34

Pattern Setup .……………………………….……………………………………………………………………....... 35

Group Setup ..……………………………….……………………………………………………………………....... 36

System Initialize …………………………….……………………………………………………………………....... 38

5. Specifications

x10 Zoom Model ..............………………….……………………………………………………………………...... 39

Dimension ..………………………………….……………………………………………………………………...... 40

Features

Camera Specifications

zCCD Sensor : 1/4" Interline Transfer CCD

zZoom Magnification : x10 Optical Zoom, x10 Digital Zoom (Max. ×100 Zoom) Æx10 Zoom Model

zDay & Night Function

zVarious Focus Mode : Auto-Focus / Manual Focus / Semi-Auto Focus.

zIndependent & Simultaneous Camera Characteristic Setup in Preset operation

Powerful Pan/Tilt Functions

zMax. 360°/sec high speed Pan/Tilt Motion

zUsing Vector Drive Technology, Pan/Tilt motions are accomplished in a shortest path. As a result, time to

target view is reduced dramatically and the video on the monitor is very natural to watch.

zFor jog operation using a controller, since ultra slow speed 0.05°/sec can be reached, it is very easy to locate

camera to desired target view. Additionally it is easy to move camera to a desired position with zoom-

proportional pan/tilt movement.

www.ernitec.com

Indoor Mini Speed Dome Camera

1. INTRODUCTION

Preset, Pattern, Swing, Group, Privacy Mask and More…

zMax. 127 Presets are assignable and characteristics of each preset can be set up independently, such as

White Balance, Auto Exposure, Label and so on.

zMax. 8 set of Swing action can be stored. This enables to move camera repetitively between two preset

positions with designated speed.

zMax. 4 of Patterns can be recorded and played back. This enables to move camera to follow any trajectory

operated by joystick as closely as possible.

zMax. 8 set of Group action can be stored. This enables to move camera repetitively with combination of

Preset or Pattern or Swing. A Group is composed of max. 20 entities of Preset/Pattern/Swings.

zPrivacy Masks are assignable, not to intrude on other’s privacy. (4 Privacy Zones)

PTZ(Pan/Tilt/Zoom) Control

zWith RS-485 communication, max. 255 of cameras can be controlled at the same time.

zPelco-D or Pelco-P protocol can be selected as a control protocol in the current version of firmware.

OSD(On Screen Display) Menu

zOSD menu is provided to display the status of camera and to configure the functions interactively.

zThe information such as Camera ID, Pan/Tilt Angle, Alarm Input and Preset can be displayed on screen.

Alarm I/O Functions

z4 alarm sensor Inputs are available.

zTo reject external electric noise and shock perfectly, alarm sensor Input is decoupled with photo coupler.

zThe signal range of sensor input is from DC 5.0 to 12.0 volts to adopt various applications.

zIf an external sensor is activated, camera can be set to move to the corresponding Preset position.

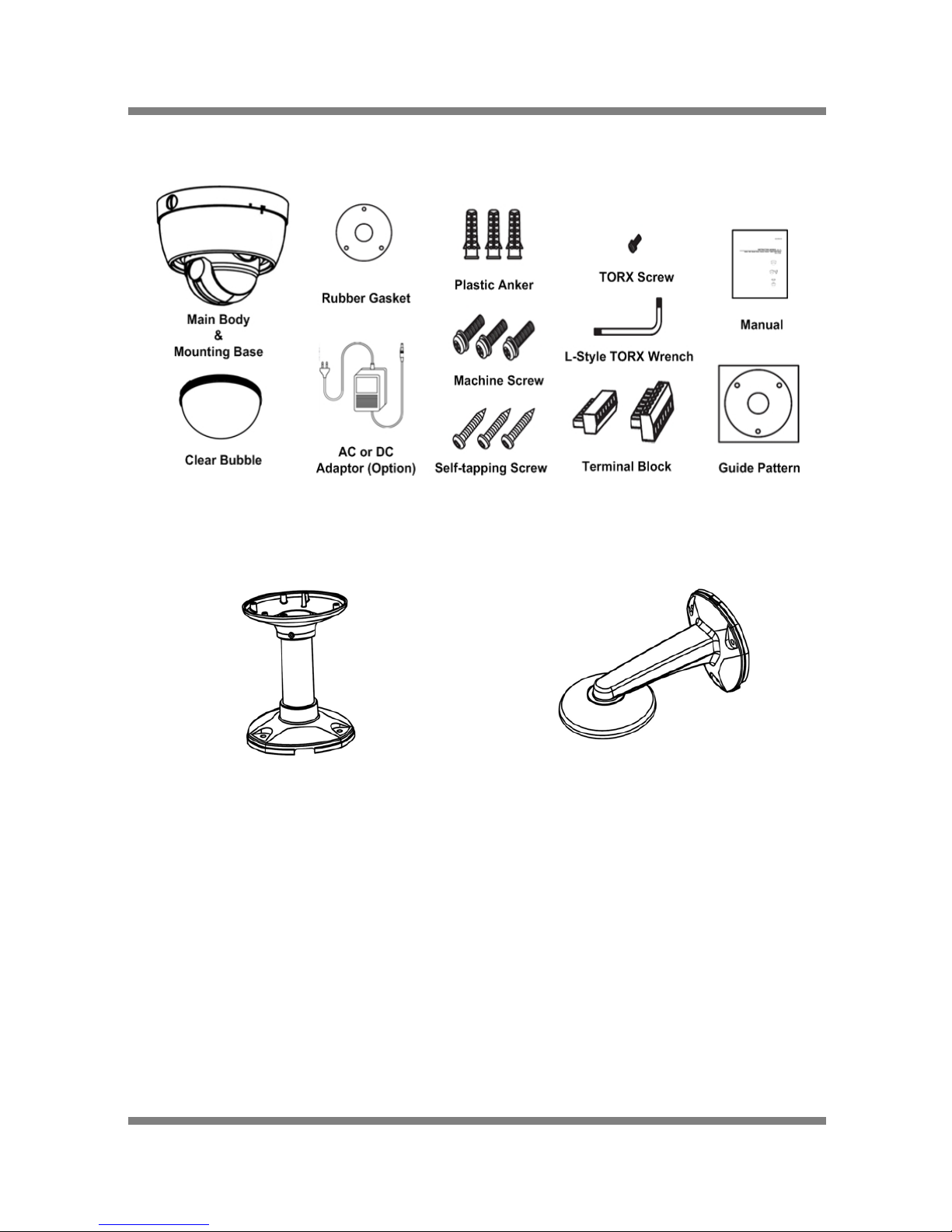

Product & Accessories

www.ernitec.com

Indoor Mini Speed Dome Camera

1. INTRODUCTION

Product & Accessories

Options

●Pendant Mount Bracket ●Wall Mount Bracket

Parts Name & Functions

www.ernitec.com

Indoor Mini Speed Dome Camera

1. INTRODUCTION

zMain Unit / Surface Mount Bracket zBack of Main Unit

zBubble Do not detach protection vinyl from the bubble before finishing all installation

process to protect the bubble from scratches or dust.

zSurface Mount Bracket This is used to install the camera directly on the ceiling. After separating this

cover first and then attach this directly to ceiling. Camera must be assembled at

the last stage.

zFixing Screw Fixes main unit to surface mount bracket.

zCabling Terminal Block During installation, Power, Video, Communication, Alarm Input cables are

connected on to this cabling terminal block.

zDIP Switch Adjusts camera ID and protocols.

DIP Switch Setup

Before you install the camera, you should set the DIP switches to configure the camera ID, communication protocol.

www.ernitec.com

Indoor Mini Speed Dome Camera

2. INSTALLATION

Camera ID Setup

zID number of camera is set using dip switch. The example is shown

bellow.

Pin 1 2 3 4 5 6 7 8

ID Value 1 2 4 8 16 32 64 128

ex) ID=5 on off on off off off off off

ex) ID=10 off on off on off off off off

Do not use 0 as camera IDzThe range of ID is 1~255. . Factory default of

Camera ID is 1.

zIf you want to control a certain camera, you must match the camera ID

with Cam ID setting of DVR or Controller.

Communication Protocol Setup

www.ernitec.com

Indoor Mini Speed Dome Camera

2. INSTALLAT2. INSTALLATIONION

zSelect the appropriate Protocol with DIP switch combination.

Switch State

(Pin 1)

Protocol

(Pin 2) (Pin 3)

OFF OFF OFF PELCO-D, 2400 bps

ON OFF OFF PELCO-D, 9600 bps

OFF ON OFF PELCO-P, 4800 bps

ON ON 0FF PELCO-P, 9600 bps

Others Reserved

zIf you want to control using DVR or P/T controller, their protocol must be

identical to camera. Otherwise, you can not control the camera.

zIf you changed camera protocol by changing DIP S/W, the change will be

effective after you reboot the camera.

zFactory default of protocol is “Pelco-D, 2400 bps”.

Termination Switch Setting

Termination switch(Pin 4) is used in cases listed below.

zLong-distance communication between the controller and the camera

(1-to-1 connection)

When the connecting distance between the two units is especially long,

communication errors may occur due to the impedance of transmission

cable. In this case, set the termination switch of both units to ON.

zControlling multiple cameras (Multiple connection)

The camera may not operate correctly if multiple cameras are connected

and controlled. In this case, set the termination switch of the controller and

the last connected camera to ON and the switch of other cameras is OFF.

Ex) Using the Terminating Resistance

Direct Installation on the Ceiling

www.ernitec.com

Indoor Mini Speed Dome Camera

①To pass cables to upside of ceiling, please, make about

50~60mm hole on the ceiling panel.

②Detach the marked part from the rubber gasket and

srew the surface mount bracket to the ceiling with

fixing screws.

You can use “Guide Pattern” for

the making holes.

③Wire cables to terminal block and connect the terminal

blocks to main unit.

④Insert the main body into the surface mount bracket

with the molding lines on each part being aligned

and turning clockwise.

⑤Insert the fixing screw tightly and detach the protection

vinyl from dome cover.

Installation using Pendant Mount Bracket
