ERNITEC MicroView MVCLOUD-101 Manuel utilisateur

Camera

Quick Start Guide

Network Cube Camera

MVCLOUD-101

Network Ernitec Cube Camera·Quick Start Guide

Quick Start Guide

About this Manual

This Manual is applicable to MVCLOUD -101 Network Ernitec

Cameras.

The Manual includes instructions for using and managing the

product. Pictures, charts, images and all other information here in

after are for description and explanation only. The information

contained in the Manual is subject to change, without notice, due to

firmware updates or other reasons. Please find the latest version in

the company website

Please use this user manual under the guidance of professionals.

Legal Disclaimer

REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF

PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS. OUR COMPANY

SHALL NOT TAKE ANY RESPONSIBILITES FOR ABNORMAL OPERATION,

PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER

ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET

SECURITY RISKS; HOWEVER, OUR COMPANY WILL PROVIDE TIMELY

TECHNICAL SUPPORT IF REQUIRED.

SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL

RELEVANT LAWS IN YOUR JURISDICTION BEFORE USING THIS

PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS THE

APPLICABLE LAW. OUR COMPANY SHALL NOT BE LIABLE IN THE

EVENT THAT THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES.

IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE

APPLICABLE LAW, THE LATER PREVAILS.

Network Ernitec Cube Camera·Quick Start Guide

Regulatory Information

FCC Information

FCC compliance: This equipment has been tested and found to

comply with the limits for a digital device, pursuant to part 15 of the

FCC Rules. These limits are designed to provide reasonable protection

against harmful interference when the equipment is operated in a

commercial environment. This equipment generates, uses, and can

radiate radio frequency energy and, if not installed and used in

accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in

a residential area is likely to cause harmful interference in which case

the user will be required to correct the interference at his own

expense.

FCC Conditions

This device complies with part 15 of the FCC Rules. Operation is

subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including

interference that may cause undesired operation.

EU Conformity Statement

This product and - if applicable - the supplied

accessories too are marked with "CE" and comply

therefore with the applicable harmonized European

standards listed under the EMC Directive 2004/108/EC, the RoHS

Directive 2011/65/EU.

Network Ernitec Cube Camera·Quick Start Guide

2012/19/EU (WEEE directive): Products marked with

this symbol cannot be disposed of as unsorted

municipal waste in the European Union. For proper

recycling, return this product to your local supplier

upon the purchase of equivalent new equipment, or dispose of it at

designated collection points. For more information see:

www.recyclethis.info

2006/66/EC (battery directive): This product contains

a battery that cannot be disposed of as unsorted

municipal waste in the European Union. See the

product documentation for specific battery

information. The battery is marked with this symbol,

which may include lettering to indicate cadmium (Cd), lead (Pb), or

mercury (Hg). For proper recycling, return the battery to your supplier

or to a designated collection point. For more information see:

www.recyclethis.info

Industry Canada ICES-003 Compliance

This device meets the CAN ICES-3 (A)/NMB-3(A) standards

requirements.

Safety Instruction

These instructions are intended to ensure that a user can use the

product correctly to avoid danger or property loss.

The precaution measure is divided into “Warnings” and “Cautions”

Warnings: Serious injury or death may occur if any of the warnings

are neglected.

Cautions: Injury or equipment damage may occur if any of the

cautions are neglected.

Network Ernitec Cube Camera·Quick Start Guide

Warnings

●Proper configuration of all passwords and other security settings

is the responsibility of the installer and/or end-user.

●In the use of the product, you must be in strict compliance with

the electrical safety regulations of the nation and region. Please

refer to technical specifications for detailed information.

●Input voltage should meet both the SELV (Safety Extra Low

Voltage) and the Limited Power Source with 12 VDC according to

the IEC60950-1 standard. Please refer to technical specifications

for detailed information.

●Do not connect several devices to one power adapter as adapter

overload may cause over-heating or a fire hazard.

●Please make sure that the plug is firmly connected to the power

socket. When the product is mounted on wall or ceiling, the

device shall be firmly fixed.

Warnings Follow these

safeguards to prevent

serious injury or death.

Cautions Follow these

precautions to prevent

potential injury or material

damage.

Network Ernitec Cube Camera·Quick Start Guide

●If smoke, odor, or noise rise from the device, turn off the power

at once and unplug the power cable, and contact the service

center.

Cautions

●Make sure the power supply voltage is correct before using the

camera.

●Do not drop the camera or subject it to physical shock.

●Do not touch sensor modules with fingers. If cleaning is

necessary, use a clean cloth with a bit of ethanol and wipe it

gently. If the camera will not be used for an extended period,

replace the lens cap to protect the sensor from dirt.

●Do not aim the camera at the sun or extra bright places.

Blooming or smearing may occur (which is not a malfunction),

and affect the sensor’s endurance at the same time.

●The sensor may be burned out by a laser beam, so when any

laser equipment is in use, make sure that the surface of sensor

will not be exposed to the laser beam.

●Do not place the camera in extremely hot, cold (the operating

temperature shall be-30°C to +60°C,or -40°C to+60°C if the

camera model has an “H” in its suffix), dusty, or damp locations,

and do not expose it to high electromagnetic radiation.

●To avoid heat accumulation, ensure that there is good

ventilation to the device.

●Keep the camera away from liquids.

Network Ernitec Cube Camera·Quick Start Guide

●While in delivery, pack the camera in its original, or equivalent,

packing, packing materials. Or packing of the same texture.

●Regular part replacement: a few parts (e.g. electrolytic

capacitor) of the equipment shall be replaced regularly

according to their average endurance. The average time varies

because of differences between operating environments and

usage history, so regular checking is recommended for all users.

Please contact your dealer for more details.

●Improper use or replacement of the battery may result in hazard

of explosion. Replace with the same or equivalent type only.

Dispose of used batteries according to the instructions provided

by the battery manufacturer.

●If the product does not work properly, please contact your

dealer or the nearest service center. Never attempt to

disassemble the camera yourself. (We shall not assume any

responsibility for problems caused by unauthorized repair or

maintenance.)

Network Ernitec Cube Camera·Quick Start Guide

Table of Contents

1 Appearance Description ................................................................. 9

1.1 TypeI& Type IICube Camera ............................................ 9

1.2 WPS Instruction ............................................................ 13

2 Installation.................................................................................... 14

2.1 Stand Mouting .............................................................. 15

2.2 Ceiling Mounting........................................................... 16

3 Setting the Network Camera over the LAN .................................. 19

3.1 Wiring ........................................................................... 19

4 Register Camera Into Ernitec Cloud Services ................................ 20

4.1 Register Camera from dashboard for professionals ....... 20

4.1.1 Register Camera ................................................. 20

4.1.2 Unregister Camera ............................................. 22

4.2 Register Camera with scan of the QR Code ................... 23

5 Download “Ernitec video” App on IOS/Android........................... 24

6 Wifi Network Setup ...................................................................... 26

6.1 With WPS button .......................................................... 26

6.2 With “Ernitec Cloud” Mobile App Or ernitec-cloud.com 26

Network Ernitec Cube Camera·Quick Start Guide

1Appearance Description

There are two cube camera appearances available for this camera

series, refer to the following chapter for details.

1.1 Type I & Type II Cube Camera

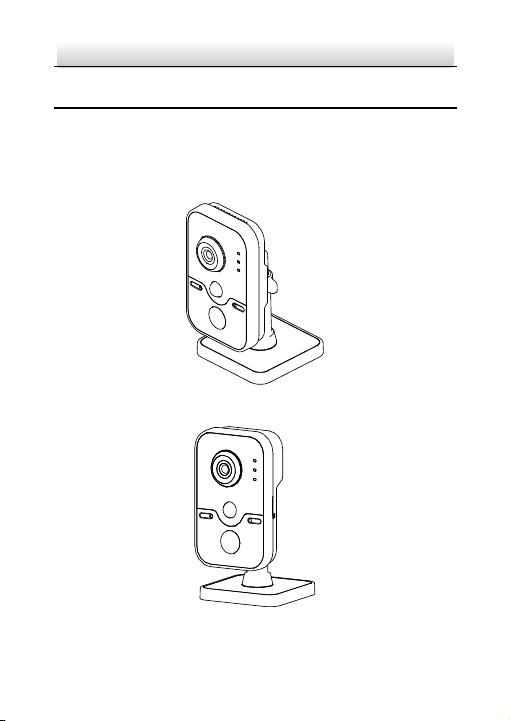

Figure 1-1 Type I Cube Camera

Figure 1-2 TypeII Cube Camera

Network Ernitec Cube Camera·Quick Start Guide

Figure 1-3 Front View and Side View of Type I and Type II Cube

Camera

Figure 1-4 Rear View of Type I Cube Camera
