Ergotron Glide LD Manuel utilisateur

1 of 15

888-45-305-W-00 rev. G • 06/19

Table of Contents

TV/Display Speciﬁcations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Safety Hazard Symbol Review. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Tools. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Determine mounting location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Mount Glide to wall:

Option A: wood stud walls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Option B: solid concrete walls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Attach TV/Display to Glide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Option A: no VESA adapter needed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Option B, C, D: with VESA adapters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Quick Release . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Route Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Test Range of Motion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Adjust according to applied load and desired user force . . . . . . . . . . . . . . . . . . . . . 14

Screen Capacity Lift Tilt Pan VESA

27”- 40” 10 - 30 lbs

(4.5 - 13.6 kg) ≥10”

(25.4mm)

TV/Display

10°

TV/Display

95°

Extension

180°

100 x 100

100 x 200

200 x 200

200 x 100

300 x 300

400 x 400

www.ergotron.com | USA: 1-800-888-8458 | Europe: +31 (0)33-45 45 600 | China: 400-120-3051 | Japan: [email protected]

Glide LD

User's Guide

For the latest User Installation Guide please visit: www.ergotron.com

2 of 15

888-45-305-W-00 rev. G • 06/19

Components

M4 x 15mm

M6 x 15mm

M5x 15mm

M8x 15mm

M4 x 30mm

M6 x 30mm

M5 x 30mm

M8 x 30mm

1x 1x

M6-M8

x 5mm

spacer

M6-M8

x 10mm

spacer

M4-M5

washer

M6-M8

washer

4x 4x 4x 4x

M8M5 kit

M8M5 Converter

Conversor M8M5

Convertisseur M8M5

M8M5-Konverter

M8M5 Convertor

Convertitore M8M5

M8M5 konverterare

M8M5サイズ変換ネジ

M8M5 转接件

M5 x 20mm

8x M4 x 6mm

2x 2x

M8 anchorM6 x 70mm

These symbols alert users of a safety condition that

demands attention. All users should be able to

recognize and understand the signicance of the fol-

lowing Safety Hazards if encountered on the product

or within the documentation. Children who are not

able to recognize and respond appropriately to Safety

Alerts should not use this product without adult

supervision!

Hazard Symbols Review Symbol SignalWord Level of Hazard

NOTE A NOTE indicates important information that helps you

make better use of this product.

CAUTION A CAUTION indicates either potential damage to

hardware or loss of data and tells you how to avoid the

problem.

WARNING AWARNING indicates either potential for property dam-

age, personal injury, or death.

ELECTRICAL An Electrical indicates an impending electrical hazard

which, if not avoided, may result in personal injury, re

and/or death.

3 of 15

888-45-305-W-00 rev. G • 06/19

TOOLS NEEDED

3/8”1/8”

3/8”

9.5-10mm

1/8”

3.2mm

80mm 80mm

10 mm

4 of 15

888-45-305-W-00 rev. G • 06/19

Determine mounting location.

CAUTION: Before proceeding with this installation consult your TV/large display product guide for

manufacturer recommendations on choosing a mounting location that will ensure optimum TV/large

display performance. Location considerations might include: TV/large display height and viewing

angle - based on height and distance of seating, room dimensions and size of TV/large display; access

to power outlets; cable connections for speakers and other devices; protection from glare and heat,

(windows, lamps, replace, air ducts) and vibration.

Locate the wall mount bracket on the wall using the dimensions below, as a guide.

5.1”

(130mm)

7.9”

(200mm)

2.2”

(57mm)

6.5”

(165mm)

Glide range of motion

upper, right position

Wall mount bracket

Glide range of

motion

lower, left position

5 of 15

888-45-305-W-00 rev. G • 06/19

M6 x70mm

1/8”

3.2mm

80mm

3-1/8”

10mm

NOTE: make sure extension bracket is

level before tightening bolts. Refer to

Step 3 on the page 7.

Mount extension bracket

Option A: wood stud walls

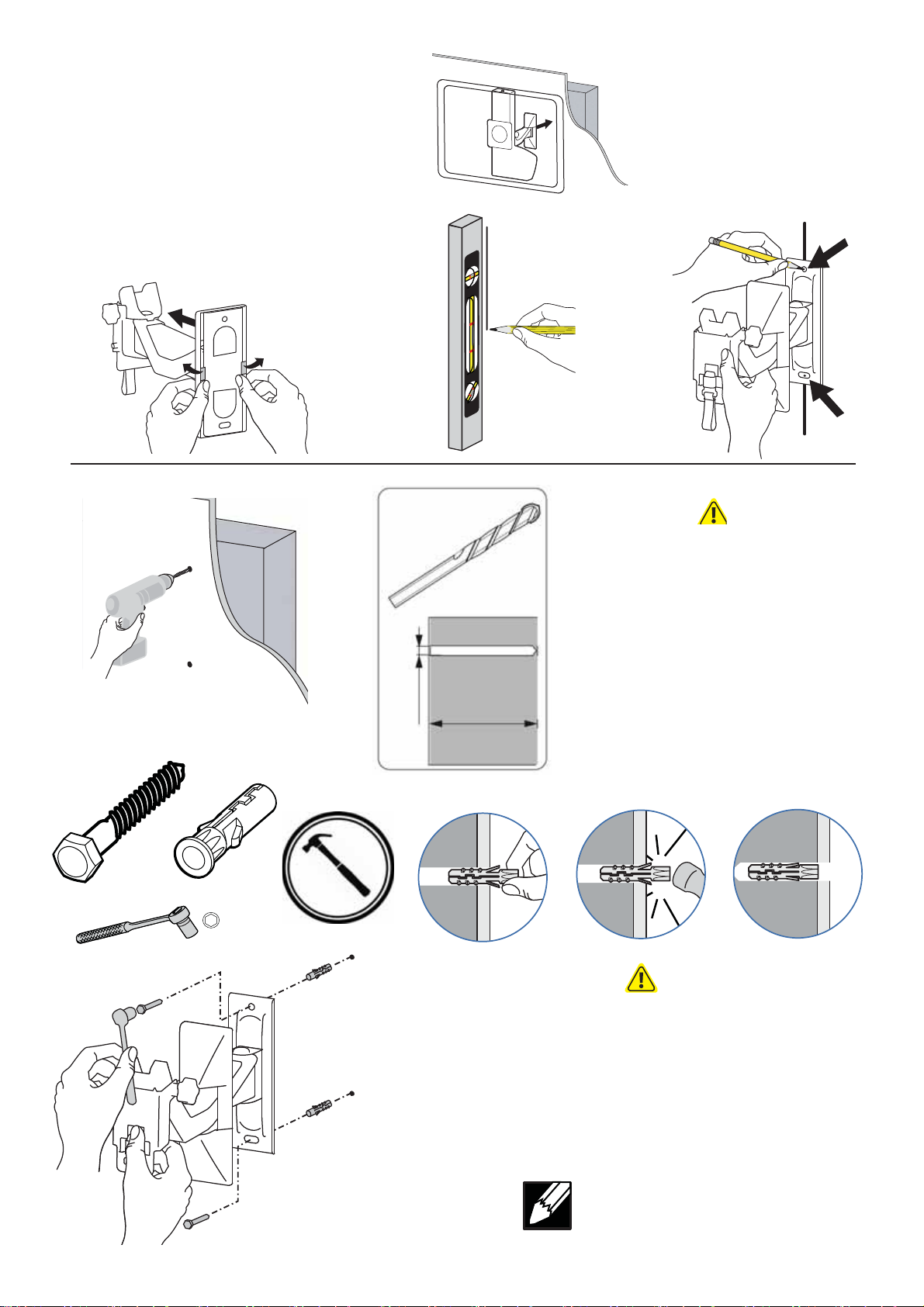

6 of 15

888-45-305-W-00 rev. G • 06/19

abc

10mm

WARNING:

Anchors that are not fully set in solid concrete will not support the applied

load resulting in an unstable, unsafe condition which could lead to personal

injury and/or property damage. Consult a construction professional if you

have any doubt about what this means in regard to your particular situation.

123

WARNING:

Mounting holes must be at least 3-1/8”

(80mm) deep and must be located within

solid concrete, not mortar or covering ma-

terial. If you drill into an area of concrete

that is not solid, reposition mounting holes

until both anchors can be fully inserted

into solid concrete!

3/8”

9.5-10mm

3-1/8”

80mm

M6 x70mm

2x 2x

NOTE: make sure extension bracket is level

before tightening bolts. Refer to Step 3 on the

next page!

M8 anchor

2Mount extension bracket

Option B: solid concrete walls

7 of 15

888-45-305-W-00 rev. G • 06/19

4Determine TV/large display mount fasteners

NOTE: If a stand is already attached to your TV/large display, remove it according to TV/large display manu-

facturer directions. Place the display on a clean, ﬂat, padded surface or, if you prefer, lean the TV/large display against a

stable, vertical surface.

Several sizes of screws and spacers have been provided for mounting the Glide brackets to your TV/large display-

choose those that best match the depth and diameter of the mounting holes on the back of your TV/large display, along

with the design of the area surrounding the mounting holes (Flat, Curved or Inset).

TV/Display Style

If your TV/large display has a curved or inset mounting hole conﬁguration, you may need to use the provided spacers or

washers with the screws.

Hole Depth and Diameter

Four sets of display bracket screws have been provided, each of a different diameter: 4mm, 5mm, 6mm, and 8mm.

Compare the screws with the diameter of the mounting holes at the back of your TV/large display to ﬁnd the same size.

NOTE: Washer A is provided for use with the 4mm and 5mm screws while Washer B works with 6mm and 8mm screws.

Test screw diameters and lengths until you ﬁnd the right match to your TV/large

display.

abc

Ensure the extension bracket is level.

8 of 15

888-45-305-W-00 rev. G • 06/19

5Determine if VESA adapters are needed between TV/display and Glide LD

Check the shape and size of your TV/large display mounting hole conﬁguration against the VESA con-

ﬁgurations shown below. Choose VESA option that matches and continue to Step 6 on the next page.

100mm

100 x 100

100 x 200

200 x 200

300 x 300

400 x 400

200 x 100

400mm

200mm

300mm

100mm

200mm

100mm

200mm

400mm

200mm

300mm

Option A

Option B

Option C

Option D

VESA Mounting Hole ConﬁgurationsTV/large display Mounting Hole Conﬁgurations

9 of 15

888-45-305-W-00 rev. G • 06/19

Option A: Attach TV/large display to the Glide LD

using fasteners determined in step 4.

Continue to

Step 7 on

page 12.

6mm

Penta wrench

M4 x 6mm penta

Options B, C, and D

Attach VESAAdapters to Glide using 8 M4x6mm penta screws.

Step 6 details

continued on the

next page.

10 of 15

888-45-305-W-00 rev. G • 06/19

VESA Mounting Hole

Conﬁgurations

Option B Option C Option D

Rotate VESA plate to access mounting holes.

Step 6

continued

on the

page.

8x M4 x 6mm
